How To Tell If Blend Door Actuator Is Bad: Complete Diagnostic And Testing Guide
A failing blend door actuator typically manifests as clicking noises behind the dashboard, air blowing at the wrong temperature, or a complete failure to switch between heating and cooling modes. Diagnosing this climate control fault requires verifying power and ground inputs at the actuator harness, inspecting internal plastic gear integrity, and monitoring live HVAC data via an advanced OBD-II scanner.
Pre-Operation & Equipment Checklist
A proper diagnostic procedure prevents unnecessary dashboard tear-downs and confirms whether the fault lies within the electronic climate control module, the blend door itself, or the motor assembly. Mechanics must differentiate between the blend door actuator (which regulates air temperature) and the mode door actuator (which directs air flow to the vents, floor, or defrost).
- Essential Gear, Tools, and Materials:
- Digital Multimeter (capable of measuring DC voltage and resistance)
- Automotive OBD-II scanner capable of reading manufacturer-specific body control (B-codes) or HVAC codes
- Metric socket set, ratchet, and extension bars (typically 7mm, 8mm, and 10mm)
- Trim removal tools and a compact flashlight or inspection mirror
- Replacement blend door actuator matched to your vehicle's exact make, model, year, and climate control system (manual vs. automatic dual-zone)
- Mandatory Prerequisite Knowledge and Standards:
- Familiarity with low-voltage DC automotive electrical circuits (12V reference, 5V feedback loops, and ground paths).
- Understanding of HVAC calibration procedures, which often require a module reset or manual relearn sequence after actuator replacement.
- Estimated Budget and Duration Benchmarks:
- Diagnostic time: 30 to 45 minutes.
- Repair time: 1 to 3 hours (depending on whether the actuator is located near the glove box or deeply embedded behind the center console near the heater core).
- Component cost: $35 to $150 USD.
Step-by-Step Diagnostic and Testing Procedure
Step 1: Perform an Auditory and Visual HVAC Function Test
Turn the vehicle ignition to the ON position without starting the engine, and switch the HVAC system blower to its lowest setting so ambient cabin noise is minimized. Cycle the temperature control knob or digital climate buttons from maximum cold to maximum heat while listening closely to the dashboard.
Listen for rapid clicking, ticking, snapping, or continuous humming noises emanating from behind the glove box, center console, or instrument cluster. These acoustic anomalies indicate that the electric motor is spinning, but stripped or broken teeth on the internal nylon gears are failing to engage the blend door arm.
Warning: Never force a stuck climate control knob or button, as applying excessive physical torque can permanently damage the electronic control head or snap the plastic HVAC housing blend door linkage.
Step 2: Scan the Vehicle Computer for Stored HVAC Trouble Codes
Connect an advanced OBD-II diagnostic scanner to the under-dash Data Link Connector (DLC) port and scan the vehicle for diagnostic trouble codes. While generic OBD-II readers focus exclusively on powertrain (P-codes), chassis and body modules often log specific fault codes related to climate control actuators.
Look for specific body control codes such as B1004, B0408, or manufacturer-specific HVAC actuator feedback circuit failures. If a feedback potentiometer voltage out-of-range code is present, it confirms that the blend door actuator's internal position sensor is failing to report its precise physical location back to the climate control module.
Step 3: Access and Inspect the Physical Actuator Assembly
Locate the blend door actuator by referencing vehicle-specific service manuals, noting that driver-side temperature actuators often sit near the accelerator pedal assembly while passenger-side or main blend actuators are typically accessed by removing the glove box and lower dash trim panel. Inspect the exterior housing of the actuator for cracking, thermal warping, or connector corrosion.
Verify that the electrical wiring harness connector is fully seated and that the locking tab is intact. Gently wiggle the harness while adjusting the cabin temperature to determine if an intermittent electrical fault or loose pin tension is causing the system to drop out.
Step 4: Perform Multimeter Voltage and Circuit Testing Back-Probing
Back-probe the actuator electrical connector using a digital multimeter set to DC volts to verify that power, ground, and command signals are reaching the unit. Most modern actuators utilize a 3-wire or 5-wire configuration: a 12-volt constant or switched power supply, a clean chassis ground, a 5-volt reference signal, and a variable signal return wire.
Observe the multimeter reading on the signal return wire while turning the temperature dial from cold to hot. If the input power and ground are solid, but the output signal voltage remains static despite command changes, the internal circuitry of the blend door actuator has failed.
Step 5: Isolate the Actuator Motor from the Mechanical Blend Door Linkage
Unbolt the actuator (usually held in place by two or three small 7mm or 8mm screws) and carefully pull the motor housing away from the HVAC plenum box while leaving the electrical harness plugged in. Manually move the exposed plastic blend door crank arm by hand to ensure the internal air door swings smoothly from stop to stop without binding, catching, or encountering obstructions like foreign objects in the ductwork.
Command the temperature controls on the dashboard while observing the detached actuator motor output shaft; if the shaft fails to rotate when commanded, or chatters violently in place, the motor internal gear train is definitively broken and requires complete component replacement.

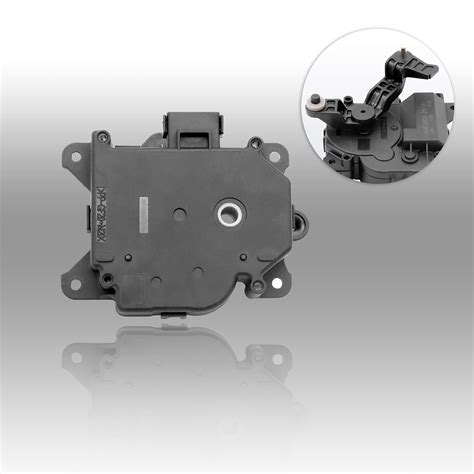

Snapklik.com : Set Of 2 HVAC Blend Door Actuator Replacement For Chevy ...
Diagnostic Parameter Comparison for Climate Control Faults
| Symptom Profile | Primary Mechanical Cause | Electrical Testing Result | Corrective Action |
|---|---|---|---|
| Rapid Clicking / Ticking | Stripped internal nylon gears or broken teeth. | Motor spins; feedback voltage fluctuates erratically. | Replace the actuator assembly and inspect door linkage. |
| Stuck on Hot or Cold | Burned-out electric motor winding or jammed door. | Power present at harness; zero motor shaft movement. | Test door for manual binding; replace failed actuator. |
| Intermittent Temp Shifts | Loose wiring connector pin tension or dry solder joint. | Voltage drops out intermittently when harness is flexed. | Clean terminal pins, repair wiring, or replace connector. |
| Calibration Drift | Lost memory position in auto climate module. | Signals normal, but door stops short of full travel. | Perform an HVAC module reset or automatic actuator relearn. |
Common System Failures and Field Fixes
- Root Cause: Stripped internal gear teeth caused by excessive resistance from a stiff or warped HVAC blend door pivot pin.
- Actionable Fix: Always inspect and lubricate the blend door hinge mechanism with a silicone-based, plastic-safe grease before installing a new actuator to prevent premature gear failure on the replacement unit.
- Root Cause: Water or condensation intrusion dripping down from the evaporator housing directly onto the low-mounted electrical connector of the floor-adjacent actuator.
- Actionable Fix: Inspect the AC evaporator drain tube for clogging or blockages, clear any debris to ensure proper condensate runoff, and repair any corroded terminals in the wiring harness pigtail.
- Root Cause: Loss of initialization calibration after vehicle battery disconnection or jump-starting.
- Actionable Fix: Execute the specific manufacturer module relearn procedure, which often involves turning the ignition to the on position, disconnecting the HVAC fuse for sixty seconds, reinserting the fuse, and leaving the system unadjusted for several minutes while the module recalibrates internal door limits.
