How To Tell If The Ballast Is Bad: Step-by-Step Diagnostic And Testing Guide

A failing ballast typically reveals itself through diagnostic signs like loud humming, strobing bulbs, or black residue on the ballast casing, but a digital multimeter test provides the only definitive diagnosis. By measuring the continuity of the internal magnetic coils or verifying incoming line voltage, you can safely determine if the ballast has suffered an internal short or component failure. Replacing a compromised ballast immediately prevents electrical hazards, stops premature bulb failure, and restores efficient, flicker-free lighting to your space.

Pre-Test Safety Protocol and Diagnostic Equipment Checklist

Before attempting to diagnose a lighting fixture, you must understand the basic operation of a ballast. Whether you are dealing with older magnetic ballasts or modern electronic ballasts, these devices regulate the electrical current running to your fluorescent or High-Intensity Discharge (HID) lamps. Over time, heat, moisture, and electrical surges degrade the internal copper windings, capacitors, and solid-state components.

Working with electrical fixtures carries an inherent risk of high-voltage shock. You must isolate the electrical circuit at the breaker panel and verify the absence of voltage before touching any internal wiring. Additionally, older magnetic ballasts manufactured before 1979 may contain toxic Polychlorinated Biphenyls (PCBs) within their insulating oil.

Required Gear, Tools, and Materials

• Digital Multimeter (DMM): Capable of measuring alternating current (AC) voltage and resistance (Ohms).
• Non-Contact Voltage Tester: For verifying that power is completely cut to the fixture.
• Insulated Screwdrivers and Nut Drivers: To safely remove the fixture cover and ballast mounting screws.
• Wire Strippers and Electrical Tape: For preparing wire leads during testing or replacement.
• Wire Connectors (Wire Nuts): For reconnecting wires after testing is complete.
• Personal Protective Equipment (PPE): Nitrile gloves (especially if dealing with older, potentially leaking ballasts) and safety glasses.

Prerequisite Knowledge & Project Benchmarks

• Estimated Duration: 20 to 30 minutes.
• Difficulty Level: Intermediate (requires basic knowledge of electrical circuits and safe multimeter operation).
• Estimated Budget: $0 (if you already own a multimeter) or $15 to $45 for a replacement electronic ballast if the existing unit is faulty.

Step-by-Step Diagnostic Workflow for Testing a Lighting Ballast

Follow these systematic instructions to isolate, inspect, and electrically test your lighting ballast. By executing these steps in order, you can rule out bad bulbs and faulty tombstones (sockets) before concluding that the ballast itself is defective.

Step 1: Analyze Visual and Acoustic Symptoms of the Fixture

Before cutting power, observe the fixture in operation to note its behavior. These operational patterns are strong indicators of ballast health.

1. Look for flickering or strobing: If the bulbs flicker consistently, especially after they have been turned on for several minutes, the ballast is struggling to maintain a steady current.
2. Observe delayed starting: If the lamps take several seconds or minutes to ignite, or if they only glow faintly at the ends (often accompanied by dark bands on the glass tubes), the ballast is failing to deliver the necessary high-voltage starting strike.
3. Listen for audible humming or buzzing: Magnetic ballasts contain laminated steel cores wrapped in copper wire. As the ballast ages, the laminations loosen, causing them to vibrate at 60 Hz under the alternating current. This phenomenon, known as magnetostriction, produces a distinct, loud hum. Modern electronic ballasts should operate silently; any noise from an electronic ballast indicates an immediate internal failure.

Pro-Tip: Always swap out the existing bulbs with brand-new, known-working bulbs before condemning the ballast. If the new bulbs exhibit the exact same symptoms (flickering, lazy start, or failure to light), the issue lies within the fixture's internal circuitry or the ballast itself.

Step 2: Inspect the Ballast Casing for Physical Degradation

Many bad ballasts can be identified immediately upon physical inspection without taking any electrical measurements.

1. Turn off the wall switch controlling the light fixture.
2. Carefully remove the plastic lens or diffusers from the fixture.
3. Remove the fluorescent tubes or HID lamps and set them aside in a secure location.
4. Remove the metal cover plate (often called the ballast cover or wireway cover) by squeezing the sides or removing the retaining screws to expose the ballast and internal wiring.
5. Perform a thorough visual inspection of the ballast casing. Look for any signs of swelling, bulging, or warping on the metal housing, which indicates extreme overheating.
6. Check for scorched areas, black soot, or a distinct, acrid burning smell.
7. Inspect the unit for leaking oil or tar-like potting compound.

Warning: If you discover a oily, black liquid leaking from an older magnetic ballast, do not touch it with bare hands. This substance may contain toxic PCBs. Wear protective nitrile gloves, carefully remove the ballast, and dispose of it at a local hazardous waste recycling facility in accordance with local regulations.

Step 3: Isolate the Circuit and Verify Zero Voltage

Safety is paramount. You must ensure that the wiring feeding the fixture is completely dead before proceeding to electrical testing.

1. Locate your property's main service panel (breaker box).
2. Identify and switch off the circuit breaker that controls the light fixture you are testing.
3. Return to the fixture and attempt to turn on the wall switch. The light should remain off.
4. Hold your non-contact voltage tester against the hot supply wire (typically black or red) entering the fixture from the ceiling or wall. The tester should not beep or light up.
5. Double-check the non-contact tester against a known live outlet to confirm the tool is functioning correctly, then test the fixture wires one more time.

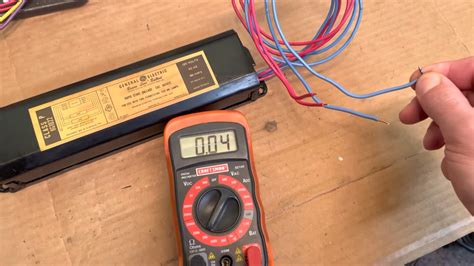

Step 4: Execute a Continuity and Resistance Test on Magnetic Ballasts

This test is designed for traditional magnetic ballasts. It measures the integrity of the internal copper coils (windings) to check for open circuits or internal shorts.

1. With the power verified off, locate the input side of the ballast, which features a black (hot) wire and a white (neutral) wire.
2. Disconnect these two input wires from the house supply wiring by unscrewing the wire nuts.
3. Set your digital multimeter to the lowest Ohms ($\Omega$) setting, or to the continuity setting (which makes an audible beep if a continuous path exists).
4. Touch one multimeter probe to the copper end of the ballast's black input wire and the other probe to the copper end of the white input wire.
5. Interpret the reading:


   • A healthy magnetic ballast should show a continuous path with a low, steady resistance reading (typically between 10 and 100 Ohms, depending on the manufacturer).
   • If your multimeter displays "OL" (Open Loop) or infinite resistance, the internal primary winding is broken (open circuit). The ballast is bad and must be replaced.
   • If the reading is 0.0 Ohms or extremely close to it, the winding has short-circuited, which will trip your breaker when powered. The ballast is bad.
6. Next, check for a ground fault. Touch one multimeter probe to the metal ballast casing (ensure you touch bare metal, scratching through any paint if necessary) and the other probe to the black input wire, then the white input wire.
7. Interpret the reading:


   • A healthy ballast will show "OL" (infinite resistance) between the input wires and the metal casing.
   • If you get any resistance reading or a continuity beep, the internal windings are shorting to the metal housing. This is a severe shock hazard, and the ballast must be replaced immediately.

Step 5: Diagnose Electronic Ballasts via Voltage Verification

Modern electronic ballasts use solid-state circuit boards, transistors, and high-frequency oscillators rather than heavy copper coils. Because of this complex circuitry, you cannot reliably test them using a simple resistance/continuity test on the output wires. Instead, you must verify that the ballast is receiving the correct incoming voltage and failing to convert it.

1. Ensure your multimeter is set to measure AC Voltage (V~ or VAC) at a range higher than your nominal household voltage (set it to at least 200V AC or auto-range).
2. Carefully restore power at the circuit breaker with the wall switch turned on. Keep your hands clear of the exposed wiring.
3. Touch the red multimeter probe to the black input wire (line) feeding the ballast, and the black probe to the white input wire (neutral).
4. Interpret the reading:


   • If your multimeter reads 110V to 125V AC (or 277V AC in commercial systems), the fixture is receiving proper power from the electrical panel.
   • If the input voltage is correct, but the connected, brand-new bulbs still refuse to illuminate, flicker wildly, or only glow dimly at the sockets, the internal electronic components (such as the rectifier or high-frequency inverter) have failed. The electronic ballast is bad.
5. Turn the circuit breaker back off before cleaning up your workspace or installing a replacement.

Comparison of Ballast Types and Failure Benchmarks

The table below outlines the operational parameters, typical lifespans, and direct testing diagnostics for the most common ballast types found in residential and commercial environments.

Practical Lighting Circuit Failures and Field Remedies

When diagnosing lighting issues on site, you will occasionally run into symptoms that mimic a bad ballast but are actually caused by external variables. Use these real-world failure scenarios to quickly isolate and resolve the root cause of your lighting failures.

Scenario 1: New fluorescent bulbs flicker or cycle on and off repeatedly

• Root Cause: This is often caused by an incorrect pairing between the lamp type and the ballast type, or extreme cold ambient temperatures. For instance, installing T12 bulbs in a fixture designed for a T8 electronic ballast can cause erratic current regulation. Alternatively, older magnetic ballasts struggle to strike and maintain an arc in ambient temperatures below 50°F (10°C).
• Actionable Fix: Verify that the lamp diameter (T5, T8, or T12) matches the technical specifications printed directly on the ballast label. If the room is cold, replace the old magnetic ballast with a cold-weather-rated electronic ballast or convert the fixture to cold-temperature-rated LED tubes.

Scenario 2: The light fixture hums loudly, but the bulbs are bright and working

• Root Cause: This indicates a magnetic ballast that is approaching the end of its operational life. The internal steel laminations are vibrating against each other due to the degradation of the insulating varnish and potting compound inside the metal case. While the ballast is technically still outputting the correct voltage, it is consuming excess energy and generating high heat, which will eventually lead to complete failure.
• Actionable Fix: Replace the noisy magnetic ballast with a modern, silent electronic ballast. Alternatively, perform a ballast-bypass conversion and install direct-wire (Type B) LED tubes, which run on line voltage and do not require a ballast at all.

Scenario 3: The multimeter shows zero input voltage at the ballast connections

• Root Cause: The ballast itself may not be bad. Instead, the failure lies upstream in the electrical circuit. This could be due to a tripped circuit breaker, a failed wall switch, a loose wire connector in the junction box, or a broken wire inside the ceiling canopy.
• Actionable Fix: Reset the circuit breaker in your electrical panel. If it trips again immediately, you have a short circuit in the wiring or inside the ballast. If the breaker stays on but no power reaches the fixture, check the wall switch for continuity and inspect all intermediate wire nuts to ensure tight, secure copper-to-copper connections.

Scenario 4: Bulbs are dark, but the ballast tests fine for resistance and input voltage

• Root Cause: The electrical connection is failing at the tombstone sockets (the plastic lampholders at either end of the fixture). Over time, the metal spring contacts inside the tombstones stretch out, corrode, or crack, preventing electrical contact with the brass pins on the ends of the bulbs.
• Actionable Fix: With power safely turned off, inspect the tombstones for physical cracks or burn marks. Gently wiggle the socket; if it is loose or broken, slide it out of the metal fixture housing and replace it with a new matching tombstone socket. Clean any light corrosion off the contacts using a small wire brush or contact cleaner before reinstalling the bulbs.

Frequently Asked Questions

Can a bad ballast burn out brand-new light bulbs?

Yes, a failing ballast can quickly destroy new light bulbs. If the internal voltage regulator or capacitor in a ballast fails, it may deliver an unregulated, excessively high electrical current to the lamp. This surge overheats the bulb's internal filaments or electrodes, causing them to burn out prematurely, often turning the ends of a fluorescent tube black within minutes of installation.

Can I replace an older T12 magnetic ballast with a T8 electronic ballast?

Yes, you can replace a T12 magnetic ballast with a T8 electronic ballast, but you must also replace the older T12 bulbs with energy-efficient T8 bulbs. The new T8 electronic ballast is designed to wire directly into the existing fixture housing, and it will operate silently while drawing significantly less energy than the old magnetic system.

What causes a lighting ballast to fail prematurely?

The primary driver of premature ballast failure is heat buildup. Operating fixtures in unventilated enclosures, using bulbs with mismatched wattages, or running the lights continuously for long periods accelerates the breakdown of the internal electrical insulation. Frequent power surges and high humidity levels also degrade the solid-state capacitors inside modern electronic ballasts.

How can you tell if a ballast is bad without using a multimeter?

You can identify a bad ballast without a multimeter by observing distinct physical and visual signs. These include a persistent high-pitched or low-frequency humming sound, oil or black tar leaking from the fixture, visible swelling or burn marks on the ballast casing, and a strong, acrid burning smell. If these physical signs are present alongside flickering or non-functional bulbs, the ballast is defective.

Is it better to replace a bad ballast or upgrade the fixture to LED?

In almost all cases, it is highly recommended to upgrade the fixture to LED rather than replacing a bad ballast. By executing a ballast-bypass (Type B) LED retrofit, you remove the ballast from the circuit entirely and wire the incoming line voltage directly to the sockets. This permanently eliminates future ballast failures, slashes energy consumption by up to 60%, and provides a much longer operational life.
