Comprehensive Guide To Taping Heel Pain: Professional Techniques For Plantar Fasciitis Relief

Relieving heel pain through therapeutic taping requires mechanical unloading of the plantar fascia and stabilization of the medial longitudinal arch to reduce tensile stress. By applying rigid zinc oxide tape or elastic kinesiology tape using the Low-Dye or "X" pattern, individuals can achieve significant pain reduction during weight-bearing activities while promoting functional recovery of the foot’s soft tissues.

Clinical Preparation and Taping Material Specifications

Success in taping for heel pain—specifically for conditions like plantar fasciitis, fat pad atrophy, or calcaneal stress—depends heavily on the quality of the application and the preparation of the skin surface. Proper adhesion prevents the tape from migrating during the gait cycle, which ensures consistent mechanical support. Before beginning the application, it is essential to assess the skin for allergies, particularly to latex or acrylic adhesives, and to ensure the foot is in a neutral or slightly dorsiflexed position.

• Essential Taping Gear:




  • Rigid Zinc Oxide Tape: Preferably 1.5-inch width for structural support (e.g., Leukotape or Mueller P-Tape).
  • Kinesiology Tape: High-stretch elastic tape for dynamic support and proprioception.
  • Underwrap/Pre-wrap: Optional for sensitive skin, though it may reduce the mechanical effectiveness of the tape.
  • Adhesive Spray/Tincture of Benzoin: To increase the longevity of the tape in high-friction environments.
  • Isopropyl Alcohol (70%): For removing oils, sweat, and lotions from the skin surface.
  • Bandage Scissors: For precise cutting and rounded edges (especially for kinesiology tape).

• Mandatory Prerequisite Knowledge:




  • Anatomical Landmarks: Identify the first and fifth metatarsal heads (the "ball" of the foot) and the medial calcaneal tubercle (the primary site of heel pain).
  • Positioning: The patient should be seated with the foot hanging off the edge of a table, maintained at a 90-degree angle to the shin (neutral dorsiflexion).
  • Tension Rules: Rigid tape is applied with firm tension to restrict movement; kinesiology tape is applied with varying tension (25% to 75%) depending on the goal of the strip.

• Estimated Benchmarks:




  • Preparation Time: 3–5 minutes.
  • Application Time: 5–10 minutes.
  • Wear Duration: Rigid tape (24–48 hours); Kinesiology tape (3–5 days).

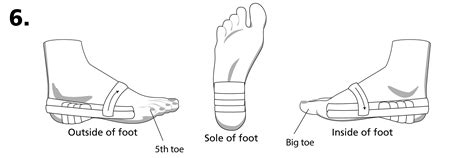

Master Class: The Low-Dye Taping Technique for Heel Support

The Low-Dye technique is the gold standard for clinical heel pain management. It works by "shortening" the foot and supporting the arch, thereby taking the strain off the plantar fascia at its insertion point on the heel.

Step 1: Skin Preparation and Anchoring

Thoroughly clean the sole and sides of the foot with alcohol. If the area is excessively hairy, shaving is recommended 24 hours prior to prevent folliculitis. Once dry, apply a light coat of adhesive spray. Start by applying a "base anchor" strip of rigid tape around the metatarsal heads.

1. Begin at the base of the big toe (1st metatarsal head).
2. Wrap the tape around the lateral side (outside) of the foot, across the 5th metatarsal head.
3. Ensure the tape is not applied too tightly around the circumference of the foot, as the foot expands upon weight-bearing.

Pro-Tip: Always leave a small gap on the top (dorsum) of the foot to allow for natural metatarsal splay and to avoid compromising circulation.

Step 2: Constructing the Medial Arch Support

The goal here is to create a "sling" that lifts the arch. This requires a specific direction of pull to ensure the biomechanics of the foot are corrected rather than hindered.

1. Start a strip of rigid tape at the base of the small toe (5th metatarsal head).
2. Pull the tape around the back of the heel (calcaneus).
3. Direct the tape diagonally across the sole of the foot, ending at the base of the big toe (1st metatarsal head).
4. As you lay the tape down near the arch, use your thumb to manually push the arch upward while pulling the tape toward the big toe.

Warning: Do not apply excessive tension behind the Achilles tendon. The tension should be concentrated on the plantar (bottom) surface of the foot.

Step 3: The "X" Pattern for Plantar Fascia Unloading

This step reinforces the arch and provides a mechanical barrier to over-pronation. You will create a cross-brace on the bottom of the foot.

1. Strip A: Start at the 1st metatarsal head, run the tape diagonally across the arch, around the heel, and end back at the 1st metatarsal head.
2. Strip B: Start at the 5th metatarsal head, run the tape diagonally across the arch, around the heel, and end back at the 5th metatarsal head.
3. These strips should intersect in the middle of the arch, creating a reinforced "X" that mimics the supportive function of the plantar fascia.

Step 4: Transverse Arch Strips (Closing)

To secure the longitudinal strips and provide additional lift, apply horizontal strips across the bottom of the foot.

1. Start at the heel and move toward the ball of the foot.
2. Apply 3 to 5 strips of rigid tape horizontally.
3. Each strip should start on the lateral (outer) edge and be pulled toward the medial (inner) edge. Pulling "up and in" helps create the arch lift.
4. Ensure the ends of these strips overlap the initial anchor created in Step 1.

Step 5: Final Security and Function Check

The final step ensures the tape will stay in place during movement and that it is not restricting blood flow.

1. Apply one final anchor strip over the ends of the transverse strips on the sides of the foot.
2. Smooth down all edges with your hands; the warmth from your palms helps activate the adhesive.
3. Have the individual stand up and walk. They should feel an immediate "lifting" sensation in the arch and a reduction in heel strike pain.

Comparative Analysis of Therapeutic Taping Materials

Selecting the right material is critical for balancing support with comfort. Use the following table to determine which tape suits your activity level and the severity of your heel pain.

Common Mechanical Failures and Clinical Fixes

Even with the correct technique, environmental factors or anatomical variations can cause the tape to fail. Addressing these issues promptly prevents skin breakdown and ensures continuous therapeutic benefits.

• The Tape Peels or Rolls at the Edges




  • Root Cause: Sharp corners on the tape snagging against socks or failure to clean skin oils properly.
  • Actionable Fix: Always round the corners of the tape with scissors before application. Use a "skin prep" or adhesive tackifier spray to create a tacky surface for the tape to bond with.

• Development of Skin Blisters or Redness




  • Root Cause: Excessive tension on the skin at the anchor points or an allergic reaction to the adhesive.
  • Actionable Fix: Remove tape immediately if itching or burning occurs. When reapplying, use a "protective barrier" film or a single layer of paper tape under the zinc oxide tape to protect the epidermis.

• Numbness or Tingling in the Toes




  • Root Cause: The transverse (horizontal) strips were applied too tightly, constricting the metatarsal heads or the dorsal blood vessels.
  • Actionable Fix: Never wrap tape in a full circle around the foot. Always leave the top of the foot open or use a very stretchy tape for the "closing" strips to allow for foot expansion during weight-bearing.

• No Reduction in Pain Levels




  • Root Cause: The tape is not providing enough "lift" to the arch because the foot was in a relaxed (pointed) position during application.
  • Actionable Fix: Re-apply the tape ensuring the foot is held strictly at a 90-degree angle (neutral dorsiflexion) and ensure you are pulling the medial strips upward to manually create the arch during the lay-down phase.

Frequently Asked Questions

Can I wear heel tape while sleeping?

Yes, you can wear the tape while sleeping, and it is often recommended for those who experience "first step in the morning" pain. The tape keeps the plantar fascia in a slightly lengthened and supported position overnight, preventing the fascia from tightening and micro-tearing when you first stand up.

How do I safely remove rigid medical tape without damaging the skin?

To avoid "skin stripping," do not pull the tape upward at a 90-degree angle. Instead, use an adhesive remover or baby oil to soak the tape, then peel it back slowly on itself (180-degree angle) while pressing the skin down away from the tape.

Can I shower with the tape on?

Kinesiology tape is designed to be water-resistant and can be patted dry after a shower. Rigid zinc oxide tape, however, tends to absorb water and lose its structural integrity; if it gets wet, it is generally best to remove and reapply it to prevent skin maceration.

How tight should the tape be around my heel?

The tape should be snug enough to feel like a "firm hug" or a supportive splint, but it should never cause discoloration of the toes or a throbbing sensation. If you feel a pulse in your foot or your toes feel cold, the tape is too tight and must be adjusted immediately.

Is taping a permanent solution for heel pain?

Taping is a highly effective short-term management tool that provides immediate mechanical relief. However, it should be used in conjunction with a comprehensive rehabilitation program including calf stretching, intrinsic foot muscle strengthening, and proper footwear to address the underlying cause of the pain.

Implement a Comprehensive Foot Recovery Protocol

Integrating professional taping techniques into your daily routine offers the mechanical support necessary for long-term tissue healing and pain management. Combine these taping methods with evidence-based stretching and strengthening exercises to ensure a full return to pain-free mobility and athletic performance.
