How To Take Freon Out Of Car: Complete Professional Recovery Guide
Removing refrigerant from an automotive air conditioning system requires specialized recovery equipment to comply with federal environmental regulations and prevent atmospheric contamination. Venting R-134a or R-1234yf directly into the atmosphere is illegal under EPA Section 608 and 609 clean air acts, making certified evacuation machines mandatory for any safe discharge procedure.
Pre-Procedure Planning and Equipment Requirements
Extracting refrigerant safely from a vehicle's mobile air conditioning (MAC) system requires adherence to strict safety standards and the use of professional-grade HVAC tools. Freon, or more accurately R-134a or the newer hydrofluoroolefin R-1234yf, operates under high pressure and can cause severe frostbite or toxic reactions if handled incorrectly.
Before beginning the extraction process, ensure your workspace is thoroughly ventilated, as heavier-than-air refrigerants can displace oxygen in enclosed spaces. You must also wear protective nitrile gloves and safety glasses at all times to shield your skin and eyes from sudden high-pressure liquid splashes.
- Essential Tools and Materials: Certified refrigerant recovery machine, manifold gauge set with low-side and high-side R-134a/R-1234yf quick-connect couplers, dedicated Department of Transportation (DOT) approved refrigerant recovery tank, digital refrigerant scale, and a vacuum pump (if servicing the system afterward).
- Prerequisite Knowledge and Standards: Certification under EPA Section 609 for Motor Vehicle Air Conditioning (MVAC) recovery and recycling is legally required in the United States before handling automotive refrigerants.
- Project Scope and Timeframe: A complete recovery operation typically takes between 15 to 30 minutes depending on ambient temperature, total system charge capacity, and the recovery machine's compressor displacement speed.
Step-by-Step Automotive Refrigerant Recovery Workflow

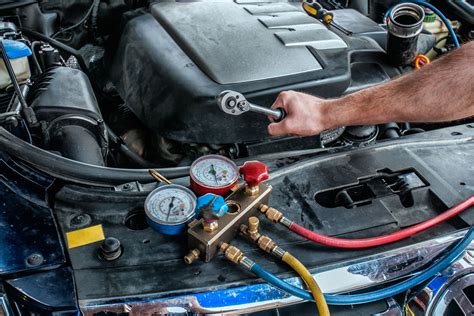

Step 1: Locate Service Ports and Connect Manifold Gauges
Identify the low-pressure and high-pressure service ports in the vehicle engine bay, usually protected by plastic caps labeled with "L" and "H" or color-coded blue for low and red for high. Ensure the engine is completely turned off and the A/C system is inactive. Connect the blue low-side hose from your manifold gauge set to the low-pressure port and the red high-side hose to the high-pressure port by lifting the locking collar on the quick-connect fittings and pushing firmly until seated. Close both manifold hand valves to prevent premature outgassing.
Warning: Never attempt to connect gauges or recover refrigerant while the vehicle engine is running or the A/C compressor is engaged, as high operating pressures can force liquid refrigerant back through the lines and damage equipment or injure the technician.
Step 2: Connect the Recovery Machine and Evacuation Tank
Place your DOT-approved recovery tank onto a digital scale and zero out the weight, noting the tank's maximum tare weight and capacity limits to prevent dangerous overfilling. Connect the yellow center utility hose from your manifold gauge set to the inlet port of the refrigerant recovery machine. Attach a separate service hose from the output port of the recovery machine directly to the liquid/vapor valve on the recovery tank. Open the vapor valve on the recovery tank to establish an open line of communication between the tank and the machine.
Step 3: Evacuate and Purge the Recovery System Lines
Turn on the refrigerant recovery machine and open the recovery machine's inlet and outlet valves. Slowly open the low-side and high-side hand valves on your manifold gauge set to allow trapped refrigerant vapor and liquid to flow from the vehicle system into the recovery unit. Watch the manifold gauges drop as the machine pulls the system down toward a vacuum level. Purge any non-condensable gases from the recovery machine setup according to the specific manufacturer's user manual guidelines.
Step 4: Monitor System Pressure and Complete Extraction
Run the recovery machine until the compound low-pressure gauge reads a stable vacuum of at least 10 to 15 inches of mercury (inHg) and holds that vacuum for a minimum of two minutes without rising. This indicates that all liquid refrigerant has boiled off into a vapor and been completely drawn out of the evaporator, condenser, accumulator, and compressor lines. Close the manifold valves, turn off the recovery machine, and close the recovery tank valves before disconnecting any lines.
How To Check For Low Refrigerant In Car at Edward Johns blog
Technical Comparison of Automotive Refrigerants
| Parameter / Feature | R-134a (Tetrafluoroethane) | R-1234yf (Tetrafluoropropene) | R-12 (Dichlorodifluoromethane) |
|---|---|---|---|
| Global Warming Potential (GWP) | 1,430 | Less than 1 | 10,900 |
| Ozone Depletion Potential (ODP) | 0 | 0 | 0.82 |
| Flammability Rating (ASHRAE) | A1 (Non-flammable) | A2L (Mildly flammable) | A1 (Non-flammable) |
| Standard Operating Pressures | Medium (35-50 PSI Low / 150-250 High) | Comparable to R-134a | Lower operating baseline |
| Primary Era of Vehicle Usage | 1994 – 2020+ | 2013+ (Mandatory in modern cars) | Pre-1994 vintage vehicles |
Common Extraction Failures and Field Remedies
- Root Cause: Recovery machine fails to pull a deep vacuum or stalls midway through the extraction process due to blocked internal filters or moisture-laden liquid slugs.
- Actionable Fix: Stop the machine immediately, change the inline filter-drier on the recovery unit, and check for oil slugs in the manifold lines that may require manual flushing.
- Root Cause: Refrigerant leaks out around the quick-connect service port fittings during connection, triggering a loud hiss and chemical odor.
- Actionable Fix: Replace the degraded Schrader valve cores inside the vehicle's low and high-pressure service ports using an approved valve core removal tool.
- Root Cause: Recovery tank weight approaches its legal 80% fill limit prematurely before the car system is fully evacuated.
- Actionable Fix: Switch to a secondary, pre-evacuated DOT recovery tank to safely complete the extraction without violating hazardous material transport safety codes.
Frequently Asked Questions
Can I legally release car Freon into the atmosphere?
No. Venting automotive refrigerants such as R-134a or R-1234yf is a direct violation of the United States Clean Air Act and EPA regulations. Doing so carries severe federal fines for individuals and commercial automotive repair facilities.
What equipment do I need to remove Freon from a car?
You cannot extract Freon without an EPA-certified refrigerant recovery machine, a manifold gauge set with automotive quick-connect fittings, and a dedicated, certified recovery tank attached to a digital scale.
How do I know when all the Freon is out of the car?
The extraction process is complete when the manifold low-side and high-side gauges drop into a steady vacuum (typically 10 to 15 inHg) and the system pressure holds flat without rising for at least two consecutive minutes.
Can I reuse the Freon I take out of my car?
Yes, provided the refrigerant is processed through a certified recovery and recycling machine that filters out moisture, particulate debris, and degraded compressor oil, meeting SAE purity standards before being recharged.
What happens if I breathe in automotive refrigerant?
Inhaling high concentrations of refrigerant vapor in an unventilated area can displace oxygen, leading to dizziness, asphyxiation, irregular heartbeats, and chemical burns to the respiratory tract. Always work in open, well-ventilated bays.
Professional Automotive A/C Service and Compliance
Properly managing mobile air conditioning service safeguards environmental air quality while protecting your vehicle's complex thermal management architecture from internal contamination. Trust certified local automotive technicians equipped with advanced recovery infrastructure to handle your complete A/C evacuation, diagnostic, and recharge needs.
