How To Split 3D Model Into Parts For 3D Printing And Animation
Splitting a 3D model into smaller, modular parts involves strategically cutting geometry along clean planes, adding interlocking mechanical joints, and exporting individual watertight meshes to overcome printer build-volume limits and eliminate excessive support material. Mastering this workflow prevents print failures, reduces post-processing labor, and ensures seamless structural reassembly.
Pre-Operation & Planning Checklist for Model Decomposition
Before importing your mesh into slicing or CAD software, a rigorous structural evaluation determines whether a model requires subdivision. Large architectural elements, detailed character statues, and mechanical assemblies frequently fail during fabrication if printed as a single monolithic block due to overhang limits, retraction strain, and warping tendencies in high-temperature polymers like ABS or nylon.
- Essential Tools & Software: Access to mesh editing software (Blender, Autodesk Meshmixer) for organic sculpts, or parametric CAD software (Fusion 360, SolidWorks) for hard-surface mechanical parts. A reliable slicing application (PrusaSlicer, Cura) is required for final export validation.
- Prerequisite Knowledge & Standards: Familiarity with manifold topology, non-manifold geometry, surface normals, and basic Boolean subtraction operations. Understanding the anisotropic strength properties of fused deposition modeling (FDM) and resin (SLA/MSLA) technologies dictates cut orientation.
- Budget & Time Benchmarks: Software solutions are predominantly free or available via open-source licenses. Plan for a 30-minute planning phase for complex multi-part characters, and up to 2 hours of digital sculpting and keying work depending on geometric complexity.
Step-by-Step Model Decomposition Workflow
Step 1: Geometric Analysis and Cut Planning
Begin by inspecting your target mesh for structural weak points, high-stress stress concentrations, and hidden internal geometry. Identify natural break lines along clothing seams, armor crevices, or multi-material transitions to ensure that post-glue bond lines remain visually hidden after assembly. Rotate the model on the virtual build platform to minimize gravity-defying overhangs and determine how gravity will interact with the final glued joints.
Pro-Tip: Avoid cutting across flat, highly visible exterior surfaces where misaligned glue seams will immediately draw the eye; always favor natural contours and hard-surface panel gaps.
Step 2: Executing Plane Cuts and Slicing Operations
Use the plane cut or slice tool in your mesh editing software to divide the mesh into distinct geometric clusters. Position the cutting plane perpendicular to the primary load-bearing axis of the final physical object to maximize structural integrity. Ensure that the slicing tool creates clean, fillable caps on hollow models, preventing open polygon holes that invalidate mesh manifoldness.
Warning: Performing raw boolean cuts without reinforcing the underlying geometry will result in paper-thin, non-manifold boundary edges that standard slicers cannot interpret correctly.

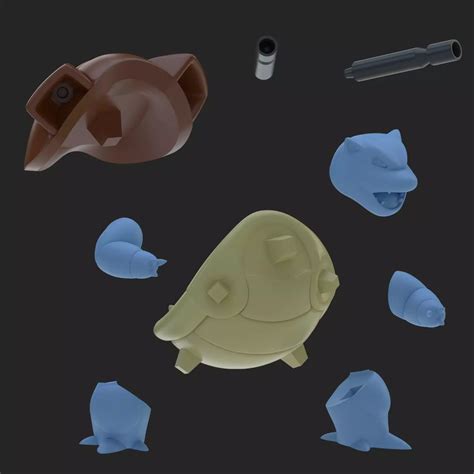

Step 3: Designing Mechanical Interlocks and Alignment Keys
To guarantee precise alignment during physical gluing and drastically increase joint shear strength, integrate male and female registration keys into the cut faces. Model cylindrical pegs, hexagonal dowels, or dovetail slots directly into one half of the cut, and execute a boolean subtraction of those exact shapes into the opposing matching face. Maintain a dimensional tolerance clearance of 0.15mm to 0.20mm between mating parts to account for typical 3D printer first-layer squish and extrusion variance.
Step 4: Hollow Generation and Drainage Channel Placement
If your split parts are bulky, hollow out the interior mesh to conserve printing resin or thermoplastic filament, setting wall thicknesses between 2.0mm and 3.0mm for structural rigidity. For resin 3D printing, bore at least two strategically placed 2.5mm drainage holes in hidden areas of each hollowed component to prevent destructive suction forces inside the vat and allow uncured resin to escape during the wash cycle.
Step 5: Mesh Repair, Manifold Validation, and Export
Run automated mesh diagnostic tools to check for non-manifold edges, inverted face normals, self-intersections, and stray floating vertices. Repair any topology errors before exporting each independent section as an individual STL, OBJ, or 3MF file format to ensure zero corruption when loading into your manufacturing pipeline.
Free STL Splitter Online: Split 3D Models for Printing | Meshy
Technical Parameters and Software Feature Matrix
| Software Environment | Primary Use Case | Key Strengths | Recommended Export Format | Joint Tolerance Range |
|---|---|---|---|---|
| Blender | Organic figures, miniatures, sculpted characters | Advanced sculpting brushes, precise boolean modifier stacks, decimation tools | OBJ / STL | 0.20 mm |
| Autodesk Meshmixer | Quick mesh repairs, plane cutting, simple keying | Extremely fast plane cuts, automated hollow generation, drop-in alignment pins | STL | 0.15 mm |
| Autodesk Fusion 360 | Hard-surface models, mechanical assemblies, functional parts | Parametric timeline, absolute dimensional accuracy, advanced assembly joints | STEP / 3MF | 0.10 mm |
| PrusaSlicer | Final preparation, native mesh splitting, multi-part management | Built-in cutting plane tools, dowel generator, direct printer parameter integration | G-Code / 3MF | 0.25 mm |
Common Mesh Splitting Failures and Field Fixes
- Root Cause: Non-manifold geometry or open polygon edges remaining after executing a plane cut.
- Actionable Fix: Use your software's dedicated inspector tool to automatically fill holes, recalculate outside normals, and delete internal floating faces before exporting.
- Root Cause: Printed alignment keys refuse to fit into their corresponding sockets due to dimensional over-extrusion or elephant's foot.
- Actionable Fix: Scale down the male peg by 1 to 2 percent in your slicing software, or manually file down the physical thermoplastic or resin component using a diamond needle file.
- Root Cause: Glued seams snapping apart under minimal physical stress or handling.
- Actionable Fix: Increase the physical depth of your alignment dowels to at least twice their diameter, and use appropriate high-strength adhesives such as two-part epoxy or cyanoacrylate activated with an accelerant.
Frequently Asked Questions
What is the best software to split a 3D model for beginners?
Autodesk Meshmixer and PrusaSlicer offer the most intuitive interfaces for beginners. Both programs feature dedicated, straightforward plane-cut tools that allow users to slice models and generate alignment pins with minimal technical training.
How do I ensure split parts line up perfectly when glued together?
Always incorporate mechanical alignment features such as interlocking keys, dowel pins, or puzzle-piece joints during the digital editing phase. Relying solely on flat surface glue bonds invites misalignment and creates weak structural joints.
Should I hollow my 3D model before or after splitting it into parts?
You should always split the model into its final individual sections first, and then hollow out each independent part separately. Hollowing prior to splitting often leaves internal wall artifacts and complicates the creation of clean mating surfaces.
Can I split an STL file directly inside my 3D printer slicer?
Yes, modern slicing software like PrusaSlicer, Ultimaker Cura, and Bambu Studio include built-in cut tools. These allow you to slice models along custom planes and automatically add joining dowels without needing external 3D modeling software.
How much tolerance should I leave between mating alignment keys?
A dimensional clearance gap of 0.15mm to 0.20mm is the industry standard for most FDM and resin printers. This accounts for minor thermal expansion, material shrinkage, and first-layer calibration discrepancies.
