How To Size Cabinet Doors: The Technical Guide To Precise Measurement And Overlay Calculation

To size cabinet doors accurately, measure the clear opening of the cabinet frame and add the total overlay dimension to both the width and height for overlay doors, typically adding 1 inch to each dimension for a standard 1/2-inch overlay. For inset doors, subtract 1/8 inch to 3/16 inch from the total opening width and height to allow for a consistent perimeter reveal. Success depends on identifying the hinge type and frame style before finalizing dimensions to ensure hardware clearance and aesthetic symmetry.

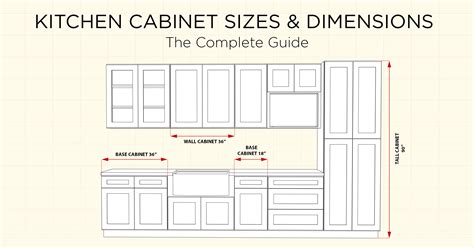

Mastering the Workspace: Professional Measuring Tools and Cabinet Anatomy

Before calculating dimensions, you must understand the structural differences between cabinet types, as the math changes significantly between face-frame and frameless (European-style) cabinetry. Face-frame cabinets utilize a solid wood frame attached to the front of the box, creating a "lip" or "reveal" that serves as the mounting point for hinges. Frameless cabinets rely on the edge of the cabinet box itself. Achieving a professional finish requires a tolerance of 1/32 of an inch; anything less precise can lead to binding doors or unsightly, uneven gaps known as "skewed reveals."

Essential Equipment and Prerequisite Standards

• Steel Tape Measure: Use a high-quality 16-foot or 25-foot steel tape. Avoid fabric tapes or cheap promotional versions which can stretch or have inaccurate "hook" movement.
• Digital Calipers: Essential for measuring exact material thickness and hinge cup depths if you are boring your own doors.
• Combination Square: Used to check if cabinet openings are perfectly square. An out-of-square opening requires "undersizing" the door slightly to avoid rubbing.
• Notepad and Layout Grid: A sketch of each elevation (wall or base) is mandatory to prevent confusing left-swing and right-swing doors.
• The 3-Point Measurement Rule: Always measure the width and height at three different points (top, middle, bottom for width; left, center, right for height). Use the smallest measurement for inset doors and the largest for overlay doors.
• Estimated Duration: 30–60 minutes for a standard kitchen (15–20 openings).
• Budget Benchmark: $10–$50 for precision measuring tools; errors in measurement typically cost 100% of the door replacement value.

Engineering the Perfect Fit: Step-by-Step Measurement Execution

Sizing is not a one-size-fits-all process. The following workflow breaks down the three primary configurations used in modern cabinetry: Partial Overlay, Full Overlay, and Inset.

Step 1: Identify the Cabinet Construction and Desired Overlay

Determine if you are working with a face-frame or frameless box. Once identified, choose your overlay. The "overlay" is the amount of the cabinet frame that the door covers.

• 1/2-Inch Partial Overlay: The most common traditional style. The door is 1 inch wider and 1 inch taller than the opening, covering 1/2 inch of the frame on all sides.
• 1-1/4-Inch Full Overlay: Modern aesthetic where the door covers almost the entire face frame, leaving only about 1/4 inch of the frame visible.
• Inset: The door sits flush inside the opening. This requires the most precision.

Step 2: Measure the "Rough Opening" (RO)

The Rough Opening is the clear space inside the cabinet frame.

1. Measure the width from the inside edge of the left stile to the inside edge of the right stile.
2. Measure the height from the top edge of the bottom rail to the bottom edge of the top rail.
3. Record these numbers to the nearest 1/16 of an inch.

Pro-Tip: If the cabinet is not square (the diagonal measurements differ by more than 1/8 inch), use the smallest width and height recorded to ensure an inset door will fit, or the largest to ensure an overlay door provides full coverage.

Step 3: Calculate Single Door Dimensions

For a single door on a standard opening, apply the following formulas:

• For Overlay Doors: (Opening Width + [Overlay × 2]) and (Opening Height + [Overlay × 2]). If you want a 1/2-inch overlay, and your opening is 15 inches wide, your door width is 15 + 0.5 + 0.5 = 16 inches.
• For Inset Doors: (Opening Width - [Reveal × 2]) and (Opening Height - [Reveal × 2]). A standard reveal is 3/32 inch. If your opening is 15 inches, your door width is 15 - 3/32 - 3/32 = 14-13/16 inches.

Step 4: Calculate Double Door (Pair) Dimensions

When two doors meet in the center of a single opening without a center mullion, you must account for the gap between them (the "reveal").

1. Width Calculation: (Opening Width + [Overlay × 2] - [Center Gap]) / 2.
2. The standard center gap is 1/8 inch.
3. Example: For a 30-inch opening with a 1/2-inch overlay: (30 + 1 - 0.125) / 2 = 15.4375 (or 15-7/16 inches per door).

Warning: Forgeting to subtract the center gap will result in doors that overlap in the middle or bind when being opened simultaneously.

Step 5: Adjust for Vertical Clearances and Multi-Front Configurations

If you are sizing drawer fronts and doors on the same cabinet, ensure the horizontal gaps (reveals) between the door top and the drawer bottom are consistent. Industry standard is a 1/8-inch gap. If your total frame height is 30 inches and you have a door and a drawer, the sum of the door height, drawer height, and the gap must equal your total desired coverage.

Architectural Standards for Cabinet Door Geometry

The following table provides the technical specifications for the most common cabinet door configurations used in residential construction.

Common Field Failures and Technical Remedies

Even with precise measurements, structural anomalies in the cabinetry or hardware limitations can cause installation failures. Use the following diagnostic guide to resolve common sizing issues.

• Failure Scenario: Doors Binding on the Hinge Side




  • Root Cause: The door is too wide for the chosen overlay, or the "tab distance" (the distance from the edge of the door to the edge of the hinge cup hole) is incorrect for the hinge's articulation.
  • Actionable Fix: Check the hinge manufacturer’s specification for "minimum reveal." If the door is already cut, you may need to increase the boring distance or use a "thinner" hinge plate (e.g., switching from a 3mm plate to a 0mm plate) to pull the door away from the frame.

• Failure Scenario: Uneven Reveals on Inset Doors




  • Root Cause: The cabinet box is racked (out of square) or the floor is not level, causing the face frame to twist.
  • Actionable Fix: Use adjustable "shaker" style hinges with 3-way adjustment (height, side, and depth). If the gap is too large at the top and too small at the bottom, adjust the depth screw to tilt the door plane until the reveal is visually parallel.

• Failure Scenario: Center Gap Too Narrow on Double Doors




  • Root Cause: Failure to account for the "bump-on" or "silencer" thickness (usually 1/16 inch) which pushes the door out slightly, or measuring from the outside of the frame instead of the opening.
  • Actionable Fix: If the doors overlap by 1/8 inch or less, you can often trim the "stile" (the vertical side) of the door on a table saw and re-finish the edge. If using concealed hinges, use the side-adjustment screw to pull each door toward the hinge side.

• Failure Scenario: Hardware Collision in Corner Cabinets




  • Root Cause: Sizing adjacent doors in an L-shaped kitchen without accounting for the thickness of the door handles or the "swing radius."
  • Actionable Fix: Ensure corner doors are "undersized" by an additional 1/4 inch beyond the standard overlay to allow clearance for handles. Use a 165-degree wide-angle hinge to allow the door to swing completely out of the path of the adjacent drawer.

Frequently Asked Questions

How do I measure for replacement doors on existing cabinets?

The most reliable method is to measure the back of the existing doors rather than the cabinet opening. If the current fit is satisfactory, record the exact width and height of the existing door panels; however, if you are changing hinge types (e.g., from visible hinges to concealed hinges), you must re-calculate based on the opening size and the new hinge's required overlay.

What is the standard gap between two cabinet doors?

The industry standard gap (or reveal) between a pair of doors is 1/8 inch (3mm). This provides enough clearance for the doors to swing open without touching, while remaining narrow enough to be aesthetically pleasing and prevent sightlines into the cabinet interior.

Should I size my drawer fronts differently than my doors?

No, for visual consistency, drawer fronts should have the exact same horizontal overlay as the doors below them. If your doors have a 1/2-inch overlay on the left and right, your drawer fronts must also have a 1/2-inch overlay on the left and right to maintain a "vertical line" of sight through the cabinetry.

How do I calculate the size for a "Lazy Susan" corner door?

For a 90-degree corner cabinet, measure from the inside corner of the opening out to the edge of the face frame on both sides. Subtract the thickness of the door material (usually 3/4 inch) from one of the door widths to allow for the butt-joint where the two doors meet, or use a specialized mitered-corner calculation if the doors are joined with a piano hinge.

Precision Cabinetry Implementation

Investing the time into technical measurement ensures that your cabinet installation proceeds without the costly delays of re-ordering custom-sized fronts. By following these rigorous mathematical standards, you achieve the high-end, architectural symmetry found in professional custom kitchens.
