How To Shorten A Graphite Golf Club Shaft: A Precision Workshop Guide
Shortening a graphite golf club shaft requires specialized cutting tools, meticulous tape reinforcement to prevent fiber splintering, and precise swingweight recalibration using lead powder or high-density tungsten weights. Understanding the structural properties of multi-axis carbon fiber and applying correct epoxy chemistry ensures your modified clubs maintain structural integrity and optimal playing performance.
Pre-Operation & Equipment Checklist
Modifying composite golf shafts differs fundamentally from working with steel. Steel can tolerate standard pipe cutters, but graphite is composed of directional carbon fibers bound in a resin matrix that will shatter, fray, or delaminate under crushing pressure. Performing this alteration successfully requires an understanding of raw material properties, precise measurements, and specialized shop equipment.
- Essential Gear, Tools, and Materials: High-speed rotary tool or fine-tooth abrasive cut-off wheel (minimum 32-grit or specialized diamond grit wheel), low-tack masking tape, digital scale with 0.1-gram resolution, 14-inch ruler or club-making ruler, utility knife, heavy-duty solvent (acetone or grip solvent), a brand new rubber grip, two-part golf epoxy, and counterweight or tip-weight materials (lead powder or tungsten weights).
- Mandatory Prerequisite Knowledge and Standards: Familiarity with standard club-building math (one inch of butt-trimming typically reduces swingweight by approximately six points), understanding of finished playing lengths, and safety protocol for handling carbon dust.
- Estimated Budget and Duration Benchmarks: Budget ranges from $15 to $30 if purchasing a cut-off wheel and epoxy; time investment is approximately 45 to 60 minutes per club, excluding full epoxy curing time (24 hours).
Step-by-Step Shaft Alteration Procedure
Step 1: Disassembly and Grip Removal
Secure the golf club horizontally in a rubber-jawed shaft clamp using a workbench vise, ensuring you do not overtighten and crush the composite wall. Insert a long, thin needle nozzle attached to a solvent bottle underneath the lip of the old grip, injecting grip solvent while simultaneously sliding a hook blade utility knife underneath to slice away the old grip. Peel away the tape residue down to the bare graphite surface using solvent and a plastic scraper, wiping the butt end completely clean with acetone to ensure a dry, oil-free substrate.
Step 2: Measuring and Marking the Trim Length
Measure the current total playing length of the club from the sole of the clubhead to the very top of the grip cap using a dedicated club-making ruler. Subtract your desired length reduction amount from the total length, keeping in mind that butt-trimming alters the overall length. Mark the exact cut line on the bare graphite shaft using a fine-point permanent marker, measuring twice to verify accuracy before proceeding to the cutting phase.
Step 3: Shaft Preparation and Anti-Splinter Wrapping
Wrap two layers of low-tack masking tape tightly around the graphite shaft directly over and on both sides of your marked cut line.
Warning: Never cut bare graphite without tape reinforcement; the rotational force of a high-speed cutting wheel will catch the exterior carbon fibers and cause catastrophic splintering down the length of the butt section.
The masking tape acts as a stabilizer, binding the exterior composite matrix together while the cutting blade passes through the material.
Step 4: High-Speed Cutting Execution
Don a properly fitted particulate respirator mask to avoid inhaling hazardous carbon dust. Power on your rotary tool equipped with a reinforced abrasive cut-off wheel or a diamond-grit blade, bringing it up to maximum revolutions per minute. Lightly touch the spinning wheel to the tape-marked cut line while slowly rotating the shaft with your opposite hand, letting the abrasive wheel cleanly grind through the graphite wall rather than forcing it through with heavy pressure.
Pro-Tip: Keep the cutting wheel perpendicular to the shaft axis to ensure a flat, square cut face, which is vital for proper grip installation and swingweight scale alignment.
Step 5: Post-Cut Cleanup and Swingweight Adjustment
Remove the masking tape and use a rounded needle file or fine-grit sandpaper to gently deburr the interior and exterior edges of the freshly cut graphite mouth, wiping away all carbon dust with a damp cloth. Because removing an inch of shaft weight alters the club's balance point, place the club on a digital swingweight scale to calculate the loss. Insert lead powder or a tungsten tip weight secured with mixed two-part epoxy down through the shaft interior if you need to restore the original swingweight balance.
Step 6: Re-Grip Installation
Apply a fresh strip of double-sided golf grip tape lengthwise down the newly exposed butt section of the shaft, peeling the backing paper and leaving roughly a half-inch hanging over the top rim to tuck inside the hole. Generously flood the interior of your new rubber grip and the exterior tape with grip solvent, slip the grip quickly over the butt end while it remains slick, and align the clubhead face squarely before setting it aside to cure for 24 hours.

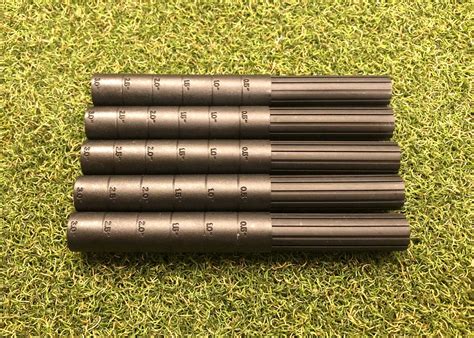

Universal Graphite Golf Shaft Extensions - 3" - Walmart.com
Technical Comparison of Golf Shaft Modification Methods
| Modification Parameter | Butt-Trimming (Graphite) | Tip-Trimming (Graphite) | Steel Shaft Cutting |
|---|---|---|---|
| Primary Purpose | Adjust overall playing length | Alter shaft flex/bend profile | Adjust length and flex |
| Flex Impact | Negligible change to shaft stiffness | Significantly increases stiffness | Minimal to moderate stiffening |
| Swingweight Loss | ~6 points per inch removed | Minimal loss | ~6 points per inch removed |
| Tool Requirement | Rotary tool with abrasive wheel | Rotary tool with abrasive wheel | Pipe cutter or chop saw |
| Structural Risk | Low (if taped properly) | High (narrows tip diameter) | Low (if deburred) |
Common Site Failures and Field Fixes
- Carbon Splintering at the Cut Line: Root cause is cutting dry un-taped graphite or applying excessive lateral pressure with a dull blade. Actionable fix: Wrap the area tightly with structural masking tape, use a high-RPM diamond wheel, and let the tool do the work without forcing it.
- Loose Grip Slipping Post-Installation: Root cause is insufficient activation of the double-sided tape adhesive or improper dry time before testing. Actionable fix: Strip the grip using solvent, clean off old tape residue, apply fresh tape, and allow a full 24 hours of cure time.
- Drastic Drop in Swingweight Feel: Root cause is removing an inch or more of mass from the butt end, making the club feel overly light and head-blind. Actionable fix: Add a weighted brass plug or lead powder down the shaft butt before grip installation to restore balance.
Frequently Asked Questions
Can I use a standard pipe cutter to shorten a graphite golf club shaft?
No. Standard pipe cutters use a hardened steel wheel designed to crush and slice metal tubing. Applying this crushing force to a composite graphite shaft will immediately fracture, splinter, and ruin the structural integrity of the carbon fibers.
Does cutting a graphite shaft from the butt end change its flex?
Butt-trimming a graphite shaft has a virtually unnoticeable impact on the flex profile because the thickest, stiffest part of the shaft is at the butt. Conversely, tip-trimming alters the playing characteristics and increases the stiffness of the club significantly.
How much does shortening a golf club affect its swingweight?
As a general rule of thumb in club building, removing one inch of length from the butt end of a golf club decreases the swingweight by approximately six points. This makes the club feel noticeably lighter during the swing, which often requires corrective weighting.
Is it safe to breathe in carbon dust when cutting graphite shafts?
Inhaling airborne carbon dust and resin particles poses a health hazard to your respiratory system. Always perform your cutting operations in a well-ventilated workspace or outdoors, and wear a properly rated particulate mask or respirator.
Do I need to reinstall a plug before putting a new grip on?
If you trimmed a significant amount of length and exposed a wider internal diameter, or if you need to add internal weighting components, a butt plug may be required. For standard minor length reductions, a plug is usually unnecessary as long as the internal diameter matches standard grip core sizes.
