Mastering Custom Leathercraft: How To Sew A Gun Holster For Maximum Retention And Safety
Crafting a professional-grade gun holster requires precise vegetable-tanned leather selection, accurate wet-molding techniques to ensure firearm retention, and the use of heavy-duty saddle stitching for structural integrity. By following a systematic approach to patterning, edge finishing, and tension-controlled hand stitching, you can produce a carry rig that meets rigorous durability standards while providing a secure, custom fit for your specific firearm platform.
Essential Gear, Material Selection, and Workspace Preparation
To produce a functional and safe holster, you must prioritize structural strength over aesthetic appeal. Vegetable-tanned cowhide remains the gold standard, as it provides the rigidity necessary for consistent draw cycles and re-holstering. Avoid chrome-tanned leathers, as they are often acidic and can cause corrosion on firearm finishes, and they lack the necessary molding properties for custom fitting.
- Materials: 7 to 9-ounce vegetable-tanned leather (full grain), heavy-duty bonded polyester or nylon thread (0.8mm or 1.0mm gauge), high-quality edge dye, and a burnishing agent (gum tragacanth or beeswax).
- Tools: Wing dividers for marking stitch lines, a diamond-shaped stitching chisel or awl, a pair of saddler’s harness needles, a heavy-duty cutting mat, and a poly or rawhide mallet.
- Workstation Benchmarks: Ensure you have a non-slip surface, at least 4 square feet of clear space, and consistent lighting to inspect stitch uniformity.
- Duration and Budget: A first-time build typically requires 8 to 12 hours of labor across multiple days to allow for curing and drying; expect a startup material investment of 100 to 200 dollars for quality professional-grade components.
Technical Workflow for Designing and Assembling a Custom Holster
Step 1: Pattern Drafting and Firearm Preparation
Before touching leather, create a master pattern. Wrap your firearm in two layers of painters’ tape to protect the finish and provide slight clearance, which ensures a smooth draw once the leather is molded. Lay the firearm on heavy cardstock and trace the profile, adding at least one inch of material around the perimeter for the stitch line and holster flap. Mark your cant angle, typically 15 degrees for an FBI forward cant, and ensure the trigger guard area is fully covered by your pattern design to maintain optimal safety standards.
Step 2: Cutting, Skiving, and Wet-Molding
Transfer your pattern to the leather using a scratch awl. Cut the leather using a sharp utility knife or swivel knife, holding the blade perpendicular to the bench for clean edges. Skive the edges where the leather will fold over to reduce bulk. Immerse the leather in warm water for approximately 30 to 60 seconds until it becomes pliable. Place the firearm inside the leather wrap and use a bone folder or modeling spoon to work the leather into the contours of the firearm.
Warning: Do not over-saturate the leather, as this can cause it to become brittle upon drying or lose its ability to retain shape.
Step 3: Stitch Line Marking and Piercing
After the leather has dried for 24 hours, use your wing dividers to mark a consistent line 1/8 inch from the edge of the holster. Use a stitching chisel or a pricking iron to punch holes through both layers of leather simultaneously. Ensure your chisel remains perfectly vertical during the strike to keep the holes aligned on the back side.
Step 4: Saddle Stitching for Structural Integrity
The saddle stitch is mandatory for holster safety because it uses two needles and two ends of a single length of thread. If one stitch breaks, the others remain locked in place. Thread your two needles onto a piece of waxed thread roughly four times the length of the seam. Pass one needle through the first hole, center the thread, and proceed by passing one needle through the hole and the second needle through the same hole from the opposite side, pulling both tight with consistent pressure. Repeat this for every hole, ending with three back-stitches at the stress points.
Step 5: Edge Finishing and Final Retention Check
Sand your edges using progressive grits of sandpaper, starting at 120 and ending at 600 or higher. Apply a coat of edge dye and let it dry. Once dry, apply burnishing agent and rub the edge vigorously with a canvas cloth or a wooden burnishing tool until the edge feels smooth and glass-like. Insert the firearm; it should click into place with moderate resistance. If the draw is too tight, use a hairdryer to lightly warm the trigger guard area and slightly loosen the retention with your fingers.

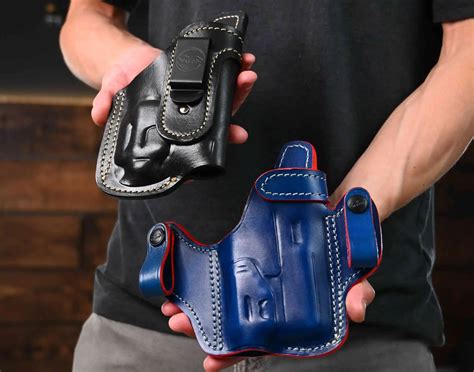

Alaska Hunter Hip Holster, a leather gun holster designed to work ...
Material and Mechanical Property Comparisons
| Feature | Vegetable-Tanned Leather | Kydex / Thermoplastics | Nylon / Fabric |
|---|---|---|---|
| Retention | Passive (Custom Molded) | Active (Click-in) | Variable / Strap-based |
| Durability | High (with care) | Very High | Moderate |
| Ease of Build | Requires Manual Skill | Requires Heat/Press | Sewing Machine Ready |
| Maintenance | Oiling/Conditioning | Soap and Water | Machine Washable |
Common Site Failures and Field Fixes
- Loose Retention: The leather may have over-relaxed during the drying process. Fix this by re-wetting the trigger guard area, applying targeted heat, and using a leather press to force a tighter mold against the frame.
- Crooked or Uneven Stitches: This usually results from improper chisel alignment. Always use a stitching pony to hold the work vertically, ensuring your eye level remains constant to keep the awl or chisel perpendicular to the surface.
- Stiff or Scratchy Edges: Insufficient burnishing is the culprit. Re-sand the edge thoroughly, apply more wax or burnishing agent, and use higher friction and pressure during the final burnishing pass.
- Excessive Draw Resistance: This occurs if the leather was molded too tightly around the ejection port or trigger guard. Lightly sand the inside of the leather where it contacts the firearm and apply a thin layer of leather conditioner to reduce surface friction.
Frequently Asked Questions
What thickness of leather is best for a concealed carry holster?
For a reliable IWB or OWB holster, use 7 to 9-ounce (approximately 2.8mm to 3.6mm) vegetable-tanned shoulder or bend leather. Anything thinner may lose its shape over time, while anything thicker becomes too bulky for comfortable concealment.
Can I use a standard sewing machine for holsters?
Standard household sewing machines are typically incapable of handling the thickness and density of professional holster leather. If you wish to use a machine, you require an industrial-grade leather sewing machine with a walking foot mechanism and the ability to handle heavy-gauge nylon thread.
How do I protect the firearm finish from the leather?
Ensure you use vegetable-tanned leather, which is chemically stable. Avoid leather treated with harsh chemicals or oils that contain high acidic content. Keeping the inside of your holster free from debris and occasionally treating the exterior with a high-quality leather balm will prevent moisture absorption.
Should I line the holster with suede?
Lining a holster with suede or pigskin is optional but recommended if you want to provide extra protection for a high-polished finish. If you choose to line the holster, glue the lining to the flesh side of the main leather piece before performing your wet-molding, using a flexible leather cement.
