How To Sew An Adjustable Strap Like A Professional

Sewing a durable adjustable strap requires matching your hardware dimensions to your webbing width, reinforcing stress points with box-X stitching, and routing the strap through a tri-glide slider correctly. By mastering these precise layering and folding techniques, you can create professional-grade bag handles and straps that withstand heavy daily use without slipping or fraying.

Hardware Selection and Material Preparation Checklist

Creating a functional, load-bearing strap demands careful alignment of fabric weight, sewing machine capabilities, and hardware sizing. Using mismatched components or unconditioned materials leads to premature failure, crooked stitching, and jammed needles.

• Essential Gear, Tools, and Materials:




  • Heavy-duty sewing machine with a high piercing capacity
  • Size 90/14 or 100/16 denim/jeans needles
  • Polyester or bonded nylon thread (Tex 40 to Tex 70)
  • Cotton webbing, nylon webbing, or custom fabric strips cut to size
  • Adjustable strap hardware set (1 tri-glide slider and 2 D-rings or rectangular rings)
  • Fabric clips or wonder clips (pins can permanently puncture heavy webbing and leather)
  • Heavy-duty fabric scissors or a rotary cutter with a self-healing mat
  • Tailor's chalk or a heat-erasable marking pen
  • Lighter or heat tool for sealing synthetic webbing edges

• Mandatory Prerequisite Knowledge and Standards:




  • Understanding of multi-layered fabric clearance under the presser foot
  • Proficiency in executing reliable backstitching and lock stitches
  • Familiarity with correct needle sizing for high-density woven materials

• Benchmarks:




  • Estimated time to complete: 30 to 45 minutes per strap
  • Estimated cost of materials: 5 to 15 dollars per complete hardware and webbing set
  • Target maximum load capacity: Up to 50 pounds for industrial nylon webbing with reinforced box-X stitching

Step-by-Step Adjustable Strap Assembly Workflow

Step 1: Sizing and Edge Sealing the Webbing

1. Cut your strap material to the desired total length. For a standard cross-body bag, this is typically between 50 and 60 inches, while purse straps range from 30 to 44 inches.
2. If using synthetic materials like nylon or polyester webbing, quickly pass a lighter flame along both raw cut edges to melt the fibers. This prevents unravelling during assembly and use.
3. If fabricating a custom strap out of fashion fabric or canvas, cut your strip four times the desired finished width (e.g., cut a 4-inch strip for a finished 1-inch strap). Press the long raw edges into the center, fold in half again, and press flat before topstitching down both long edges.

Pro-Tip: Always cut your fabric strips slightly longer than needed (by 1 to 2 inches) to account for fabric take-up once the ends are folded through hardware rings.

Step 2: Attaching the Fixed End to the Bag Body

1. Take one end of your strap webbing and slide it directly through a D-ring or bag tab loop, feeding approximately 1 inch of the tail through the metal opening.
2. Fold that 1-inch raw tail over itself toward the main body of the strap, creating a clean, enclosed fold that traps the raw edge inside.
3. Secure the folded layer firmly with two fabric clips to prevent shifting under the needle.
4. Take the strap to your sewing machine and sew a secure box-X stitch pattern. Start by stitching a clean rectangle along the perimeter of the folded area, then sew a diagonal cross from corner to corner inside the box to distribute weight evenly across the entire surface.

Warning: Never rely on a single line of straight stitches to secure load-bearing bag hardware. A box-X stitch is mandatory for structural integrity.

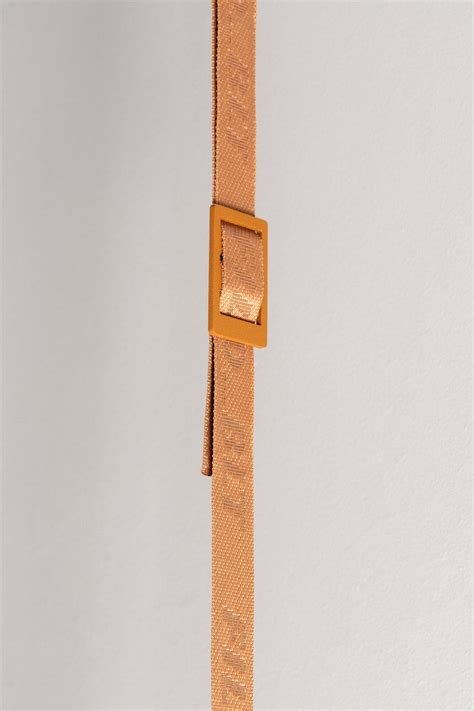

Step 3: Threading the Tri-Glide Slider

1. Take the opposite, unattached end of your main strap webbing and slide it up through one side of the tri-glide slider bar, then down through the other side.
2. Pull approximately 3 to 4 inches of webbing through the slider and lay it flat.
3. Fold the very end of this tail under by 1/2 inch to conceal the raw edge, then place it against the back of the strap layer.
4. Sew across the folded tail securely using two parallel rows of straight stitching spaced 1/4 inch apart. This permanently captures the tri-glide slider at one end of the strap.

Step 4: Connecting the Second Bag Point and Adjuster

1. Take the loose end of your main strap (the one with the tri-glide slider now anchored at its terminus) and feed it through your second D-ring or bag connector tab.
2. Route that exact same end back up and through the center bar of the tri-glide slider, making sure the webbing does not twist along its length.
3. Pull the strap tight to test the adjustment mechanism. Sliding the tri-glide up and down the doubled webbing layers should instantly lengthen or shorten the overall span of the strap smoothly.

Technical Parameters of Strap Hardware and Materials

Common Assembly Failures and Field Fixes

• Webbing Slips and Loosens During Wear




  • Root Cause: The tri-glide slider used is either too wide for the webbing (allowing too much lateral play) or the webbing material is excessively slick, such as cheap polypropylene.
  • Actionable Fix: Switch to a high-friction cotton-blend or heavy nylon webbing that matches the exact millimeter width of the tri-glide center bar. Alternatively, add a secondary keeper loop.

• Needle Breaks or Skips Stitches Through Heavy Hardware Folds




  • Root Cause: The sewing machine cannot pierce the thick stack of multi-layered webbing, causing the needle to deflect against the metal foot or feed dogs.
  • Actionable Fix: Manually walk the handwheel through the thickest parts of the fold. Upgrade to a heavy-duty denim/jeans needle (size 100/16) and use heavy-duty presser foot pressure adjustments.

• Strap Twists Constantly During Adjustment




  • Root Cause: The webbing was twisted during the initial threading phase through either the D-ring or the tri-glide center bar.
  • Actionable Fix: Unpick the stitched anchor point at the tri-glide, lay the entire strap completely flat on a table to verify alignment, and re-thread the system without introducing twists.

Frequently Asked Questions

What size hardware should I buy for my webbing?

Your hardware (tri-glides and D-rings) must match the exact width of your webbing. If you are using 1-inch webbing, you must purchase 1-inch hardware. Buying hardware that is too wide causes the strap to bunch up and slide unevenly, while hardware that is too narrow prevents the webbing from passing through.

Can I make an adjustable strap without a tri-glide slider?

No, a tri-glide slider (or slider buckle) is the mechanical component required to alter strap length while anchoring the ends securely. Without a slider, you can only make fixed-length straps or use knot-tying methods that do not slide smoothly.

What is the strongest stitch pattern for bag straps?

The box-X stitch is the industry standard for maximum load-bearing strength. It consists of an outer rectangle reinforced by a diagonal cross running from corner to corner, which distributes pulling tension across all weave directions of the fabric.

How do I prevent synthetic nylon webbing from fraying?

Synthetic webbing frays easily because it is woven from plastic-based fibers. You can permanently prevent fraying by melting the cut edges with a lighter flame, a wood-burning tool, or a hot knife immediately before sewing.

Why is my sewing machine thread snapping when I sew thick webbing?

Thread snaps when it experiences excessive friction or tension while passing through dense layers. Switch to a thicker thread designed for upholstery (like bonded nylon), use a larger needle size (90/14 or 100/16), and lower your machine's top tension slightly.
