How To Set A Universal Garage Door Opener: A Complete Technical Guide
Setting a universal garage door opener involves matching the frequency and security protocol of the remote to the specific motor unit's receiver, typically accomplished by engaging a learn button and cycling the device through its synchronization sequence. This process requires precise timing during the pairing phase, adherence to the manufacturer’s signal bandwidth (usually 310, 315, or 390 MHz), and physical access to the motor housing to reset existing logic board codes.
Pre-Operation Setup and Compatibility Assessment
Before beginning the installation, you must verify the compatibility between your universal remote and your existing garage door opener hardware. Not all universal remotes support every security rolling-code technology, such as Security+ 2.0 or billion-code systems. Ensure you have a stable ladder that exceeds the height of the motor unit by at least two feet to ensure ergonomic access to the logic board controls.
- Essential Gear: A sturdy A-frame ladder, the universal garage door remote control, the remote’s instruction manual, and a secondary assistant to verify door movement.
- Prerequisites: Identify the "Learn" button color on your opener’s motor housing, as this often indicates the frequency and protocol (e.g., purple, yellow, or green buttons signify different encrypted rolling code generations).
- Duration Benchmark: The pairing process typically requires 10 to 15 minutes for a single-button synchronization.
- Safety Standards: Ensure the area under the garage door is completely clear of vehicles, debris, and individuals to prevent accidental crushing during the testing phase.
Technical Execution for Remote Synchronization
Step 1: Locating the Programming Interface
Identify the Learn button located on the rear or side panel of your garage door motor unit. This is often hidden behind a light lens cover or located near the antenna wire. For most modern units, pressing this button will illuminate a small LED indicator, signaling that the unit is ready to receive a new code.
Warning: Never attempt to touch internal electronic components or exposed wiring on the logic board while the unit is powered, as capacitors may retain a charge even if the unit is unplugged.
Step 2: Clearing Existing Logic Codes
If you are replacing a lost remote or moving into a new home, it is a best practice to clear the current memory of the garage door opener to prevent unauthorized access. Hold the Learn button down for 6 to 10 seconds until the indicator light blinks or turns off completely. This ensures that previous, unknown remote frequencies are purged from the memory banks, providing a clean slate for your universal device.

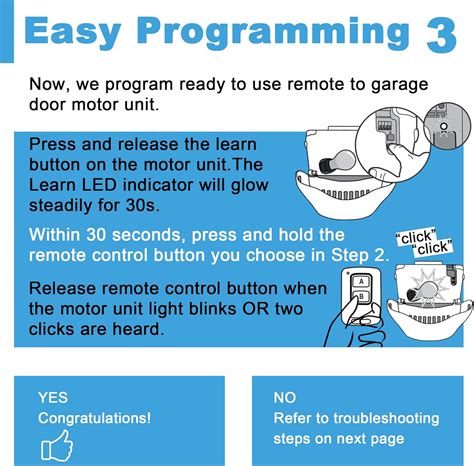

Step 3: Engaging Pairing Mode
Follow the specific instructions for your universal remote to put it into discovery mode. Typically, this involves holding a combination of buttons simultaneously until the indicator light on the remote flashes steadily. Once the remote is in its discovery state, press the Learn button on the garage door opener unit once. You now have a limited window, usually 30 to 60 seconds, to complete the pairing.
Step 4: Transmitting the Signal
Select the button on your universal remote that you intend to use for operating the door. Press and hold this button until you see the opener’s main lights flash or hear a distinct clicking sound from the motor unit. This indicates that the remote has successfully handshake-communicated with the motor’s receiver and has stored the new security code.
Step 5: Final Validation and Cycle Testing
After the lights flash, press the designated button on the remote once more to trigger the door. Observe the door’s operation for one full cycle—opening to the fully retracted position and closing to the floor. If the door reverses before touching the ground, the force settings or travel limits may require manual recalibration via the adjustment screws on the side of the motor housing.
How To Add Motion Detector To Garage Door Opener | Storables
Universal Remote Hardware and Frequency Specifications
| Remote Feature | Standard Metric/Range | Application/Notes |
|---|---|---|
| Signal Frequency | 310 / 315 / 390 MHz | Must match the opener motor’s receiver frequency. |
| Coding Type | Rolling Code (Security+) | Constantly changes for encrypted security. |
| Battery Type | CR2032 or 12V A23 | High-drain devices require lithium for longevity. |
| Range Distance | 50 – 100 Feet | Dependent on antenna orientation and interference. |
| Compatibility | DIP Switch vs. Learn Button | Ensure the remote supports the specific protocol. |
Common Field Failures and Technical Remedies
Failure: Remote Syncs but Operates Intermittently
- Root Cause: Signal interference from LED light bulbs in the opener or nearby wireless devices, or a failing remote battery causing a weak transmission signal.
- Actionable Fix: Replace existing light bulbs with "garage door opener compatible" LEDs that are shielded to prevent radio frequency interference, and install a fresh, high-quality lithium battery in the remote.
Failure: Opener Does Not Enter Learn Mode
- Root Cause: The logic board is locked out or the motor unit is experiencing a primary power failure, often due to a tripped GFCI outlet.
- Actionable Fix: Inspect the power cord connection at the ceiling, reset the wall-mounted circuit breaker, and verify that the wall control console is not in "Lock" mode, which disables remote signals.
Failure: Door Opens but Won't Close with Remote
- Root Cause: Safety reversal sensor misalignment, which is a safety protocol rather than a remote programming error.
- Actionable Fix: Ensure both safety eyes at the base of the door tracks are aligned and the amber/green LEDs on both sensors are illuminated steadily. If they are blinking, adjust the sensor brackets until the beam is unbroken.
Frequently Asked Questions
Can one remote control multiple garage doors?
Yes, most universal garage door remotes feature multiple buttons, allowing you to program each button to a different motor unit. Simply repeat the Learn button process for each individual door, assigning a unique button on the remote to each opener.
Why does my garage door opener flash but not move the door?
Flashing lights during programming indicate that the motor unit has received a signal, but if the door does not move, there is likely a mechanical obstruction or a safety sensor fault. Check the safety infrared beams at the bottom of the tracks to ensure they are properly aligned and free of debris.
What should I do if my opener has no Learn button?
Older openers, typically manufactured before 1993, utilize a system of DIP switches inside the remote and the motor unit. You must manually match the pattern of these physical switches by setting the internal toggles to the identical "on" or "off" configuration as the motor unit.
How do I know if my universal remote is compatible?
Consult the back of your garage door motor housing for a label indicating the manufacturer and model number, then verify this against the compatibility list found on the universal remote packaging. If your opener uses proprietary high-security encryption, it may require a brand-specific remote rather than a generic universal unit.
