How To Set Underfloor Heating Controls For Optimal Efficiency And Comfort
Configuring underfloor heating (UFH) controls requires balancing the high thermal inertia of the floor structure with precise thermostat scheduling to maintain a consistent internal temperature. By setting flow temperatures between 35°C and 55°C and implementing a programmed set-back temperature of 3°C to 4°C during unoccupied hours, users can achieve significant energy savings without compromising thermal comfort.
Foundational Prerequisites and Equipment Checklist

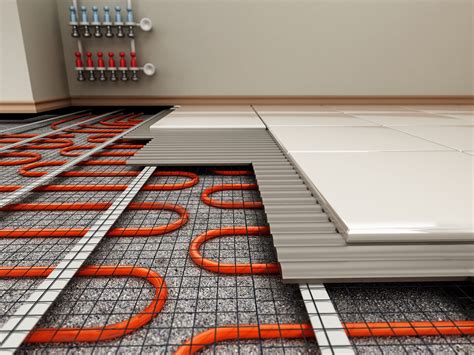

Before interacting with your control interface, you must understand the distinction between water-based (hydronic) and electric mat systems, as their control logic differs fundamentally. Hydronic systems operate on thermal mass principles and require gradual adjustments, while electric systems provide rapid, direct heat.
- Essential Equipment: Access to the primary programmable thermostat (or smart app interface), user manual for the specific manifold actuator system, and an infrared thermometer for verifying floor surface temperatures.
- Mandatory Knowledge: Identify whether your system uses weather compensation sensors or simple room-stat logic. Weather-compensated systems automatically adjust flow temperatures based on external conditions, requiring minimal manual input.
- Benchmarks: Hydronic systems typically require a 2-to-4-hour warm-up window due to the screed's thermal mass. Electric underfloor heating systems generally reach operational temperature within 30 to 60 minutes.
- Estimated Duration: Initial programming takes approximately 15 to 20 minutes, while system balancing and thermal verification may require monitoring over a 24-hour cycle.
Procedural Workflow for Calibrating Heating Controls
Step 1: Initialize the Master Control Interface
Access your primary thermostat or smart control hub. Ensure the device is in Manual mode before attempting to program the schedule. Reset the date and time settings to ensure that pre-set programs align with your daily activity cycles. Verify that the thermostat is receiving power by checking for a constant display light or a visible active icon on the interface.
Pro-Tip: If your thermostat is wall-mounted, ensure it is not located in a direct draft or in close proximity to a heat source like a television or radiator, as this will cause "short cycling" and inaccurate temperature readings.
Step 2: Define Thermal Set-Points and Time Blocks
Divide your day into three distinct periods: morning wake-up, daytime set-back (or eco-mode), and evening comfort. Set your comfort temperature to the standard 20°C to 21°C for living areas. During periods of absence or sleep, lower the set-point by 3°C to 4°C. Avoid turning the system off completely in hydronic setups, as the energy required to reheat the cold screed exceeds the energy saved by the temporary shutdown.
Step 3: Configure Hysteresis and Differential Settings
Navigate to the advanced installer settings to adjust the hysteresis—the temperature gap between the point where the system switches on and off. A narrow hysteresis (0.5°C) creates a more stable, comfortable environment, while a wider hysteresis (1.0°C) prevents the boiler from cycling too frequently, which is beneficial for the longevity of pump and actuator components.
Step 4: Verify Manifold Flow and Loop Balancing
After programming the digital interface, visit the UFH manifold cabinet. Observe the flow meters located on the top rail. Ensure the colored indicators are stable and aligned with the design flow rate (usually measured in liters per minute) specified in your installation manual. If the system is loud or unevenly heating, verify that the circulating pump is set to the correct speed setting—typically the lowest setting that still reaches the furthest loop of the property.
Step 5: Implement Weather Compensation Monitoring
If your controller features weather compensation, you will need to adjust the slope (heat curve) of the system. This determines how much the flow temperature increases as the external temperature drops. Start at a default slope of 1.0; if the rooms are too cold in deep winter, increase the slope in 0.1 increments.
Electric Underfloor Heating Thermostat Wiring Diagram at Layla Ruse blog
Technical Parameters and System Performance Metrics
| Component | Optimal Range | Technical Rationale |
|---|---|---|
| Flow Temperature (Screed) | 35°C - 45°C | Prevents thermal stress and cracking in concrete screeds. |
| Flow Temperature (Timber) | 40°C - 55°C | Ensures heat transfer without damaging sensitive floor materials. |
| Hysteresis (Differential) | 0.5°C - 1.0°C | Balances thermal comfort with mechanical cycling frequency. |
| Warm-up Lead Time | 2 - 4 Hours | Accounts for the high thermal mass of hydronic wet systems. |
| Floor Surface Temp | 24°C - 27°C | Keeps ambient air comfortable without causing "hot foot" fatigue. |
Common Operational Failures and Field Remedies
- Root Cause: Room is cold despite the thermostat showing "On" and the boiler firing.
- Actionable Fix: Check the manifold actuators. If the manifold pins are stuck in the down position, the valves remain closed. Gently tap the valve pin or lubricate it with silicone grease to ensure full movement.
- Root Cause: Significant temperature fluctuations throughout the day.
- Actionable Fix: The hysteresis setting may be too wide, or the room temperature sensor is being influenced by external factors. Check for drafts behind the thermostat wall plate or move the sensor away from direct sunlight.
- Root Cause: System fails to reach the target set-point.
- Actionable Fix: Verify the boiler flow temperature. If the boiler is set lower than the required manifold temperature, the system will never satisfy the heat demand. Increase the boiler output temperature by 5°C and observe over a 6-hour period.
- Root Cause: High energy consumption despite moderate usage.
- Actionable Fix: Your set-back temperature is likely too low. Reheat cycles consume more energy than maintenance cycles. Increase your set-back temperature by 1°C to minimize the load on your heat source during recovery periods.
Frequently Asked Questions
What is the ideal temperature for underfloor heating?
For most residential settings, a comfort temperature of 20°C to 21°C is considered optimal. Keep in mind that due to the radiant nature of underfloor heating, you may feel just as comfortable at 19°C compared to 21°C with traditional convection radiators.
Should I turn my underfloor heating off at night?
No, it is more efficient to use a lower "eco" or "set-back" temperature of 17°C to 18°C. Because underfloor heating systems have significant thermal inertia, turning the system off entirely forces the boiler to work at maximum capacity to reheat the floor slab the following morning.
How do I balance the heating between different rooms?
Balancing is achieved through the flow meters on your manifold. If one room is consistently warmer than another, adjust the flow meter for the warmer room by turning it clockwise to restrict flow, thereby redirecting heat to the cooler zones.
Why is my floor taking so long to heat up?
If you have a wet hydronic system embedded in a concrete or anhydrite screed, it is normal for the process to take several hours. The thermal mass of the floor acts as a heat battery, which is highly efficient but inherently slow to respond compared to air-based heating systems.
Professional Maintenance for System Longevity
Regular calibration of your underfloor heating controls ensures that your property remains energy-efficient and prevents premature mechanical wear on your boiler and pump assembly. For complex zoning issues or persistent thermal imbalances, consult with a certified heating technician to conduct a formal flow rate analysis and system flush. Optimize your home’s climate control strategy today to ensure year-round comfort and maximum energy savings.
