How To Set LPF On Amp: The Ultimate Low-Pass Filter Tuning Guide
Setting the low-pass filter (LPF) on your car audio amplifier correctly requires balancing your subwoofer's physical frequency response with your mid-bass speakers to prevent muddy sound and protect your equipment from thermal or mechanical damage. By calculating the ideal crossover point—typically between 60 Hz and 80 Hz—and matching slope orders, you can achieve tight, accurate bass reproduction and seamless transition across your entire soundstage.
Pre-Operation & Equipment Checklist
Properly calibrating an audio system requires more than guesswork; precision demands specific audio diagnostic tools and foundational knowledge of acoustic physics. Before touching any gain or filter knobs, verify that your source unit, amplifier crossovers, and speakers are wired correctly to prevent phase cancellation and electrical distortion.
- Essential Gear and Tools: Digital Multimeter (DMM) capable of measuring AC voltage, a 0dB or -5dB 50 Hz test tone audio track, a small flathead or Phillips precision screwdriver for amplifier potentiometer adjustments, and a flashlight or work light.
- Prerequisite Standards: Familiarity with the amplifier manual's RMS power ratings, understanding of 12dB/octave versus 24dB/octave slope roll-offs, and verification that speaker polarity is uniform across all channels.
- Time and Budget Benchmarks: Estimated completion time is 30 to 45 minutes; budget requirements are zero if utilizing existing diagnostic equipment or under twenty dollars for a basic digital multimeter.
Step-by-Step Amplifier LPF Calibration Workflow
Step 1: Initialize Audio Settings and Flat Equalization
Begin by turning off all bass boost, loudness enhancements, and customized EQ curves on your head unit or digital signal processor (DSP). Set the head unit volume to approximately 75 to 80 percent of its maximum undistorted output level. This ensures you do not inadvertently send a clipped signal to the amplifier input stages during the calibration process. Disconnect any remote bass knobs temporarily to prevent them from interfering with your baseline LPF potentiometer settings.
Step 2: Set the Crossover Switch to Low-Pass (LP) Mode
Locate the crossover selector switch on your amplifier control panel and toggle it from OFF or Full Range (FULL) to Low-Pass (LP or LPF). Do not leave the amplifier running in full-range mode when connected to a subwoofer, as high-frequency signals will cause the subwoofer voice coil to overheat and distort mechanically. Ensure your mid-range speakers and tweeters are handled by a separate high-pass filter (HPF) on a multi-channel amplifier or dedicated active crossover network.

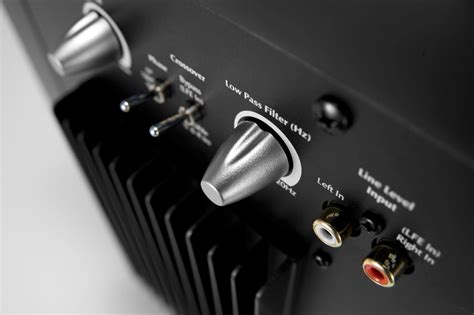

Step 3: Dial in the Target Frequency Potentiometer
Rotate the LPF frequency adjustment knob to your desired crossover threshold, starting conservatively around 80 Hz for standard door speakers or down to 60 Hz if your mid-bass drivers are exceptionally large and well-dampened. Use a slow, methodical sweep while playing a familiar track featuring a clean acoustic kick drum and bass guitar. Listen for chest impact rather than door rattle; the bass should sound anchored to the front soundstage rather than purely localized in the trunk.
Pro-Tip: If your amplifier features a variable slope switch (such as 12dB versus 24dB per octave), select the 24dB slope for a steeper drop-off. This prevents high-frequency vocal bleed into the subwoofer, keeping male and female vocals strictly localized to your front dash stage.
Warning: Never use the amplifier's onboard bass boost circuit while tuning your LPF. Bass boost centers around a fixed frequency (usually 45 Hz) with a narrow Q-factor, which drastically increases thermal stress on your subwoofer voice coil and invites clipping.
Step 4: Verify Voltage Output with a Digital Multimeter
Play a dedicated 50 Hz test tone through your source unit with the engine off and accessories deactivated. Set your digital multimeter to measure AC Voltage. Place the multimeter probes directly into the amplifier speaker terminal outputs corresponding to the subwoofer channel. Slowly rotate your amplifier gain control upward until the multimeter displays the target AC voltage corresponding to your subwoofer's RMS power handling rating at your specific nominal impedance load.
| Parameter / Metric | Standard 12dB/Octave Slope | Aggressive 24dB/Octave Slope | Full-Range / Off Mode |
|---|---|---|---|
| Frequency Roll-Off Rate | Moderate attenuation above target | Steep attenuation above target | No attenuation (dangerous for subs) |
| Vocal Bleed Potential | Low to Moderate | Extremely Low | High (Mid-bass/vocals present) |
| Phase Integration Ease | Straightforward with phase switches | Requires precise time alignment | Impossible for clean sub integration |
| Voice Coil Thermal Stress | Moderate | Minimal | Severe |
How to set the High Low Pass Filter (HPF) crossover on Exile Javelin 5 ...
Common Audio System Failures and Field Fixes
- Root Cause: Muddy, boomy bass lacking musical definition or punch.
- Actionable Fix: Your LPF frequency is set too high (e.g., 120 Hz or higher), allowing subwoofers to reproduce mid-bass frequencies intended for door speakers. Lower the LPF potentiometer to 60 Hz or 80 Hz and verify that your door speakers have an active high-pass filter set to match.
- Root Cause: Rattling harmonics and harsh metallic noises coming from the trunk.
- Actionable Fix: The crossover slope is too shallow (6dB/octave) or the amplifier is receiving a full-range signal. Switch the amplifier internal crossover to LP mode and adjust the slope to 24dB/octave to eliminate higher-frequency sympathetic vibrations in vehicle body panels.
- Root Cause: Premature subwoofer thermal clipping and burning smell.
- Actionable Fix: The combination of an improperly set LPF and an over-rotated bass boost is forcing the subwoofer to process frequencies outside its mechanical limit. Turn off all bass boost, lower the head unit volume, and recalibrate the gain structure using a digital multimeter.
Frequently Asked Questions
What is the best LPF frequency setting for a subwoofer?
The industry standard baseline LPF setting for a subwoofer is 80 Hz. This frequency effectively isolates deep bass notes while preventing the subwoofer from reproducing higher vocal frequencies, keeping the soundstage focused upfront.
Should I use the LPF on my head unit or my amplifier?
You should only use one crossover per signal path to prevent phase anomalies and filter compounding. If your head unit features a built-in DSP with independent low-pass filters, set your amplifier crossover to Full Range and control the LPF entirely from the dash.
What does the LPF slope (dB/octave) actually do?
The slope determines how aggressively the amplifier attenuates frequencies above your set crossover point. A 12dB slope offers a gradual roll-off, whereas a 24dB slope cuts off unwanted frequencies much faster and more cleanly.
How does LPF differ from HPF on an amplifier?
A low-pass filter (LPF) allows frequencies below the target point to pass while blocking everything above it, which is ideal for subwoofers. A high-pass filter (HPF) does the exact opposite, blocking deep bass to protect smaller speakers from physical over-extension.
Can a poorly set LPF damage my subwoofer?
Yes, running a subwoofer with an improperly configured or disabled LPF exposes the moving coil to high-frequency signals and excessive mechanical excursion. This leads to rapid overheating, thermal breakdown, and permanent voice coil failure.
Fine-tune your mobile audio setup by matching your new crossover settings with proper amplifier gain staging and electrical upgrades today.
