Mastering Glass Abrasion: A Technical Guide On How To Sand Glass For Professional Results

Professional glass sanding requires a systematic progression through silicon carbide abrasive grits while maintaining constant lubrication to prevent thermal shock and hazardous dust inhalation. By utilizing a wet-sanding technique and transitioning from coarse 80-grit leveling to ultra-fine 2000-grit polishing, you can achieve a factory-grade finish or a perfectly chamfered edge on any annealed glass workpiece.

Essential Infrastructure and Equipment for Glass Refinement

Before initiating any glass abrasion project, you must establish a workspace that prioritizes both mechanical precision and respiratory safety. Unlike wood or metal, glass is an amorphous solid that does not produce shavings; instead, it generates microscopic, needle-like silica dust. This dust is a significant health hazard (silicosis) and an environmental contaminant. Consequently, your setup must facilitate wet-processing to trap particulates in a slurry rather than allowing them to become airborne.

The following equipment list represents the industry standard for manual and semi-automated glass edge treatment:

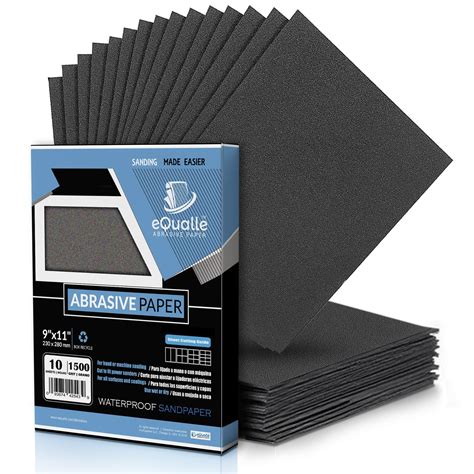

• Abrasive Selection: Silicon Carbide (SiC) sandpaper is mandatory. Standard aluminum oxide sandpaper, typically used for woodworking, is softer than many glass compositions and will dull prematurely. Ensure you have a grit range including 80, 120, 220, 400, 600, 1200, and 2000.
• Lubrication System: A continuous source of water, such as a spray bottle, a recirculating pump, or a shallow dip tray. Water acts as a coolant and a carrier for the glass fines.
• Support Substrate: A high-density rubber sanding block or a flat cork block. Hand-sanding without a block leads to uneven pressure and "scalloped" edges.
• Personal Protective Equipment (PPE): A NIOSH-approved N95 or P100 respirator is non-negotiable, even when wet sanding. Complement this with ANSI Z87.1-rated safety glasses and nitrile or cut-resistant gloves.
• Work Surface: A perfectly flat, waterproof surface covered in a thin layer of closed-cell foam or a heavy-duty rubber mat to prevent the glass from slipping or scratching during the procedure.

Project Benchmarks:

• Estimated Duration: 30 to 90 minutes depending on surface area and desired finish.
• Budgetary Estimate: $25–$60 for a full professional-grade abrasive kit and safety gear.
• Technical Difficulty: Intermediate; requires high attention to pressure and heat management.

The Precision Workflow: Step-by-Step Glass Edge and Surface Sanding

Sanding glass is an exercise in controlled destruction. You are effectively creating millions of microscopic scratches and then systematically replacing them with smaller, less visible scratches until the surface appears transparent or satin-smooth.

Step 1: Surface Decontamination and Inspection

Prior to abrasion, the glass must be meticulously cleaned to remove oils, adhesives, or cutting fluids. Any debris trapped between the abrasive and the glass can cause deep, "wild" scratches that are nearly impossible to remove in later stages.

1. Wash the glass with a mixture of isopropyl alcohol and distilled water.
2. Inspect the edges for "run-outs" or deep "shells" (conchoidal fractures).
3. If the glass is tempered, stop immediately. Tempered glass is under intense internal tension and will explode into thousands of small fragments if the surface tension is compromised by sanding. Only annealed or laminated glass can be safely sanded.

Warning: Never attempt to sand tempered glass. Look for a permanent etch in the corner of the pane indicating "Tempered" or "Toughened."

Step 2: Primary Edge Leveling (Coarse Phase)

The goal of the first stage is to remove the dangerous, razor-sharp "flare" left by a glass cutter and to square the edge of the workpiece.

1. Submerge your 80-grit silicon carbide paper in water for at least five minutes to ensure the backing is flexible.
2. Secure the sandpaper to your sanding block.
3. Apply a generous amount of water to the glass edge.
4. Using a 45-degree angle, stroke the sandpaper along the edge in one direction. Do not saw back and forth, as this increases the risk of chipping the corners.
5. Once the sharpness is removed (the "arrising" process), move the block to a 90-degree angle to the edge to flatten the profile.

Pro-Tip: Keep the glass and the sandpaper dripping wet. If you see white paste forming, you are not using enough water; that paste is concentrated glass dust and can quickly overheat the workpiece.

Step 3: Progressive Refinement (Medium Grits)

After the edge is square and safe to touch, you must remove the deep gouges left by the 80-grit paper. This is where the bulk of the "smoothing" occurs.

1. Transition to 120-grit and repeat the sanding process at both the 45-degree bevel and the 90-degree face.
2. Clean the glass thoroughly between grit changes. A single grain of 80-grit sand trapped under a 220-grit sheet will ruin the finish.
3. Move to 220-grit. At this stage, the edge should begin to look frosted and uniform rather than jagged.
4. Maintain a consistent, moderate pressure. Excessive force can cause "check marks"—micro-cracks that extend into the body of the glass due to mechanical stress.

Step 4: Pre-Polishing and Satin Finishing (Fine Grits)

To achieve a "pencil-polished" look or a translucent finish, you must move into the 400 to 600 grit range.

1. Use 400-grit paper with a circular motion if you are sanding a flat surface, or long, continuous strokes for edges.
2. By the time you finish with 600-grit, the glass should feel as smooth as silk to the touch.
3. If a frosted "satin" look is your goal, you may stop at 600-grit. For a transparent, factory-polished edge, proceed further.

Step 5: High-Clarity Polishing (Ultra-Fine Grits)

For professional-grade transparency on a cut edge, the microscopic peaks and valleys must be leveled further.

1. Utilize 1200-grit followed by 2000-grit wet/dry paper.
2. At 2000-grit, the glass will begin to regain some of its reflective properties.
3. For a final optical polish, you may use a felt block or a buffing wheel charged with Cerium Oxide paste. Mix the Cerium Oxide with water to a "milk" consistency and work it into the edge until the frostiness vanishes completely.

Step 6: Final Cleaning and Stress Relief

Once the desired finish is achieved, the glass must be cleaned and inspected under a bright, oblique light source.

1. Rinse the glass with fresh water to remove all slurry.
2. Dry with a microfiber cloth.
3. Inspect for any remaining "frosted" spots, which indicate that the previous grit did not fully remove the scratches from the grit before it. If spots remain, you must backtrack one grit level and repeat the process.

Comparative Analysis of Abrasive Grades and Surface Results

The following table outlines the technical expectations for each stage of the glass sanding process. Adhering to these metrics ensures that the mechanical integrity of the glass remains intact while achieving the desired aesthetic outcome.

Mitigating Common Fabrication Errors and Material Failures

Glass sanding is sensitive to thermodynamics and mechanical vibration. Failure to account for these factors often results in breakage or sub-par finishes.

• Thermal Shock Fractures




  • Root Cause: Excessive friction heat generated by dry sanding or staying in one spot too long with a power sander. Glass has low thermal conductivity, causing localized expansion that snaps the pane.
  • Actionable Fix: Always use the wet-sanding method. If using a power tool (like an orbital sander), keep the tool moving constantly and use a drip system to ensure the glass temperature remains below 100°F (38°C).

• Shelling and Chipping at Corners




  • Root Cause: Applying downward pressure toward the edge or using a "sawing" motion that catches the glass's structural grain.
  • Actionable Fix: Always sand away from the center of the edge toward the corner, or pull the sandpaper in a single, unidirectional stroke. Avoid oscillating motions at the very tip of a corner.

• Visible Grit Scratches (Hazing)




  • Root Cause: Skipping grit levels (e.g., jumping from 220 to 1000) or failing to clean the workpiece between stages.
  • Actionable Fix: Follow the grit progression strictly. A general rule is never to more than double the grit number between steps (e.g., 200 to 400 is acceptable; 200 to 800 is not).

• Edge "Rounding" or Distortion




  • Root Cause: Sanding with the fingers or a soft sponge instead of a rigid sanding block.
  • Actionable Fix: Use a flat rubber or cork backing block to ensure the pressure is distributed evenly across the entire surface plane of the glass edge.

Frequently Asked Questions

Can I use a standard orbital sander on glass?

Yes, you can use a random orbital sander, provided it is used at a low RPM and with specialized waterproof silicon carbide discs. You must use a constant water mist to prevent heat buildup and dust dispersion; however, ensure the tool is plugged into a GFCI (Ground Fault Circuit Interrupter) outlet to prevent electrical shock in the wet environment.

Why is my glass turning white and cloudy while sanding?

The cloudiness is the result of thousands of microscopic fractures (the "frosted" effect). This is normal during the middle stages of sanding. To remove the cloudiness and return the glass to transparency, you must progress to higher grits (1000+) and finish with a polishing compound like Cerium Oxide.

Is it possible to sand scratches out of the middle of a window?

Light surface scratches can be buffed out using Cerium Oxide and a felt pad. However, if the scratch is deep enough to catch a fingernail, sanding it out will likely create an "optical lens" effect—a slight dip in the glass that distorts the view through the window.

Does sanding weaken the structural integrity of the glass?

Properly seaming (sanding) the edges of glass actually strengthens it. Raw, cut edges contain "micro-checks" that act as stress concentrators where cracks are likely to start. By sanding these edges smooth, you remove these failure points and make the glass more resistant to thermal and mechanical stress.

Professional Glass Finishing Solutions

Mastering the art of glass abrasion allows for the creation of custom-fit shelving, artistic glassware, and safe, functional architectural elements. For high-volume projects or specialized tempering needs, always consult with a professional glazing facility to ensure your material meets local building codes and safety standards.
