Complete Guide On How To Retrofit Radiant Floor Heating

Retrofitting radiant floor heating involves installing PEX tubing and heat distribution plates into existing subfloors or ceiling cavities without tearing up concrete foundations. Achieving optimal thermal output requires calculating heat loss per square foot, maintaining a maximum water temperature of 120°F to 140°F, and selecting low-profile panels that minimize height clearance issues.

Pre-Operation & Planning Checklist for Radiant Retrofits

Installing hydronic or electric radiant heating in an existing structure requires careful evaluation of thermal loads, structural weight capacities, and floor buildup heights. Before purchasing materials, you must determine whether your heat source can handle the added demand and verify that your subfloor can support low-profile modular panels or sleepers.

• Essential Gear, Tools, and Materials:


  • Cross-linked polyethylene (PEX-B or PEX-a) tubing (typically 3/8-inch or 1/2-inch)
  • Aluminum heat transfer plates or grooved modular polystyrene/gypsum panels
  • Manifold assembly with balancing valves and flow meters
  • PEX uncoiler, pipe cutters, and expansion or crimping tools
  • Laser thermometer, pressure testing kit, and self-leveling underlayment
• Prerequisite Knowledge and Standards:


  • Calculation of room-by-room heat loss using Manual J or equivalent thermal modeling
  • Compliance with local plumbing codes regarding backflow preventers, dielectric unions, and pressure testing (typically 100 PSI for 24 hours)
  • Understanding of maximum allowable flooring surface temperatures (generally 85°F for hardwood to prevent warping)
• Project Benchmarks:


  • Estimated duration: 3 to 5 days for an average 500-square-foot zone
  • Estimated material cost: $8 to $15 per square foot depending on panel type and automation complexity

Step-by-Step Retrofit Installation Workflow

Step 1: Subfloor Inspection and Surface Preparation

Begin by clearing all existing flooring down to the structural subfloor, which may be plywood, OSB, or concrete. Inspect the structural integrity of the joists or slab, ensuring there are no deflections exceeding L/360 standards that could crack future underlayments. Sweep and vacuum the surface meticulously to remove debris that could puncture PEX tubing or compromise self-leveling mortar bonds.

Warning: Never install radiant panels over unsealed or structurally compromised wood subfloors, as moisture movement will cause squeaks and panel separation over time.

Step 2: Manifold Placement and Piping Layout Design

Mount the supply and return manifolds in an accessible location, such as a utility closet, basement wall, or recessed cabinet. Draw a scale layout of each heating loop on your subfloor, maintaining a standard tube spacing of 6 to 12 inches on center depending on your heat load requirements. Ensure no individual loop exceeds 250 to 300 linear feet to prevent excessive pressure drop and uneven heating across the zone.

Step 3: Installing Low-Profile Retrofit Panels or Plates

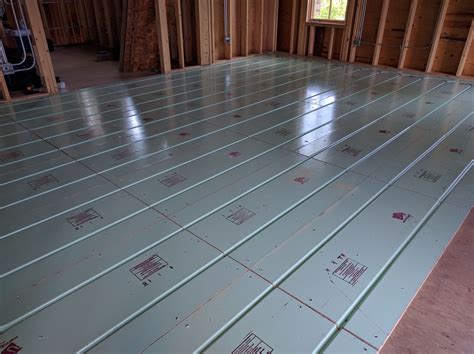

If using above-floor modular polystyrene panels, lay them down in an interlocking pattern across the subfloor, trimming edges with a utility knife to fit room perimeters. Alternatively, if working from underneath through an open basement ceiling, staple aluminum heat transfer plates directly into the subfloor joist bays and thread the PEX tubing snugly into the channels.

Pro-Tip: Always install protective plastic sleeves where PEX tubing passes through wooden framing members or subfloor penetrations to eliminate thermal expansion noise and abrasion.

Step 4: Laying and Securing PEX Tubing

Uncoil the PEX tubing and press it firmly into the pre-formed grooves of the modular panels or snap it into the aluminum heat transfer plates. Maintain smooth, sweeping radius bends to avoid kinking the pipe, utilizing corner tracks if strict 90-degree turns are unavoidable. Connect the ends of each completed loop to the supply and return ports on the manifold, leaving an extra foot of pipe for final trimming.

Step 5: Pressure Testing the System

Attach a pressure test kit equipped with a pressure gauge and air compressor or water pump to the manifold. Pressurize the entire closed loop system to 100 PSI, which is roughly three times normal operating pressure, and monitor the gauge for a minimum of 24 hours. Verify that zero pressure drop occurs, confirming that no staples pierced the tubing and no fittings are leaking before covering the installation.

Step 6: Pouring Underlayment or Applying Final Flooring

If you used above-floor grooved panels designed for a wet installation, mix and pour a fiber-reinforced self-leveling gypsum underlayment over the PEX tubing to a thickness specified by the manufacturer (usually 3/4 inch to 1-1/2 inches above the subfloor). Allow the underlayment to cure completely according to the manufacturer's drying schedule before installing engineered wood, tile, or luxury vinyl plank flooring designed for radiant applications.

Technical Specifications of Radiant Retrofit Systems

Common Site Failures and Field Fixes

• Root Cause: Tubing kinked during the uncoiling and snapping process into tight layout radiuses.


  • Actionable Fix: Cut out the damaged section immediately using a certified PEX tubing cutter and splice the line back together using an ASTM-approved full-port coupling and expansion or crimp ring. Never attempt to heat and reshape a kinked PEX pipe.
• Root Cause: Pressure test failure due to a slow leak at the manifold compression fitting.


  • Actionable Fix: Depressurize the system, check that the brass insert stiffener is fully seated inside the PEX tube, and re-torque the compression nut one-quarter turn past hand-tight without stripping the threads.
• Root Cause: Inadequate heat output in rooms with high thermal loss (e.g., spaces with large glass windows).


  • Actionable Fix: Supplement the retrofit floor zone with baseboard boosting, install tighter tube spacing (4 inches on center) in perimeter zones, or upgrade room insulation values to reduce overall BTU demand.
• Root Cause: Floor finish buckling or cupping over hardwood surfaces due to excessive supply water temperatures.


  • Actionable Fix: Install an outdoor reset control and mixing valve to limit maximum water temperature entering the slab to 120°F, and program room thermostats to maintain a strict floor surface temperature limit of 85°F.

Frequently Asked Questions

Can I install radiant floor heating under existing hardwood floors?

Installing radiant heating directly on top of existing hardwood floors is not recommended because it blocks heat transfer and traps moisture. Retrofitting typically requires removing old floor coverings down to the subfloor or installing under-joist heat transfer plates from a basement or crawlspace below.

How much height will a retrofit radiant system add to my floor?

Most modern low-profile above-floor retrofit modular panels add between 3/8 inch and 3/4 inch of height to the room. When paired with a thin self-leveling underlayment or specialized cover board, the total floor height increase rarely exceeds 1-1/4 inches.

What is the best heat source for a retrofit radiant system?

High-efficiency modulating condensing boilers, air-to-water heat pumps, and dedicated tankless water heaters work exceptionally well for radiant retrofits. These units deliver low-temperature water efficiently without requiring the high-fire stages typical of traditional forced-air furnaces.

Can I run a radiant heating loop under carpet?

You can install radiant heating beneath carpet, provided the combined R-value of the carpet and underpad does not exceed 2.0. Higher R-values act as thermal insulation, preventing heat from escaping into the room and causing the system to run inefficiently.

Do I need a special pump for a radiant retrofit?

Yes, radiant floor loops require a dedicated variable-speed circulator pump paired with a mixing valve. This setup blends hot boiler water with cooler return water to maintain the precise low-temperature water flow required by PEX tubing and flooring warranties.
