Resetting a garage door typically involves clearing and reprogramming the logic board limits, resyncing remote frequency codes, or re-engaging the emergency release mechanism after a manual override. Performing this procedure requires understanding your specific operator brand, whether LiftMaster, Chamberlain, Genie, or Craftsman, to avoid desynchronizing the electronic travel limits and tension sensors.
Pre-Operation & Equipment Checklist
Executing a successful garage door reset requires methodical preparation, the right safety gear, and an understanding of residential overhead door mechanics. Whether you are dealing with a stalled opener, a flashing LED indicator, or a door that reverses unexpectedly, preparing your workspace ensures both safety and speed.
- Essential Gear & Tools: Sturdy step ladder, insulated flathead screwdriver, flashlight or headlamp, manufacturer user manual or smartphone for looking up specific flashing code sequences, and safety glasses.
- Mandatory Prerequisite Knowledge & Standards: Familiarity with UL 325 safety standards for automatic garage door operators, specifically reverse-mechanism testing and photo-eye alignment protocols. Always disconnect the power supply via the wall outlet before handling internal logic board wiring.
- Estimated Budget & Duration Benchmarks: Financial cost is zero if performed as a standard programming reset. The process typically takes 15 to 30 minutes for a complete travel limit and remote control reconfiguration.
Step-by-Step Garage Door System Reset Workflow

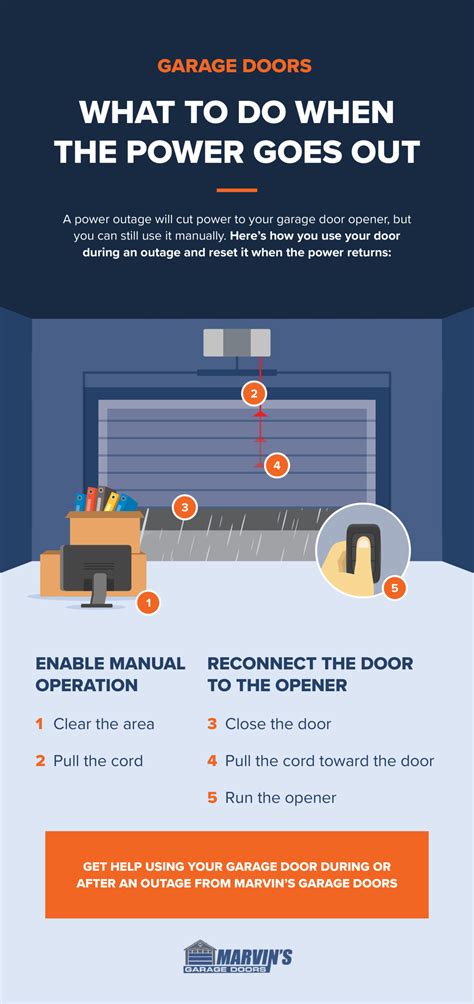

Step 1: Disengage and Re-engage the Emergency Release Mechanism
Begin by ensuring the garage door is fully closed to prevent it from slamming down uncontrollably when disconnected from the operator. Locate the red emergency release cord hanging from the central trolley carriage and pull straight down, then back toward the motor unit, to release the spring-loaded latch from the drive belt, chain, or screw. Manually lift the garage door halfway up to test the balance; a properly balanced door should remain stationary between three and four feet off the floor. Re-engage the mechanism by pulling the cord straight down toward the floor while running the opener via the wall button or remote until the trolley reconnects with the drive shaft with an audible click.
Warning: Never attempt to pull the emergency release cord while the garage door is in the open position if the extension or torsion springs are broken, as the dead weight of the door will cause it to crash downward rapidly.
Step 2: Clear the Logic Board Memory and Reset Remotes
Locate the learn button on your garage door opener motor housing, typically situated on the back panel behind the light bulb cover under a plastic flap. Press and hold the learn button continuously for approximately six seconds until the adjacent LED indicator light turns off, which signifies that all previously programmed remote controls, wireless keypads, and HomeLink systems have been completely wiped from the memory. Test the existing remotes to confirm they no longer activate the door. To reprogram, press and release the learn button once, then immediately press and hold the open button on your handheld remote until the opener light flashes or you hear two clicks, confirming the new frequency handshake is established.
Step 3: Reprogram the Electronic Travel Limits and Force Sensors
Locate the limit adjustment screws or programming buttons on the side or back panel of the motor unit, labeled as Up/Open and Down/Close limits. Press the programming button until the up arrow button begins to flash, then press and hold the up button until the garage door reaches your desired fully open position, using the adjustment arrows to fine-tune the exact stopping point. Press the square or enter button to store the upper limit, then repeat the process for the down limit by holding the down button until the rubber bottom seal makes firm, flush contact with the garage floor without crushing or looping. Run one complete cycle up and down without interruption to allow the automatic force-sensing technology to calibrate motor resistance tolerances.
Genie Pro Max Garage Door Opener Troubleshooting: Fixes | Fission Review
Garage Door Operator Programming Comparison Matrix
| Opener Brand | Learn Button Color / Location | Limit Adjustment Method | Safety Reverse Sensor Status |
|---|---|---|---|
| LiftMaster / Chamberlain | Yellow, Purple, Red/Orange (Under light cover) | Electronic buttons (Up/Down arrows on back panel) | Solid green/red LED on both sending and receiving eyes |
| Genie | Square or black programming buttons | Limit levers or digital touchpads (Prog / Up / Down) | Red LED remains steadily illuminated when aligned |
| Craftsman | Purple or Yellow rear panel square button | Digital toggle buttons or rotary screw dials | Amber/yellow indicator light indicates alignment |
| Linear | Learn button next to terminal block | Push-button limit setting sequence | Photo-cell status LED active on housing |
Common Site Failures & Field Fixes
- Root Cause: The garage door reverses immediately upon touching the floor or stops midway during the downward cycle due to corrupted limit settings.
- Actionable Fix: Reset the down-travel limit by backing off the closing distance by one-quarter inch, ensuring the door rests flush on the concrete without exerting excessive downward pressure that triggers the reversal safety mechanism.
- Root Cause: Remotes and keypads fail to operate the door even after fresh battery installation due to radio frequency interference or memory overflow.
- Actionable Fix: Perform a master memory wipe by holding the motor's learn button for ten seconds, unplug the unit for sixty seconds to clear volatile memory, and reprogram each device sequentially.
- Root Cause: The motor hums or attempts to move, but the door remains stationary because the trolley is disconnected from the carriage assembly.
- Actionable Fix: Manually pull the emergency release cord toward the motor unit while running the opener to force the spring lever to snap back into the drive chain or belt connector.
Frequently Asked Questions
How do I know if my garage door needs a complete reset?
A complete system reset is necessary if your garage door reverses unexpectedly during normal operation, refuses to close completely, or if you have lost a remote control and need to secure the premises. Additionally, replacing the logic board, motor, or drive belt requires a fresh calibration of travel limits.
Will resetting my garage door erase my remote controls?
Pressing and holding the learn button for more than six seconds will erase all programmed remote controls and wireless keypads as a security measure. However, simply power-cycling the unit by unplugging it from the wall outlet will retain all existing programmed codes and memory settings.
What should I do if the limit settings refuse to save?
If the opener fails to save your travel limits, check for mechanical binding in the tracks, verify that the trolley is fully engaged, and inspect the travel module wiring harness inside the motor housing. If the logic board has suffered a power surge, it may require professional replacement.
Can I reset a garage door without a ladder?
Most modern garage door openers feature the learn button and programming controls on the rear motor housing, which can be reached with a secure step ladder. Never attempt to stretch or stand on unstable objects to reach the motor unit while troubleshooting electronic components.
