Comprehensive Guide To Replacing Your Volkswagen Key Fob Battery: DIY Tutorial For All Models

Most Volkswagen key fobs utilize either a CR2025 or CR2032 3V lithium coin cell battery, which typically offers a functional lifespan of three to five years depending on the frequency of the "Keyless Access" (KESSY) usage. The replacement procedure involves articulating the mechanical emergency key to create leverage, separating the polymer housing halves, and ensuring the new cell is seated with the positive terminal facing upward to maintain circuit continuity and prevent signal failure.

Technical Preparation and Equipment Specifications

Before attempting to open the sophisticated housing of a Volkswagen transmitter, it is vital to identify the specific generation of your vehicle's remote. Volkswagen has utilized several distinct fob architectures over the last two decades, ranging from the classic "Switchblade" style found on Mk4 and Mk5 Jettas and Golfs to the sleek, buttonless-start proximity fobs found on the ID.4 and Mk8 GTI. Using the wrong tools or excessive force can mar the plastic casing or, more critically, damage the Surface Mount Devices (SMD) on the internal circuit board.

Essential Component and Tool Checklist

• Replacement Battery: Ensure you have the exact specification. Most modern VW fobs (2014–Present) require a CR2032, while many older flip-keys (1999–2013) utilize the thinner CR2025. Check the engraving on your current battery before disposal.
• Precision Tools: A small flathead screwdriver (2.0mm to 3.0mm blade width) or a plastic non-marring pry tool is necessary for separating the shell halves without scarring the finish.
• Cleaning Supplies: Isopropyl alcohol (90% or higher) and a lint-free microfiber cloth are recommended for cleaning the internal battery contacts if oxidation or "battery leak" residue is present.
• Estimated Duration: 3 to 5 minutes.
• Budget Benchmark: $5.00 – $12.00 (Cost of a high-quality name-brand lithium battery versus dealership service fees which can exceed $50.00).

Step-by-Step Methodology for All Volkswagen Fob Variants

The internal architecture of a Volkswagen key is designed to be user-serviceable, yet the locking tabs are often tight to ensure the unit remains water-resistant. Follow the specific workflow for your fob style below to ensure a successful internal power restoration.

Procedure A: The Modern Proximity/Smart Key (Mk7, Mk8, Atlas, Tiguan, ID.4)

These fobs are typically found on vehicles equipped with push-button start. They do not have a visible "flip-out" key, but rather a hidden emergency key blade inside.

1. Release the Emergency Key: Locate the small silver button or slide-release on the side or top of the fob. Press it firmly and pull the metal key blade out of the housing. This exposes the internal slot used for leverage.
2. Separate the Housing: Insert the tip of the metal key blade (or a flathead screwdriver) into the small notch located inside the cavity where the key blade was just removed. Gently twist the tool. You will hear a "pop" as the plastic clips release.
3. Reveal the Battery: Lift away the back cover. You will see the circular battery held in place by a small metal tensioner.
4. Extract the Old Cell: Use your precision screwdriver to gently lift the battery out of its cradle. Be careful not to bend the copper contact points underneath.
5. Install the New Battery: Slide the new CR2032 battery into the slot. Technical Note: The side with the "+" sign and the text (the positive terminal) must be facing toward you (visible).
6. Reassemble and Test: Align the back cover with the main fob body and press firmly until it clicks across the entire perimeter. Reinsert the emergency key and press a button to confirm the small red LED indicator flashes.

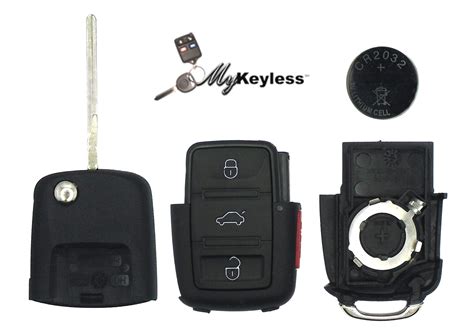

Procedure B: The Classic Switchblade/Flip-Key (Mk4, Mk5, Mk6, Early Passat/Jetta)

This design features a silver button that flips the key out like a pocketknife. This style is notorious for having a very tight battery compartment.

1. Deploy the Key Blade: Press the silver button to flip the metal key out. This reveals a seam in the middle of the key's "track."
2. Split the Fob in Half: Many older VW keys are comprised of two main sections: the remote half (buttons) and the transponder half (the metal key). Pull these two halves apart with significant force, or use a screwdriver in the center seam to pry them apart.
3. Open the Remote Section: Once the remote half is separated, look at the side where the two halves met. Use a flathead screwdriver to "split" the remote housing like an oyster.
4. Replace the CR2025: Remove the old battery and replace it with a fresh CR2025. Ensure the positive terminal is facing down toward the plastic back cover in these specific models (refer to the "+" engraving inside the plastic for confirmation).
5. Snap and Connect: Press the two halves of the remote section back together, then slide the remote section back onto the transponder/key section until it clicks.

Pro-Tip: If your key fob has been submerged in water or exposed to extreme humidity, this is the ideal time to wipe the gold-plated contact pads with a Q-tip dipped in isopropyl alcohol to ensure maximum voltage transfer.

Volkswagen Key Fob Battery and Specification Matrix

Selecting the correct battery is the most critical step in this process. While a CR2025 and CR2032 are both 3-volt lithium cells, their thicknesses differ (2.5mm vs 3.2mm). Using a battery that is too thin will cause intermittent connectivity, while a battery that is too thick can crack the internal circuit board or the outer plastic housing.

Critical Troubleshooting for Common Signal Failures

In approximately 15% of cases, simply replacing the battery does not immediately restore full functionality. This is often due to a loss of "handshake" synchronization between the rolling code of the remote and the vehicle's Central Control Module (CCM).

• Scenario 1: New battery installed but the car won't unlock remotely.


  • Root Cause: The remote has lost its synchronization after being without power for too long.
  • Actionable Fix: Perform a manual re-sync. Insert the physical key into the driver’s door lock. Press the "Unlock" button on the remote once, then manually unlock the door with the key within 30 seconds. This re-establishes the encrypted rolling code link.
• Scenario 2: The red LED flashes, but the range is extremely poor.


  • Root Cause: Use of "off-brand" or expired batteries that lack the necessary peak current (amperage) to power the radio frequency transmitter effectively.
  • Actionable Fix: Replace the cell with a high-quality, name-brand Lithium Manganese Dioxide battery (e.g., Panasonic, Duracell, or Energizer) and ensure no fingerprints (oils) are on the flat surfaces of the battery, as oils increase resistance.
• Scenario 3: The fob is completely dead even with a new battery and no LED light.


  • Root Cause: The internal metal contact tabs have been flattened over time and are no longer touching the battery surfaces.
  • Actionable Fix: Use a toothpick or small needle to very gently "lift" or bend the metal contact tabs upward by about 1 millimeter. This increases the tension against the battery, ensuring a solid electrical connection.

Frequently Asked Questions

Does replacing the battery require me to reprogram my Volkswagen key at the dealer?

No, replacing the battery is a standard maintenance task that does not erase the transponder chip's programming for the immobilizer. The car will still start. In rare cases, you may only need to perform a simple button-press sequence to re-sync the remote locking functions, but no "dealership computer" (ODIS) is required.

Why does my Volkswagen dashboard still say "Key Battery Low" after I changed it?

This message is often cached in the vehicle's computer. To clear it, you usually need to cycle the ignition to the "On" position and then "Off" again, or drive the vehicle for a few miles. If the message persists, the new battery may have a voltage lower than 3.0V (some "new" batteries sit on shelves for years and lose charge).

Can I use a CR2032 instead of a CR2025 in my older VW flip key?

It is not recommended. The CR2032 is 0.7mm thicker than the CR2025. While it might provide a longer life, forcing the housing shut can put permanent stress on the plastic clips and may eventually cause the fob to burst open in your pocket or damage the circuit board's solder joints.

How do I know if my key fob is actually broken rather than just having a dead battery?

Observe the small red LED light on the corner or face of the fob when a button is pressed. If the LED flashes brightly but the car doesn't respond, the issue is likely synchronization or a vehicle-side fuse. If no LED light appears even with a verified fresh battery, the internal circuit board has likely failed due to hardware fatigue or liquid damage.

Ensure Your Volkswagen Stays Secure and Accessible

Maintaining your Volkswagen’s remote entry system is a vital part of vehicle ownership that prevents the inconvenience of being locked out or relying on the emergency manual entry procedures. For owners of high-mileage vehicles, consider keeping a spare CR2032 battery in your glove box to ensure you are never stranded by a depleted transmitter.
