Comprehensive Guide: How To Replace Rocker Panels For Structural Integrity And Rust Restoration
Replacing rocker panels involves surgically removing corroded structural steel and welding in new, rust-free, galvanized or cold-rolled panels to restore the vehicle's unibody rigidity. This procedure requires precise measurement, metal fabrication skills, and adherence to automotive collision repair standards to ensure the door jamb alignment and structural crashworthiness remain intact.
Essential Preparation and Tooling Requirements for Rocker Replacement
Before beginning the removal of rusted rocker panels, you must assess the extent of the corrosion. If the internal rocker structure—the pinch welds or inner reinforcements—is severely compromised, a simple slip-on cover panel will not suffice; you must perform a full structural section replacement. Proper preparation ensures that the new panel fits flush against the existing metal, preventing future moisture traps and premature oxidation.
- Mandatory Metalworking Tools: 4.5-inch angle grinder with cut-off wheels, flap discs (40 and 80 grit), pneumatic spot-weld cutter, MIG welder (with .023 or .030 wire), and a set of locking C-clamps or Vise-Grip sheet metal clamps.
- Safety Gear: OSHA-compliant respirator for metal dust, UV-shielded welding helmet, heavy-duty leather welding gloves, and fire-resistant shop apron.
- Chemical Supplies: Self-etching weld-through primer, high-build epoxy primer, automotive seam sealer, cavity wax (internal rust preventative), and degreaser.
- Budget and Duration: Expect a minimum investment of 15 to 30 labor hours per side depending on the vehicle's damage severity. Material costs typically range from 200 to 600 dollars per side, excluding paint finishing.
Procedural Workflow for Structural Rocker Panel Restoration
Step 1: Vehicle Preparation and Damage Assessment
Position the vehicle on a flat, level surface and support the frame on jack stands at factory-designated lift points. Never support the vehicle by the rocker panel itself, as the structural integrity is already compromised. Remove the front fender liners, door sill plates, and lower door trim. Use a wire wheel to strip the undercoating and paint around the rusted area to map out the exact reach of the corrosion.
Warning: Before cutting, verify there are no fuel lines, brake lines, or electrical wiring harnesses running behind the rocker panel. Use a thin piece of sheet metal as a backer shield when cutting near sensitive components.
Step 2: Extraction of the Corroded Panel
Using a spot-weld cutter, drill out the individual factory spot welds along the bottom pinch weld. Use an angle grinder with a thin cut-off wheel to carefully slice along the top seam of the rocker panel. Work methodically to remove the rusted skin without damaging the inner structure. Once the outer panel is removed, use an angle grinder to remove any residual scale or surface rust from the inner rocker. Treat all exposed inner metal with a rust-neutralizing agent.

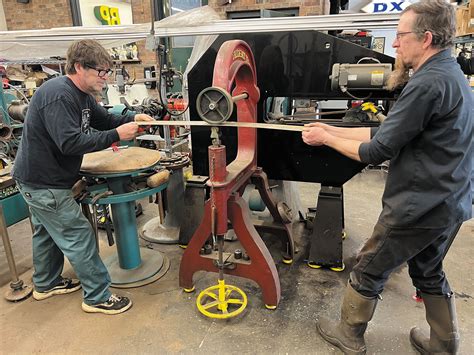

Step 3: Fitting the Replacement Panel
Hold the new panel in position using at least six locking clamps. Check the door gaps by temporarily re-installing the doors to ensure the panel does not interfere with the door opening or closing. If the panel is a full-length replacement, ensure the body lines match the adjacent quarter panel and A-pillar perfectly. Use a scribe to mark the cut lines if the new panel requires trimming for a custom fit.
Step 4: Welding and Integration
Apply weld-through primer to the back side of the new panel and any inaccessible internal surfaces. Secure the panel and begin tack-welding at 2-inch intervals to prevent heat distortion, which can warp the thin sheet metal. Once tacked, stitch weld the seams by moving back and forth to keep metal temperatures low. Grind the welds flush using a flap disc, ensuring you do not overheat the metal, as this introduces structural stress and potential distortion.
Step 5: Finishing and Corrosion Protection
Apply a high-quality automotive seam sealer to all exposed joints to prevent moisture ingress. Once the sealer cures, apply an epoxy primer to seal the bare metal. Before reassembling trim, use an aerosol cavity wax applicator wand to spray the inside of the rocker panel through factory drain holes; this is critical for preventing internal rust from returning. Finally, sand, paint, and apply your topcoat and clear coat to match the vehicle’s original finish.
How To Replace Rocker Panels And Cab Corners at Lynn Morgan blog
Technical Specifications for Automotive Steel and Welding Methods
| Material/Parameter | Specification/Standard | Rationale |
|---|---|---|
| Sheet Metal Gauge | 18 to 20 Gauge Cold Rolled | Matches OEM thickness for structural matching |
| Welding Gas Mixture | 75% Argon / 25% CO2 | Provides optimal penetration and bead stability |
| Welding Technique | Stitch Welding | Minimizes heat-affected zone (HAZ) warping |
| Surface Prep | 80-120 Grit Abrasive | Ensures mechanical bond for primers and sealers |
| Rust Prevention | Internal Cavity Wax | Displaces moisture in closed box sections |
Common Field Failures and Professional Remediation
- Heat Warping: Occurs when welding continuously in one spot, causing the sheet metal to "oil can" or ripple. Fix: Use a wet rag to cool the weld after every few inches of bead and always utilize short stitch welds rather than long continuous runs.
- Incomplete Penetration: Happens when the MIG settings are too low, creating a "cold" weld that sits on top of the metal. Fix: Practice on scrap metal of the same thickness to dial in your wire speed and voltage before hitting the vehicle body.
- Water Intrusion: Caused by improper seam sealing or blocked factory drain holes. Fix: Ensure all seams are completely sealed with paintable automotive-grade sealant and confirm all drain holes are clear to allow condensation to exit the rocker.
- Poor Adhesion of Paint: Often a result of using regular primer instead of weld-through or epoxy primers. Fix: Strip the area back to bare metal, clean thoroughly with wax and grease remover, and utilize a two-part epoxy primer for a moisture-proof seal.
Frequently Asked Questions
Do I need to remove the doors to replace rocker panels?
While it is technically possible to replace some rockers with doors on, removing them is highly recommended. Accessing the top flange of the rocker is nearly impossible with the door in place, and removing the doors ensures you do not accidentally damage them with sparks or grinders.
Can I just use pop rivets and body filler to fix a rusted rocker?
No, using rivets and filler is considered a cosmetic "patch" rather than a repair. This method will fail within months due to the hygroscopic nature of body filler, which absorbs moisture and accelerates rot, and it provides zero structural strength to the unibody.
What is the difference between an inner and outer rocker?
The outer rocker is the cosmetic piece visible from the side of the vehicle, while the inner rocker is a structural reinforcement member. If you see holes in your outer rocker, it is highly probable that your inner rocker also requires repair or replacement to maintain safety.
How do I prevent the new rocker panel from rusting immediately?
Prevention relies on two factors: sealing the exterior joints with professional-grade seam sealer and coating the interior cavities with professional cavity wax. These products create an airtight, hydrophobic barrier that prevents oxygen and water from reaching the steel.
Master Your Vehicle Restoration Today
Properly replacing rocker panels is a high-skill task that significantly improves both the aesthetic value and the structural safety of your vehicle. Equip your workshop with the right metalworking tools today and restore your frame to factory-grade condition with confidence.
