How To Replace A Clock Spring Mainspring: A Professional Horological Restoration Guide

Replacing a clock spring mainspring requires releasing stored mechanical energy safely, extracting the damaged spring, and winding the new spring using specialized horological equipment. Precision measurements of the spring's thickness, width, and length are critical to preventing gear-train damage and ensuring an optimal eight-day or thirty-day run cycle. Adhering to strict safety protocols, including the use of safety glasses and a dedicated mainspring winder, is mandatory to avoid severe injury and mechanical failure.

Horological Safety, Tooling, and Workshop Preparation

A clock mainspring stores an immense amount of potential kinetic energy. Attempting to service or replace a mainspring without the proper tools and understanding of safety dynamics can result in shattered gear teeth, bent pivots, broken plates, and severe lacerations to the hands or face. Before beginning the disassembly process, you must establish a clean, dedicated workspace and gather specialized watchmaking and clockmaking tools.

Required Equipment and Bench Inventory

• Horological Mainspring Winder: A professional-grade mainspring winding set (such as a Webster, Marshall, or Keystone style) featuring winding arbors of various diameters and receiving drums (sleeves).
• Let-Down Tools and Keys: A high-quality let-down handle with interchangeable brass chucks or keys that match the winding arbors of your specific movement.
• Safety Gear: Heavy leather work gloves and high-impact safety goggles or a full face shield.
• Measuring Instruments: Digital metric calipers (accurate to 0.01 mm) and a specialized mainspring gauge.
• Cleaning and Chemistry: Horological solvent (such as Zenith or L&R ultrasonic cleaning solution), lint-free wipes, and high-viscosity clock mainspring grease (e.g., Moebius 8300, Windles, or specialized molybdenum disulfide grease).
• Bench Tools: Pinvises, pivot files, brass tweezers, brass wire for tying open springs, and a movement holder.

Technical Benchmarks and Prerequisites

• Estimated Duration: 2 to 4 hours, depending on the movement type (enclosed going barrel vs. open frame loop-end).
• Project Budget: $50 to $150 for parts (spring and lubricants), plus $150 to $400 for a quality mainspring winder if not already owned.
• Prerequisite Competency: Intermediate horological assembly skills, including the ability to identify train wheels (great wheel, center wheel, third wheel, escape wheel) and safely handle plate-and-pillar construction.

The Clock Mainspring Replacement Protocol

Step 1: Safely Letting Down the Mainspring Tension

You must never attempt to disassemble a clock movement while there is still tension stored in the mainsprings. Doing so will cause the gears to spin uncontrollably when the plates are loosened, stripping teeth and destroying delicate pivots.

First, secure the clock movement firmly in a movement holder or bench vise with padded jaws. Locate the click and clickspring assembly on the winding arbor of the mainspring you wish to release. The click is the pawl that prevents the arbor from spinning backward during winding.

Select a let-down key that fits the square winding arbor perfectly. There must be zero play between the key chuck and the arbor. Grasp the let-down handle firmly with your dominant hand. Turn the key slightly in the winding direction (clockwise for most clocks) to relieve the pressure of the ratchet wheel against the click.

While holding the tension firmly with the let-down tool, use a brass pointer or tweezers in your non-dominant hand to gently pull the click away from the ratchet teeth. Once the click is disengaged, slowly and control the back-rotation of the let-down handle in your hand. Do not let the handle spin freely; allow it to slide through your fingers under controlled friction, releasing the spring's power incrementally. If the clock has multiple trains (time, strike, chime), repeat this exact process for every arbor on the movement.

Step 2: Extracting the Barrel or Releasing Open Springs

Clock movements utilize two primary mainspring configurations: enclosed going barrels or open loop-end springs held between the plates.

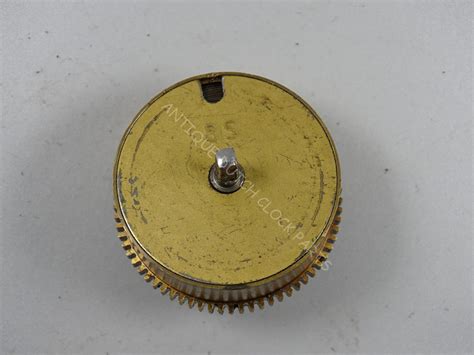

For enclosed going barrels, you must remove the barrel assembly from the movement. This often requires loosening the plate nuts or pillar pins and separating the plates slightly. Once the plates are separated, slide the barrel out. To open the barrel, locate the small notch on the rim of the barrel cap. Insert a brass punch or a sturdy, non-marring tool into this notch and tap it gently with a clockmaker’s hammer to pop the cap off. Remove the arbor by twisting it counter-clockwise to unhook it from the center coil of the spring, then lift it out.

For open loop-end springs, the spring is wrapped directly around an arbor on the great wheel and held under tension on the frame. If the spring is broken, it may have already released its energy violently, resulting in a tangled coil. If the spring is intact but weak, let down the power as detailed in Step 1, then place a mainspring clamp (a C-shaped brass ring) over the outer coil of the spring. Once the clamp is secured, you can safely dismantle the movement plates to lift the mainspring and great wheel assembly out as a single unit.

Step 3: Removing the Damaged Mainspring

If you are dealing with an enclosed going barrel, the old mainspring must be extracted from the barrel drum.

Warning: Never attempt to pull a mainspring out of a barrel by hand with a spiral, corkscrew motion. Doing so will permanently distort the spring into a cone shape, render the barrel unusable, and risks serious hand injury if the spring slips and uncoils rapidly.

To extract the spring safely, mount the barrel inside your mainspring winder receiving sleeve. Engage the winder arbor hook with the inner eye of the mainspring. Wind the spring tightly onto the winder arbor until it clears the inner wall of the barrel. Slide the barrel off, then slowly back-wind the mainspring winder handle to release the spring's tension into the safety cage or receiving sleeve of the winder. Once the tension is completely spent, remove the spring from the winder.

If a spring is broken into multiple pieces inside a barrel, use heavy leather gloves and long-nosed brass pliers to extract the broken segments piece by piece, taking extreme care as compressed fragments can still jump out unexpectedly.

Step 4: Measuring and Sourcing the Replacement Mainspring

To ensure the clock runs for its designated cycle without binding or lagging, you must obtain an exact replacement spring. Do not rely on the measurements of the old spring alone, as it may have been an incorrect replacement installed by a previous repairer, or it may have set (lost its elasticity and thinned out).

Using your digital metric calipers, take three critical measurements:

1. Width (Height): Measure the exact width of the steel ribbon. If it is an enclosed barrel spring, measure the inside depth of the barrel to ensure the new spring has approximately 0.5 mm of vertical clearance once the cap is installed.
2. Thickness: Measure the thickness of the steel ribbon at an undamaged section near the outer end of the spring. A difference of even 0.02 mm in thickness dramatically alters the torque profile of the spring.
3. Inside Barrel Diameter: Measure the internal diameter of the barrel drum.

Use these measurements to calculate the correct spring length. The "Rule of Thirds" is the gold standard in horology: inside a closed barrel, one-third of the area should be occupied by the arbor, one-third by the fully wound mainspring, and one-third should remain as empty space to allow the spring to function without binding.

Verify the end style of the spring. Most antique clocks use a "hole end" that hooks onto a pin inside the barrel wall, while others use a "loop end" that hooks around a pillar spacer, or a "resilient/Sandoz style" bridle that friction-fits against the barrel wall. Order a high-carbon steel or modern white-alloy mainspring that matches these precise specifications.

Step 5: Loading the New Mainspring into the Winder

Modern white-alloy mainsprings are shipped coiled tightly inside a retaining wire ring. Do not slip the spring out of this ring by hand.

Select the correct winding arbor and drum size on your mainspring winder. The winding drum must have an internal diameter slightly smaller than the internal diameter of the clock barrel. Mount the winding arbor into the winder spindle.

Position the new mainspring (still inside its shipping ring) against the winder drum. Align the inner eye of the spring with the hook on the winder arbor. Turn the winder crank slowly to engage the hook. Once engaged, wind the crank to pull the spring out of its shipping ring and directly onto the winder arbor. Wind the spring fully until it is tightly coiled around the arbor.

Step 6: Installing and Lubricating the Mainspring in the Barrel

With the new spring wound tightly onto the winder arbor, slide the receiving sleeve or the clock barrel itself over the compressed spring coil. Ensure that the direction of the spiral matches the winding direction of the clock movement (clockwise vs. counter-clockwise). If you install the spring backward, the clock winding mechanism will not function.

Slowly press the plunger on your mainspring winder to push the coiled spring out of the winder and directly into the clock barrel or retaining clamp. Once the spring is safely nested in the barrel, guide the outer hole or loop over the retaining hook on the internal barrel wall. You should hear or feel a distinct click when the spring hook engages.

Now, apply the lubricant. Modern white-alloy springs require less lubrication than old carbon-steel springs, but they still require high-grade grease to reduce friction between the coils. Using a clean spatula or syringe, apply several small dabs of specialized clock mainspring grease (such as Moebius 8300) along the coils of the spring. Do not over-lubricate; a thin, even film is all that is required. Excess grease will migrate onto the train wheels, collect dust, and gum up the movement pivots.

Carefully clean the barrel arbor, apply a drop of medium-viscosity clock oil to its journals, and slide it back into the center of the spring. Rotate the arbor until its hook catches the inner eye of the mainspring. Place the barrel cap back onto the drum and tap it gently with a brass hammer until it snaps firmly into its seat around the entire circumference.

Step 7: Reassembling and Testing the Clock Movement

With the newly replaced mainspring securely housed in its barrel or held in its assembly clamp, place the great wheel back into position on the lower plate.

Reassemble the gear train wheels, ensuring that every pivot is perfectly aligned in its corresponding bushing hole on the top plate. Carefully place the top plate over the pillars.

Pro-Tip: Never force the plates together. If a pivot is not aligned, applying pressure will bend or break it. Use a fine tweezers or a steering needle to gently guide each pivot into its hole one by one, starting from the great wheels and working your way up to the escape wheel, allowing the plates to settle naturally.

Once the plates are seated, secure them with the original pillar pins or nuts. If you used temporary mainspring clamps for open springs, wind the clock arbor slightly to compress the spring, then slide the C-clamps off the coils.

Apply a tiny drop of high-quality clock oil (such as Moebius 8030) to every pivot bushing on the outside of the plates. Wind the clock slowly, checking for smooth engagement of the teeth and ensuring the click mechanism functions perfectly. Mount the pendulum or balance and observe the movement for several hours to confirm stable amplitude and proper timekeeping.

Clock Mainspring Dimensions and Lubrication Specifications

Common Horological Faults and Diagnostic Remediations

Mainspring Slips off the Arbor Hook During Winding

• Root Cause: The hook on the winding arbor is worn down, rounded off, or has lost its sharp angle. Alternatively, the inner eye of the new mainspring may be deformed or too large for the hook.
• Actionable Fix: Remove the arbor from the barrel. Use a fine needle file or pivot file to undercut the hook slightly, restoring a sharp 90-degree or slightly acute angle. Gently reshape the inner coil of the mainspring using flat-nosed brass pliers to ensure it hugs the arbor closely and snaps securely over the modified hook.

Clock Stops Running After 2 to 3 Days (Short-Cycling)

• Root Cause: The replacement mainspring is too thick, causing excessive friction and binding against the inside of the barrel cover, or it is too thin, failing to provide enough torque to power the escapement as the spring relaxes.
• Actionable Fix: Extract the spring and measure its thickness with a digital micrometer. Cross-reference the measurements with the manufacturer’s original specifications. If the spring is binding, inspect the inside of the barrel cap for scoring marks and ensure there is a minimum of 0.5 mm vertical endshake clearance. Replace with the correct gauge spring if necessary.

Violent Slipping Sound and Instant Loss of Power During Winding

• Root Cause: The click spring has failed, or the click pawl is worn, allowing the ratchet wheel to slip past the click under load. This is a critical safety issue that can destroy the entire wheel train.
• Actionable Fix: Immediately cease winding. Let down any remaining power. Inspect the click and click spring. Replace the weak or broken click spring with a new steel spring wire, or file the face of the click pawl to ensure it engages the ratchet wheel teeth at a secure angle. Replace worn ratchet wheels.

Grinding or Squeaking Noise Occurring Only During Winding

• Root Cause: Severe lack of lubrication between the mainspring coils, or contamination from old, dried-out carbon-steel residue and dust acting as an abrasive.
• Actionable Fix: Remove the mainspring from the barrel. Clean both the barrel and the spring thoroughly in an ultrasonic cleaner using a dedicated horological solvent. Dry completely, inspect for wear, and reapply a thin, even coat of high-viscosity clock grease across the entire length of the spring before reinstalling.

Frequently Asked Questions

Can I replace a clock mainspring without a mainspring winder?

You should never attempt to wind or install a clock mainspring by hand. Doing so carries a high risk of personal injury, including severe lacerations to your fingers and hands, and will almost certainly twist or ruin the mainspring, causing it to lose its flat profile and bind inside the clock barrel.

How do I know if a clock mainspring needs to be replaced?

A mainspring needs to be replaced if it is physically broken, cracked, rusted, or "set." A spring is "set" when it has lost its elasticity and remains tightly coiled even when removed from the barrel, extending to less than three times the diameter of the barrel, which prevents the clock from running for its full designated time.

What is the difference between blue steel and white alloy mainsprings?

Blue steel mainsprings are traditional high-carbon steel springs that are highly susceptible to rust, fatigue, and setting over time. Modern white alloy mainsprings (such as those made of Nivarox or similar alloys) are stainless, highly resistant to fatigue, virtually unbreakable, and deliver a much flatter torque curve over the running cycle.

How often should a clock mainspring be lubricated?

A clock mainspring should be cleaned and lubricated every 5 to 10 years as part of a routine movement overhaul. If the clock is run continuously, the lubricant will eventually break down, dry out, or collect airborne dust, which increases friction and drastically reduces the operational lifespan of the mainspring.
