How To Replace A Capacitor In A Ceiling Fan: A Comprehensive Technical Guide
Replacing a ceiling fan capacitor restores torque and speed to motors suffering from sluggish performance or failure to start. This procedure requires identifying the specific microfarad (uF) rating and voltage tolerance printed on the original component, followed by a safe electrical disconnection and secure wire-nut termination.
Pre-Operation Requirements and Safety Protocols
Before engaging with the internal housing of a ceiling fan, establishing a controlled environment is mandatory. The ceiling fan capacitor is a passive electronic component that stores energy; even when the wall switch is toggled off, residual charge can remain. Always confirm the power is severed at the primary circuit breaker panel to eliminate the risk of accidental discharge or electrocution.
- Essential Tools and Materials:
- Digital Multimeter (capable of measuring capacitance or checking continuity).
- Insulated Phillips and flathead screwdrivers.
- Needle-nose pliers for wire manipulation.
- Wire nuts (standard twist-on connectors).
- Replacement capacitor matching the original microfarad rating (±5% tolerance) and voltage rating.
- Smartphone or digital camera for documentation of original wiring orientation.
- Estimated Duration: 30 to 45 minutes for a standard residential fan.
- Estimated Cost: $10 to $25 for the replacement part.
Mandatory Prerequisites: Verify that the wall switch is firmly in the off position and ideally locked out at the breaker. Ensure you have physical access to the fan’s canopy—the decorative cover located at the ceiling junction—as this is where the housing for the capacitor and speed controller is typically located.
Procedural Workflow for Capacitor Replacement
Step 1: Disengaging the Ceiling Canopy
Unscrew the decorative canopy screws to lower the housing away from the mounting bracket. This reveals the wire junction box, where house power connects to the fan. Do not detach the house wiring unless necessary for space, but ensure the power remains disconnected. Locate the capacitor, which is typically a small, rectangular, or cylindrical component housed within the canopy, often secured by a single screw or held in place by its own wiring.
Step 2: Documentation and Component Removal
Before disconnecting any leads, photograph the current wiring configuration. Ceiling fans often use a combination of wire colors (black, blue, white, and grey) that are not standardized across manufacturers. Use your needle-nose pliers to carefully unscrew the wire nuts. If the capacitor is hard-wired or soldered, you may need to clip the wires, leaving enough length to strip the insulation for new connections.
Warning: Treat the capacitor terminals as live until they are confirmed discharged. Use an insulated screwdriver to short the two terminals of the capacitor together to safely drain any remaining electrical potential.

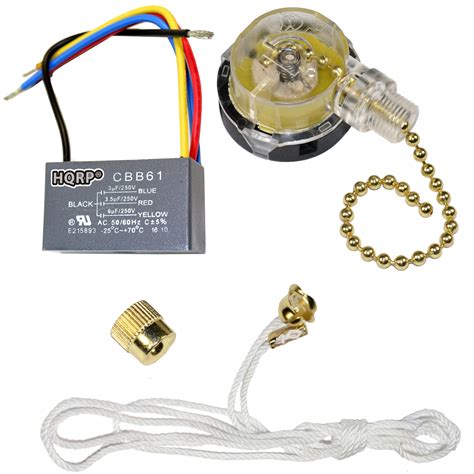

Step 3: Verifying Technical Specifications
The replacement capacitor must match the original specifications exactly to prevent motor burnout. Inspect the label on the old component for the microfarad (uF) value, such as 4.5uF/5uF/6uF, and the voltage rating, typically 250V AC. Using a capacitor with a significantly different uF rating will cause the motor to hum, overheat, or spin at improper speeds, potentially damaging the internal windings.
Step 4: Installation and Wire Termination
Strip approximately 0.5 inches of insulation from the new capacitor leads if necessary. Twist the new leads to the corresponding fan wires following your previous documentation. Secure each connection with a wire nut, ensuring no bare copper is exposed. Tug each wire gently to ensure a mechanical lock within the nut. Once connected, tuck the wires neatly into the housing, ensuring they do not obstruct the rotation of any internal moving parts or touch the motor housing metal.
Step 5: System Reassembly and Testing
Slide the canopy back into position and secure the mounting screws. Restore power at the breaker panel. Toggle the fan speed to the highest setting. If the fan begins to rotate at the correct, full speed without audible buzzing or grinding, the replacement is successful. If the fan exhibits a humming noise without movement, verify that the capacitor leads are not crossed or loose.
How To Change Ceiling Fan Capacitor | Shelly Lighting
Technical Specifications and Compatibility Matrix
| Parameter | Function | Standard Tolerance/Requirement |
|---|---|---|
| Capacitance (uF) | Energy Storage | Must match original within ±5% |
| Voltage Rating | Electrical Insulation | Must be equal to or greater than original |
| Frequency (Hz) | AC Cycle Speed | 50/60Hz (Standard for residential) |
| Operating Temp | Heat Tolerance | 70°C to 85°C (Typical range) |
| Mounting Type | Physical Housing | Cylindrical or Box-type with lead wires |
Troubleshooting Common Field Failures
- Root Cause: Persistent Humming Noise after Replacement. This often indicates a mismatched capacitor rating or an improperly seated wire connection. Ensure the uF value matches the manufacturer's original specification exactly and verify that all wire nuts are tightened to create a secure electrical bridge.
- Root Cause: Fan Only Spins When Given a Manual Push. This is a classic symptom of a failed startup capacitor. If a new capacitor does not resolve this, the issue may lie within the motor's centrifugal switch or faulty bearings, rather than the electronics.
- Root Cause: Fan Operates on High but Not Low Speeds. This typically points to a faulty fan speed switch rather than the capacitor. The capacitor generally dictates the overall torque, whereas the wall or pull-chain switch controls the internal resistance settings for speed variance.
Frequently Asked Questions
Can I use a capacitor with a higher microfarad (uF) rating?
No. Using a capacitor with a higher uF rating than specified will increase the current flowing through the motor windings. This causes excessive heat generation, reduces the lifespan of the motor, and presents a fire hazard.
Is polarity an issue when wiring a ceiling fan capacitor?
No, the capacitors used in standard AC ceiling fan motors are non-polarized. This means the orientation of the two wires does not matter, allowing you to connect either lead to either side of the circuit without operational risks.
How do I know if the capacitor is definitely the culprit?
If the fan hums but refuses to spin, or if the fan operates noticeably slower than it did when new, the capacitor has likely lost its ability to hold a charge. A digital multimeter with a capacitance tester can confirm if the component is reading near its rated uF value.
What should I do if my capacitor has three wires instead of two?
A three-wire capacitor is essentially two capacitors housed in one casing, often used for dual-speed control. You must purchase a replacement with the exact same wiring configuration (e.g., matching the common wire to the specific speed wires) to maintain fan functionality.
