How To Replace A Battery In A Mercedes Key Fob: A Technical Guide

Replacing a Mercedes-Benz key fob battery requires identifying your specific fob generation—typically utilizing a CR2025 or CR2032 lithium coin cell—and executing a precise mechanical extraction to prevent housing damage. Following these standardized procedures ensures the internal contact pins remain aligned and the remote maintains its factory-spec signal transmission range after reassembly.

Pre-Operation Requirements and Tooling Specifications

Before attempting a battery replacement, it is critical to confirm the specific fob architecture currently in your possession. Mercedes-Benz has evolved from the traditional SmartKey (chrome-accented) to newer, sleeker designs, and the internal housing configuration varies by model year. Using the wrong battery chemistry can lead to intermittent signal loss or complete communication failure with the Electronic Ignition Switch (EIS).

• Essential Gear: A high-quality CR2025 or CR2032 3V lithium coin cell (Panasonic or Energizer are the industry OEM standards for longevity), a flat-head jeweler’s screwdriver (1.5mm to 2.0mm), and a clean, lint-free microfiber workspace.
• Safety Standards: Discharge static electricity by touching a grounded metal surface before handling the circuit board. Always handle the new battery by its edges to prevent oil transfer from your skin, which can increase electrical resistance.
• Time Benchmark: Total procedure duration is approximately 3 to 5 minutes for a proficient operator.
• Budgetary Scope: The cost is strictly limited to the battery, typically ranging between $3.00 and $8.00 USD.

Procedural Workflow for SmartKey Fob Battery Replacement

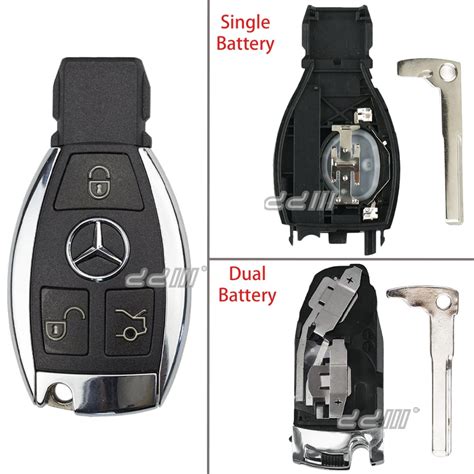

The most common Mercedes-Benz key fob utilizes a mechanical slide-and-extract system. Even if your fob aesthetic differs slightly, the internal structural logic remains consistent across the E-Class, C-Class, S-Class, and SUV platforms.

Step 1: Extract the Mechanical Emergency Key

Locate the release button or latch on the bottom or side of the key fob casing. While holding this button, pull the metallic emergency key blade straight out of the fob housing. This blade is not just a backup; it serves as a structural key to unlocking the internal battery tray.

Step 2: Accessing the Battery Tray

Once the mechanical key is removed, look into the slot where the blade was previously seated. You will notice a small, recessed gray or black button/tab depending on the age of your fob. Insert your screwdriver or the tip of the mechanical key into this opening. Gently push the tab inward while pulling the end-cap of the fob housing away from the main body.

Warning: Do not apply excessive force to the plastic end-cap. If the casing does not release, verify that you are pressing the release tab fully. Prying with a flat-head screwdriver against the plastic seam can cause hairline fractures in the decorative chrome plating.

Step 3: Battery Removal and Polarity Alignment

Once the tray slides out, remove the depleted coin cell. Note the orientation of the positive (+) side. In nearly all Mercedes-Benz key fobs, the positive terminal must face upward (visible to you) when placed in the tray. If the battery is installed upside down, the fob will not power the signal transmitter, effectively rendering it a dead unit.

Step 4: Component Reassembly and Synchronization

Insert the new battery, ensuring it sits flush in the housing tray without tilting. Slide the battery tray back into the fob until you hear a distinct audible click, indicating that the locking tabs have engaged. Reinsert the emergency key blade into the slot. Usually, the key fob will automatically resynchronize with the vehicle upon the first use. If the vehicle fails to recognize the fob immediately, press the unlock button twice in close succession while in proximity to the driver’s side door.

Technical Specifications of Mercedes-Benz Fob Power Units

Selecting the correct power source is paramount to signal strength and the longevity of the fob’s internal oscillator. The following table outlines the technical parameters for the two most common battery standards found in the Mercedes ecosystem.

Common Field Failures and Remediation

Despite the simplicity of the battery replacement, improper handling or environmental factors can lead to operational failures. Understanding these common pitfalls prevents the need for an expensive trip to the dealership.

• Failure Scenario 1: Intermittent Signal/Dead Spotting. This is typically caused by oxidized contacts within the battery tray. Use a high-purity isopropyl alcohol swab to gently clean the metal contact prongs inside the fob housing before inserting the new battery.
• Failure Scenario 2: Battery Drain Post-Replacement. Ensure that you have not left a piece of the adhesive sticker from the new battery packaging on the surface of the coin cell. This creates an insulating layer that prevents consistent conductivity.
• Failure Scenario 3: Physical Housing Damage. If the plastic tabs holding the battery tray have snapped due to age or brittle material, use a tiny amount of specialized plastic epoxy. Avoid superglue, as the fumes can fog the internal lens of the infrared emitter used for window roll-down features.

Do I need to reprogram my Mercedes key after changing the battery?

In the vast majority of cases, no. Mercedes-Benz key fobs utilize rolling code technology stored in non-volatile memory, meaning the key retains its pairing information even when completely devoid of power.

What should I do if the key still doesn't work after a battery change?

Check for physical debris within the battery tray or verify that the battery is seated with the correct polarity. If the fob still fails to respond, the internal circuit board may have suffered a component failure, or the vehicle’s receiver module may require a diagnostic scan.

Can I use a generic, unbranded battery for my Mercedes key?

While generic batteries often fit, they frequently suffer from inconsistent voltage output or internal resistance levels that trigger the "Key Battery" warning on your dashboard prematurely. Always opt for a high-quality, reputable brand to ensure maximum reliability.

How often should I replace the Mercedes key fob battery?

Under normal conditions, a Mercedes-Benz key fob battery should last between 2 and 3 years. If you notice a decreased operating range—where you must stand closer to the vehicle to unlock the doors—this is a primary indicator that the voltage has dropped below the optimal threshold.

Maintain the reliability of your luxury vehicle by keeping your key fob power system in peak condition. Ensure your spare key is also checked every 24 months to prevent internal leakage and terminal corrosion.
