How To Replace An AC Compressor Clutch: A Comprehensive Step-by-Step Guide

Replacing a failing automotive air conditioning compressor clutch involves safely recovering refrigerant, removing accessory belts and components, using specialized pullers to swap the pulley, coil, and armature plate, and precisely setting the internal air gap. Executing this repair correctly restores cold airflow, eliminates squealing belt noises or burning smells, and prevents the need for a full, costly compressor assembly replacement.

Pre-Operation & Equipment Checklist

Tackling an automotive AC compressor clutch replacement requires specific mechanical tools, adherence to environmental regulations regarding refrigerant, and mechanical aptitude. Because the compressor is often tightly packaged within the engine bay, thorough preparation prevents stripped fasteners, improper air gaps, and premature clutch failure.

• Essential Gear, Tools, and Materials:

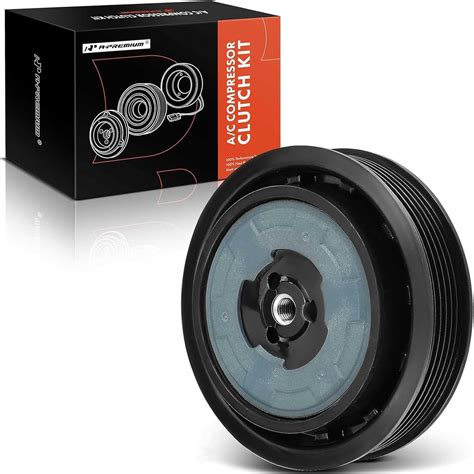

  • Replacement AC compressor clutch kit (includes armature plate, electromagnetic coil, and pulley with pre-pressed bearing)
  • Snap-ring pliers (internal and external tips)
  • Compressor clutch holding tool or strap wrench
  • Socket set, ratchet, and combination wrenches (metric and imperial)
  • Feeler gauge set
  • Impact wrench (optional, but highly effective for center shaft nuts)
  • Multimeter (for testing coil resistance and voltage)
  • Safety glasses, mechanics gloves, and terminal cleaner
• Mandatory Prerequisite Knowledge and Standards:


  • Understanding of automotive serpentine belt routing and tensioner operation
  • Basic electrical diagnostic procedures for 12V automotive circuits
  • Strict adherence to EPA regulations regarding refrigerant handling if the compressor must be unbolted from the engine block
• Estimated Budget and Duration Benchmarks:


  • Financial Investment: $80 to $250 for quality OE-spec replacement clutch components
  • Time Commitment: 2 to 4 hours for intermediate mechanics, depending on engine bay accessibility

Step-by-Step Compressor Clutch Replacement Workflow

Step 1: Disconnect Battery and Access the Compressor

Disconnect the negative battery terminal using a socket wrench to prevent accidental electrical short circuits or unexpected compressor engagement while working in the engine bay. Remove any structural braces, air intake ducts, or electric cooling fans that obstruct direct physical and visual access to the front of the air conditioning compressor.

Warning: Never attempt to discharge refrigerant into the atmosphere. If your specific vehicle layout requires unbolting the compressor lines to gain working space, you must have the system professionally evacuated at an authorized facility first.

Step 2: Remove the Serpentine Belt and Compressor Electrical Connector

Locate the accessory drive belt tensioner, insert the appropriate serpentine belt tool or socket into the tensioner pulley bolt, and rotate it to release belt tension. Slip the belt off the AC compressor pulley and safely tuck it aside. Locate the wiring harness connector plugged into the compressor clutch electromagnetic coil, release the locking tab, and disconnect the plug. Inspect the connector terminals for signs of thermal melting, corrosion, or oil contamination.

Step 3: Remove the Armature Plate (Front Disc)

Prevent the compressor shaft from spinning by securing the outer armature plate using a specialized clutch holding tool or strap wrench. Use a socket to remove the center retaining nut located at the very front of the compressor shaft. Pull the armature plate straight off the shaft. Take careful note of any small, thin shims placed behind the armature plate or inside its shaft bore, as these shims dictate the electromagnetic air gap and must be preserved for reassembly.

Step 4: Extract the Retaining Ring and Pulley

Using high-quality external snap-ring pliers, expand and remove the circular retaining ring that secures the pulley to the compressor nose housing. This step often requires patience due to tight tolerances and accumulated road debris. Once the snap ring is removed, thread an appropriately sized pulley puller tool onto the pulley hub (do not pull directly on the outer belt surface). Evenly tighten the center bolt of the puller until the pulley slides completely off the compressor nose.

Step 5: Replace the Electromagnetic Coil

Locate the second retaining ring that secures the electromagnetic coil to the rear of the compressor nose housing. Remove this snap ring using internal or external snap-ring pliers depending on its orientation. Pull the old coil straight off the compressor body, noting the alignment notch or tab that mates with the compressor housing. Clean the mounting surface thoroughly with a wire brush or brake cleaner, push the new coil into position ensuring the alignment tab seats correctly, and reinstall the coil retaining ring securely.

Step 6: Install the New Pulley and Armature Plate

Slide the new pulley and bearing assembly onto the compressor nose housing until it sits flush against the rear stop. Install the front pulley retaining ring using snap-ring pliers, verifying that the rounded edge of the ring faces outward and that it snaps fully into its locking groove all the way around. Place the original or a matched set of shims onto the compressor shaft, slide the new armature plate onto the shaft, and thread the center retaining nut down hand-tight.

Step 7: Adjust and Measure the Air Gap

Secure the armature plate with the holding tool and torque the center shaft retaining nut to the manufacturer's precise specification using a calibrated torque wrench. Using a flat feeler gauge, measure the clearance between the friction surface of the pulley and the armature plate at three or four equidistant points around the circumference.

Pro-Tip: The standard acceptable air gap specification for most automotive AC compressor clutches falls strictly between 0.35 millimeters and 0.60 millimeters (0.014 to 0.024 inches). If the gap is too wide, add thinner shims; if it is too tight or binding, remove shims or use thicker ones.

Technical Comparison of Clutch Failure Modes

Common System Failures and Field Fixes

• Root Cause: The new electromagnetic coil fails to energize when the AC button is pressed inside the cabin.


  • Actional Fix: Use a multimeter to check for 12-volt power supply at the compressor electrical connector with the engine running and AC switched to max. If power is present, check coil resistance for an open circuit; if no power is present, trace the issue upstream to the AC pressure cycling switch, climate control module, or blown system fuse.
• Root Cause: The armature plate makes contact with the pulley continuously, causing accelerated friction wear even when the AC is turned off.


  • Actional Fix: Disassemble the armature plate and remove excess shims, or install a thicker shim pack to physically increase the distance between the friction surfaces back to factory specifications.
• Root Cause: The snap ring continuously pops out of its groove during high-RPM engine operation.


  • Actional Fix: Ensure the snap ring is not reversed during installation, verify that the replacement ring is seated completely flat into the machined housing groove around its entire 360-degree perimeter, and replace deformed snap rings with new ones.

Frequently Asked Questions

Can I replace the AC compressor clutch without removing the compressor from the car?

Yes, provided there is adequate physical clearance between the front of the compressor and the vehicle frame rails, radiator support, or core support. Many trucks, rear-wheel-drive cars, and larger SUVs allow complete clutch service directly in the vehicle bay using low-profile ratchets and specialized puller tools.

What causes an AC compressor clutch to burn out prematurely?

Premature burnout is typically caused by excessive internal compressor pressure, low refrigerant charge combined with high compressor load, a weak electrical ground circuit causing high resistance, or an improperly set air gap that causes constant thermal friction slippage.

Do I need to evacuate the AC refrigerant system to change the clutch?

You do not need to evacuate or open the refrigerant lines if you can access and remove the clutch components with the compressor remaining bolted to the engine block. However, if the compressor must be completely unbolted and shifted to gain access, professional refrigerant recovery is legally and mechanically mandatory.

How do I know if my compressor is seized versus just having a bad clutch?

Disconnect the accessory belt, attempt to spin the outer pulley by hand, and then energize the armature plate to see if the inner shaft turns freely. If the pulley itself refuses to rotate smoothly or if turning the center shaft requires immense force, the internal compressor pump is internally seized, requiring full system replacement.

Can I reuse the old shims during a compressor clutch installation?

You can reuse the original shims as a starting baseline, but you must always measure the final air gap with a feeler gauge afterward. Different manufacturing tolerances on replacement pulleys and armature plates mean that shim adjustments are almost always required to achieve proper operational clearance.
