How To Repipe A House With PEX: Complete Step-by-Step Installation Guide

Repiping a house with cross-linked polyethylene (PEX) tubing replaces corroded galvanized iron or leaking copper supply lines with flexible, freeze-resistant, and scale-resistant polymer piping. This comprehensive installation guide covers system design, code compliance, cutting techniques, manifold layouts, and pressure testing protocols to ensure a professional-grade potable water upgrade.

Pre-Operation & Equipment Checklist

Replacing an aging domestic water distribution system requires rigorous logistical planning, precise material staging, and adherence to local plumbing codes. PEX repiping eliminates the need for numerous soldered joints behind walls by utilizing continuous runs and engineered fittings, drastically cutting installation time while improving hydraulic flow dynamics.

• Essential gear, tools, and materials:


  • PEX-A or PEX-B tubing (typically 1/2-inch for branch lines and 3/4-inch to 1-inch for main trunk lines)
  • Expansion tool kit (if using F1960 cold expansion PEX-A) or Crimp/Clamp tool kit (for ASTM F1807 or F2098 systems)
  • PEX pipe cutter with a clean, square-cut blade profile
  • Manifold blocks, shut-off valves, drop-ear elbows, and transition fittings (brass or engineered polymer PPSU)
  • Drill, hole saws (1-inch and 1-3/8-inch), mounting brackets, plastic talon clips, and silicone firestop caulk
  • Personal protective equipment including safety glasses, heavy-duty work gloves, and knee pads
• Mandatory prerequisite knowledge and standards:


  • Familiarity with the International Plumbing Code (IPC) or Uniform Plumbing Code (UPC) regulations regarding support intervals, burial protection, and backflow prevention.
  • Comprehensive layout mapping of existing water supply entry points, water heater location, and fixture drops to calculate total linear footage and friction loss.
• Estimated budget and duration benchmarks:


  • Financial investment typically ranges from 1,500 to 4,500 dollars for DIY material costs depending on square footage, or up to 10,000 dollars for professional turnkey services.
  • Time commitment spans 3 to 5 full days of intensive labor for a standard two-bathroom residential structure.

Step-by-Step Repiping Workflow

Step 1: Mapping the System and Shutting Off Water Supply

Locate the main municipal shut-off valve near the water meter or property boundary and close it completely to isolate the structure. Open the lowest and highest plumbing fixtures in the house—such as hose bibbs and second-story bathroom faucets—to drain all residual water from the existing lines. Create an isometric diagram tracking your new hot and cold supply paths from the main entry point to each fixture.

Warning: Always verify that water pressure has dropped to zero using a pressure gauge attached to an exterior spigot before cutting into any existing pipe to prevent catastrophic indoor flooding.

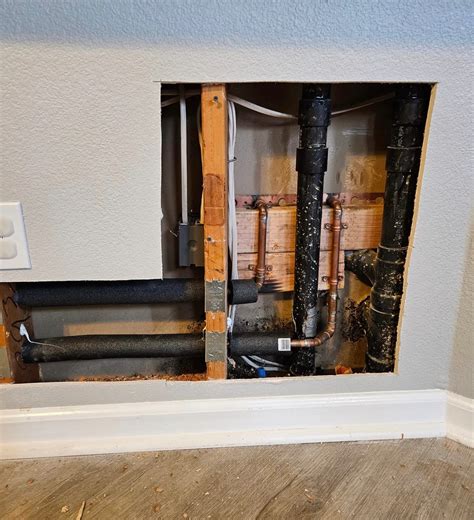

Step 2: Opening Strategic Access Points in Walls and Ceilings

Rather than tearing down entire drywall assemblies, plan your access cuts strategically. Use a stud finder and drywall saw to open 6-inch to 12-inch horizontal service channels along wall cavities where risers and branch lines run. Expose main trunk lines in crawlspaces, basements, or attic spaces. Keep drywall debris contained with plastic sheeting and drop cloths to protect living areas.

Step 3: Installing the PEX Manifold or Main Trunk Lines

Mount your central PEX distribution manifold near the water heater for a home-run system, or set up main 3/4-inch trunk lines with 1/2-inch tee take-offs for a traditional trunk-and-branch layout. Secure the manifold firmly to wall studs using structural blocking. Run the PEX tubing loosely through drilled holes in framing members, ensuring holes are centered and at least two inches away from the framing edge to prevent screw punctures.

Pro-Tip: Drill holes through wood studs at least 1-3/8 inches in diameter to allow PEX tubing to move freely without binding during thermal expansion and contraction cycles.

Step 4: Making Secure Fittings and Connections

Measure your PEX runs and cut the tubing squarely using a dedicated ratchet cutter. For F1960 cold expansion systems, slide a PEX reinforcement ring over the end of the tube, expand the tubing and ring with the expansion tool, and immediately insert the fitting before the memory of the plastic shrinks it down. For crimp systems, slide the copper crimp ring 1/8 to 1/4 inch from the end of the pipe, insert the barbed fitting, and compress the ring with calibrated crimping jaws. Verify proper crimp sizing using a Go/No-Go gauge.

Step 5: Securing and Protecting the PEX Tubing

Anchor the PEX lines securely using approved plastic talon clips or insulated suspension hangers. Space vertical runs every 32 inches and horizontal runs every 32 inches to prevent sagging and water hammer. Leave approximately 1/8 inch of slack per foot of pipe to accommodate the natural longitudinal expansion of PEX, which expands roughly 1 inch per 100 feet for every 10-degree Fahrenheit rise in temperature.

Step 6: Pressure Testing the New System

Before closing up any walls, perform a rigorous hydrostatic pressure test to verify system integrity. Attach a test gauge and air compressor or water test pump to a boiler drain on the manifold. Pump the system up to 100 PSI (or 1.5 times working pressure, per local code) and monitor the gauge for a minimum of 30 minutes.

Warning: Never use compressed air to pressure test PEX systems that utilize glued components, though air is acceptable for pure PEX-and-fitting assemblies if restricted to safe low-volume parameters; water is universally preferred for safety.

Technical Comparison of PEX Material Types

Common Site Failures and Field Fixes

• Root Cause: Tubing kinked during tight directional pull or sharp corner routing.


  • Actionable Fix: Cut out the kinked section entirely using a PEX cutter and splice in a straight coupling or replace the run. Never attempt to heat a kinked PEX tube with a torch to reshape it, as this degrades the cross-linked polymer matrix.
• Root Cause: Failed crimp connection due to an uncalibrated crimping tool or incorrect ring placement.


  • Actionable Fix: Remove the faulty fitting using a dedicated PEX ring removal tool (taking care not to damage the barb), cut back 1 inch of scarred tubing, and execute a fresh connection with a properly calibrated tool verified by a Go/No-Go gauge.
• Root Cause: Water hammer and acoustic knocking noises echoing through wall cavities during rapid valve closure.


  • Actionable Fix: Install dedicated water hammer arrestors near quick-closing solenoid valves (such as washing machines) and ensure every pipe passing through wood framing is isolated inside plastic standoff sleeves or foam insulation.
• Root Cause: Tubing deformation or pinhole leaks caused by direct exposure to ultraviolet (UV) sunlight.


  • Actionable Fix: Replace any sun-damaged sections immediately. Ensure all exposed outdoor or attic runs are wrapped in opaque sleeves, as standard PEX has a maximum direct UV exposure rating of typically 30 to 60 days.

Frequently Asked Questions

How long does a whole-house PEX repipe take?

A complete residential PEX repipe generally takes between three to five days for an experienced DIYer or a two-person professional plumbing crew. The timeline fluctuates based on home square footage, the number of wet walls, crawlspace accessibility, and the time required to patch drywall afterward.

Can PEX pipe be buried directly in concrete foundations?

Yes, PEX-A and PEX-B tubing can be buried in concrete slabs, provided there are no fittings buried within the concrete. All connections must remain accessible outside the slab, and the tubing must be protected with non-metallic sleeves or continuous corrugated conduit where it transitions through the slab boundary to prevent abrasion from shifting aggregate.

What is the maximum temperature and pressure rating for PEX?

Standard potable water PEX tubing is typically rated for 160 PSI at 73 degrees Fahrenheit, 100 PSI at 180 degrees Fahrenheit, and a maximum working temperature of 200 degrees Fahrenheit. Always check the stamped ASTM standards (such as ASTM F876/F877) on the side of your specific tubing roll to confirm manufacturer limits.

Do I need a permit to repipe my house with PEX?

Most municipal building jurisdictions require a plumbing permit and subsequent rough-in inspection before closing up drywall walls. Pulling a permit ensures your installation complies with local building codes, cross-connection controls, and backflow protection mandates, protecting your property value and insurance coverage.

Can I connect PEX directly to my water heater?

PEX tubing cannot be connected directly to the output or input nipples of a standard gas or electric water heater. Code mandates a minimum 18-inch metallic transition (such as copper pipe or corrugated stainless steel connectors) between the water heater tank and the PEX lines to prevent radiant heat damage from the appliance.

Upgrade your residential plumbing infrastructure today with high-performance PEX tubing to eliminate leaks, restore optimal water pressure, and secure decades of reliable flow. Contact a licensed plumbing professional or municipal building department to review local code compliance and pull your repiping permits before starting your project.
