How To Repair Exterior Stucco: A Professional Guide To Long-Lasting Masonry Restoration
Exterior stucco repair requires identifying the underlying structural or moisture cause, cutting back compromised material to a solid lath base, and applying a compatible three-coat patching system with proper curing intervals. Success depends heavily on matching aggregate ratios, managing moisture evaporation rates, and ensuring clean mechanical bonds between the existing cementitious substrate and fresh polymer-modified repair mortar.
Pre-Operation & Equipment Checklist
Restoring exterior stucco demands a deliberate approach to material selection and surface preparation to prevent recurring delamination and water intrusion. Whether dealing with hairline cracks or large structural patches, success relies on thorough staging, proper safety gear, and precision tools.
- Essential gear, tools, and materials: Masonry chisel, claw hammer or chipping hammer, wire brush, pneumatic or electric grinder with diamond tuck-pointing blade, garden hose or pump sprayer, masonry hawk and trowel, pointing trowel, sponge, pre-mixed or field-batched stucco mix (base coats and finish coat), galvanized metal lath (if replacing deep sections), and bonding agent.
- Mandatory prerequisite knowledge and standards: Understanding the traditional three-coat stucco process (scratch, brown, and finish coats), verifying that the structural substrate is completely dry and stable, and complying with local building codes regarding weather-resistive barriers and weep screeds.
- Estimated budget and duration benchmarks: Typical material costs range from fifty to two hundred dollars for standard residential patches. Time investment spans two to three days, heavily dictated by the mandatory curing and drying intervals required between consecutive coat applications.
Step-by-Step Stucco Restoration Workflow
Step 1: Diagnose Damage and Cut Back Boundaries
Inspect the compromised stucco zone, tapping lightly with a hammer to locate hollow-sounding areas where the bond to the lath or substrate has failed. Mark a clean boundary line approximately two inches beyond the visible perimeter of the damage into solid, firmly adhered stucco. Use an angle grinder equipped with a diamond blade to cut a straight, vertical or horizontal perimeter edge at a slight ninety-degree or slightly undercut angle to mechanically lock the new patch into place.
Warning: Always wear a NIOSH-approved particulate respirator and safety goggles when cutting or chipping stucco to avoid inhaling hazardous silica dust.
Step 2: Clear Debris and Expose the Lath
Carefully chip away the damaged stucco within your cut boundaries using a masonry chisel and light hammer blows, taking care not to bend or damage the underlying metal lath or wire mesh. Brush away all loose dust, crumbling mortar, and debris using a stiff wire brush. Inspect the exposed lath for rust; if the wire is heavily corroded, cut it out and splice in a matching piece of galvanized self-furred metal lath, securing it firmly to the wood framing or masonry substrate with masonry screws and washers.
Step 3: Apply the Bonding Agent and Scratch Coat
Dampen the exposed substrate and surrounding cut edges thoroughly with water to prevent the dry masonry from prematurely sucking moisture out of your fresh mortar mix. Apply a high-performance acrylic masonry bonding agent to all exposed surfaces, allowing it to reach a tacky state per the manufacturer specifications. Mix your scratch coat mortar—typically one part Portland cement to two and a half parts clean mason sand—to a workable, peanut-butter consistency and firmly press it into the lath, scoring horizontal grooves across the surface with a scarifier to create a mechanical key for the next layer.
Pro-Tip: Keep the scratch coat moist by gently misting it with water for forty-eight hours to ensure complete cement hydration and maximum compressive strength before applying the brown coat.
Step 4: Apply the Brown Coat and Prepare for Finish
Allow the scratch coat to cure for at least forty-eight to seventy-two hours until it is firm and rigid. Lightly dampen the scratch coat, mix your brown coat batch using a slightly leaner sand ratio if specified, and apply it evenly across the patch, pressing it firmly to fill any voids. Screed the brown coat flush with the surrounding wall plane, leaving it slightly recessed—about one-sixteenth to one-eighth of an inch—to accommodate the final texture coat, and float the surface smooth while creating a slightly textured tooth for the finish layer.
Step 5: Match the Texture and Apply the Finish Coat
Mix the finish coat to precisely match the color, aggregate size, and texture of the surrounding historic or existing wall, testing a small sample board first if necessary. Apply the finish coat uniformly across the patched area using a joint knife, hawk, or trowel, and immediately manipulate the wet surface using a sponge, brush, or float to replicate the surrounding skip-trowel, dash, or smooth dash finish. Allow the entire patch to cure slowly over seven days by keeping it shaded and lightly misted during hot or windy weather.

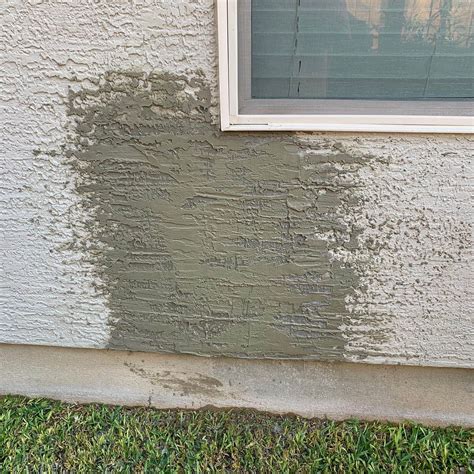

Stucco Repair: Process Overview From a Stucco Contractor
Stucco Repair Materials and Application Parameters
| Layer / Component | Mix Ratio (Cement : Sand) | Minimum Thickness | Curing Time Before Next Step | Primary Purpose |
|---|---|---|---|---|
| Bonding Agent | N/A (Polymer Liquid) | N/A | 15–30 minutes (Tacky) | Enhances adhesion between old substrate and new mortar |
| Scratch Coat | 1:2.5 to 1:3 | 3/8 inch | 48–72 hours | Provides primary structural key and embeds lath |
| Brown Coat | 1:3 | 3/8 inch | 7 days | Levels the wall plane and builds thermal mass |
| Finish Coat | Custom / Pre-bagged | 1/8 inch | 7 days (Final cure) | Delivers weatherproofing, color, and aesthetic texture |
Common Site Failures and Field Fixes
- Root Cause: Rapid moisture evaporation causing micro-cracking and powdery surface texture in the fresh patch.
- Actionable Fix: Mist the repair area with clean water twice daily for at least five days, and cover the patch with plastic sheeting if curing in direct, hot sunlight.
- Root Cause: Delamination or hollow spots appearing shortly after the patch has dried.
- Actionable Fix: The substrate was either too dry when applying mortar, or existing dust blocked the bonding agent; completely chisel out the failed section, acid-wash or pressure-wash thoroughly, re-prime with a heavy-duty bonding adhesive, and repatch.
- Root Cause: Water infiltration and rust bleeding through the newly finished stucco surface.
- Actionable Fix: Non-galvanized or improperly spliced lath was used in the patch; cut out the offending rust spot, replace with hot-dipped galvanized or stainless steel mesh, and seal the patch perimeter with a high-grade elastomeric sealant.
- Root Cause: Visible color mismatch between the cured patch and the surrounding aged stucco wall.
- Actionable Fix: Stucco lightens as it ages and varies due to aggregate batching; apply a breathable masonry or elastomeric masonry paint across the entire wall facade to achieve uniform color consistency.
Frequently Asked Questions
How do I fix hairline cracks in exterior stucco?
Hairline cracks measuring less than one-sixteenth of an inch can typically be repaired by cleaning out loose debris and applying a high-grade, paintable elastomeric masonry crack sealant. For slightly wider cracks, rake out the crack into a reverse-V shape, dampen the interior, and pack it with a sanded acrylic patching compound before painting.
Can I patch exterior stucco with standard concrete patch from the hardware store?
Standard pre-mixed concrete patch is generally not recommended for exterior stucco because it contains large gravel aggregates that make texture matching impossible. Stucco requires a specialized blend of Portland cement, lime, and fine mason sand to match the flexibility, breathability, and aesthetic profile of the original wall.
Why is my stucco patch turning a different color than the rest of the house?
Stucco color varies based on cement type, sand mineral content, and the rate of moisture evaporation during the curing cycle. Aging, weathering, and pollution also darken surrounding walls over time, making fresh grey or white patches stand out until painted or chemically stained to match.
How long must I wait before painting a new stucco repair?
New stucco must undergo a full chemical curing and carbonation process before receiving paint, which typically requires a minimum of twenty-eight days. Applying paint too early traps alkaline salts inside the wall, leading to efflorescence bubbles, blistering, and premature paint peeling.
Protect your home's structural integrity and curb appeal by tackling exterior stucco damage before minor cracking evolves into costly framing rot. Equip yourself with the right masonry formulas and techniques today to ensure a permanent, weather-tight restoration.
