How To Remove A Throttle Cable From A Carburetor: Step-by-Step Mechanical Guide

To remove a throttle cable from a carburetor, back off the cable adjuster locknuts to maximize slack, then access the connection point by either unscrewing the carburetor top cap (for slide-type carburetors) or rotating the throttle linkage arm (for butterfly-valve carburetors). Compress the return spring to expose the cable's swaged end, then slide the terminal out of its keyhole slot or linkage bracket. This precise extraction prevents damaging the delicate needle jet, throttle slide, or spring-loaded return mechanisms.

Carburetor maintenance, rebuilding, and cable replacement require a clear understanding of throttle mechanical connections. Whether you are working on a motorcycle, ATV, lawnmower, or vintage automotive engine, the throttle cable acts as the direct mechanical link between user input and fuel delivery. Forcing a stuck cable or using the wrong extraction angle can bend the throttle slide, snap the internal needle, or strip the soft aluminum threads of the carburetor body.

Identifying your specific carburetor configuration and using the correct mechanical procedure ensures a safe, damage-free removal process.

Pre-Disassembly Inspection and Tool Inventory

Before opening the fuel system or loosening any tensioning hardware, establish a clean, well-ventilated workspace. Gasoline vapors are highly flammable, and open fuel bowls pose a fire hazard. If the carburetor is still mounted on an engine, shut off the fuel petcock or fuel line valve and run the engine until the carburetor bowl is dry.

There are two primary styles of throttle cable connections:

• Slide-Type Carburetors (Piston/Round Slide): Commonly found on motorcycles, dirt bikes, ATVs, and small two-stroke/four-stroke engines. The cable enters through the top cap, goes directly down the center of a return spring, and hooks into the slide valve.
• Linkage-Type Carburetors (Butterfly Valve): Commonly found on larger multi-cylinder motorcycles (constant velocity/CV carbs), lawn tractors, marine outboards, and automotive engines. The cable mounts to an external bracket and hooks onto a rotating spring-loaded cam or linkage wheel.

Workspace Checklist

• Essential Gear and Tools:




  • Open-end wrenches (8mm, 10mm, and 12mm) for cable adjusters and bracket nuts.
  • Needle-nose pliers (with smooth jaws to avoid marring the inner wire).
  • Precision flathead and JIS (Japanese Industrial Standard) or Phillips screwdrivers.
  • A clean, lint-free microfiber cloth.
  • Aerosol parts cleaner or penetrating oil (for corroded adjusters).
  • Safety glasses and fuel-resistant nitrile gloves.

• Mandatory Prerequisite Standards:




  • The engine must be completely cool to the touch to prevent ignition of fuel spills.
  • Clean the exterior of the carburetor body with parts cleaner before disassembly to prevent dirt, grit, or debris from falling inside the engine intake tract.
  • Disconnect the negative battery terminal on electric-start vehicles to eliminate any risk of accidental starter engagement.

• Estimated Project Benchmarks:




  • Time Required: 15 to 30 minutes.
  • Complexity Level: Intermediate.
  • Financial Estimate: $0 (assuming basic hand tools are already owned).

Step-by-Step Extraction for Slide-Type and Linkage-Style Carburetors

Because the removal process differs significantly depending on whether your carburetor uses an internal slide or an external linkage, follow the specific procedural path detailed below.

Step 1: Create Slack in the Inner Throttle Cable

Regardless of your carburetor style, you must remove all tension from the inner cable wire before attempting to disconnect it. If the cable is under tension, you will not be able to free the swaged terminal from its retainer without bending components.

1. Locate the inline cable adjuster. This is typically found along the cable housing near the handlebars or throttle grip, or directly where the outer cable sheath enters the carburetor bracket.
2. Loosen the locknut on the barrel adjuster using an open-end wrench.
3. Thread the adjuster barrel inward (clockwise) to shorten the overall length of the outer cable housing. This action exposes more of the inner wire, creating maximum slack at the carburetor end.
4. If applicable, loosen the locknuts on the carburetor bracket and slide the outer housing out of its retaining slot.

Step 2: Extracting the Cable from Slide-Type Carburetors

For round-slide, flat-slide, or VM-style carburetors, the throttle cable terminates inside the body of the carburetor itself.

1. Unscrew the threaded top cap of the carburetor by hand. If it is stuck, gently use channel lock pliers cushioned with a thick rag to prevent distorting the soft aluminum cap.
2. Slowly pull the cap straight up. The return spring, throttle slide, and jet needle will slide out of the carburetor body as a single unified assembly.

3. Warning: Do not pull the slide out at an angle. The jet needle hangs directly from the bottom of the slide and must pass straight out of the needle jet orifice. Side loading can bend or break the needle.

4. Set the carburetor body aside and cover the open top with a clean cloth to prevent contamination.

Step 3: Compressing the Spring and Disengaging the Slide

Once the slide assembly is out of the carburetor body, you must compress the heavy return spring to free the cable end.

1. Hold the throttle slide firmly in one hand. With your other hand, compress the return spring upward toward the top cap, exposing the top of the slide and the inner cable end.
2. Locate the cable retainer inside the slide. You will see the swaged cylinder or ball end of the cable sitting inside a recessed pocket.
3. Push the cable wire downward into the slide to seat the swaged end in the wider portion of the keyhole slot.
4. Use needle-nose pliers to guide the cable wire sideways out of the narrow channel of the keyhole slot.

5. Pro-Tip: Some slides use a flat metal retainer plate or a cotter-pin-style clip holding the needle down. If your model has this plate, lift it out with tweezers or a pick before trying to slide the cable end out.

6. Slowly relax the compressed return spring. Slide the spring, top cap, and rubber dust boot off the end of the throttle cable.

Step 4: Extracting the Cable from Linkage-Type Carburetors

For CV carburetors or butterfly-valve units, the cable is connected to an external linkage plate rather than an internal slide.

1. Locate the throttle linkage wheel (or cam) on the side of the carburetor.
2. Manually rotate the linkage wheel against its spring tension to the wide-open throttle (WOT) position. This aligns the cable entry slot and relieves the tension holding the cable barrel in place.
3. Hold the linkage wheel in this rotated position using your fingers or a soft-jaw clamp.
4. Pull the inner cable wire outward to slide the swaged barrel terminal out of its retaining cup on the linkage wheel.
5. Guide the wire through the narrow exit slot in the linkage wheel.
6. Release the linkage wheel slowly, letting it return to its closed resting position. Do not snap it shut, as this can damage the internal butterfly valve plates.

Step 5: Removing the Cable Sheath from the Bracket

With the inner wire freed from either the slide or the linkage, you must now free the outer cable sheath from its mounting bracket.

1. Identify the bracket mounting style. It will either be a threaded dual-nut mount or a slotted push-in clip mount.
2. For dual-nut mounts: Back off the outer locknut completely using an open-end wrench until it slides down the cable. Pull the threaded end of the cable out of the mounting bracket tab.
3. For push-in clip mounts: Use flathead screwdriver tips to depress the retaining tabs on the plastic cable end, then pull the cable rearward out of the bracket hole.

Technical Specifications and Cable Connection Standards

To ensure precise installation, adjustments, and parts compatibility, refer to the following industry standards for throttle cable configurations.

Overcoming Common Removal Hurdles and Component Seizure

During disassembly, age, corrosion, and dirt accumulation can make parts stick or freeze. Forcing them can ruin the carburetor or snap the throttle cable.

• Scenario 1: The Carburetor Top Cap is Corroded and Will Not Unscrew




  • Root Cause: Dissimilar metal corrosion (galvanic action) between the brass/aluminum top cap and the cast carburetor body threads, exacerbated by moisture exposure.
  • Actionable Fix: Apply a high-quality penetrating oil directly to the threaded seam. Let it sit for 15 minutes. Tap the perimeter of the cap gently with the plastic handle of a screwdriver to break the oxide bond. Wrap a thick leather strip or piece of inner tube rubber around the cap, then apply light torque with channel-lock pliers. Avoid squeezing too hard, which can ovalize the cap and lock the threads permanently.

• Scenario 2: Frayed Cable Strands Prevent Cable Extraction from the Slide Keyhole




  • Root Cause: Individual steel wire strands inside the cable have snapped and splayed outward, jamming the cable inside the slide's internal channel.
  • Actionable Fix: Do not pull violently. Use a pair of sharp, high-leverage cable cutters to cut the frayed cable end off cleanly just above the carburetor cap. If you must preserve the cable, apply light grease to the frayed area, use needle-nose pliers to twist the frayed strands back into their original twist pattern, and gently push the wire through the keyhole.

• Scenario 3: The Carburetor Slide is Stuck Fast Inside the Throttle Bore




  • Root Cause: Varnish build-up from stale fuel has dried and glued the aluminum slide to the carburetor bore walls.
  • Actionable Fix: Spray aerosol carburetor cleaner or acetone directly down the top opening of the carburetor. Let it dissolve the sticky varnish for 10 minutes. Gently push upward on the bottom of the slide through the carburetor venturi throat using a wooden dowel or a plastic tool. Never use a metal screwdriver to pry the slide, as scratches on the slide surface will cause the throttle to stick open during engine operation.

• Scenario 4: The Adjuster Locknuts are Rounded and Slip When Turned




  • Root Cause: Use of incorrect tool sizes (such as SAE wrenches on metric fasteners) or over-tightening during previous maintenance.
  • Actionable Fix: Clamp a small pair of locking pliers (Vise-Grip) tightly onto the flat edges of the rounded nut. Gently apply counter-clockwise pressure to break it loose. Replace the ruined nut with a standard metric class 8.8 hex nut of equivalent thread pitch before reassembly.

Frequently Asked Questions

How do you remove a Z-bend throttle cable from a small engine carburetor?

To remove a solid-wire Z-bend cable, loosen the metal clamp screw holding the outer casing. Manually pivot the carburetor throttle plate arm completely back to its widest angle, then tilt the cable wire upward to a 90-degree angle relative to the plate. Slide the Z-shaped wire tip out of the stamped hole in the linkage arm.

Do I need to sync or recalibrate my carburetor after removing the throttle cable?

Yes. Every time a throttle cable is removed, the resting cable tension changes. You must adjust the cable free play using the barrel adjuster so that the throttle slide or butterfly plate closes fully at idle but opens completely at wide-open throttle, leaving 2mm to 3mm of safety slack in the throttle twist grip or pedal.

Why is there a spring inside the throttle slide, and does it have to be removed?

The return spring is a critical safety component that forces the throttle slide to close when you release the throttle. While you do not need to remove the spring from the cable during routine cleanings, you must compress it to slide the swaged wire end out of the keyhole seat when changing cables.

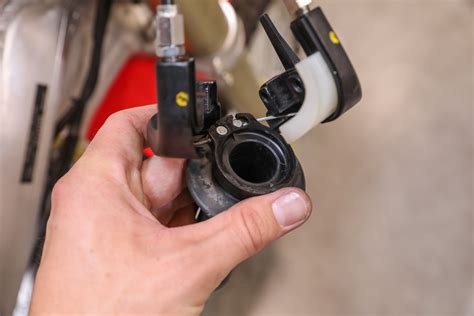

What is a push-pull throttle cable system, and how does it affect removal?

A push-pull system uses two separate cables attached to a single linkage wheel: one pulls the throttle open, and the other pulls it closed as a safety backup. To remove them, identify which cable is the puller and which is the pusher, mark them for correct re-installation, back off the adjusters on both cables, and slide their respective barrels out of the linkage wheel slots.
