How To Remove Steering Wheel With Airbag: A Step-by-Step Technical Guide
Removing a steering wheel with an integrated airbag requires strict adherence to safety protocols, specifically decoupling the Supplemental Restraint System (SRS) power source to prevent accidental deployment. By utilizing precise torque specifications, specialized release tools, and systematic alignment marking, mechanics can complete this procedure safely within forty-five minutes.
Pre-Operation & Equipment Checklist
Executing an airbag-equipped steering wheel removal demands specialized tools and absolute adherence to high-voltage electrical precautions found in automotive safety systems. Disregarding these preparatory measures risks severe personal injury from explosive airbag deployment or permanent damage to the clockspring assembly.
- Essential Gear, Tools, and Materials:
- Socket set with a deep 19mm or 21mm socket (varies by make and model)
- Torque wrench (capable of precise ft-lbs and Nm measurements)
- T-25, T-30, or Allen key set for rear steering wheel module fasteners
- Trim removal tools and a steering wheel puller kit
- A12-volt digital multimeter for circuit verification
- Paint pen or punch tool for alignment marking
- Mandatory Prerequisite Knowledge and Standards:
- Technicians must understand passive restraint safety protocols and the function of the steering column clockspring.
- The vehicle's negative battery terminal must be isolated, followed by a mandatory minimum fifteen-minute energy dissipation wait period to drain the SRS capacitor reserves.
- Estimated Budget and Duration Benchmarks:
- Budget: $0 to $40 if purchasing a basic steering wheel puller rental or tool kit.
- Time: 30 to 60 minutes for experienced DIY mechanics.
Step-by-Step Steering Wheel Extraction Procedure
Step 1: Disconnecting and Isolating the Power Supply
Park the vehicle on a level surface, ensure the front wheels are pointed perfectly straight, and engage the emergency brake. Open the hood and use a terminal wrench to disconnect the negative battery cable. Wrap the disconnected terminal in a heavy shop towel or insulating material to prevent accidental contact with ground sources.
Warning: Never skip the battery isolation step. Even with the battery disconnected, residual electrical charge stored within the airbag control module can trigger explosive deployment. Wait at least 15 to 30 minutes before touching any SRS components to allow the system capacitors to fully discharge.

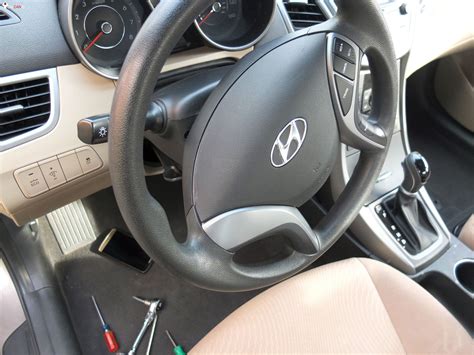

Step 2: Accessing and Unlatching the Airbag Module
Locate the access ports or retaining bolts situated on the left, right, and bottom backside of the steering wheel hub. Depending on the manufacturer, these will require a Torx bit, an Allen wrench, or a flathead screwdriver inserted at precise angles to release internal wire spring clips. Carefully pull the airbag module away from the steering wheel hub once the retainers disengage.
Pro-Tip: Take a photograph of the backside wiring harness layout before touching any connectors so you have an accurate reference for reassembly.
Step 3: Detaching SRS Wiring and Horn Connectors
Gently lift the airbag module away from the wheel frame to expose the yellow or orange primary SRS connector block. Lift the locking tab on the connector using a small non-conductive pick tool, then pull the plug straight out. Disconnect any secondary horn or steering wheel control wire harnesses, and place the airbag module in a safe location facing upward on a flat workbench.
Step 4: Marking Steering Shaft Alignment and Removing Retention Fastener
Use a paint pen, marker, or mechanical punch to mark a precise alignment index line across both the steering shaft splines and the center wheel hub flange. This guarantees the new or reinstalled wheel will sit completely straight when driving. Remove the central retaining bolt using a breaker bar and socket, but leave the bolt threaded on by two or three turns.
Warning: Do not remove the center bolt completely before pulling the wheel. Leaving a few threads engaged prevents the spring-loaded wheel from suddenly breaking loose and striking you in the face.
Step 5: Pulling the Steering Wheel Hub from the Shaft
With the center retaining bolt partially threaded, grasp the steering wheel at opposing sides and rock it back and forth vertically and horizontally to break it free from the tapered splines. If the hub is seized onto the shaft, attach a mechanical steering wheel puller using the threaded puller holes molded into the wheel hub. Turn the central forcing screw of the puller tool until the wheel pops free from the splines, then remove the center bolt and slide the wheel off the steering column while guiding the clockspring wires through the center aperture.
Steering Wheel Airbag Replacement Cost 2026 (+ Is it Urgent ...
Technical Specifications and Tooling Comparison
| Procedure Step | Recommended Tool | Safety Threshold | Critical Parameter |
|---|---|---|---|
| Battery Isolation | 10mm Wrench & Multimeter | 0 Volts DC across SRS terminals | Minimum 15-minute wait time |
| Airbag Removal | T-30 Torx / Specialty Bit | Hand-tight torque only on reinstall | Do not puncture ribbon cable |
| Hub Nut Removal | Breaker Bar & Deep Socket | 30 to 50 ft-lbs initial breakaway | Leave 2-3 threads engaged |
| Wheel Separation | Mechanical Puller Kit | Even pressure distribution | Protect clockspring from binding |
| Final Reassembly | Calibrated Torque Wrench | OEM Factory Spec (e.g., 25-35 ft-lbs) | Verify alignment indexing marks |
Common System Failures and Field Fixes
- Failure: The steering wheel remains tightly seized onto the tapered splines even after removing the center retaining bolt.
- Root Cause: Corrosion and friction have locked the metal-on-metal tapered splines together over years of service.
- Actionable Fix: Avoid hammering the steering shaft, as this destroys the collapsible steering column and internal bearings. Instead, mount a universal steering wheel puller using the proper grade bolts and evenly torque the center forcing screw until the hub pops loose.
- Failure: The vehicle's horn stays constantly engaged or steering wheel audio buttons stop working after reassembly.
- Root Cause: The internal clockspring (spiral cable) was rotated out of center alignment during the removal process, causing the ribbon cable to snap.
- Actionable Fix: Remove the steering wheel again, manually wind the clockspring all the way in one direction until slight resistance is felt, then back it off in the opposite direction by the manufacturer's specified number of turns to establish neutral center.
- Failure: The SRS airbag warning light illuminates on the instrument cluster immediately after starting the engine.
- Root Cause: The ignition was accidentally turned on while the airbag electrical connector was unplugged, logging a diagnostic trouble code in the computer.
- Actionable Fix: Clear the stored diagnostic trouble codes using an advanced OBD-II scanner capable of reading supplemental restraint system modules.
Frequently Asked Questions
Can I remove a steering wheel with an airbag without disconnecting the battery?
No. Disconnecting the negative battery terminal and allowing the system to de-energize is a mandatory safety requirement. Skipping this step risks accidental short-circuiting that can deploy the airbag module, causing severe physical trauma.
Do I need a steering wheel puller for every vehicle make?
Not always. Some vehicles feature splines with loose tolerances that allow the wheel to slide off simply by pulling and rocking it back and forth. However, most modern import and domestic vehicles require a mechanical puller kit due to the tight, tapered fit of the hub splines.
What is a clockspring and why is it important during this procedure?
The clockspring is a flat ribbon cable housed behind the steering wheel that maintains electrical continuity for the airbag, horn, and steering wheel controls while the wheel turns. If the steering wheel or clockspring is allowed to spin freely while detached, the internal ribbon will twist too far and snap, disabling vital safety features.
How do I ensure the steering wheel goes back on straight?
Prior to removing the original steering wheel, always make alignment index marks using a paint marker across both the steering column shaft and the wheel hub. When reinstalling, match these alignment marks and verify that your front tires remain pointed straight ahead.
What torque specification should be used when reinstalling the steering wheel bolt?
Torque specifications vary significantly depending on the vehicle manufacturer, typically ranging between 25 and 50 ft-lbs. Always consult the specific factory service manual for your exact year, make, and model to prevent over-tightening or loose fasteners.
Master Your Steering System Maintenance Safely
Mastering steering wheel and airbag removal requires patience, precise tools, and unwavering respect for high-voltage vehicle safety protocols. Bookmark this comprehensive guide and consult your specific vehicle service manual to ensure flawless execution on your next automotive project.
