How To Remove Refrigerant From Car AC: Safe Recovery Procedures
Removing refrigerant from a vehicle air conditioning system requires specialized recovery equipment to capture R-134a or R-1234yf gases safely and legally without venting them into the atmosphere. Environmental regulations mandate using certified recycling machines to prevent ozone depletion and avoid severe regulatory fines associated with intentional atmospheric discharge.
Pre-Operation and Equipment Checklist
Performing an automotive air conditioning system evacuation requires adherence to strict safety standards and Environmental Protection Agency regulations. Venting automotive refrigerants such as R-134a or the newer R-1234yf directly into the air is illegal under Section 608 and Section 609 of the Clean Air Act due to their high global warming potential and ozone-depleting properties. Consequently, do not attempt to bleed lines manually using manifold gauge service valves.
- Essential Tools and Materials: EPA-certified refrigerant recovery machine, dedicated automotive recovery tank (DOT-approved), manifold gauge set (high and low side couplers), electronic refrigerant scale, safety glasses, chemical-resistant gloves, and a well-ventilated workspace.
- Mandatory Prerequisite Knowledge: Familiarity with high-pressure fluid dynamics, understanding of PAG and POE synthetic compressor oil cross-contamination risks, and certification under EPA Section 609 for motor vehicle air conditioning service.
- Time and Budget Benchmarks: The procedure takes approximately 30 to 45 minutes to execute fully. Equipment rental or professional shop service costs vary, while purchasing a certified entry-level recovery machine ranges from four hundred to over one thousand dollars.
Step-by-Step Automotive Refrigerant Extraction Workflow
Step 1: System Inspection and Safety Preparation
Park the vehicle on a flat, level surface and ensure the engine is completely turned off and the ignition is in the locked position. Inspect the air conditioning service ports—typically covered by protective plastic caps on the high-pressure (smaller diameter) and low-pressure (larger diameter) aluminum lines. Verify that your recovery machine and electronic scale are placed on a stable surface and plugged into a grounded power source. Connect the certified recovery tank to the designated port on the recovery machine using high-pressure barrier hoses. Place the recovery tank directly onto the electronic scale and zero out the weight, noting the tank's tare weight to prevent overfilling beyond the maximum allowable 80 percent liquid capacity limit.
Warning: Never use a standard compressed air tank or an uncertified vessel to capture automotive refrigerant, as high internal pressures can cause catastrophic tank rupture and explosion.

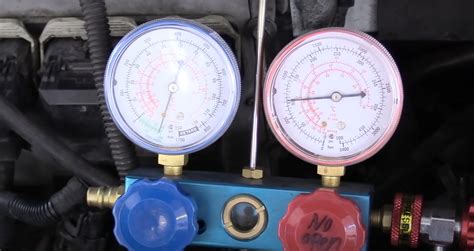

Step 2: Connecting the Manifold Gauges and Recovery Unit
Remove the protective caps from the vehicle's air conditioning service ports. Connect the blue low-pressure service hose from your manifold gauge or direct recovery machine line to the vehicle's low-side service port, ensuring the quick-disconnect coupler is fully seated and locked. Connect the red high-pressure service hose to the vehicle's high-side service port. Open both the high-side and low-side manual hand valves on the manifold gauge set (if using an intermediary manifold) or ensure the direct-line valves on the recovery unit are closed before initial startup.
Pro-Tip: Always inspect the rubber Schrader valve cores inside the vehicle service ports for leaks or degradation before attaching your couplers to prevent ambient air infiltration.
Step 3: Purging and Evacuating the Recovery Machine Hoses
Before opening the vehicle service valves, purge any trapped air and non-condensable gases from your recovery machine service hoses to prevent contamination of the recovery tank. Crack the service hose fittings at the inlet of the recovery machine slightly until you hear a brief hiss of refrigerant, then immediately tighten them. Alternatively, follow your specific recovery machine manufacturer protocol for automated hose purging. Open the valves on the recovery tank to establish an open pathway from the machine outlet to the storage vessel.
Step 4: Executing the Refrigerant Recovery Process
Power on the refrigerant recovery machine. Slowly open the low-side and high-side manual valves on your gauge set or machine interface to allow liquid and vapor refrigerant to flow out of the vehicle loops. Monitor the compound pressure gauges as the system pressure drops into a vacuum. Most recovery machines feature an automatic low-pressure shutoff switch that triggers once the system reaches a stable vacuum of approximately 10 to 15 inches of mercury (inHg). Allow the machine to run for an additional two to three minutes once the target vacuum is achieved to boil off any liquid refrigerant trapped within the system's accumulator, receiver-drier, or compressor lines.
Step 5: Finalizing Extraction and Sealing the System
Close both the high-pressure and low-pressure manifold valves, as well as the recovery tank inlet valve. Turn off the recovery machine and disconnect the power supply. Carefully disconnect the high-side and low-side quick-connect couplers from the vehicle service ports, minimizing any minor refrigerant puff-back by using quick motions. Check the electronic scale to record the exact weight of the recovered refrigerant, noting the net weight gain for compliance logs. Reinstall the protective plastic caps tightly onto the vehicle service ports to keep moisture and road debris out of the internal valving.
R134A Can Tap Car Refrigerant 1234yf Refrigerant Buy Boltigen AC R134a ...
Refrigerant Recovery Parameters and Comparison
| Parameter | R-134a (Tetrafluoroethane) | R-1234yf (Tetrafluoropropene) | R-744 (Carbon Dioxide - Emerging) |
|---|---|---|---|
| Global Warming Potential (GWP) | 1430 | 4 | 1 |
| Safety Classification (ASHRAE) | A1 (Non-flammable) | A2L (Mildly flammable) | A1 (Non-flammable) |
| Standard Operating Pressures | Moderate (30–250 psi) | Moderate (35–260 psi) | Extremely High (400–1200+ psi) |
| Recovery Machine Requirement | Dedicated R-134a unit | Dedicated A2L-certified unit | High-pressure specific CO2 unit |
| Oil Compatibility | PAG / POE | P PAG (Low conductivity) | PAG / POE |
Common Site Failures and Field Fixes
- Root Cause: Recovery machine fails to pull the system into a vacuum and stalls mid-cycle.
- Actionable Fix: Check for a restricted liquid line or a closed valve on the recovery tank. Verify that the ambient temperature is not too low, which can slow down refrigerant vaporization rates.
- Root Cause: Refrigerant leaks out from the service port connections during the hookup phase.
- Actionable Fix: Replace the internal Schrader valve cores using a specialized valve core removal tool, as worn rubber seals prevent proper sealing of the quick-disconnect couplers.
- Root Cause: The recovery tank reaches its maximum weight threshold before the vehicle system is fully evacuated.
- Actionable Fix: Stop the recovery process immediately, close the tank valve, and switch to a secondary evacuated recovery tank to prevent dangerous over-pressurization.
Frequently Asked Questions
Can I legally vent car AC refrigerant into the atmosphere?
No, venting automotive refrigerants like R-134a or R-1234yf into the atmosphere is strictly illegal under federal environmental protection laws. Doing so carries substantial civil and criminal penalties for individuals and repair facilities alike. All refrigerant must be captured using EPA-certified recovery machinery into approved containers.
Do I need a license to remove refrigerant from a car AC?
In the United States, EPA Section 609 certification is legally required for anyone purchasing automotive-quantities of refrigerant or servicing motor vehicle air conditioning systems. While DIYers sometimes bypass restrictions on tool purchases, professional technicians must hold this credential to perform legal recovery operations.
What happens if air gets mixed into the refrigerant recovery tank?
Air and other non-condensable gases trapped inside the recovery tank will cause abnormal head pressure spikes inside the machine during subsequent processing. This reduces recovery efficiency and can contaminate the entire batch of refrigerant, rendering it unusable for recycling and reclamation.
Can I reuse the refrigerant I remove from my car?
Recovered refrigerant can only be reused in the same vehicle or another vehicle owned by the same person if it meets strict purity standards established by the Air-Conditioning, Heating, and Refrigeration Institute. In most commercial repair scenarios, recovered refrigerant is sent out for off-site reclamation or processed through a certified recycling machine that filters out moisture, acids, and particulates.
Schedule professional HVAC diagnostic testing or acquire certified recovery equipment to handle automotive cooling systems in complete compliance with environmental regulations.
