How To Refill A Hydraulic Jack: A Complete Professional Maintenance Guide
Refilling a hydraulic jack involves purging the system of trapped air and replenishing the reservoir with high-grade hydraulic fluid to restore optimal pressure. By positioning the jack in a fully retracted state, removing the filler plug, and carefully adding fluid to the specified level, users can resolve lifting failures and extend the service life of their hydraulic equipment.
Essential Preparation and Necessary Equipment
Before beginning the fluid replacement process, you must ensure the work environment is clean and stable. Hydraulic systems are highly sensitive to contaminants; even a small amount of grit can score the internal cylinder walls or clog the bypass valve, leading to seal failure. Plan for approximately 45 minutes of maintenance time and ensure you have a flat, level surface to perform the work.
- Essential Gear and Materials:
- High-quality AW32 or AW46 hydraulic jack oil (consult your manufacturer manual for specific viscosity requirements).
- A clean funnel or syringe with a narrow tip.
- Flathead and Phillips head screwdrivers or a socket wrench set for removing the housing cover.
- Rags or shop towels for spill management and cleaning the filler port.
- A sturdy jack stand or blocking material to support the jack during the procedure.
- Safety glasses and nitrile gloves to protect against pressurized fluid leaks and chemical exposure.
Procedural Workflow for Hydraulic Reservoir Refilling
The following steps outline the standard industry process for refilling a bottle jack or floor jack. Always perform this on a level surface to ensure accurate fluid level reading.
Step 1: Retract the Piston Fully
To accurately assess the fluid level, the ram must be in its lowest, fully retracted position. If the jack is stuck in an extended position, open the release valve by turning the handle counter-clockwise. Apply firm, controlled pressure to the saddle or the top of the ram until the piston is pushed all the way down into the base. Ensure the release valve remains open during the fluid-filling process to prevent premature pressure buildup.
Warning: Never attempt to force a piston down with a hammer or heavy impact tools, as this can deform the ram head and cause permanent damage to the internal seals.
Step 2: Access the Reservoir and Filler Port

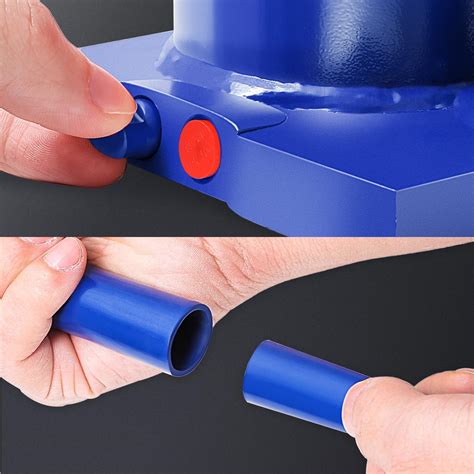

Once the jack is retracted, remove the protective cover or casing if your model has one. Locate the filler plug, which is typically made of rubber or a threaded metal bolt located on the side or rear of the reservoir body. Carefully pry out the rubber plug or unscrew the metal bolt. Wipe the area surrounding the port with a lint-free rag before removing the plug to ensure no dirt enters the system once the opening is exposed.
Step 3: Add Hydraulic Fluid
Using a clean funnel or a fluid syringe, slowly add the hydraulic oil into the reservoir. Fill the reservoir only until the fluid reaches the bottom of the filler hole threads. Filling beyond this point leaves no room for air displacement, which can lead to leaks when the jack is in use.
Pro-Tip: If you are unsure of the specific fluid requirements, check the manufacturer's data plate or manual. Using engine oil or brake fluid is strictly prohibited as these chemicals will degrade the internal rubber seals within weeks.
Step 4: Purge Trapped Air from the System
Air trapped inside the hydraulic chamber is the primary cause of a jack "spongy" feel or failure to reach full lift height. With the filler plug left open, operate the pump handle 10 to 15 times to cycle the fluid. Then, open the release valve and push the ram down again. Repeat this cycle three times to ensure all air bubbles have migrated to the top and escaped through the open filler port.
Step 5: Seal and Test
Reinsert the filler plug firmly, ensuring a vacuum-tight seal. Reassemble the protective housing if applicable. Close the release valve and operate the pump to lift the jack to its maximum height without a load. If the ram holds steady and the lift action is smooth, the jack is ready for service.
5 Ton Telescopic Hydraulic Bottle Jack Lift Car Van TE337 - Walmart.com
Comparison of Hydraulic Fluid Specifications
The following table summarizes the common fluid standards and their typical applications for hydraulic lifting equipment.
| Fluid Grade | Viscosity Index | Operational Temperature Range | Ideal Equipment Type |
|---|---|---|---|
| ISO VG 32 | Thin (Low) | -10°C to 40°C | Light-duty floor jacks, cold climates |
| ISO VG 46 | Medium | 0°C to 50°C | Standard heavy-duty bottle/floor jacks |
| ISO VG 68 | Thick (High) | 10°C to 60°C | High-capacity industrial rams, hot climates |
Common Field Failures and Professional Remedies
Hydraulic jacks rarely suffer from mysterious malfunctions; most failures are due to basic maintenance oversights or environmental contamination.
- Issue: Jack Lifts, Then Slowly Settles Under Load
- Root Cause: Debris caught in the release valve or a check valve preventing it from seating fully.
- Actionable Fix: Flush the system with clean oil, or remove and clean the check valve ball bearing if accessible.
- Issue: Pump Handle Feels "Mushy" or Bounces Back
- Root Cause: Air trapped in the hydraulic circuit.
- Actionable Fix: Perform the air-purge cycle outlined in Step 4 while keeping the reservoir plug open to allow air to escape.
- Issue: External Fluid Leaking at the Base
- Root Cause: Worn O-rings or a damaged reservoir seal due to over-pressurization.
- Actionable Fix: Replace the seal kit, which is a standard maintenance item for most industrial-grade hydraulic jacks.
Frequently Asked Questions
Can I mix different brands of hydraulic fluid in my jack?
Generally, yes, as long as the fluid grades (e.g., ISO VG 32) match. However, it is always recommended to fully drain and replace the fluid if you are switching brands or types to prevent chemical incompatibility between additive packages.
How often should I change the hydraulic fluid?
For professional shop environments, annual fluid replacement is the industry standard to prevent oxidation and moisture buildup. For occasional home use, replacing the fluid every three to five years is sufficient to maintain peak performance.
Is it possible to overfill a hydraulic jack?
Yes, and doing so can cause the reservoir to blow out the seals under high pressure or create a leak at the filler plug. Always fill exactly to the bottom of the filler hole threads to maintain the necessary air gap for thermal expansion.
Why does my jack pump but refuse to lift a load?
This is usually a symptom of a failing pump piston seal or an internal bypass valve that is stuck open. If purging the air does not resolve the issue, you likely need a professional rebuild kit to replace the internal soft parts.
What should I do with the old hydraulic fluid?
Never pour used hydraulic oil down the drain or into the soil. Collect it in a sealed container and take it to a local hazardous waste disposal facility or an automotive parts store that participates in oil recycling programs.
Ensure Equipment Longevity and Safety
Regular maintenance of your hydraulic equipment is a vital safety practice that prevents costly mechanical failures and workplace accidents. Inspect your seals and fluid levels today to ensure your hydraulic tools operate with the precision and reliability your projects demand.
