How To Refill Argon Gas In Windows: A Professional Technical Guide To Restoring IGU Thermal Performance

Restoring the insulating properties of an Insulated Glass Unit (IGU) involves purging moisture-laden air and injecting high-purity argon gas through precision-drilled ports or existing capillary tubes. To achieve optimal thermal efficiency, technicians must reach a gas concentration of at least 90%, effectively lowering the window’s U-factor and preventing internal condensation by neutralizing the dew point within the interstitial space.

Technical Requirements and Pre-Procedure Planning

Before attempting to restore the gas fill of a double or triple-pane window, you must verify the structural integrity of the primary and secondary seals. Argon gas is utilized because its thermal conductivity (0.016 W/m·K) is significantly lower than that of dry air (0.024 W/m·K). If the perimeter seals are compromised, any new gas will dissipate rapidly, rendering the repair futile. A comprehensive assessment using a thermal imaging camera or a specialized gas fill analyzer is recommended to determine the current concentration levels.

Essential Equipment and Material Specifications

The following equipment is required to perform a field-service gas refill that meets industry-standard thermal benchmarks:

• Gas Supply: Industrial-grade Argon (99.9% purity) or an Argon-Krypton blend.

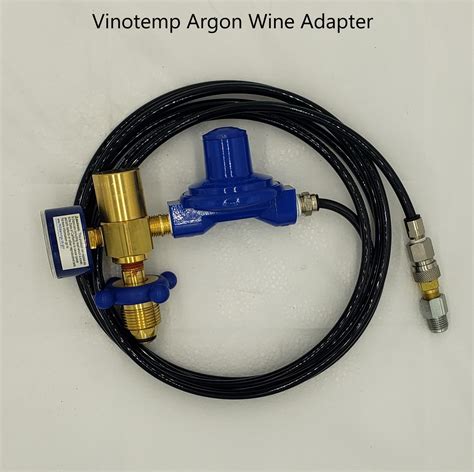

• Precision Regulator: A low-pressure regulator capable of delivering gas at 1 to 3 PSI to prevent glass deflection or "pillowing."
• Injection and Exhaust Needles: 14-gauge to 18-gauge stainless steel hollow needles or specialized capillary tubes.
• Drill and Bits: A high-speed rotary tool with 1/8-inch diamond-tipped or carbide bits for drilling through aluminum or polymer spacers.
• Desiccant Replacement: Molecular sieve desiccant beads (3A or 4A pore size) to absorb residual moisture.
• Sealants: High-performance polyisobutylene (PIB) for the primary seal and a neutral-cure structural silicone for the secondary seal.
• Gas Concentration Indicator: An oxygen-sensing flame or an electronic argon analyzer to confirm air displacement.

Prerequisite Standards and Benchmarks

• Target Concentration: 90% to 95% Argon fill (ASTM E2190 compliance).
• Maximum Allowable Leakage: Less than 1% per year according to NFRC standards.
• Estimated Duration: 45 to 90 minutes per sash depending on size and moisture levels.
• Environmental Constraints: Perform only when ambient humidity is below 50% to prevent excessive moisture entrapment during the open-port phase.

Technical Execution of the Argon Refill Process

The following workflow details the methodology for field-refilling an IGU that has lost its thermal charge. This process assumes the window remains in the frame, though bench-top service is often more precise.

Step 1: Identifying and Accessing the Interstitial Space

The first step is locating the spacer bar—the metal or foam piece that separates the two panes of glass. Most modern IGUs are sealed during manufacturing, but some older units or those designed for high-altitude installations contain capillary tubes.

If no tube is present, you must create two access points. Using a 1/8-inch drill bit, carefully drill two holes into the spacer bar at opposite diagonal corners. One hole serves as the gas injection port (usually at the bottom), while the other serves as the air exhaust port (at the top). Take extreme care not to touch the glass surfaces with the drill bit, as this will cause immediate catastrophic failure of the tempered or annealed glass.

Step 2: Moisture Extraction and Desiccant Restoration

A primary reason for gas loss is a breach that allows moist air to enter. Before refilling, any internal fogging must be addressed.

1. Use a vacuum pump or a dry nitrogen flush to circulate dry air through the unit for 15 to 20 minutes.
2. If the internal desiccant is saturated (indicated by persistent fogging), you may need to inject a small amount of fresh molecular sieve beads through the injection port.
3. Ensure the unit is completely clear of visual moisture before proceeding, as argon will not "remove" water; it only prevents further condensation if the environment is dry.

Step 3: Calibrated Argon Injection Protocol

Argon is heavier than air. To ensure a complete fill, the injection must follow the principles of laminar flow and displacement.

1. Insert the injection needle into the bottom port and the exhaust needle into the top port.
2. Set the regulator to a flow rate of approximately 2 to 5 liters per minute.
3. As the argon enters the bottom of the unit, it will act like a rising floor, pushing the lighter oxygen and nitrogen out through the top exhaust port.
4. Monitor the exhaust port with a gas analyzer. If an electronic analyzer is unavailable, a traditional "flame test" can be used (a match flame will extinguish immediately when it hits the argon-rich exhaust).

Warning: Do not exceed 5 PSI during injection. Over-pressurizing the unit can cause the glass to bow outward (pillowing), which creates optical distortion and places immense stress on the perimeter seals, leading to immediate seal failure.

Step 4: Verification of Gas Concentration

To reach an R-value improvement of approximately 15-20%, the concentration must be verified. Use a non-invasive spark-emission analyzer if possible. Professional technicians aim for a 92% fill, leaving 8% residual air. This balance accounts for atmospheric pressure changes. If the concentration is below 80%, the thermal benefits are negligible.

Step 5: Hermetic Resealing and Structural Capping

Once the desired concentration is reached, the ports must be sealed immediately to prevent back-diffusion of oxygen.

1. Remove the needles while maintaining a slight positive pressure of gas.
2. Insert a specialized butyl rubber plug or a stainless steel screw-plug into the holes.
3. Apply a primary seal of polyisobutylene over the plug.
4. Cover the repair site with a high-modulus, neutral-cure silicone sealant that is UV-resistant. This secondary seal provides the structural strength to hold the primary seal in place over decades of thermal expansion and contraction.

Pro-Tip: Always clean the spacer surface with 99% isopropyl alcohol before applying sealants. Any oil or residue will prevent the chemical bond required for a gas-tight seal.

Material Performance and Gas Specification Matrix

The choice of gas and the precision of the gap width (the distance between the panes) dictate the final U-factor of the window. Use the following table to understand the performance thresholds of different fill types.

Troubleshooting Common Field Refill Failures

Refilling an IGU is a delicate procedure where minor errors lead to total unit failure. Below are the most common scenarios encountered during the restoration process.

• Scenario: Immediate Fogging After Sealing




  • Root Cause: Residual moisture was not fully purged, or the desiccant within the spacer bar is fully saturated and unable to adsorb the "fill moisture."
  • Actionable Fix: Re-open the ports and perform a "dry-wash" using bone-dry nitrogen or heated dry air for an extended period. If the unit is old, consider injecting additional desiccant beads into the spacer cavity before the argon fill.

• Scenario: Glass Cracking During Injection




  • Root Cause: Pressure buildup exceeded the structural limit of the glass panes. This often happens when the exhaust port is too small or becomes blocked.
  • Actionable Fix: Always use an exhaust needle with an equal or larger diameter than the injection needle. Implement a dual-stage regulator and never leave the injection process unattended.

• Scenario: Gas Concentration Drops Rapidly (Within Weeks)




  • Root Cause: Failure of the secondary seal or "edge-leakage." The sealant used may not have been compatible with the spacer material or was applied to a contaminated surface.
  • Actionable Fix: Strip the secondary seal back to the spacer. Use a solvent to clean the area and re-apply a high-performance, IGU-specific structural sealant. Ensure the sealant is "neutral cure" to avoid acetic acid damage to the spacer's primary seal.

• Scenario: Rainbow-Like Patterns (Newton's Rings) After Fill




  • Root Cause: Under-pressurization causing the panes to collapse toward each other and touch in the center.
  • Actionable Fix: Check the local atmospheric pressure. If the window was filled at a different altitude or temperature, the gas volume may have contracted. Inject a small amount of additional argon to create a neutral or slightly positive pressure.

Frequently Asked Questions

Can I refill my windows without professional equipment?

While DIY kits exist, achieving a 90% argon concentration is nearly impossible without a regulator and a gas analyzer. Standard air contains 21% oxygen; if you fail to purge this, the thermal benefits will be lost, and the remaining oxygen can accelerate the oxidation of Low-E coatings, leading to permanent glass discoloration.

How do I know if my window has lost its argon gas?

The most common indicators are condensation between the panes, a noticeable increase in sound transmission, or "pillowing" where the glass looks concave or convex. You can also use a thermal leak detector to compare the center-of-glass temperature with the edge-of-glass temperature; a significant delta often suggests gas loss.

How long does an argon refill last?

A professionally refilled and sealed unit should lose less than 0.5% to 1% of its gas per year. If the seals are restored to factory standards using PIB and silicone, the refill can maintain its effectiveness for 10 to 20 years, provided the window is not subject to extreme structural shifting.

Is it cheaper to refill the gas or replace the glass?

Refilling is significantly cheaper than replacing a custom-sized IGU or an entire window frame. A refill generally costs $50 to $150 in materials and labor per sash, whereas a new IGU can cost $300 to $800. However, if the glass is already etched or permanently stained from moisture, replacement is the only aesthetic solution.

Restore Your Home's Energy Efficiency

Refilling the argon gas in your windows is a highly technical but rewarding way to lower energy bills and eliminate interior drafts. By following these professional-grade protocols, you can extend the life of your glazing and restore your property's thermal envelope to its original specifications.
