How To Read A TOCO Monitor: A Comprehensive Clinical Guide To Understanding Uterine Contractions

A TOCO monitor, or tokodynamometer, is a specialized pressure-sensing transducer used during electronic fetal monitoring to track the frequency, duration, and resting tone of uterine contractions. While it accurately displays contraction timing and patterns, it does not measure the actual intrauterine pressure in millimeters of mercury, requiring clinical correlation with manual palpation and patient feedback.

Essential Preparation and Transducer Placement Standards

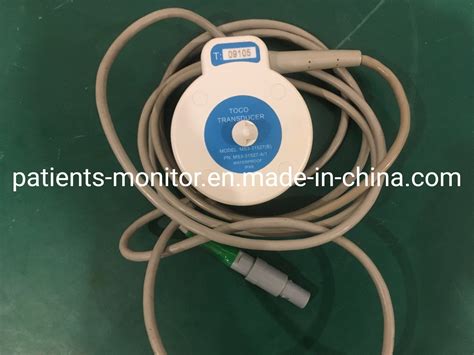

Interpreting a TOCO monitor trace requires an understanding of how external electronic fetal monitoring equipment captures physiological data. The TOCO transducer relies on a flat, piezoelectric crystal pressure sensor that responds to the tightening of the maternal abdominal wall during a uterine contraction.

To ensure accurate readings, clinical preparation requires specific equipment, positioning protocols, and environmental considerations. The monitoring setup functions continuously during active labor or antepartum testing sessions lasting anywhere from twenty minutes to several hours.

• Essential Equipment and Materials: Tocodynamometer transducer, ultrasound transducer for fetal heart rate, elastic abdominal belts, hypoallergenic conductive gel for the ultrasound sensor, and a fetal monitor machine equipped with continuous paper strip or digital archiving software.
• Mandatory Prerequisite Knowledge: Understanding of normal labor progression, uterine tachysystole criteria, the difference between external tocodynamometry and internal IUPC (intrauterine pressure catheter) monitoring, and baseline maternal positioning impacts.
• Setup and Calibration Standards: Patient positioned in a lateral tilt or semi-Fowler position to avoid supine hypotension syndrome; TOCO transducer secured firmly—but not overly tight—over the uterine fundus where contractions are most prominently felt.

Step-by-Step Workflow for Analyzing TOCO Monitor Traces

Step 1: Locate and Evaluate the Baseline Uterine Tone

Examine the lower grid of the fetal monitoring strip where the TOCO output is graphed, usually on a scale from 0 to 100 millimeters of mercury equivalent units. Identify the baseline resting tone, which represents the baseline uterine pressure between contractions. The tracing should return to a consistent baseline level, typically showing mild fluctuations or baseline artifact caused by maternal breathing.

Pro-Tip: If the baseline trace drifts upward or fails to return to baseline, check for maternal position changes, coughing, or a slipping abdominal belt that requires readjustment.

Step 2: Measure Contraction Frequency from Start to Start

Calculate the frequency of uterine contractions by measuring the time elapsed from the beginning of one contraction to the beginning of the next contraction. Frequency is always expressed in minutes. For example, if a contraction begins at the 1-minute mark and the next begins at the 4-minute mark, the frequency is every 3 minutes.

• Count the number of contractions in a standard 10-minute window to assess labor progress or uterine hyperstimulation.
• Normal spontaneous labor typically presents with 2 to 5 contractions in a 10-minute window, averaged over a 30-minute period.
• Document any irregular spacing or clustering of contractions that may indicate abnormal labor patterns or excessive oxytocin stimulation.

Step 3: Determine Contraction Duration from Onset to Relaxation

Measure the duration of individual contractions by identifying the exact point where the tracing line begins its upward deflection from the baseline to the point where it completely returns to the baseline resting tone. Duration is measured in seconds.

• Typical first-stage labor contractions last between 45 and 90 seconds.
• Ensure you measure the entire lifecycle of the contraction wave, avoiding truncation caused by artifact or signal drop-out.
• Watch for prolonged contractions lasting greater than 90 seconds, which can compromise uteroplacental blood flow.

Step 4: Assess Peak Intensity Qualitatively

Recognize that the external TOCO monitor displays relative intensity rather than absolute intrauterine pressure values. Because the sensor is strapped over the abdominal wall, the absolute height of the wave on the paper is influenced by maternal body habitus, abdominal wall tension, and transducer placement.

• Rely on manual palpation of the uterine fundus during a contraction to accurately gauge true intensity (mild, moderate, or strong).
• A mild contraction feels like the tip of the nose (easy to indent); a moderate contraction feels like the chin (difficult to indent); a strong contraction feels like the forehead (cannot be indented).
• Correlate the tactile strength of the contraction with fetal heart rate decelerations to determine clinical significance.

Technical Comparison of Uterine Monitoring Modalities

Troubleshooting Common TOCO Monitoring Errors and Signal Loss

Accurate interpretation is impossible without clean data. Recognizing and resolving common signal anomalies prevents misdiagnosis and unnecessary clinical interventions.

• Root Cause: Flatline tracing with no contraction waves visible despite the patient reporting strong, painful contractions.


  • Actionable Fix: The TOCO transducer has slipped away from the uterine fundus. Relocate the fundus by palpation and reposition the sensor to the area of highest elevation, tightening the elastic belt securely.
• Root Cause: Excessive baseline artifact, jagged spikes, or erratic tracing that obscures actual contraction patterns.


  • Actionable Fix: Instruct the patient to minimize sudden movements, reposition from flat supine to a side-lying lateral tilt, and ensure the transducer is not resting directly over maternal adipose folds or clothing wrinkles.
• Root Cause: Apparent continuous high uterine tone (hypertonus) without relaxation periods.


  • Actionable Fix: Check the zero-calibration knob or digital baseline reset on the monitor console. Verify that the belt is not overly tightened, compressing the pressure sensor continuously against the abdomen.

Frequently Asked Questions

What do the numbers on a TOCO monitor represent?

The numbers on the TOCO monitor grid typically range from 0 to 100 and represent arbitrary pressure units used to display relative changes in uterine tension. Unlike an internal catheter, these numbers do not measure true intrauterine pressure in millimeters of mercury, meaning a peak of 50 does not mean 50 mmHg of force.

How do I know if contractions are too close together?

Contractions are considered too frequent, a condition known as uterine tachysystole, if there are more than 5 contractions in a 10-minute window averaged over a 30-minute period. This pattern requires immediate clinical attention because frequent contractions can reduce oxygen delivery to the fetus.

Can a TOCO monitor tell me how dilated the cervix is?

No, a TOCO monitor measures only uterine activity and contraction patterns. It provides zero anatomical data regarding cervical effacement, cervical dilation, or fetal station, which must be assessed through manual digital vaginal examinations performed by a qualified clinician.

Why does the TOCO line occasionally drop to zero during a contraction?

A sudden drop to zero or a flat line during a contraction usually indicates transducer displacement caused by maternal movement, changing positions, or a loose belt. Re-secure the sensor over the uterine fundus to restore a continuous, reliable signal.

Mastering the interpretation of electronic fetal monitoring strips ensures optimal maternal-fetal outcomes through precise clinical observation and timely intervention. To enhance your clinical proficiency and stay updated on the latest obstetric monitoring standards, consult comprehensive perinatal nursing guidelines and advanced life support training programs today.
