Master Pressure Measurement: How To Read A PSI Gauge Accurately

Reading a PSI gauge accurately requires identifying the inner or outer numerical scale, calculating the value of minor graduation marks, and positioning your line of sight perpendicular to the dial to prevent parallax error. Standard analog gauges utilize an internal Bourdon tube or diaphragm mechanism that moves an indicator pointer across a calibrated face, where each minor line typically represents 1, 2, or 5 Pounds per Square Inch (PSI) depending on the full-scale span. For critical industrial applications, zero-point verification and ASME B40.100 accuracy grade alignment ensure measurements remain within target operating tolerances.

Pre-Inspection Safety Protocol & Gauge Verification

Before taking any pressure reading, you must verify system conditions, gauge integrity, and calibration status. Operating a mechanical pressure gauge outside its rated capacity risks permanent sensing element deformation, burst failure, or hazardous fluid release.

Always select a gauge where your maximum operating pressure falls within the middle third of the overall dial range (30% to 70% of Full Scale Deflection). For example, if your system operates at 50 PSI, choose a 0–100 PSI range gauge rather than a 0–60 PSI or 0–300 PSI gauge. This range optimization provides the highest mechanical accuracy while protecting internal mechanisms from unexpected pressure spikes.

+---------------------------------------------------------------------------------+ | NOTE: Standard analog pressure gauges operate via dynamic elastic elements | | subject to hysteresis, metal fatigue, and ambient thermal expansion. | +---------------------------------------------------------------------------------+

(Visual structure represented in standard text)

Pre-Measurement Assessment Checklist

• Essential Equipment & Safety Gear:




  • Safety glasses with side shields (ANSI Z87.1 rated)
  • Mechanic’s gloves rated for system operating temperatures
  • Flashlight or directed LED inspection lamp (minimum 300 lumens)
  • Flat-head precision screwdriver (for adjustable zero-pointer models)
  • System manual specifying working pressure parameters (PSIG vs. PSIA)

• Mandatory Knowledge & Calibration Standards:




  • Identification of target system pressure units (PSI, Bar, kPa, or kg/cm²)
  • Familiarity with ASME B40.100 scale accuracy conventions (e.g., Grade B, Grade A, Grade 2A)
  • Verification of the gauge's last calibration date via physical tag or maintenance log
  • Understanding process media characteristics (corrosive liquid, steam, inert gas)

• Time & Resource Benchmarks:




  • Setup & Inspection Duration: 3 to 5 minutes per gauge location
  • Budget Benchmark: $15 to $40 for standard utility dry gauges; $60 to $250 for liquid-filled process-grade gauges

The Precision Workflow for Reading Analog and Digital PSI Gauges

Follow this standardized procedure to eliminate human reading errors, calculate precise pressure values between scale increments, and interpret complex multi-scale gauge faces safely.

Step 1: Identify the Scale Units and Minor Graduation Values

Examine the printed face of the gauge to confirm the unit of measurement. The primary scale unit—usually Pounds per Square Inch (PSI)—is printed in bold near the center or bottom of the dial. Modern gauges frequently feature dual scales: an outer scale (often in PSI, rendered in black) and an inner scale (often in Bar or kilopascals [kPa], rendered in red or blue).

Calculate the precise numeric value of each graduation line (hash mark) before reading the needle position:

1. Locate two adjacent major numbered hash marks (e.g., 20 and 30).
2. Subtract the lower number from the higher number to find the interval value ($30 - 20 = 10 \text{ PSI}$).
3. Count the total number of spaces (subdivisions) between these two major numbers.
4. Divide the interval value by the number of spaces. If there are 5 spaces between 20 and 30, each minor hash mark equals $10 / 5 = 2 \text{ PSI}$.

Pro-Tip: Never assume minor hash marks represent 1 unit. On a 0–300 PSI dial face, major divisions are often spaced by 50 PSI, with 5 subdivisions representing 10 PSI per minor hash mark. On high-range gauges (0–5000 PSI), a single minor line may equal 100 PSI.

Step 2: Establish Zero-Point Integrity

Before pressurizing the system, inspect the resting needle position under zero-pressure conditions. The pointer must align exactly with the zero graduation mark or sit within the designated zero-box printed on the dial face.

• If the pointer sits above or below zero while venting to atmosphere, the internal Bourdon tube has suffered mechanical set (over-pressurization damage), or the pointer mechanism has shifted.
• For process gauges with an adjustable pointer, remove the front lens cover and turn the center adjustment screw until the pointer aligns precisely with zero.
• For liquid-filled gauges, cut or open the rubber pressure-relief vent plug located at the top of the casing. Liquid-filled gauges are sealed; internal temperature changes cause casing pressure build-up, shifting the pointer off zero unless vented.

Warning: Attempting to adjust a sealed gauge that is actively under pressure can rupture the casing or cause violent media ejection. Always isolate and vent the gauge location before making pointer adjustments or opening fill plugs.

Step 3: Eliminate Parallax Error During Observation

Parallax error occurs when observing an analog dial from an angle, causing the elevated needle to project against an incorrect tick mark on the background scale plate.

1. Position your eye line directly perpendicular (90 degrees) to the center of the gauge dial face.
2. If your gauge includes a mirrored ring running along the scale arc (standard on high-precision ASME Grade 3A and 4A test gauges), align your sightline so that the actual needle completely covers its own reflection in the mirror.
3. Keep your distance within 18 to 24 inches to maintain precise visual contrast between the needle tip and graduation lines.

Step 4: Measure the Needle Position and Interpolate Final Pressure

Read the value indicated by the center tip of the pointer. If the needle lands directly on a minor or major graduation mark, record that exact value.

If the needle rests between two minor graduation marks:

1. Identify the lower minor value ($P_1$) and the upper minor value ($P_2$).
2. Visually divide the space between $P_1$ and $P_2$ into halves or quarters.
3. Interpolate the value. For example, on a scale where minor ticks represent 2 PSI, if the needle sits midway between the 42 PSI tick and the 44 PSI tick, record the pressure as 43 PSI. If it sits three-quarters past 42, record 43.5 PSI.

Pro-Tip: If the system exhibits rapid pressure pulsation, causing the needle to flutter violently across a wide arc, record the midpoint of the sweep. To eliminate future flutter, install an inline mechanical snubber or replace the dry gauge with a glycerin- or silicone-filled model to dampen pointer oscillation.

Step 5: Read Specialized Compound, Absolute, and Digital Gauges

Different pressure measurement types require modified reading strategies:

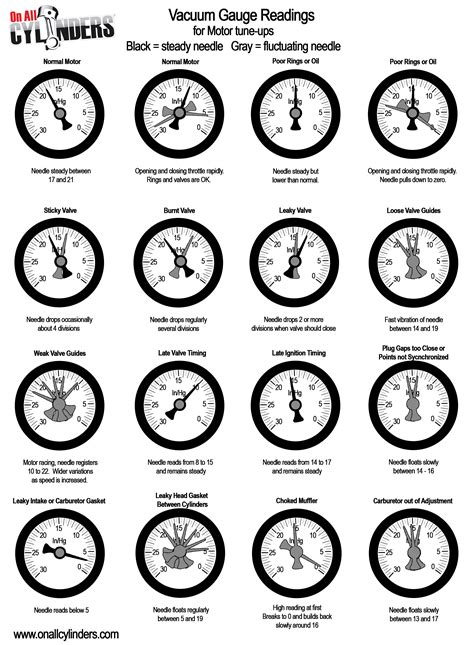

• Compound Gauges: These read both vacuum pressure and positive gauge pressure on a single dial face. The vacuum scale (left of zero) measures in inches of Mercury ("Hg) or millimeters of Mercury (mmHg), running counter-clockwise. The positive scale (right of zero) measures in standard PSI running clockwise. Ensure you note whether your measurement is in "Hg vacuum or positive PSIG.
• Differential Gauges (Delta P): These feature two inlet ports and display the pressure difference between them. The single pointer indicates the net loss or gain across a filter, valve, or orifice plate directly in Differential PSI (PSID).
• Digital PSI Gauges: Digital displays remove parallax error entirely. Ensure the screen displays your desired unit (PSI). Pay attention to mode indicators: G (Gauge Pressure - referenced to ambient atmosphere), A (Absolute Pressure - referenced to a perfect vacuum, adding approximately 14.7 PSI to atmosphere), or S (Sealed Gauge).

ASME B40.100 Standards & Graduation Specifications

The American Society of Mechanical Engineers (ASME) standard B40.100 categorizes analog pressure gauges into specific accuracy grades based on full-scale span deflection. Understanding these grades determines how precisely you can resolve line readings during field inspections.

Diagnosing Dial Drift & Mechanical Gauge Faults

Mechanical gauges operating in harsh industrial environments suffer wear, thermal stress, and over-pressurization. Use the diagnostic matrix below to determine whether your visual reading represents real process conditions or a mechanical gauge failure.

Needle Pegged Above Maximum Scale or Resting Below Zero

• Root Cause: The internal C-shaped Bourdon tube has experienced an over-pressure surge exceeding 130% of full-scale value. This permanently deforms the tube's internal elasticity, stretching the link-and-lever movement mechanism beyond recovery.
• Actionable Fix: Immediately isolate the gauge line. Replace the damaged unit with a gauge rated for a higher pressure range, and install an over-pressure protector (preset relief valve) upstream of the gauge connection.

Continuous Pointer Flutter or Rapid Vibration Arc

• Root Cause: High-frequency pressure pulsations caused by reciprocating pumps, compressor discharge cycles, or severe fluid turbulence within the pipe manifold. Continuous mechanical flutter causes rapid gear-teeth wear inside the dial movement, leading to inaccurate readings.
• Actionable Fix: Install a liquid-filled pressure gauge (glycerin for standard temperatures; silicone oil for high/low temperature extremes). Alternatively, thread a needle-valve snubber or porous metal plug snubber directly into the socket connection beneath the gauge.

Liquid Fill Fluid Leaking or Discolored (Yellow/Brown Dial Face)

• Root Cause: High ambient UV exposure, severe system thermal cycling, or chemical degradation of the internal Buna-N/Viton seals separating the process fluid from the case interior.
• Actionable Fix: Replace the compromised gauge assembly. If heat transferred through the mounting thread caused the seal failure, install a cooling element (siphon loop or capillary tube extension) to drop the media temperature below $140^\circ\text{F}$ ($60^\circ\text{C}$) before it contacts the gauge element.

Pointer Sluggish, Sticking, or Unresponsive to Pressure Changes

• Root Cause: Particulate matter, crystallized process fluids, or slag entering the small internal orifice of the gauge socket, clogging the entrance to the Bourdon tube.
• Actionable Fix: Depressurize and remove the gauge. Inspect the socket bore for debris. Clean the orifice using a solvent flush and a fine nylon brush. If process fluids carry solids, install a diaphragm seal unit between the pressure media and the gauge to isolate the internal tube.

Frequently Asked Questions

How do I know whether to read the inner or outer scale on a dual-unit gauge?

Refer to your system manual or engineering specification to confirm the required measurement unit. On dual-scale gauges, the outer scale is usually printed in black (typically PSI in North America), while the inner scale is printed in red, blue, or green (typically Bar, kPa, or $\text{kg/cm}^2$). Match the units printed next to your target scale with your required metric.

What is the difference between PSIG, PSIA, and PSID?

PSIG (Pounds per Square Inch Gauge) measures pressure relative to local atmospheric air pressure (reading 0 at sea level). PSIA (Pounds per Square Inch Absolute) measures pressure relative to a total vacuum, meaning standard sea-level atmosphere reads approximately 14.7 PSIA. PSID (Pounds per Square Inch Differential) measures the net pressure difference between two separate system points.

Why is my pressure gauge filled with liquid, and how does it affect the reading?

The internal liquid (glycerin or silicone) dampens system vibrations and pressure surges, preventing the pointer from fluttering violently and protecting the internal gear movement from premature wear. The liquid does not alter the numeric value of the pressure reading, though non-vented sealed cases can develop internal case pressure that slightly shifts the zero point until the top rubber plug is vented.

How do I convert PSI to Bar directly if my dial face only shows PSI?

To convert PSI to Bar manually, divide your PSI reading by 14.5038 (or multiply by 0.06895). For quick mental estimation in the field, divide your PSI reading by 15. For example, a reading of 60 PSI converts to approximately 4.13 Bar ($60 / 14.5038 = 4.136 \text{ Bar}$).

How often should an industrial pressure gauge be recalibrated?

Standard industrial maintenance protocols recommend recalibrating critical process gauges every 12 months. Gauges subjected to continuous severe vibration, extreme thermal cycling, or frequent pressure spikes should undergo calibration checks every 3 to 6 months according to ASME B40.100 guidelines.

Optimize Your System Calibration Protocols

Accurate pressure measurement is fundamental to maintaining system performance, operational safety, and equipment longevity. Ensure your facility maintains compliance with ASME B40.100 specifications by pairing calibrated instrumentation with proper snubber and diaphragm seal protection. For complex process piping, high-purity gas lines, or critical hydraulic circuits, consult certified instrumentation specialists to perform field audits and zero-point verification across all diagnostic locations.
