How To Read An Oil Pressure Gauge: Understanding Your Engine’s Health Metrics

Monitoring an oil pressure gauge provides real-time telemetry regarding the lubrication system’s health and the mechanical integrity of internal engine components. For most passenger vehicles, normal operating pressure generally falls between 25 and 65 PSI while the engine is under load, though these figures vary significantly based on oil viscosity, engine temperature, and RPM.

Pre-Operation Requirements and Baseline Engine Standards

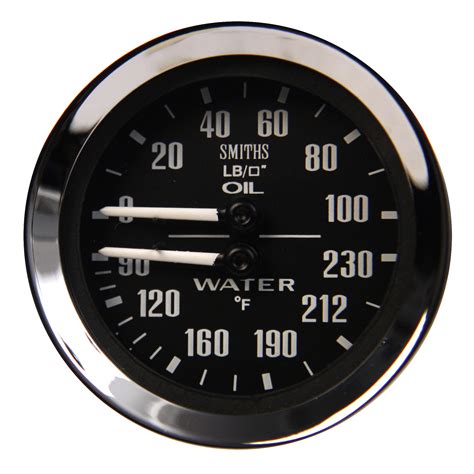

Before interpreting gauge data, one must understand that oil pressure is a function of the oil pump's output against the internal resistance of the engine's bearings and lifters. An oil pressure gauge—whether mechanical or electronic—measures the force exerted by the lubricant as it is forced through the engine's oil galleries.

Before monitoring, ensure you have the following understanding and equipment to interpret readings accurately:

• Vehicle Service Manual: Always consult the manufacturer's specific factory service manual for the "at idle" and "at cruising speed" pressure thresholds, as these are the only definitive benchmarks for your specific engine.
• Operating Temperature Context: Pressure readings taken immediately upon a cold start will be significantly higher than readings taken after the engine reaches 190-210 degrees Fahrenheit (operating temp).
• Gauge Calibration: If utilizing an aftermarket mechanical gauge, ensure the capillary line is free of air pockets or kinks, which can cause false dampened readings.
• Time Benchmark: Allow the engine to reach full operating temperature—typically a 15-minute drive—before making any critical assessments of low-pressure readings.

Interpreting Oil Pressure Gauge Data: A Procedural Workflow

Step 1: Establish the Cold Start Baseline

Upon starting a cold engine, the oil pressure will be at its peak. Cold oil is more viscous, creating higher resistance to flow through the pump and bearing clearances. You should observe the needle rise to the higher end of the operational range immediately. If the needle remains pegged at the maximum or does not move at all, investigate the sensor wiring or a stuck oil pump relief valve immediately.

Step 2: Observe the Warm Idle Stabilization

As the engine temperature increases, the oil viscosity thins, reducing resistance and causing the pressure needle to drop. This is a normal physical reaction. At a warm idle, most engines should maintain a minimum of 10 to 20 PSI. If your gauge dips below 10 PSI at idle while the engine is hot, it indicates excessive bearing wear or an issue with the oil pump's ability to maintain pressure at low revolutions.

Step 3: Monitor Pressure Under Load

Gradually increase the engine RPM while the vehicle is in motion or in park. The oil pressure gauge should respond linearly with the engine speed. As the crankshaft spins faster, the oil pump—which is mechanically driven by the engine—pushes more volume, increasing pressure until it reaches the relief valve's setting. A healthy engine will show a steady increase in pressure that plateaus around 40-60 PSI depending on the specific engine design.

Warning: If your gauge drops to zero or flashes a warning light during acceleration, kill the engine immediately. Continued operation with zero oil pressure will result in catastrophic bottom-end failure, specifically rod bearing seizure, within seconds.

Step 4: Evaluate Gauge Fluctuations

Small, rapid oscillations of the needle may indicate a failing oil pressure sending unit or, in mechanical gauges, air trapped in the line. However, if the needle pulses in time with the engine RPM, this often points to an oil pump cavitation issue or an obstructed oil pickup screen in the oil pan.

Standard Operational Thresholds and Technical Variables

Oil pressure is inherently tied to the viscosity of the oil used and the internal tolerances of the engine. The table below outlines general industry expectations for a standard internal combustion engine.

Common Field Failures and Diagnostic Remedies

When reading an oil pressure gauge, the context of the fluctuation is more important than the specific number. Use these scenarios to troubleshoot potential mechanical failures.

• Scenario 1: High Pressure at All Times


  • Root Cause: A stuck closed oil pump pressure relief valve or the use of oil with a viscosity rating higher than the manufacturer’s specification (e.g., using 20W-50 in a 5W-20 engine).
  • Actionable Fix: Drain and replace oil with the specified viscosity. If the pressure remains excessive, the relief valve or pump assembly requires replacement.
• Scenario 2: Low Pressure at Idle, Normal at Speed


  • Root Cause: Excessive internal clearances in the main or rod bearings, or a worn oil pump housing that allows fluid to bypass at lower volumes.
  • Actionable Fix: Perform an oil pressure test with a calibrated master gauge to verify the readings. If verified, the engine requires a mechanical overhaul, including new bearings and potentially an oil pump replacement.
• Scenario 3: Erratic Needle Movement or Zero Reading


  • Root Cause: Failed electronic oil pressure sending unit, corroded wiring harness connector, or a blocked pickup screen due to sludge buildup.
  • Actionable Fix: Inspect the electrical connection at the sensor. Replace the sending unit if the wiring is intact. If the gauge still reads zero, inspect the oil pan and pickup screen for debris.

Frequently Asked Questions

What constitutes dangerously low oil pressure?

Any pressure below 10 PSI at idle or anything approaching 0 PSI while the engine is under load is considered dangerous. These levels indicate that the oil film protecting your engine bearings is insufficient, leading to metal-on-metal contact and rapid component destruction.

Does synthetic oil change my gauge readings?

Synthetic oil may exhibit slightly different pressure characteristics than conventional oil due to its superior flow properties and heat stability. While your gauge should still operate within the factory-specified ranges, you may notice it runs at the lower end of the "normal" spectrum during heavy thermal load compared to thicker conventional oils.

Why does my oil pressure drop when the engine gets hot?

Oil pressure drops as temperature increases because oil loses viscosity—it becomes thinner—as it heats up. Thinner oil flows more easily through the tight clearances of your engine bearings, which reduces the backpressure against the oil pump and results in a lower reading on your gauge.

Should I trust the dashboard gauge or an aftermarket mechanical gauge?

Dashboard gauges in modern vehicles are often "dummy gauges" that only indicate whether pressure is within a broad "acceptable" range rather than providing precise telemetry. For accurate diagnostics, a professional-grade mechanical gauge tapped directly into the engine’s main oil gallery is the industry standard for verification.

Master Your Vehicle Diagnostics

Properly reading your oil pressure gauge is the most effective way to identify internal engine wear before it progresses to catastrophic failure. Perform regular checks at idle and under load to ensure your engine's lubrication system maintains the manufacturer-specified pressures required for peak reliability.
