How To Read A Moisture Meter: Professional Interpretation Of Wood And Building Material Readings

To read a moisture meter accurately, you must identify whether the device is using electrical resistance (pin-type) or dielectric capacitance (pinless) to measure the percentage of moisture content (%MC) relative to the material's dry mass. Professional interpretation requires comparing the numerical value on the digital or analog display against the specific "dry standard" of the substrate, typically aiming for 6–8% in interior woodwork and under 1% in gypsum-based materials.

Technical Calibration and Substrate Assessment Protocols

Before activating a moisture meter, you must understand that these tools are not "plug-and-play" sensors; they are diagnostic instruments that require environmental context. A moisture meter does not directly measure water volume; it measures the effects of water on electrical properties. Therefore, the preparation phase involves identifying the specific gravity of the material and ensuring the device is calibrated to a known reference point. Failure to account for species-specific density in wood or the presence of salts in masonry will lead to skewed data and incorrect remediation decisions.

The following equipment and standards are mandatory for professional-grade moisture mapping:

• Essential Hardware: Dual-mode moisture meter (Pin and Pinless), spare 9V high-alkaline batteries, and a calibration check block (resistor-based for pin meters).
• Reference Materials: Wood species correction charts, psychrometric tables for relative humidity (RH) correlation, and the manufacturer’s technical manual for "Building Material Mode" conversion.
• Prerequisite Standards: Knowledge of the "Dry Standard"—the reading taken from a known dry area of the same material in the same environment to serve as a baseline.
• Temporal Benchmark: Allow the meter and the material to reach thermal equilibrium; a 15-minute acclimatization period is recommended if the meter has been stored in a significantly different temperature than the testing site.

Procedural Execution for Pin and Pinless Moisture Detection

Successfully reading a moisture meter involves a two-stage process of scanning for anomalies and then quantifying the specific moisture levels at varying depths. Whether you are a flooring installer, a home inspector, or a restoration specialist, the following workflow ensures data integrity.

Step 1: Selecting the Appropriate Sensing Mode

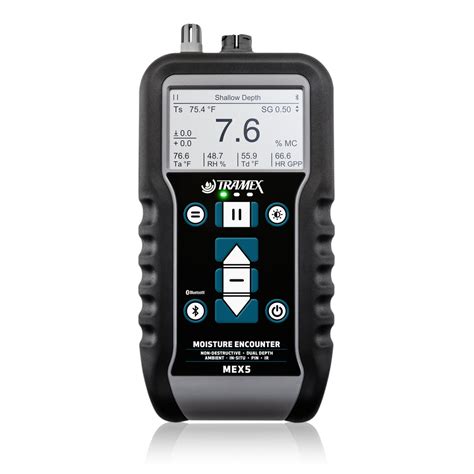

Modern professional meters generally offer three distinct settings: Wood, Building Materials (Drywall/Masonry), and Search/Pinless. You must toggle the meter to the correct mode before contact. Reading wood on a "Building Material" scale will result in a relative value that does not reflect actual %MC, rendering the data useless for structural assessments.

• Wood Mode: Calibrated to the Douglas Fir standard. If measuring other species, you must apply a correction factor based on the wood's specific gravity.
• Building Material Mode: Often provides a relative scale (0–100) or a Wood Moisture Equivalent (WME) percentage.
• Pinless (Non-Destructive) Mode: Best for rapid scanning of large surface areas without damaging finishes.

Step 2: Calibrating against the Dry Standard

Before taking measurements in a suspected "wet" area, find a portion of the same material that is known to be dry (e.g., the top of a wall far from a leak). Note this value. This is your "Dry Standard." Any reading significantly higher than this baseline indicates the presence of excess moisture, regardless of whether the meter's display shows a "green" or "safe" LED light.

Pro-Tip: Always verify your meter's accuracy using a built-in calibration check or an external calibration block. If a pin meter reads 18.2% on a 18.0% calibration block, you must factor that +0.2% variance into every subsequent reading.

Step 3: Executing Pinless Scanning (Depth of Measurement)

Hold the meter firmly against the surface, ensuring the sensor plate is in full, flat contact with the material. Pinless meters typically utilize electromagnetic signals to read moisture at a depth of 0.75 to 1 inch.

1. Move the meter in a "S" pattern across the surface.
2. Observe the digital display for "spikes" in the reading.
3. In pinless mode, look for the highest numerical value rather than a single static number; moisture is rarely distributed uniformly.
4. Ensure there is no metal (studs, pipes, or foil-faced insulation) behind the material, as these will cause a false positive of 100% saturation.

Step 4: Invasive Pin Testing for Gradient Analysis

Once an anomaly is found with the pinless scan, switch to pin mode to confirm the depth and concentration. This is critical for determining if the moisture is on the surface (condensation) or deep within the core (leakage).

1. Align the pins parallel to the grain if testing wood; electrical resistance is more consistent along the fibers than across them.
2. Push the pins into the material. For drywall, the pins only need to break the surface. For wood, you may need "hammer probes" to reach the center of a beam.
3. Read the %MC on the display.
4. The Gradient Test: Take a reading at the surface, then drive the pins deeper. If the moisture level increases as you go deeper, you have an active internal leak. If the moisture is higher on the surface, you are likely dealing with an ambient humidity or condensation issue.

Step 5: Recording and Interpreting WME

If your meter displays "WME" (Wood Moisture Equivalent), it is telling you what the moisture level would be if the material were wood. This is the industry standard for non-wood materials like brick or plaster.

• Reading < 17% WME: Considered "dry" for most structural components.
• Reading 17% – 20% WME: "At risk" or "Borderline." This indicates a damp environment conducive to mold growth if sustained.
• Reading > 20% WME: "Wet" or "Saturated." This level supports active fungal decay and requires immediate remediation.

Warning: Do not rely on color-coded LEDs (Green/Yellow/Red) alone. These are factory-set and do not account for the specific "Dry Standard" of your job site. Always use the raw numerical data for your reports.

Material Saturation Thresholds and %MC Reference Standards

The following table provides the technical benchmarks required to interpret moisture meter readings across various common construction materials. These values represent the equilibrium moisture content (EMC) and the thresholds for structural concern.

Resolving False Positives and Environmental Interference

Reading a moisture meter is often complicated by environmental variables that produce "false" readings. To maintain accuracy, you must be able to identify and troubleshoot these specific failure scenarios.

Scenario 1: The Metal Interference Spike

• Root Cause: Pinless meters use an electromagnetic field. If the sensor plate passes over a copper pipe, a steel stud, or even a buried nail, the meter will interpret the metal's conductivity as 100% moisture.
• Actionable Fix: Cross-reference the pinless "spike" with a pin-type reading. Pins measure electrical resistance and are not fooled by the presence of metal unless both pins simultaneously touch the metal object.

Scenario 2: Surface Salts in Basements

• Root Cause: In older masonry or concrete, "efflorescence" (salt deposits) can build up. Salts are highly conductive. When using a pin meter, these salts will cause the meter to read significantly higher than the actual moisture content.
• Actionable Fix: Clean the surface with a dry brush and re-test. If the reading remains high, use a pinless meter or a relative humidity (RH) probe drilled into the concrete (ASTM F2170) to get an accurate internal measurement.

Scenario 3: Temperature Extremes

• Root Cause: Electrical resistance in wood changes with temperature. If the wood is very hot, the meter will over-read the moisture; if it is near freezing, the meter will under-read.
• Actionable Fix: Apply a temperature correction. Most professional meters have this built-in, but if not, the rule of thumb is to subtract 1% from the reading for every 20°F above 70°F, and add 1% for every 20°F below 70°F.

Scenario 4: Chemical Treatments and Adhesives

• Root Cause: Pressure-treated lumber contains copper and other metallic salts to prevent rot. These chemicals drastically lower the electrical resistance, causing pin meters to show "saturated" readings on dry wood.
• Actionable Fix: Use a pinless meter for pressure-treated wood, as capacitance-based sensors are generally less affected by chemical treatments than resistance-based pin sensors.

Frequently Asked Questions

What is a normal moisture reading for drywall?

A normal, "dry" reading for gypsum drywall is typically between 0.1% and 0.5% MC. Any reading above 1.0% suggests that the material has absorbed moisture from a leak or high humidity and may lose its structural integrity or support mold growth.

Why does my moisture meter give different readings in the same spot?

Inconsistent readings are usually caused by uneven surface contact with pinless sensors or varying depths of pin penetration. Ensure the pinless plate is completely flat against the substrate, or check for surface contaminants like wax or salts that may be affecting electrical conductivity in pin mode.

Can a moisture meter detect mold?

A moisture meter cannot "see" mold, but it identifies the conditions where mold is likely to grow. Mold generally requires a moisture content of 20% or higher in wood and elevated WME levels in drywall; by finding these "wet spots," you can locate the most probable areas for fungal colonization.

How do I know if my moisture meter is calibrated correctly?

You should test your meter using a calibration check device or a "check block" provided by the manufacturer. If your meter does not have a built-in check, take a reading of a known dry material (like a piece of indoor furniture) to ensure it provides a baseline reading consistent with a low-humidity environment.

Do I need to push the pins all the way into the wood?

For a surface reading, only the tips need to make contact. However, to find "core moisture" or hidden leaks, you must drive the pins at least 1/4 inch into the wood. For thick timber or beams, using an external deep-wall probe is necessary to accurately assess the internal moisture gradient.

Professional Moisture Assessment Standards

Accurate moisture detection is the foundation of structural longevity and healthy indoor air quality. By employing the rigorous testing protocols and calibration standards outlined in this guide, you can confidently differentiate between surface condensation and deep-seated structural saturation.
