How To Read A Hydraulic Circuit Diagram: A Professional Technical Guide

Mastering how to read a hydraulic circuit diagram requires understanding standardized ISO 1219 symbols, fluid power logic, and component interactions to troubleshoot, design, and maintain fluid power systems safely. Technicians must interpret these schematic maps to trace pressure lines, analyze flow paths, and diagnose mechanical anomalies without relying on physical system tracing.

Preparation and Foundational Standards for Hydraulic Schematics

Before analyzing any hydraulic schematic, you must understand the foundational standards governing fluid power diagrams. Hydraulic circuits utilize standardized symbology regulated by the International Organization for Standardization (ISO 1219) and the National Fluid Power Association (NFPA). These symbols do not represent the physical size or exact placement of components; rather, they illustrate function, ports, actuation methods, and internal flow paths.

Essential Gear & Tools: Digital multimeter for proportional valve electronics, high-resolution digital copy of the schematic, transparent layout ruler or digital markup software, and a manufacturer parts cross-reference manual.
Mandatory Prerequisite Knowledge: Working familiarity with fluid power physics (Pascal's Law, flow rate versus velocity, laminar versus turbulent flow), ISO 1219 symbol sets, and basic electrical control logic for electro-hydraulic systems.
Estimated Scope & Duration: A standard single-pump, multi-actuator industrial or mobile schematic typically requires 30 to 45 minutes of methodical zone-by-zone tracing for a complete functional review.

Step-by-Step Procedure for Analyzing Hydraulic Schematics

Step 1: Identify the Power Source and Supply Lines

Begin your analysis at the energy input zone, typically located at the bottom or lower-left corner of the schematic. Locate the hydraulic pump symbol, which appears as a circle with an internal triangle pointing outward toward the system lines. Note whether it is a fixed displacement pump (single triangle) or a variable displacement pump (triangle with an intersecting diagonal arrow).

Trace the primary pressure line originating from the pump discharge port, conventionally rendered as a solid, thick line representing high pressure.
Identify the main pressure relief valve connected immediately downstream of the pump outlet; note its cracking pressure setting in bar or PSI to understand the maximum system safety threshold.
Locate the fluid reservoir (tank) symbol, represented by a horizontal dashed or solid line with vertical descending lines, and trace all return lines leading back to this oil storage and cooling medium.

Warning: Never service a hydraulic circuit while the pump is energized, as trapped pressure behind closed valves can cause severe fluid injection injuries or structural component failure.

Step 2: Map the Control and Directional Valve Network

Move downstream from the power supply to the control architecture, where directional control valves (DCVs) govern the route of the pressurized fluid. DCVs are designated by square boxes indicating the number of operational positions (squares) and port connections (numbers or letters inside the external boxes, such as P for pressure, T for tank, and A/B for working lines).

Analyze the actuation method attached to the sides of the valve boxes, such as manual levers, single or dual solenoids, pilot pressure lines, or mechanical spring returns.
Determine the resting state of the directional valve by looking at which envelope aligns with the internal flow arrows when no control signal is applied.
Trace how shifting the valve envelope connects the pressure supply (P) to actuator work ports (A or B), while simultaneously routing the returning fluid from the opposite side back to the tank (T).

Pro-Tip: Always color-code your schematic trace mentally or digitally: red for high-pressure supply lines, blue for tank return lines, green for pilot/control pressure, and orange for trapped or secondary working pressure.

Step 3: Analyze Actuators and Energy Conversion Points

Follow the working lines (A and B ports) from the directional control valves to the system actuators, which convert hydraulic fluid power back into mechanical force and motion. Actuators are categorized into linear devices (hydraulic cylinders) and rotary devices (hydraulic motors).

For hydraulic cylinders, examine whether they are single-acting (spring return) or double-acting, noting bore and rod dimensions if listed in the margin tables.
Check for integrated load-holding components such as counterbalance valves or pilot-operated check valves mounted directly to the actuator ports to prevent load drop during hose failures.
For hydraulic motors, check if they are fixed or variable displacement, and look for internal or external case drain lines that route low-pressure leakage fluid directly back to the reservoir.

Step 4: Evaluate Auxiliary, Conditioning, and Monitoring Circuits

The final step involves examining secondary conditioning loops that maintain fluid cleanliness, viscosity, and temperature within safe operational limits. These auxiliary circuits are vital for long-term component longevity and system efficiency.

Locate inline filtration units, noting filter bypass indicators and micron ratings to understand the particulate exclusion level of the circuit.
Identify heat exchangers (oil coolers) positioned within the return line circuit, observing whether they utilize air-blast fans or water-to-oil cooling matrices.
Check for instrumentation nodes, including pressure gauges, temperature transducers, and flow meters, which are designated by standardized circular enclosures tied into the primary lines.

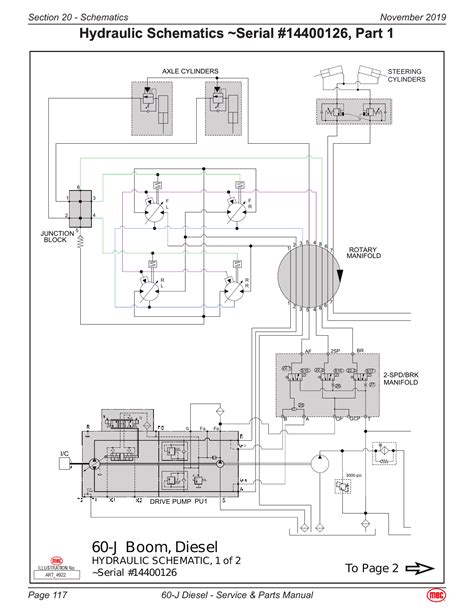

Circuit Diagram Of Hydraulic System

Hydraulic Schematic Symbol Reference Matrix

Component Category	ISO Symbol Description	Primary System Function	Common Failure Mode Indicated
Fixed Displacement Pump	Circle with one outward-pointing black triangle	Generates continuous fluid flow proportional to shaft speed	Internal gear/vane wear causing low volumetric output
Pressure Relief Valve	Square box with internal arrow showing spring adjustment and tank return	Protects circuit components from over-pressure conditions	Valve seat contamination causing premature fluid dumping
4/3 Way Directional Valve	Three adjacent squares with internal port routing arrows and spring returns	Controls direction, start, and stop of hydraulic actuators	Solenoid burnout or spool binding due to varnish buildup
Double-Acting Cylinder	Rectangle representing barrel with internal piston and dual rod ports	Converts hydraulic fluid pressure into linear mechanical force	Internal seal bypass allowing fluid transfer across piston
Hydraulic Accumulator	Circle containing a bladder or piston with a gas pre-charge label	Stores hydraulic energy and dampens pressure pulsations	Loss of nitrogen pre-charge gas bladder rupture

Troubleshooting Hydraulic Circuits Through Schematic Analysis

Root Cause: Actuator fails to move despite directional valve activation.
- Actionable Fix: Trace the schematic from the pump to the actuator to check for closed manual ball valves, unpowered directional valve solenoids, or a tripped pressure relief valve dumping flow directly to the tank.
Root Cause: System overheating during continuous operation.
- Actionable Fix: Examine the schematic's return and case drain lines to verify that fluid is properly routing through the heat exchanger and that internal component leakage paths are not bypassing excessive flow over relief settings.
Root Cause: Eradic or spongy actuator movement.
- Actionable Fix: Inspect the schematic for suction-side restrictions, such as blocked inlet strainers before the pump, or verify that anti-cavitation check valves are functioning correctly in the return circuit.
Root Cause: Uncontrolled load descent or drift.
- Actionable Fix: Locate the load-holding check valves or counterbalance valves on the schematic and inspect for internal seal degradation or incorrect pilot ratio settings.

Frequently Asked Questions

How do I distinguish between high-pressure lines and return lines on a schematic?

High-pressure lines are typically drawn using solid, thick continuous lines leading from the pump output to directional control valves and actuators. Return lines leading back to the fluid reservoir are rendered as thinner solid lines or sometimes dashed lines depending on the specific drafting standard used.

What do the dashed lines crossing through hydraulic symbols mean?

Dashed or dotted lines on an ISO hydraulic schematic represent pilot control lines, internal or external drain lines, or mechanical linkages. These lines carry low-volume fluid used strictly for signaling and shifting valves rather than powering primary mechanical actuators.

Why are there numbers or letters next to the ports on directional control valves?

Port designations provide a standardized universal mapping system for fluid routing. The letter P designates the pressure supply from the pump, T designates the return line to the tank, and letters A and B designate the primary working lines connecting to the actuator ports.

Can I troubleshoot electrical issues using a hydraulic circuit diagram?

Electro-hydraulic systems often feature a combined schematic or require cross-referencing an electrical ladder diagram alongside the hydraulic circuit. While the hydraulic diagram shows the fluid power path and valve actuation ports, you will need the electrical schematic to diagnose solenoid wiring, relay logic, and controller input signals.
