How To Read A Feeler Gauge: The Definitive Guide To Precision Gap Measurement
To read a feeler gauge, identify the dual-imprinted measurements on the blade, where the top decimal number typically represents decimal inches (e.g., .015") and the bottom represents millimeters (e.g., 0.38 mm). Select a blade that snugly slides into the clearance gap with slight frictional resistance—known as "progressive drag"—without bending the metal. If a single blade does not fit, stack multiple clean blades together and sum their values to determine the exact spacing.
Pre-Measurement Calibration and Material Selection
Before executing physical clearance measurements, you must select the appropriate feeler gauge design for your specific mechanical assembly. Using the wrong style of gauge or failing to prepare the working surfaces will introduce structural measurement errors. Feeler gauges are manufactured in several configurations, including straight blades, offset blades (ideal for deep cylinder heads and overhead valve adjustments), wire loops (engineered specifically for spark plug electrode gaps), and non-magnetic brass blades (required for adjusting variable reluctance sensors and electronic ignition air gaps where steel would stick).
To guarantee accuracy down to the ten-thousandth of an inch, assemble the necessary diagnostic gear and establish a clean workspace before unrolling or unscrewing your gauge set.
Preparatory Checklist and Resource Allocation
- Essential Equipment and Tools: A high-quality steel feeler gauge set (SAE and Metric dual-marked), a high-precision digital micrometer or vernier caliper (for blade calibration verification), a fast-evaporating solvent cleaner (such as isopropyl alcohol or brake parts cleaner), and a lint-free microfiber cloth.
- Prerequisite Standards and Knowledge: Familiarity with decimal translation (e.g., recognizing that .0015 inches is one and a half thousandths of an inch) and access to the manufacturer's nominal clearance specifications for your specific machinery.
- Estimated Budget and Duration: A professional-grade hardened steel feeler gauge set ranges from $10 to $30. The preparation, calibration verification, and cleaning process require approximately 10 minutes.
Tactile Execution: How to Read and Apply Feeler Gauges Step-by-Step
Step 1: Clean and Inspect the Gauge Blades
The capillary action of rust-preventative storage oils can trap microscopic grit, dust, and metal shavings on the faces of individual blades. A single speck of dust can measure up to 0.001 inches (0.025 mm) in thickness, completely compromising tight tolerance measurements like engine valve lash or bearing oil clearances.
- Loosen the locking nut on the feeler gauge housing so the individual blades can fan out freely.
- Saturate a clean, lint-free microfiber cloth with a fast-evaporating solvent such as isopropyl alcohol.
- Pinch a single blade firmly within the cloth and draw it outward from the pivot pin to the tip. Repeat this process for every blade you plan to use.
- Visually inspect the blades for physical defects. Discard or replace any blades exhibiting kinks, waves, corrosion pits, or rolled edges, as these physical deformities create artificial spring tension that reads as false mechanical interference.
Warning: Never attempt to sand or file rust or burrs off a feeler gauge blade. Doing so permanently alters the calibrated thickness of the steel, rendering the stamped measurements inaccurate.
Step 2: Decode the Dual-Standard Blade Markings

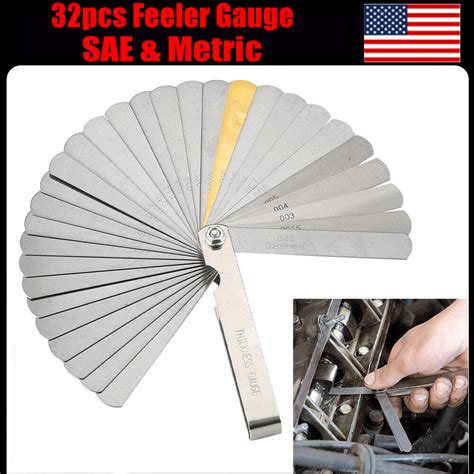

Every professional feeler gauge blade is chemically etched or laser-stamped with two distinct numbers representing different measurement systems: Imperial (SAE/English) and Metric (SI units). Reading these markings accurately requires an understanding of decimal scale placement.
- Locate the Imperial marking, which is typically written as a decimal fraction of an inch, such as
.012or.012". This translates to twelve thousandths of an inch. - Locate the Metric marking, which is typically written with a millimeter unit designation, such as
0.30or0.30mm. This translates to thirty-hundredths of a millimeter. - Understand the math: 1 inch equals exactly 25.4 millimeters. Therefore, to verify a decimal conversion, multiply the imperial value by 25.4 (e.g., $0.012 \times 25.4 = 0.3048\text{ mm}$, which rounds to the standard 0.30 mm blade).
- Be cautious of trailing zeros on older, worn blades. A blade marked
.002(two thousandths) must never be confused with.020(twenty thousandths). If a marking is partially faded, measure the physical blade thickness with a calibrated digital micrometer to confirm its actual size before inserting it into a critical gap.
Step 3: Master the Tactile "Frictional Drag" Sensation
The accuracy of a feeler gauge measurement depends entirely on human touch, known as "tactile feedback." If you force a blade that is too thick into a gap, you will deflect the mating parts, resulting in an falsely large gap reading. If the blade is too thin, you will feel no resistance at all.
- Align the selected blade so that it is perfectly parallel to the gap surfaces. If you insert the blade at an angle, the edges of the blade will catch on the entry corners of the gap, simulating a tight fit.
- Gently slide the blade into the clearance opening using light thumb pressure on the blade's flat side close to the gap to prevent the thin steel from bowing or buckling.
- Assess the resistance as you draw the blade back and forth through the gap. The target sensation is "progressive drag" or "frictional resistance." It should feel like pulling a single sheet of paper out from under a heavy hardbound book.
- If the blade slides through with zero resistance, the gap is larger than the blade's rating. If the blade requires forceful pushing or wedges solid, the gap is smaller than the blade's rating.
Pro-Tip: If you are checking clearances on delicate mechanical assemblies (such as relay contacts, guitar necks, or optical pathways), use a light-tension hold. Holding the blade with just your fingertips prevents your hand's physical strength from overpowering the subtle feedback of the metal.
Step 4: Execute Precision Blade Stacking
When a clearance gap does not match any single blade in your kit, you must combine multiple blades to form a custom thickness stack. Doing this incorrectly introduces "stack tolerance accumulation."
- Determine your target thickness. For example, if you need to measure a gap specified at 0.037 inches (0.94 mm) and your thickest single blade is 0.025 inches, you must calculate a combination.
- Select the minimum number of blades required to reach your target value. Stacking five thin blades introduces five surface areas of residual oil and air gaps, which adds artificial thickness. Limit your stack to a maximum of two or three blades whenever possible (e.g., combine a 0.022-inch blade and a 0.015-inch blade to achieve exactly 0.037 inches).
- Ensure the mated blades are perfectly clean and dry. Press them firmly together between your fingers to expel any trapped air pockets or liquid tension before inserting the stack into the gap.
- Sum the values written on each blade in the stack. Double-check your arithmetic: $0.022\text{ in} + 0.015\text{ in} = 0.037\text{ in}$.
Step 5: Verify Limits Using Go/No-Go Workflows
For high-efficiency production work or valve lash settings, utilizing a "Go/No-Go" verification strategy is faster and more precise than relying on single-blade friction. This can be executed using specialized Go/No-Go step-ground blades or by manual selection of two separate standard blades.
- If using specialized Go/No-Go blades, note that the front section of the blade is ground thinner than the back section (e.g., the tip is 0.010 inches and the step-up body is 0.012 inches).
- Insert the tip of the blade. It should slide in easily (the "Go" portion).
- Attempt to push the blade in further until the stepped portion reaches the gap. The stepped portion should not enter the gap (the "No-Go" portion).
- If both sections enter, the gap is too wide (over 0.012 inches). If neither section enters, the gap is too tight (under 0.010 inches). This confirms your gap is within the acceptable 0.010" to 0.011" operating envelope.
Top 10 Feeler Gauges for Precision Measuring in Construction
Thickness Equivalents and Practical Application Thresholds
The table below compiles standard metric and imperial blade thicknesses, providing exact decimal translations alongside their primary industrial and automotive applications. Use this data to verify that your selected feeler gauge set possesses the resolution required for your specific task.
| Metric Value (mm) | Imperial Value (inches) | Standard Nomenclatures | Primary Mechanical Applications | Standard Tolerance Limits |
|---|---|---|---|---|
| 0.04 mm | .0015" | One and a half thousandths | Precision bearing oil clearance, optical alignment | $\pm 0.003\text{ mm}$ |
| 0.05 mm | .002" | Two thousandths | Miniature relay contacts, model engine valves | $\pm 0.003\text{ mm}$ |
| 0.10 mm | .004" | Four thousandths | Guitar neck relief, precision machine tool setup | $\pm 0.004\text{ mm}$ |
| 0.20 mm | .008" | Eight thousandths | Automotive intake valve lash, piston ring end gap | $\pm 0.004\text{ mm}$ |
| 0.30 mm | .012" | Twelve thousandths | Heavy diesel valve clearance, distributor points | $\pm 0.005\text{ mm}$ |
| 0.50 mm | .020" | Twenty thousandths | Reluctor wheel air gaps, marine engine valve lash | $\pm 0.005\text{ mm}$ |
| 0.80 mm | .032" | Thirty-two thousandths | Performance spark plug gaps, heavy machinery shims | $\pm 0.006\text{ mm}$ |
| 1.00 mm | .039" | Thirty-nine thousandths | Standard automotive spark plug gaps, industrial clutches | $\pm 0.006\text{ mm}$ |
Field Measurement Failures and Corrective Actions
Scenario 1: False High Readings from Blade Bowing
- Root Cause: The technician forces a straight, thin blade into a tight gap at an angle, causing the blade to bow and buckle. The force required to bend the steel is mistaken for actual gap resistance, leading the technician to believe a larger blade fits the opening.
- Actionable Fix: Align the gauge handle so the blade enters the gap on a perfectly flat plane. If clearance is restricted by surrounding hardware, switch to an offset feeler gauge blade. Support the blade with a finger close to the gap to keep it from flexing.
Scenario 2: Inconsistent Readings Due to Surface Contamination
- Root Cause: Sticky storage oils, carbon buildup on the workpiece, or fine metal dust act as a physical shim between the blade and the gap wall. This causes the gauge to feel tight on thinner blades than the actual clearance size.
- Actionable Fix: Clean both the feeler gauge blades and the workpiece surfaces with a fast-evaporating solvent and a lint-free cloth. Perform a baseline measurement with a clean micrometer to verify the cleanliness of the blade face.
Scenario 3: Stacked Tolerance Accumulation Error
- Root Cause: Stacking four or five thin blades to measure a large gap introduces air pockets and liquid surface tension from lubricating oils between the individual sheets of metal. This artificial spacing makes the combined stack measure thicker than the sum of the stamped numbers.
- Actionable Fix: Limit stacks to a maximum of two or three blades. Wipe each blade dry before mating them together. Press the stacked blades together firmly to squeeze out any air pockets before inserting them into the gap.
Scenario 4: Kinked or Damaged Blade Tips
- Root Cause: Rough handling or storing the gauge set with exposed, unprotected blades leads to microscopic bends, crimps, or burred edges along the tip of the blade. These physical deformities alter the local thickness profile of the metal.
- Actionable Fix: Inspect every blade under bright light before use. Run your fingers along the edges to check for burrs. If you find a bent blade, replace it or use a micrometer to verify the thickness of the undamaged sections of that blade.
Frequently Asked Questions
How do you read a feeler gauge marked with .015 and 0.38?
The dual markings represent two different unit systems on the same blade. The .015 or .015" marking is the measurement in thousandths of an inch (Imperial/SAE), while the 0.38 or 0.38mm marking represents thirty-eight hundredths of a millimeter (Metric). Both values describe the exact same physical thickness.
What is the difference between brass and steel feeler gauges?
Steel feeler gauges are standard for most mechanical work because they are highly wear-resistant and hold their shape well over time. Brass feeler gauges are softer and non-magnetic, making them essential for measuring air gaps on electronic ignition pickups, reluctor wheels, or magnetic sensors where a steel blade would stick to the components and skew the reading.
How do you read a Go/No-Go feeler gauge?
A Go/No-Go feeler gauge blade has two distinct steps ground into its thickness. The tip of the blade is ground thinner (e.g., .010 inches) and the rest of the blade is stepped up to a thicker size (e.g., .012 inches). If the tip slides into the gap but the stepped-up portion stops, the gap is within the acceptable range between those two measurements.
How do you maintain feeler gauge accuracy over time?
To prevent wear and corrosion, always clean your blades with solvent after use, apply a light coat of multi-purpose machine oil to prevent rust, and fold the blades back into their protective handle housing. Store the gauge set in a dry place away from moisture, and periodically check the thickness of frequently used blades with a calibrated micrometer to ensure they have not worn down.
