How To Install Piston Rings: The Professional Guide To Precision Engine Assembly

Installing piston rings requires meticulous attention to end-gap clearances, vertical orientation, and radial "clocking" to ensure a vacuum-tight combustion seal and optimal oil control. Success depends on using a dedicated ring expander to prevent micro-fractures and verifying that all identification marks face the cylinder head to accommodate the specific taper or bevel of each ring.

Engine Bench Preparation and Essential Precision Tooling

Before attempting to install rings on a piston, the assembly environment must be surgically clean. Even a single grain of abrasive grit trapped behind a ring land can lead to premature cylinder wall scoring or ring sticking. The scope of this procedure involves measuring the cylinder bore, calculating the necessary thermal expansion gaps, and physically seating three distinct ring layers onto the piston casting.

Failure to follow manufacturer-specific tolerances during this phase often results in "blow-by," where combustion gases escape into the crankcase, or excessive oil consumption due to a failure in the scraping mechanism.

Mandatory Equipment and Standards Checklist

• Precision Measurement Tools: A high-quality set of feeler gauges (0.001" to 0.040") and a dial bore gauge for verifying cylinder roundness.
• Installation Hardware: A piston ring expander tool and a ring squaring tool (or an upside-down piston) to ensure the ring is level during gap measurement.
• Refining Tools: A manual or electric piston ring filer specifically designed for fine-tuning end gaps without creating burrs.
• Cleaning Agents: Solvent-based parts cleaner and lint-free microfiber towels.
• Lubrication: High-quality assembly lube or clean SAE 30-weight break-in oil.
• Prerequisite Knowledge: Access to the engine's service manual for specific end-gap specifications, which vary based on fuel type (gasoline vs. E85) and aspiration (naturally aspirated vs. forced induction).
• Estimated Duration: 15 to 30 minutes per piston, depending on the complexity of the oil ring assembly.

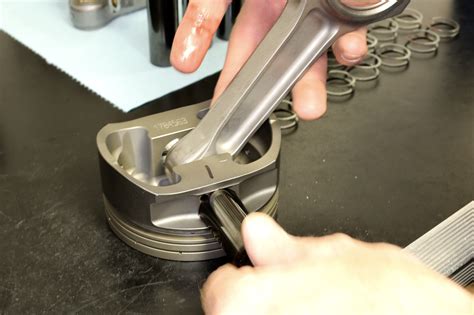

Step-by-Step Precision Ring Installation Workflow

Step 1: Inspecting and Cleaning the Piston Lands

Before the rings touch the piston, you must ensure the ring lands—the grooves where the rings sit—are free of carbon deposits, machining burrs, or shipping protective coatings. If you are reusing pistons, use a broken piece of an old ring or a specialized groove cleaner to scrape out baked-on carbon. For new pistons, a quick wipe with solvent is sufficient.

1. Check the "lands" (the ridges between grooves) for any nicks or scratches that could impede ring movement.
2. Verify the "axial clearance" by inserting a new ring into its designated groove and using a feeler gauge to measure the space between the ring and the land.
3. Standard axial clearance for most automotive applications is typically between 0.001" and 0.003".

Warning: Never use a wire brush on aluminum pistons, as this can round off the sharp edges of the ring lands, compromising the ring's ability to seal against the piston.

Step 2: Measuring and Filing the Ring End Gap

Piston rings expand as they reach operating temperatures. If the "end gap" (the space between the two ends of the ring when inside the cylinder) is too small, the ends will butt together, causing the ring to expand outward uncontrollably, which leads to catastrophic cylinder wall damage or ring breakage.

1. Place the ring into the cylinder bore for which it is intended.
2. Use a squaring tool or the top of a piston to push the ring down about one inch into the bore, ensuring it is perfectly level.
3. Insert a feeler gauge into the gap.
4. Compare this measurement to the manufacturer’s spec. A common rule of thumb for street engines is 0.004" of gap for every inch of bore diameter. For example, a 4.000" bore would require a 0.016" gap.
5. If the gap is too tight, use a ring filer to remove material from one end. Always file from the outside toward the center to avoid chipping the outer coating (especially on moly or chrome rings).

Pro-Tip: Always deburr the edges of the ring after filing. A sharp edge on the end of a ring can score the cylinder wall instantly upon the first engine rotation.

Step 3: Installing the Oil Control Ring Assembly

The bottom groove of the piston holds the oil control assembly, which usually consists of three pieces: a center expander (the "wavy" ring) and two thin steel rails.

1. Install the expander ring first. Ensure the ends of the expander butt against each other and do not overlap. Overlapping expander ends are a leading cause of engine smoking and oil consumption.
2. Install the bottom oil rail by spiraling it into place by hand. Position the rail gap approximately 45 degrees away from the expander butt joint.
3. Install the top oil rail in the same manner, positioning its gap 45 degrees on the opposite side of the expander joint.

Step 4: Installing the Second Compression (Scraper) Ring

The middle ring is often called the "scraper" ring. It provides a secondary compression seal and scrapes excess oil back down toward the oil ring.

1. Identify the "Top" mark. Most rings feature a dot, a laser-etched "T," or a brand logo that must face the top of the piston.
2. Use the piston ring expander tool to gently spread the ring.
3. Lower the ring over the top of the piston and seat it into the second groove.
4. Verify that the ring moves freely within the groove and does not bind.

Warning: Avoid "spiraling" compression rings into the grooves by hand without a tool. This can twist the ring and permanently deform it, preventing a flat seal against the land.

Step 5: Installing the Top Compression Ring

The top ring faces the highest heat and pressure. It is often made of high-strength alloy or has a specialized plasma-moly coating.

1. Locate the orientation mark. If the ring has a bevel on the inner diameter, the bevel usually faces up or down depending on the specific engine design—always defer to the manufacturer's instruction sheet.
2. Using the ring expander, carefully open the ring just wide enough to clear the piston crown.
3. Seat the ring in the top groove.

Step 6: Final Ring Clocking (Gap Orientation)

You must never align the gaps of the rings in a straight vertical line. This creates a "leak path" for compression and oil.

1. Position the top compression ring gap at the "12 o'clock" position (relative to the front of the engine).
2. Position the second compression ring gap at the "6 o'clock" position (180 degrees from the top ring).
3. Ensure the oil rail gaps are offset from the expander joint and the compression ring gaps, typically at "4 o'clock" and "8 o'clock."
4. Avoid placing any gaps directly over the piston pin bore, as this area lacks the structural support of the piston skirt.

Technical Specifications and Material Clearance Standards

The following table outlines the standard tolerances and material characteristics for modern automotive piston ring sets. Note that forced induction (Turbo/Supercharged) applications require wider gaps to accommodate higher thermal loads.

Common Installation Failures and Field Fixes

Overlapped Oil Ring Expander

• Root Cause: During the installation of the oil rails, the ends of the wavy expander ring are pushed over one another rather than sitting butt-to-butt. This creates a high spot that prevents the oil rails from seating.
• Actionable Fix: Remove the oil rails immediately. Re-seat the expander and use a small dab of assembly grease to hold the ends in a butt-joint configuration while you re-install the rails.

Brittle Fracture of the Top Ring

• Root Cause: Over-expanding the ring by hand or using a tool that is not sized correctly. High-carbon and moly-coated rings are extremely brittle and will snap if stretched beyond their elastic limit.
• Actionable Fix: There is no fix for a cracked or snapped ring. The ring must be replaced. To prevent this, always use a dedicated expander tool and only open the ring the minimum distance required to clear the piston head.

Excessive Blow-By on New Build

• Root Cause: "Clocking" the ring gaps in a vertical line or failing to verify the end gap, leading to "ring butting" and subsequent bore distortion.
• Actionable Fix: Perform a leak-down test to identify which cylinder is failing. If the gaps are aligned, the piston must be pulled and the rings re-clocked. If the rings have "butted" due to insufficient gap, the rings and likely the piston/cylinder must be replaced.

Upside-Down Scraper Ring

• Root Cause: Ignoring the "Dot" or "T" mark. Many second rings have a "taper face" designed to wipe oil downward. If installed upside down, they will pump oil upward into the combustion chamber.
• Actionable Fix: Remove the ring and check for the marking. Re-install with the mark facing the piston crown. Check for any scoring on the ring face caused by the incorrect orientation.

Frequently Asked Questions

Which side of the piston ring faces up?

Nearly all modern piston rings have an identification mark, such as a dot, a letter "T," or the word "Top," which must face toward the combustion chamber (the top of the piston). If no mark exists, check the inner diameter for a bevel; generally, an inner-step bevel faces up, while an outer-step bevel faces down, but you must verify this with the manufacturer’s specific documentation.

Can I install piston rings by hand without a tool?

While it is possible to spiral oil rings on by hand, using your fingers to install compression rings is highly discouraged. Manually expanding a compression ring often leads to "twisting" or over-stressing the metal, which can cause the ring to sit crooked in the land or break during the first heat cycle. A dedicated ring expander tool ensures even, radial tension.

What happens if I don't gap my piston rings?

Failing to check and set the end gap is one of the most common causes of engine failure. As the rings heat up, they expand in circumference; if there is no gap to accommodate this expansion, the ends will collide, causing the ring to exert massive pressure against the cylinder wall, which results in broken ring lands, scored bores, and seized engines.

Should I lubricate the rings before installation?

Yes, you should apply a light coat of clean engine oil or a specialized assembly lubricant to the rings and the piston lands before installing the piston into the cylinder. However, the ring grooves themselves should be clean and dry during the initial installation of the rings onto the piston to ensure you can accurately check for free movement and axial clearance.
