How To Put The Bridge On A Violin: A Professional Luthier’s Guide To Setup And Alignment

To correctly install a violin bridge, position it exactly between the inner notches of the f-holes, ensuring the feet sit perfectly flush against the instrument's top plate without any gaps. The bridge is held entirely by string tension and must be aligned so that the back face—the side facing the tailpiece—is perpendicular to the violin’s ribs to prevent structural warping and maximize acoustic resonance.

Essential Pre-Installation Checklist and Instrument Anatomy Review

Before attempting to mount or replace a violin bridge, it is critical to understand that this component is not glued or fastened to the instrument. It is a floating component that acts as the primary conduit for vibrational energy from the strings to the soundboard. If the bridge is installed incorrectly, it can lead to poor tonal quality, physical damage to the spruce top, or a collapsed soundpost. You must verify that the soundpost—the small wooden dowel inside the violin directly behind the treble foot of the bridge—is standing vertically. If the soundpost has fallen, do not tension the strings, as this can cause the top plate of the violin to crack under the pressure.

Mandatory Tools and Preparation Standards:

• The Bridge: Ensure you have a bridge of the correct size (4/4, 3/4, etc.) carved from high-quality, aged Bosnian maple with the medullary rays visible for strength.
• Soft Microfiber Cloth: Used to protect the varnish from the bridge feet and the tailpiece during adjustment.
• Graphite (No. 2 Pencil): Essential for lubricating the string notches to prevent string breakage and bridge leaning.
• Precise Ruler or Caliper: Used to measure string height (action) and centering relative to the fingerboard.
• Violin Tuner: Necessary for gradual tensioning.
• Estimated Duration: 20–40 minutes for a standard setup; longer if the feet require customized sanding.
• Budget Benchmarks: A self-installed, pre-fitted bridge costs $15–$40, while a custom-carved luthier bridge ranges from $80–$250.

A Professional Workflow for Mounting and Aligning Your Violin Bridge

Step 1: Orientation and Bridge Anatomy Identification

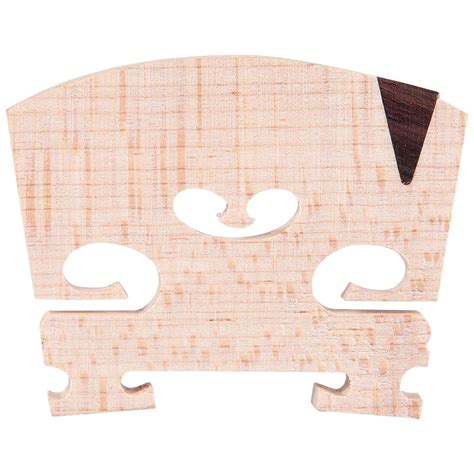

Inspect the bridge to distinguish the treble side from the bass side. The bridge is asymmetrical; the side that supports the E string (the thinnest string) is slightly lower than the side that supports the G string (the thickest string). This lower height allows for easier fingering in higher positions on the E string. Additionally, observe the two faces of the bridge. One side is typically flat, while the other has a slight curve or "belly." The flat side must face the tailpiece, while the curved side faces the fingerboard.

Step 2: Lubricating the String Notches

Take a standard No. 2 pencil and heavily coat the four notches on the top of the bridge with graphite. This acts as a dry lubricant. As you tighten the strings, they will slide over the maple wood rather than gripping it. Without graphite, the friction from the strings will pull the top of the bridge toward the scroll, causing it to lean and eventually warp or snap.

Step 3: Initial Placement and F-Hole Alignment

Place the violin on a flat, stable surface covered with a soft cloth. Loosen the strings enough so that you can lift them slightly, but keep enough tension to prevent the tailpiece from flapping. Slide the bridge under the strings. Position the feet so that they are centered between the "inner nicks" (the small horizontal cutouts) of the f-holes. The bridge should be centered laterally so that the strings are aligned with the width of the fingerboard.

Warning: Never attempt to stand the bridge up while the strings are at full pitch. The downward pressure (approximately 20–30 pounds) is enough to snap the bridge or gouge the soft spruce wood of the violin top.

Step 4: Establishing the 90-Degree Angle

One of the most common errors is setting the bridge so that it looks "straight" relative to the curved top of the violin. Because the violin top is arched, a bridge that looks upright is actually leaning forward. You must ensure that the back face (the side facing the tailpiece) is at a 90-degree angle to the flat plane of the violin’s ribs. This orientation allows the bridge to resist the forward pull of the strings effectively.

Pro-Tip: Use a small business card or a dedicated luthier’s square held against the violin top and the back of the bridge to verify this 90-degree perpendicularity.

Step 5: Gradual Tensioning and Centering

Begin tightening the strings in a specific order to maintain even pressure: start with the G string, then the E string, followed by the D and A strings. This "outside-in" approach stabilizes the bridge. As you increase the tension, the bridge will naturally want to tilt toward the scroll. Periodically stop and use both hands to gently pull the top of the bridge back toward the tailpiece to maintain that 90-degree angle.

Step 6: Verifying String Action and Foot Fitting

Once the strings are close to pitch, check the "action"—the distance between the strings and the end of the fingerboard. Standard measurements are approximately 3.5mm for the E string and 5.5mm for the G string. Most importantly, look at the feet of the bridge. There should be zero light visible between the maple feet and the spruce top. If there are gaps, the bridge feet must be fitted using a technique called "chalk fitting" or careful sanding to match the specific arching of your instrument.

Technical Specifications for Bridge Geometry and String Action

The following table provides the industry-standard metrics for a 4/4 size violin bridge setup. These measurements ensure optimal playability and prevent the strings from buzzing against the fingerboard while maintaining a comfortable height for the player's left hand.

Common Bridge Installation Failures and Luthier Fixes

Successfully mounting a bridge requires constant vigilance during the tuning process. Even experienced players can encounter issues where the physics of the instrument works against the setup.

• Failure Scenario: The Bridge Tips Toward the Scroll During Tuning




  • Root Cause: Friction between the strings and the bridge notches pulls the top of the bridge forward as the strings are tightened.
  • Actionable Fix: Periodically grip the top of the bridge between your thumbs and index fingers and gently "burp" it back toward the tailpiece. Ensure you have applied sufficient graphite to the notches to minimize future friction.

• Failure Scenario: The E-String Cuts Deeply Into the Maple Wood




  • Root Cause: The high tension and thin diameter of the steel E-string act like a cheese wire, slicing through the soft maple.
  • Actionable Fix: Install a small piece of parchment or a "bridge protector" (a tiny plastic sleeve) over the E-string at the contact point. Some high-end bridges come with an ebony insert on the treble side to prevent this.

• Failure Scenario: Gaps Appear Under the Bridge Feet




  • Root Cause: The bridge has shifted slightly from its intended position, or the feet were not carved to match the specific contour of the violin’s arching.
  • Actionable Fix: Loosen the strings and relocate the bridge to the f-hole notches. If gaps persist, you must perform "feet fitting" by taping a piece of fine-grit sandpaper to the violin top and gently sliding the bridge feet over it to custom-contour the wood to the instrument’s shape.

• Failure Scenario: The Soundpost Falls Inside the Violin




  • Root Cause: All string tension was removed simultaneously without the bridge in place, removing the pressure that holds the soundpost between the top and back plates.
  • Actionable Fix: Immediately stop tensioning strings. You must use a specialized soundpost setter tool to reach through the f-hole and stand the post back up. If you are not trained in this, take the instrument to a professional luthier, as improper soundpost placement can ruin the violin's tone.

Frequently Asked Questions

Which side of the violin bridge faces the fingerboard?

The curved side of the bridge, which has a slight "belly," should face the fingerboard and the scroll. The flat side must face the tailpiece and stay perpendicular to the instrument's ribs to ensure structural integrity.

Can I use glue to keep the violin bridge in place?

No, you should never use glue or any adhesive on a violin bridge. The bridge is designed to be held in place strictly by the downward pressure of the strings, which allows it to vibrate freely and transmit sound to the body.

Why is my violin bridge curved on top?

The top of the bridge is curved to match the radius of the fingerboard, allowing the player to bow each of the four strings individually. If the bridge were flat, the bow would hit multiple strings at once, making melodic playing impossible.

How often should I replace my violin bridge?

A high-quality bridge can last for decades if it is kept straight. However, if the wood begins to warp or "smile," or if the string notches become too deep, the bridge should be replaced to maintain proper action and tone.

What happens if the bridge is not centered between the f-holes?

If the bridge is not centered, the strings will not align with the fingerboard, making the instrument difficult to play. Furthermore, if the feet are not positioned correctly over the internal bass bar and near the soundpost, the instrument's acoustic response will be significantly muffled or unbalanced.

Optimizing Your Instrument for Performance Longevity

Maintaining a perfectly aligned bridge is the most effective way to ensure your violin remains playable and structurally sound over time. By checking the perpendicularity of your bridge every time you tune, you prevent the gradual warping that ruins most bridges and protect the delicate spruce top of your instrument.

If you find that your bridge feet are no longer flush or the wood has developed a permanent bend, consulting a professional luthier for a custom-fitted replacement is a worthwhile investment in your musical development. A precisely carved bridge not only makes the violin easier to play but also unlocks the full harmonic potential of your instrument.
