How To Prevent Pinhole Leaks In Copper Pipes: A Technical Guide To Corrosion Mitigation

Preventing pinhole leaks in copper plumbing requires a dual-pronged approach of maintaining water chemistry with a pH balance between 7.2 and 7.8 and strictly limiting water velocity to under 5 feet per second. By eliminating localized turbulence through proper reaming and utilizing dielectric isolation to prevent galvanic action, homeowners can extend the service life of ASTM B88 copper tubing by several decades.

Advanced Site Evaluation and Technical Diagnostic Requirements

Mitigating the risk of pitting corrosion—the precursor to pinhole leaks—starts with a comprehensive audit of the plumbing environment. Copper is a noble metal, but its longevity is entirely dependent on the formation of a stable, protective cuprous oxide ($Cu_2O$) film on its interior surface. When this film is disrupted by chemical, mechanical, or electrical stressors, localized "pits" form, eventually boring through the pipe wall. Before beginning any remediation or preventative measures, you must establish a baseline for your system’s hydraulics and chemistry.

Essential Diagnostic Tools and System Benchmarks

• Water Chemistry Profile: A comprehensive lab-grade test kit capable of measuring pH, total dissolved solids (TDS), alkalinity, calcium hardness, and dissolved oxygen.
• Hydraulic Monitoring Equipment: A high-precision water pressure gauge and a non-invasive ultrasonic flow meter to calculate feet-per-second (FPS) velocity.
• Metallurgical Preparation Tools: Internal and external deburring/reaming tools, lead-free solder, and water-soluble "neutral" flux meeting ASTM B813 standards.
• Mechanical Components: Pressure-reducing valves (PRV), thermal expansion tanks, and dielectric unions.
• Prerequisite Standards: Familiarity with the Langelier Saturation Index (LSI) to determine if your water is corrosive, scale-forming, or neutral.
• Budget/Duration Benchmarks: Comprehensive system upgrades can range from $500 for pressure management to $2,500+ for whole-home filtration and chemical injection systems. Initial diagnostics usually take 2-4 hours.

Strategic Implementation for Comprehensive Pinhole Leak Prevention

Step 1: Scientific Water Chemistry Stabilization

The most common cause of pinhole leaks is "Type I" pitting, often associated with hard, cold water with a pH below 7.0. Conversely, "Type II" pitting occurs in soft water with a high pH, typically at temperatures above 140°F. To prevent these, you must achieve a neutral Langelier Saturation Index (LSI) score between -0.3 and +0.3.

1. Adjust pH Levels: If your water test reveals a pH below 6.8, install a calcite neutralizer or a soda ash injection system. Increasing the pH to approximately 7.4 encourages the development of the passivating oxide layer that protects the copper.
2. Monitor Dissolved Oxygen and Chlorine: High levels of dissolved oxygen (DO) and disinfectants like chloramines can aggressively attack copper. If DO is high, consider an atmospheric storage tank to allow for outgassing.
3. Manage Water Softeners: Over-softened water (zero hardness) is often aggressive because it lacks the calcium ions necessary to form a protective scale. Calibrate your water softener to leave roughly 50–60 ppm of hardness to provide a sacrificial barrier for the pipe.

Pro-Tip: If your local municipality recently switched from chlorine to chloramine disinfection, your risk of pinhole leaks increases significantly. Chloramines are more stable and can degrade the elastomer seals and copper oxide films faster than traditional chlorine.

Step 2: Hydraulic Calibration and Velocity Control

Erosion-corrosion is a mechanical failure where the sheer force of water strips away the protective copper oxide film. This is particularly prevalent in recirculating hot water systems where pumps run continuously.

1. Install a Pressure Reducing Valve (PRV): Standard residential water pressure should never exceed 60-80 PSI. High pressure increases the velocity of the water, especially at elbows and tees. Set your PRV to a steady 50 PSI.
2. Calculate and Limit Velocity: Ensure that cold water flow does not exceed 5-8 feet per second (FPS). For hot water systems, especially those using Type M copper, the velocity should be strictly limited to 2-3 FPS.
3. Optimize Recirculation Pumps: If you have a "hot water on demand" system, install a timer or an aquastat. Constant flow at high temperatures is the leading cause of "Type II" pitting. Reducing pump runtime by 50% can double the lifespan of the return lines.

Step 3: Precision Installation and Workmanship Standards

Many pinhole leaks are "self-inflicted" by poor plumbing practices during the original installation. The transition from the pipe to the fitting is a high-turbulence zone where imperfections lead to cavitation.

1. Mandatory Reaming and Deburring: Every cut made with a tubing cutter leaves an internal "burr" or lip. This lip creates a vortex that scours the pipe wall immediately downstream. Use a dedicated reaming tool to ensure the internal diameter is perfectly smooth.
2. Chemical Flux Management: Use only ASTM B813-compliant, water-soluble flux. Petroleum-based fluxes that are not thoroughly flushed out can remain in the pipe, causing localized "flux-induced" corrosion.
3. Controlled Soldering: Apply heat to the fitting, not the pipe, to draw the solder into the joint. Overheating the pipe can crystallize the copper, making it brittle and more susceptible to stress-corrosion cracking.

Warning: Never use more flux than necessary. Excessive flux that runs into the pipe during heating will create a localized acidic environment that can pit through a copper wall in less than two years.

Step 4: Galvanic and Electrolytic Isolation

Copper pipes can act as an unintended grounding path for the home’s electrical system. If there is a "stray current" on the pipes, or if copper is directly connected to a dissimilar metal (like galvanized steel), a battery-like reaction occurs that dissolves the copper.

1. Install Dielectric Unions: Whenever copper meets a different metal, use a dielectric union or a 6-inch brass nipple to break the electrical path between the two metals.
2. Verify Electrical Grounding: Ensure your home’s electrical system is not using the water service line as its primary ground if you are experiencing frequent leaks. Have an electrician verify that the neutral-to-ground bond is secure at the main panel.
3. Inspect Pipe Hangers: Use plastic-coated or copper-plated hangers. Avoid using galvanized steel straps to hang copper pipes, as the contact point will eventually corrode due to moisture and dissimilar metal contact.

Step 5: Systemic Passivation with Phosphate Treatment

In areas with notoriously aggressive water, chemical passivation is the ultimate defense. This involves adding a food-grade orthophosphate to the water supply.

1. Orthophosphate Injection: These chemicals react with the copper to form a microscopic, glass-like coating (lead/copper scale) that is much more resilient than the natural oxide layer.
2. Maintenance: If using an injector, monitor the dosage monthly. This is often the most cost-effective solution for large apartment complexes or commercial buildings where repiping is financially impossible.

Technical Specifications and Material Comparisons

Selecting the right grade of copper tubing and understanding the environmental thresholds is critical for long-term prevention. Use the following table to identify the safest operational parameters for your plumbing system.

Troubleshooting Common Copper Pitting Failures

Identifying the root cause of a leak is the only way to prevent its recurrence. A "patch and pray" approach usually results in a new leak within six inches of the original repair.

• Failure Scenario: Leak occurs exactly 1/2 inch downstream of a 90-degree elbow.




  • Root Cause: Impingement attack caused by high velocity or a failure to ream the pipe. The water rounds the corner and "slams" into the pipe wall, eroding the protective layer.
  • Actionable Fix: Replace the section with Type L copper, ensure perfect reaming, and install a Pressure Reducing Valve to drop system pressure below 50 PSI.

• Failure Scenario: Scattered pinhole leaks throughout the cold water lines in the basement.




  • Root Cause: Low pH (acidic) water or high concentrations of carbon dioxide ($CO_2$). This is typically Type I pitting.
  • Actionable Fix: Install a calcite neutralizer tank to raise the pH above 7.2 and increase the alkalinity of the water supply.

• Failure Scenario: Leaks appearing exclusively on the hot water return line.




  • Root Cause: Velocity-induced erosion from a recirculating pump that is oversized or running 24/7.
  • Actionable Fix: Install a smaller, lower-GPM pump and a timer/thermostat. Replace damaged sections with Type L or Type K copper, as Type M is too thin for high-velocity hot water service.

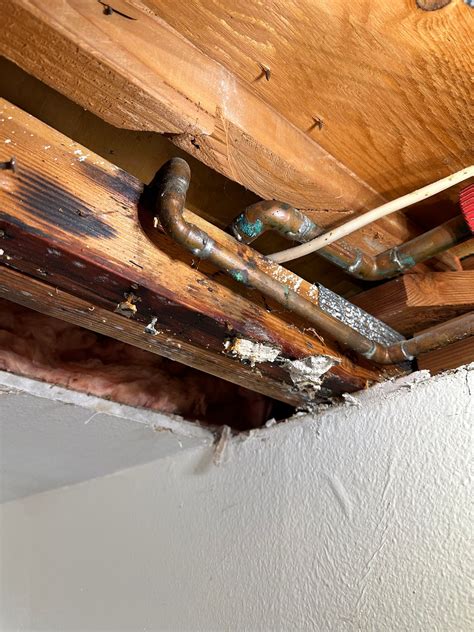

• Failure Scenario: Blue-green "stalactites" or staining at joints.




  • Root Cause: Residual flux corrosion. The plumber used too much flux, and it was not flushed out, eating the pipe from the outside in or inside out.
  • Actionable Fix: Cut out the affected joint, clean the pipe thoroughly with an abrasive pad, and resolder using a water-soluble flux, ensuring the system is flushed with high-volume water immediately after the project.

Frequently Asked Questions

Does a water softener prevent or cause pinhole leaks?

A water softener can actually increase the risk of pinhole leaks if it is set to "zero grains" of hardness. Softened water replaces calcium with sodium, making the water more conductive and aggressive; it is better to bypass the softener for a "blended" hardness of 50-60 ppm to allow a protective scale to form.

Why are pinhole leaks becoming more common in older homes?

Changes in municipal water treatment, specifically the shift from chlorine to chloramines and the reduction in naturally occurring silicates (which act as inhibitors), have made water more aggressive toward copper. Additionally, the gradual thinning of pipe walls due to decades of constant flow eventually reaches a breaking point.

Is PEX a better alternative to copper to avoid these issues?

PEX (cross-linked polyethylene) is completely immune to the chemical pitting and galvanic corrosion that affect copper. While copper is superior for its antimicrobial properties and fire resistance, PEX is the preferred choice in areas with aggressive, low-pH water where copper consistently fails.

Can I stop a pinhole leak with an epoxy coating?

Internal epoxy lining is a proven professional method for stopping leaks without tearing out walls. A specialized technician cleans the pipes with compressed air and abrasives before blowing a liquid epoxy through the lines, creating a permanent barrier between the water and the copper.

How do I know if my water is "aggressive"?

Check for blue-green staining in your sinks or bathtubs, which indicates that copper is being dissolved into the water. You should also look at your municipal water quality report for the Langelier Saturation Index (LSI); a negative number indicates the water is "hungry" and will strip minerals from your pipes.

Professional System Integrity Consultation

If your property has experienced more than two pinhole leaks in a twelve-month period, a systemic failure is imminent. Contact a licensed master plumber specializing in water chemistry and hydraulic balancing to perform a full system audit and implement the mitigation strategies outlined above.
