How To Pour A Concrete Slab For A Shed: A Professional Construction Guide
A professional-grade concrete slab for a shed requires a minimum thickness of 4 inches of 3,000 PSI concrete over a compacted 4-inch layer of crushed gravel to prevent structural cracking and ground moisture wicking. This procedure demands precise site grading, robust formwork, and proper rebar placement to ensure a load-bearing surface that remains stable throughout varying seasonal frost cycles.
Site Preparation and Essential Material Requirements
Before breaking ground, identify the load requirements of your shed and check local building codes regarding setbacks and frost line depth. A slab serves as both the foundation and the floor, meaning any errors in leveling or sub-base compaction will manifest as permanent cracks or sagging in the shed structure.
- Essential Power Tools: Plate compactor, circular saw for formwork, heavy-duty concrete mixer (for small slabs) or a scheduled concrete truck delivery, and a power screed or manual magnesium screed board.
- Hand Tools and Finishing Gear: Bull float, darby, edging tool, groover, shovel, pickaxe, level (minimum 4-foot), chalk line, and measuring tape.
- Materials: 3/4-inch crushed stone (road base), 2x4 or 2x6 lumber for forms, wooden stakes, duplex nails, 10-gauge wire mesh or #3 (3/8-inch) rebar, rebar chairs, and 3,000 PSI concrete mix.
- Safety Equipment: Nitrile gloves, safety goggles, long-sleeved shirts, and rubber boots (concrete is highly caustic and can cause chemical burns).
- Benchmarks: Plan for a minimum 4-inch thick slab. If the shed will house heavy equipment like a riding mower, increase thickness to 5 inches. Always calculate a 10% waste factor when ordering bulk concrete.
Execution Workflow: From Excavation to Finished Surface
Step 1: Site Layout and Excavation
Mark the perimeter of the slab using batter boards and mason’s string. Ensure the site is perfectly square by measuring the diagonals; if the diagonals are equal, the corners are at 90-degree angles. Excavate the area to a depth of at least 8 inches below the finished grade. This accounts for 4 inches of compacted gravel sub-base and 4 inches of concrete. Ensure the bottom of the excavation is firm and level.
Step 2: Sub-Base Preparation
Fill the excavated area with 4 inches of crushed stone. Use a plate compactor to consolidate the stone. Proper compaction is the most critical factor in preventing slab settlement. If the soil is soft or clay-heavy, consider installing a layer of geotextile fabric beneath the gravel to prevent the aggregate from sinking into the subgrade over time.
Step 3: Formwork Installation
Construct the perimeter forms using straight 2x4 or 2x6 lumber. Secure the forms with wooden stakes driven into the ground every 24 to 36 inches on the outside of the form. Use screws for easy removal later.
Pro-Tip: Apply a light coat of form release oil or vegetable oil to the inside of the forms to ensure clean removal after the concrete cures.
Step 4: Reinforcement Placement
Install #3 rebar in a grid pattern spaced 12 to 16 inches apart, or use heavy-gauge welded wire mesh. Use rebar chairs to lift the reinforcement to the center of the slab thickness. If the reinforcement rests on the bottom, it provides no tensile strength to the concrete.
Warning: Do not allow the rebar or mesh to touch the sides of the forms, as this will create rust points that can spall the edge of the slab.
Step 5: Concrete Pouring and Screeding

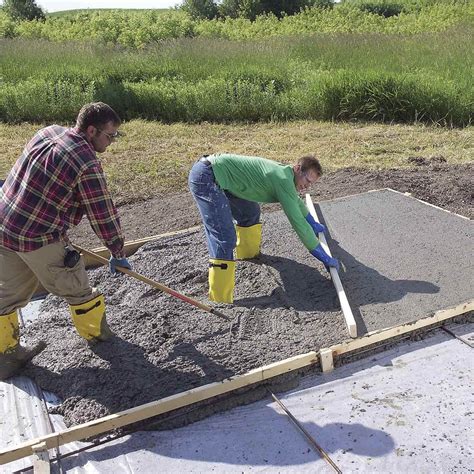

Place the concrete starting from the furthest corner. Spread it with a rake or shovel, ensuring it is slightly higher than the top of the forms. Use a straight board (screed) to level the concrete by moving it back and forth in a sawing motion across the top of the forms.
Step 6: Finishing and Curing
Once screeded, use a bull float to push down the aggregate and bring the "cream" to the surface. Wait until the bleed water (the water that rises to the top) disappears before using a steel trowel or magnesium float for the final finish. Use an edging tool to create a clean, rounded edge along the forms. Cover the slab with plastic sheeting or spray it with a curing compound to prevent the surface from drying too quickly, which leads to shrinkage cracks.
How to Pour a Concrete Slab Successfully | Concrete slab, Pouring ...
Technical Specifications and Material Comparisons
| Component | Specification/Standard | Primary Function |
|---|---|---|
| Concrete Strength | 3,000 – 4,000 PSI | Standard compressive strength for sheds |
| Sub-base Material | 3/4-inch crushed stone | Drainage and uniform load distribution |
| Reinforcement | #3 Rebar or 10-gauge mesh | Tensile strength to prevent cracking |
| Slab Thickness | 4 inches (min) | Structural load-bearing capacity |
| Curing Time | 28 days | Full hydration and maximum strength |
Common Site Failures and Field Fixes
- Shrinkage Cracking:
- Root Cause: Rapid moisture loss during the initial curing phase or lack of control joints.
- Actionable Fix: Implement "saw-cut" joints every 8 to 10 feet within 24 hours of the pour to provide a deliberate path for stress-induced cracks.
- Surface Scaling/Flaking:
- Root Cause: Finishing the concrete while bleed water is still present on the surface.
- Actionable Fix: Wait for the sheen of the bleed water to dissipate completely before performing final troweling.
- Slab Settlement:
- Root Cause: Inadequate sub-base compaction or failure to remove organic topsoil before pouring.
- Actionable Fix: Ensure the base is compacted to 95% proctor density using a mechanical plate compactor; if settlement already occurred, use mud-jacking or polyurethane foam injection to stabilize the slab.
Frequently Asked Questions
Do I need a vapor barrier under my shed slab?
A vapor barrier, typically a 6-mil polyethylene sheet, is recommended to prevent ground moisture from migrating into the shed, which can cause mold or damage to tools. Place this over the compacted gravel before laying your rebar.
When can I remove the formwork?
You can safely remove the formwork 24 to 48 hours after the pour. However, do not subject the slab to the full weight of the shed until the concrete has reached at least 75% of its design strength, which usually takes 7 days.
How do I ensure my slab is perfectly level?
Use a laser level or a builder’s transit to set the top of your forms. Check the elevation at each corner and the center of the forms to ensure the final concrete surface remains consistent across the entire footprint.
Is fiber-reinforced concrete better than rebar?
Fiber-reinforced concrete helps control minor shrinkage cracks, but it does not provide the same structural integrity as traditional rebar grid reinforcement for supporting concentrated point loads from shed walls or heavy equipment.
Professional Consultation for Structural Foundations
For custom projects or sites with extreme slope or poor soil drainage, consult a local structural engineer to verify your load-bearing requirements. Properly executing your concrete foundation today ensures your structure remains level and secure for decades of use.
