Comprehensive Guide To Polishing Petoskey Stones: Professional Techniques For Fossil Restoration

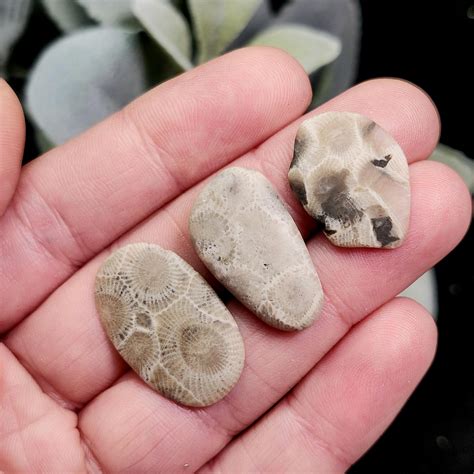

Achieving a professional-grade luster on Petoskey stones requires a precise wet-sanding progression from 220 to 1500 grit to reveal the intricate Hexagonaria percarinata coral structures. By utilizing a final buffing stage with cerium oxide on a damp felt substrate, collectors can transform raw, calcified specimens into high-gloss fossils with a refractive depth that mimics a wet surface.

Essential Gear and Material Selection for Fossil Refinement

Before initiating the polishing process, it is critical to understand the material properties of your specimen. Petoskey stones are fossilized rugose coral composed primarily of calcite, which sits at a 3.0 on the Mohs scale of mineral hardness. Because they are significantly softer than quartz-based stones (like agates), they require a gentler touch and should ideally be polished by hand rather than in a rotary rock tumbler, which can easily bruise or pulverize the delicate coral septa.

Mandatory Equipment Checklist

• Abrasives: Silicon carbide wet/dry sandpaper in a grit progression of 220, 400, 600, and 1200 or 1500.
• Polishing Compound: High-purity Cerium Oxide or Tin Oxide (0.5 to 1.0 micron).
• Substrates: A flat glass plate or acrylic sheet to provide a level sanding surface; a piece of heavy denim, leather, or felt for the final buffing stage.
• Lubrication: A basin of clean, room-temperature water. Distilled water is preferred in areas with high mineral content to avoid secondary scratching.
• Safety Gear: N95 respirator (if any dry shaping occurs) and splash-resistant eye protection.
• Evaluation Tools: A high-intensity LED light and a 10x jeweler’s loupe for inspecting scratch patterns between stages.

Pre-Procedure Benchmarks

• Estimated Duration: 2 to 4 hours per specimen, depending on size and initial surface roughness.
• Budget: $25–$50 for a full kit of high-quality abrasives and compounds.
• Success Metric: A finished stone should show no visible scratches under 10x magnification and should exhibit a "wet look" even when completely dry.

The Progressive Wet-Sanding and Polishing Sequence

The transition from a dull, gray rock to a vibrant fossil is a mechanical process of replacing deep scratches with progressively finer ones until the scratches are smaller than the wavelength of visible light. Adhering to the following technical steps ensures the preservation of the coral’s anatomical detail.

Step 1: Surface Evaluation and Decontamination

Begin by scrubbing the stone with a stiff nylon brush and water to remove any embedded sand, clay, or organic matter. Inspect the stone for "vugs" (small cavities) or deep fractures. If a stone has significant structural cracks, use a cyanoacrylate stabilizer (thin super glue) to fill the voids before sanding, as these pits can trap coarse grit and contaminate later stages of the process.

Step 2: Coarse Shaping and "Skin" Removal (220 Grit)

The objective of the 220-grit stage is to remove the weathered exterior or "skin" of the stone and level any high spots.

1. Submerge the sandpaper in water for five minutes prior to use to ensure the backing is flexible.
2. Lay the sandpaper flat on your glass or acrylic plate.
3. Hold the stone firmly and move it in a figure-eight motion across the paper. This specific motion prevents the formation of flat spots and ensures even wear across the stone's curvature.
4. Apply moderate pressure, keeping the surface constantly wet.
5. Continue until the entire surface has a uniform, matte appearance and all original pits or "crust" are gone.

Warning: Never skip the "Dry Test" during this stage. Periodically dry the stone completely with a towel. If you see white spots or deep gouges that do not match the surrounding texture, you must continue with the 220 grit. If you move on too early, these deep scratches will be impossible to remove with finer grits.

Step 3: Primary Refinement (400 Grit)

The 400-grit stage is designed to remove the 220-grit scratch pattern. The stone will begin to show the first hints of the coral's hexagonal patterns.

1. Thoroughly wash the stone and your hands to prevent 220-grit contamination.
2. Use the same figure-eight motion, but reduce the downward pressure slightly.
3. Periodically rotate the stone 90 degrees to ensure you are attacking the previous scratches from a new angle.
4. Continue for approximately 15–20 minutes.

Step 4: Secondary Refinement and Pre-Polishing (600 Grit)

At 600 grit, the stone should begin to feel smooth to the touch, almost like a bar of soap. This is the most critical stage for achieving a high-end finish.

1. Clean the workspace meticulously. Even a single grain of 220 grit at this stage will ruin the finish.
2. Sand the stone until the hexagonal patterns are clearly visible even when the stone is dry.
3. Check the stone under a bright light. If you see any "haze" or non-uniformity, continue sanding.

Pro-Tip: If the stone develops a "slurry" (a milky white paste of water and rock dust), do not wash it away immediately. This slurry actually acts as a fine abrasive buffer, but ensure it does not become so thick that it prevents the sandpaper from making contact with the stone.

Step 5: Ultra-Fine Smoothing (1200 or 1500 Grit)

This stage prepares the calcite crystals for the final chemical-mechanical polish. Use very light pressure. The stone should start to show a faint reflection under a lamp. By the end of this stage, the "eye" of each coral polyp should be distinct and sharp.

Step 6: The Final Buffing Stage

This final step does not use sandpaper. Instead, you will use a polishing compound and a soft substrate.

1. Take your piece of denim, leather (rough side up), or felt and dampen it slightly.
2. Apply a half-teaspoon of Cerium Oxide powder to the center of the fabric to create a thin paste.
3. Vigorously rub the stone against the treated fabric using circular motions.
4. The friction will generate a small amount of heat, which helps the cerium oxide react with the calcite surface to create a "Beilby layer"—a thin, amorphous surface layer that provides the ultimate shine.
5. Buff until the stone achieves a mirror-like finish.

Abrasive Progression and Material Thresholds

The following table provides the technical parameters for each stage of the polishing workflow. Adhering to these specifications prevents "over-sanding" which can lead to undercutting (where softer parts of the fossil wear away faster than harder parts).

Common Surface Failures and Field Fixes

Even experienced lapidaries encounter issues during the fossil finishing process. Understanding the root cause of a defect is the only way to apply an effective remedy.

• Scenario: Visible Scratches After Buffing




  • Root Cause: Insufficient time spent at the 220 or 400 grit stages. The final polish highlights deep scratches rather than hiding them.
  • Actionable Fix: You must regress in your grit sequence. Return to 400 grit and sand until the deep scratches are gone, then proceed through 600 and 1200 again. Do not attempt to "buff out" a deep scratch with polishing compound.

• Scenario: "Bruising" or White Internal Fractures




  • Root Cause: Applying too much pressure during the coarse sanding stage or dropping the stone on a hard surface. Calcite is brittle and cleaves easily.
  • Actionable Fix: Minor bruising can sometimes be sanded away at the 220-grit level. If the bruise is deep, it is a permanent structural defect. Prevent this by using a rubber mat on your workspace.

• Scenario: Undercutting (Uneven Surface Wear)




  • Root Cause: The organic "filler" between the coral polyps is sometimes softer than the polyps themselves. Over-sanding or using a soft sanding block (like a sponge) causes the softer material to dip.
  • Actionable Fix: Always use a hard, flat backing (like glass or a hardwood block) for your sandpaper to ensure that the abrasive only touches the high points, maintaining a perfectly flat or domed surface.

• Scenario: Dull Finish After Buffing




  • Root Cause: Contamination of the buffing pad or using too much water, which dilutes the polishing compound.
  • Actionable Fix: Ensure the buffing pad is only "damp," not soaking. If you suspect contamination, discard the pad and start with a fresh piece of denim and new cerium oxide.

Frequently Asked Questions

Can I use a rock tumbler to polish Petoskey stones?

While possible, it is not recommended for high-quality specimens. Petoskey stones are soft (Mohs 3) and will wear down much faster than the agates typically used in tumblers, often resulting in "mushy" details or the stone completely disappearing if left too long. If you must tumble, use a vibratory tumbler with ceramic media and check the stones every 12 hours.

What is the best polishing compound for Michigan fossils?

Cerium oxide is the industry standard for calcite-based fossils because it provides a high-luster finish through both mechanical abrasion and a chemical polishing effect. Tin oxide is a viable alternative, but it is generally more expensive and produces similar results on Petoskey stones.

Should I sand Petoskey stones wet or dry?

You should always sand Petoskey stones wet. Wet sanding prevents the sandpaper from clogging (loading), keeps the stone cool to prevent heat-checking, and—most importantly—suppresses the inhalation of calcium carbonate dust, which can be a respiratory irritant.

Why does my stone look great when wet but dull when dry?

This indicates that you have not reached the final polishing stage. A wet stone looks polished because the water fills in microscopic scratches, creating a smooth reflective surface. To achieve this look permanently, you must continue sanding through the finer grits and finish with a dedicated polishing compound like cerium oxide.

Can I use clear nail polish or spray lacquer to get a shine?

While this provides an immediate shine, it is not a true polish and is generally frowned upon by collectors. Lacquers will yellow, crack, and peel over time. A mechanical hand-polish is permanent, does not damage the fossil's value, and reveals the true beauty of the mineral structure.

Master Your Lapidary Skills

Reviving the ancient beauty of Devonian-era fossils is a rewarding pursuit that combines geological science with artistic patience. Start refining your collection today by applying these professional-grade sanding sequences to reveal the hidden geometry of Michigan's state stone.
