How To Megger A Wire: Complete Insulation Resistance Testing Guide

Insulation resistance testing, commonly known as meggering, is a critical preventive maintenance procedure that applies high direct current voltage to verify the integrity of wire dielectric materials. By injecting voltages ranging from 250V to 5000V DC depending on the circuit rating, technicians can measure megaohm values to detect moisture ingress, physical abrasion, chemical degradation, or thermal breakdown before catastrophic electrical failures occur.

Pre-Operation and Equipment Checklist

Before conducting an insulation resistance test on any conductor, establishing a rigorous safety and preparation protocol ensures accurate diagnostics while protecting personnel and sensitive equipment. Meggering involves voltages high enough to cause severe electrical shock or destroy connected solid-state electronics, making isolation the absolute priority.

• Essential Gear and Tools: Digital or analog insulation resistance tester (Megger), rated insulated hand tools, calibrated multimeters, non-contact voltage testers, safety glasses, Class 0 or Class 2 high-voltage insulating gloves, and clean lint-free wiping cloths.
• Mandatory Prerequisite Knowledge and Standards: Compliance with NFPA 70B for electrical equipment maintenance, IEEE 43 standards for testing rotating machinery and general cabling, OSHA 1910.333 safe work practices, and absolute zero-energy verification via Lockout/Tagout (LOTO).
• Estimated Budget and Duration Benchmarks: Equipment calibration and procurement range from three hundred to three thousand dollars depending on voltage capabilities; active testing requires approximately 15 to 45 minutes per circuit path, including safe discharge time.

Step-by-Step Insulation Resistance Testing Execution

Step 1: Total Isolation and De-Energization of the Circuit

Verify that the wire or cable under test is completely disconnected from all power sources, control circuits, and connected loads. Open circuit breakers, pull fuses, and rack out motor starters or distribution panel feeds associated with the target wire. Apply standard Lockout/Tagout (LOTO) devices to all feed points to prevent accidental re-energization during the testing sequence.

Warning: Never connect a megger to an energized circuit. Applying high DC test voltage to live AC or DC systems will instantly destroy the internal circuitry of the insulation tester and create an extreme electrical arc flash hazard.

Step 2: Disconnection of Sensitive Terminal Equipment

Disconnect both ends of the wire from all terminal equipment, including variable frequency drives, PLCs, motors, transformers, and electronic sensors. Insulation resistance testers apply voltages far exceeding the breakdown thresholds of solid-state components. Leaving downstream or upstream electronics connected will permanently ruin expensive equipment and invalidate the insulation test readings.

Step 3: Conductor Preparation and Surface Cleaning

Clean the exposed conductor ends thoroughly using an approved electrical contact cleaner or lint-free cloth to remove accumulated grease, dust, carbon tracking, and surface moisture. Contaminants on the wire insulation or exposed copper can create low-resistance tracking paths across the surface, resulting in falsely low insulation resistance readings that do not reflect the true internal condition of the dielectric material.

Step 4: Selection of Test Voltage and Meter Setup

Configure the megger to the appropriate test voltage based on the operating voltage rating of the wire and industry standards. For low-voltage systems operating under 600V, select 500V or 1000V DC test settings. Ensure the instrument battery is fully charged and check the test leads for any cuts, cracks, or compromised insulation before proceeding.

Step 5: Execution of the Insulation Resistance Measurement

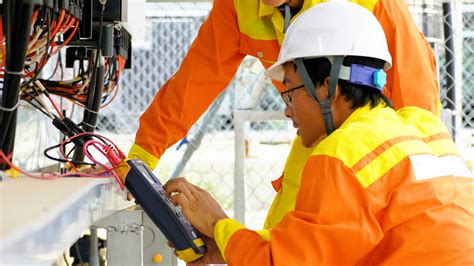

Connect the earth or ground lead of the megger to a verified earth ground or building structural steel, and attach the line lead to the conductor being tested. Initiate the test voltage and maintain it for a standard duration of 60 seconds. Observe the real-time resistance value as capacitive charging current decays and true leakage current stabilizes.

Pro-Tip: Always record the ambient temperature alongside your megaohm reading. Insulation resistance varies inversely with temperature; failing to normalize values to 20 degrees Celsius can lead to misdiagnosed cable conditions over seasonal transitions.

Step 6: Complete Safe Discharge of Residual Capacitance

Stop the test generation and allow the megger to automatically discharge any trapped electrostatic energy stored within the wire insulation. Long cable runs act like capacitors, retaining dangerous DC charges even after the test voltage is removed. Verify with a trusted multimeter that the residual voltage has dropped to zero volts before handling the test leads or conductors.

Insulation Testing Voltage Matrix and Standards

Common Site Failures and Field Fixes

• Root Cause: Surface moisture accumulation or high humidity inside junction boxes.


  • Actional Fix: Dry the termination points thoroughly using a heat gun, apply moisture-displacement spray, and reseal conduit entries with rated weatherproof sealants.
• Root Cause: Physical insulation abrasion inside congested conduit runs.


  • Actional Fix: Pull the damaged wire section back, identify the pinch point or burr inside the pipe fitting, deburr the conduit edge, and pull a fresh conductor run.
• Root Cause: Carbon tracking or conductive dust bridging across terminal blocks.


  • Actional Fix: Scrub the terminal assemblies with electrical solvent cleaner, replace heavily carbonized terminal strips, and ensure proper enclosure ratings are maintained.

Frequently Asked Questions

What is a safe megaohm reading when meggering a wire?

Generally, any modern electrical wire should read a minimum of 50 to 100 megaohms for standard 600V circuits, though clean and new installations often exceed several thousand megaohms. The absolute minimum rule of thumb across many standards is one megaohm of resistance per one thousand volts of operating voltage, plus an added safety margin.

Why do I need to disconnect equipment before using a megger?

Meggers output high DC voltages ranging from 250 volts to several kilovolts with limited current capacity. This high potential will instantly breakdown semiconductor junctions, microprocessors, and sensitive surge protection devices connected to the circuit, rendering the equipment completely inoperable.

How long should I hold the test voltage during a megger test?

The standard duration for an insulation resistance test is 60 seconds, which allows the initial charging and absorption currents to settle so you can capture an accurate steady-state leakage current. For larger cables or rotating equipment, technicians often perform 10-minute tests to calculate the Polarization Index ratio.

Can meggering a wire damage good insulation?

No, standard diagnostic insulation testing performed at recommended manufacturer voltages is completely nondestructive to healthy dielectric material. However, if a wire features severe micro-cracks, severe water saturation, or advanced chemical rot, the high voltage may cause a localized breakdown, effectively exposing a weak point that would have failed anyway under operational stress.

How does ambient temperature affect megger readings?

Insulation resistance drops exponentially as temperature increases because heat increases molecular mobility within the insulating polymer. Always reference temperature correction tables to adjust your field readings back to a standard baseline temperature of 20 degrees Celsius for accurate trend analysis.
