How To Measure Tongue Weight: A Comprehensive Guide To Safe Towing And Trailer Balance

Tongue weight represents the static downward force exerted by a trailer’s coupler onto the hitch ball of the towing vehicle, which should ideally maintain a range of 10% to 15% of the total Gross Trailer Weight (GTW) for most conventional trailers. Precise measurement prevents catastrophic trailer sway and ensures the towing vehicle maintains adequate front-wheel traction and braking efficiency by avoiding excessive rear-axle squat.

Pre-Measurement Logistics and Equipment Standards

Before attempting to measure tongue weight, the trailer must be fully loaded in its "ready-to-tow" configuration. This includes full water tanks (if applicable), propane, batteries, and all cargo distributed as it will be during transit. Measuring an empty trailer provides skewed data that can lead to dangerous imbalances once the gear is added. The surface must be concrete or asphalt; gravel or soft dirt can lead to shifting and inaccurate readings.

Essential Gear and Pre-Calculation Checklist

• Measurement Tools: A specialized hydraulic tongue weight scale (e.g., Sherline), a high-capacity commercial scale (CAT scale), or a standard heavy-duty bathroom scale (for weights under 300 lbs or used with a lever system).
• Safety Equipment: Heavy-duty wheel chocks for both sides of the trailer tires and a hydraulic floor jack or the integrated trailer tongue jack.
• Support Materials: Leveling blocks, a 2x4 wooden beam (at least 5 feet long), two short sections of 1-inch diameter heavy-duty steel pipe, and a tape measure.
• Vehicle Data: Locate the Gross Vehicle Weight Rating (GVWR) and the Maximum Tongue Weight capacity listed on the hitch receiver’s safety sticker and the vehicle's owner manual.
• Time Commitment: Expect to spend 30 to 45 minutes for a manual lever measurement or 15 minutes at a commercial scale.

Systematic Execution for Determining Accurate Tongue Weight

Selecting the correct method depends on the weight of the trailer and the tools available. For trailers exceeding 5,000 lbs, commercial scales or specialized hydraulic scales are the only recommended options due to safety and accuracy limitations of home equipment.

Step 1: Establishing the Baseline Level

For any measurement to be valid, the trailer must be perfectly level. When a trailer is nose-high or nose-low, the center of gravity shifts, artificially increasing or decreasing the weight applied to the tongue.

1. Park the trailer on a flat, level surface and chock the wheels securely to prevent any longitudinal movement.
2. Use a carpenter's level on the trailer frame or floor to check for levelness.
3. Adjust the tongue jack until the bubble is centered.
4. Measure the distance from the ground to the bottom of the coupler. This height must be maintained during the measurement process to simulate the actual towing height of the hitch ball.

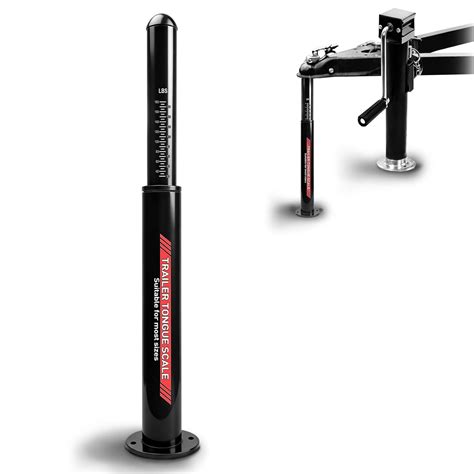

Step 2: Utilizing a Specialized Tongue Weight Scale

This is the most accurate and efficient method for frequent towers. These scales are designed to fit directly under the coupler or the jack.

1. Place the specialized scale on a flat, stable surface (like a concrete pad) directly beneath the trailer coupler.
2. If the scale is lower than the required towing height, use sturdy wooden blocks to bridge the gap.
3. Lower the trailer jack until the full weight of the tongue is resting on the scale and the jack foot is completely off the ground.
4. Record the reading. Note that most hydraulic scales require a moment for the internal fluid to stabilize before providing a final number.

Pro-Tip: If using a scale under the jack stand rather than the coupler, the reading will be slightly higher than the actual tongue weight because the jack is located further back from the coupler. To correct this, multiply the reading by the distance from the trailer axle to the jack, then divide by the distance from the trailer axle to the coupler.

Step 3: The Bathroom Scale Lever Method

For DIYers with trailers typically under 5,000 lbs (where tongue weight is under 750 lbs), a bathroom scale can be used by creating a 3:1 or 4:1 mechanical advantage lever.

1. Lay a 2x4 beam on the ground perpendicular to the trailer tongue. Place the bathroom scale on one end and a sturdy block of the same height exactly 3 feet away.
2. Mark the beam at the 1-foot mark (measured from the block) and the 2-foot mark.
3. Place one steel pipe on the scale and the other on the block to act as fulcrums.
4. Lay the beam across the pipes. Place a third pipe or a sturdy vertical support on the 1-foot mark (closer to the block).
5. Lower the trailer coupler onto this support at the 1-foot mark.
6. The reading on the bathroom scale now represents exactly one-third of the total tongue weight. Multiply the scale reading by 3 to find the actual weight.

Warning: Ensure the beam is rated for the load. A standard 2x4 may flex excessively or snap under high tongue weights. If the trailer is heavy, use a 4x4 or double-stacked 2x4s to maintain structural integrity.

Step 4: Measuring at a Commercial CAT Scale

If you are already on the road or want the most scientifically accurate "Total Combination" weight, visit a truck stop with a certified CAT scale. This requires three separate weigh-ins.

1. Weigh 1: Weigh the tow vehicle and trailer together. Ensure the tow vehicle’s front axle is on Platform 1, rear axle on Platform 2, and trailer axles on Platform 3.
2. Weigh 2: Weigh the tow vehicle and trailer again, but this time use a Weight Distribution Hitch (if you own one) and ensure the spring bars are engaged.
3. Weigh 3: Disconnect the trailer and weigh only the tow vehicle. Ensure the front axle is on Platform 1 and the rear axle is on Platform 2.
4. The Calculation: Subtract the weight of the tow vehicle’s rear axle (from Weigh 3) from the weight of the tow vehicle’s rear axle (from Weigh 1). The difference is your static tongue weight.

Comparative Analysis of Tongue Weight Measurement Methods

The following table evaluates the most common methodologies based on accuracy, cost, and the maximum weight capacity they can effectively handle.

Common Weight Distribution Failures and Field Fixes

Even with the correct tools, errors in measurement or loading can lead to dangerous driving conditions. Understanding the root causes of these failures is essential for on-the-road safety.

• Excessive Trailer Sway (Fish-tailing)




  • Root Cause: Tongue weight is below 10% of the Gross Trailer Weight. This often happens when heavy cargo (like water tanks or motorcycles) is loaded behind the trailer axles, creating a "pendulum" effect.
  • Actionable Fix: Shift heavier items forward of the trailer axle. If the trailer has a fresh water tank in the rear, drain it or move it to a forward grey/black tank if possible. Aim for the 12% sweet spot for maximum stability.

• Tow Vehicle "Porpoising" or Rhythmic Bouncing




  • Root Cause: Tongue weight is too high (exceeding 15%), or the vehicle’s rear suspension is bottoming out on the bump stops. This places excessive stress on the hitch receiver and lightens the front steering axle.
  • Actionable Fix: Move heavy cargo toward the rear of the trailer (behind the axle) in small increments. If weight is within limits but bouncing persists, consider a Weight Distribution Hitch with sway control to redistribute the load to the front axle.

• Inconsistent Scale Readings




  • Root Cause: The trailer was not level during the measurement process, or the wheel chocks were not tight, allowing the trailer to lean against the scale mechanism.
  • Actionable Fix: Re-level the trailer using a digital level. Ensure the coupler is at the exact height it sits when mounted to the vehicle’s hitch ball. Ensure the jack is completely retracted so it does not share the load with the scale.

Frequently Asked Questions

What happens if my tongue weight is over the vehicle's limit but the trailer is under the tow capacity?

Even if your trailer is within the overall towing capacity, exceeding the tongue weight limit can damage the vehicle's frame, blow out rear tires, and cause the front wheels to lose contact with the road during bumps. You must redistribute the load within the trailer to bring the tongue weight within the hitch's stamped rating.

Does a Weight Distribution Hitch (WDH) change my actual tongue weight?

A WDH does not change the static tongue weight (the downward force at the coupler), but it does change how that force is distributed across the vehicle's axles. You should always measure your "deadweight" tongue weight before setting up and engaging the spring bars of a WDH.

Why do boat trailers have lower tongue weight percentages than RVs?

Boat trailers often utilize a 5% to 7% tongue weight ratio because the heavy outboard engines are located at the extreme rear, and boat hulls are designed with a different center of gravity. However, for highway speeds, increasing this to near 10% is often recommended to prevent sway.

Can I use the tongue jack weight as the final tongue weight?

Not exactly. The jack is typically located 12 to 24 inches behind the coupler. Because the trailer acts as a lever over its axles, the weight at the jack will be higher than the weight at the coupler. For an accurate reading, you must measure at the coupler or use a mathematical correction factor.

Optimize Your Towing Safety Profile

Achieving the perfect balance between your vehicle and trailer is the single most important factor in preventing highway accidents and mechanical failure. Regularly audit your load distribution and measure your tongue weight every time you significantly change your cargo configuration to ensure a stable, stress-free journey.
