How To Measure Lug Size: The Definitive Watch Strap Fitting Guide

Measuring your watch lug size accurately is the single most important step before purchasing a replacement watch band, ensuring a flush, secure fit between the watch case horns. By utilizing a millimeter scale caliper to measure the inner distance between the lugs—standardized internationally in millimeters—you eliminate guesswork and prevent damaging your watch with an improperly sized spring bar.

Pre-Operation & Equipment Checklist

Replacing a watch strap requires precision and the correct instruments to avoid scratching the watch case or ordering the wrong hardware. Eyeballing a watch strap width or relying on standard tape measures will inevitably lead to sizing errors, as lug widths typically vary by odd and even millimeter increments (such as 18mm, 19mm, 20mm, or 22mm).

• Essential Gear, Tools, and Materials:


  • Digital or dial caliper (graduated in millimeters with a 0.01mm tolerance).
  • Clear metal or plastic metric ruler (as a backup if calipers are unavailable).
  • Microfiber cleaning cloth to protect the crystal and case back.
  • Good ambient lighting and, optionally, a jeweler's loupe for reading fine scale hashes.
• Mandatory Prerequisite Knowledge and Standards:


  • Understanding that watch straps are sized by the inner gap of the watch lugs where the spring bar anchors, not the outer width of the strap itself or the case diameter.
  • Recognition of common industry sizing conventions, which almost exclusively use metric measurements (millimeters).
• Estimated Budget and Duration Benchmarks:


  • Budget: Free if using a ruler; twenty to thirty dollars for a professional-grade digital caliper.
  • Duration: Less than five minutes per timepiece.

Step-by-Step Watch Lug Sizing Workflow

Step 1: Secure and Clean the Timepiece

Place your watch face-up on a soft microfiber cloth atop a flat, stable, well-lit surface to prevent accidental scratching of the bezel, crystal, or case back. Ensure the area between the upper and lower lugs at both the 12 o'clock and 6 o'clock positions is entirely free of dirt, dead skin cells, or old strap debris that could alter your physical measurement by a fraction of a millimeter.

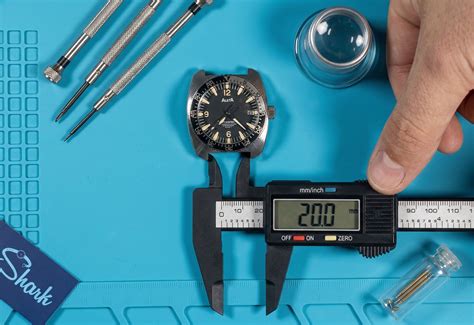

Step 2: Position the Measuring Instrument

Take your digital caliper and zero out the display. Carefully open the external jaws of the caliper and insert them directly between the inner walls of the watch lugs where the ends of the existing strap or metal bracelet sit. Ensure the flat measuring surfaces of the caliper are parallel to the interior walls of the lugs and positioned right at the center point where the spring bar passes through.

Pro-Tip: Always measure the interior opening between the lugs directly, rather than measuring the old removed watch strap. Leather and rubber straps warp, stretch, and compress over time, which often yields a misleading measurement.

Step 3: Read and Record the Exact Dimension

Close the caliper jaws gently until they make firm, flush contact with both interior lug walls without applying excessive force that could skew the reading. Read the digital display to the nearest tenth of a millimeter, or check the fine lines on your vernier scale. Because watch manufacturers design straps to standard whole or half-millimeter sizing matrices, round your precise measurement to the nearest standard size (for example, a measured 19.8mm typically denotes a 20mm lug width, while an exact 19.0mm represents a rare 19mm size).

Warning: Never force an oversized spring bar or strap into a narrower lug gap, as this puts extreme lateral tension on the lugs, which can bend the spring bar, scratch the interior case walls, or cause the strap to pop out unexpectedly during wear.

Watch Lug Sizing Matrix and Common Industry Standards

Common Sizing Failures and Field Fixes

• The Measured Width Falls Between Standard Sizes:


  • Root Cause: Manufacturing tolerances, wear on vintage watch cases, or imprecise measuring techniques resulting in odd decimal readings like 19.3mm or 21.2mm.
  • Actionable Fix: Double-check your measurement with a digital caliper. If the odd measurement persists on a modern watch, research the specific model's reference number online, as select luxury and microbrand manufacturers deliberately use non-standard sizes like 19mm or 21mm.
• Strap is Too Wide to Fit Between the Lugs:


  • Root Cause: Purchasing a replacement strap based on visual estimation or measuring the outside case width instead of the inner lug gap.
  • Actionable Fix: Do not attempt to trim leather or metal straps with scissors or files, as this ruins the structural integrity. Return the strap and order the correct millimeter width.
• Strap Fits Between Lugs But Pops Out of Place:


  • Root Cause: Using a spring bar with too short of a pin or a bent cylinder that fails to properly seat inside the pinholes drilled into the interior lug walls.
  • Actionable Fix: Inspect the spring bar under magnification. Replace worn or bent spring bars with heavy-duty stainless steel spring bars matching the exact diameter and length required for your lug width.

Frequently Asked Questions

Can I use a regular household tape measure to find my lug size?

While you can technically use a flexible tailors tape measure or a standard plastic ruler, they lack the micro-precision required for watch sizing. A discrepancy of just one millimeter will render a replacement strap completely useless, making a digital caliper or a precision metric ruler mandatory for accurate results.

Do I measure the watch strap or the watch itself?

You must always measure the watch case itself—specifically the inner distance between the two horns at the 12 o'clock or 6 o'clock position. Measuring an old strap introduces error because organic materials stretch, shrink, and deform with sweat, moisture, and age.

What should I do if my watch has an odd lug width like 19mm or 21mm?

Many vintage pieces and high-end modern watches feature odd lug widths. You must purchase a strap specifically manufactured in that exact odd size; attempting to squeeze a 20mm strap into a 19mm space will result in bunching, leather distortion, and premature spring bar failure.

Are metal bracelets measured differently than leather straps?

No, the lug width measurement remains identical regardless of whether you are installing a leather strap, a rubber dive band, or a stainless steel metal bracelet. The critical dimension is always the interior clearance where the end links or strap ends meet the watch case.

Does the buckle width match the lug width?

Not necessarily. Many watch straps taper down toward the buckle by 2mm (for example, a 20mm lug width often tapers down to an 18mm buckle width). Always check both the lug width and the buckle width specifications before ordering a replacement strap with a pre-attached buckle.
