How To Measure Inductance: The Definitive Guide To Precision Electronic Testing

Measuring inductance involves quantifying a component's ability to store energy in a magnetic field, expressed in Henries (H), by analyzing the ratio of induced voltage to the rate of change of current. High-precision measurement requires accounting for frequency-dependent variables, Equivalent Series Resistance (ESR), and parasitic capacitance using specialized tools like LCR meters or resonant circuit analysis.

Essential Equipment and Technical Pre-requisites for Inductance Testing

Before initiating any measurement protocol, an engineer must distinguish between the theoretical value of an inductor and its real-world performance characteristics. Inductance is not a static value; it fluctuates based on signal frequency, core material saturation, and ambient temperature. Therefore, selecting the correct instrumentation is the most critical step in the planning phase.

Required Instrumentation and Materials

• Primary Measurement Device: A digital LCR meter (Inductance, Capacitance, and Resistance) is the industry standard. For high-frequency RF applications, a Vector Network Analyzer (VNA) may be required.
• Signal Generation: A Function Generator capable of producing sine waves at varying frequencies if using the resonant or voltage-divider methods.
• Observation Tools: A dual-trace Digital Storage Oscilloscope (DSO) for visualizing phase shifts and voltage peaks.
• Precision Components: Non-inductive resistors (0.1% tolerance) and high-stability silver mica or C0G/NP0 ceramic capacitors for building reference circuits.
• Interconnects: Kelvin clips (4-wire test leads) to eliminate the internal resistance and inductance of the test leads themselves, which is vital for low-microhenry measurements.

Technical Knowledge Prerequisites

1. Understanding Reactance: Recognize that Inductive Reactance (XL) increases linearly with frequency, governed by the formula XL = 2πfL.
2. Core Composition Awareness: Ferrite, iron powder, and air cores react differently to DC bias and AC frequency; you must know the core type to avoid saturation during testing.
3. Standard Units: Be comfortable converting between Henries (H), millihenries (mH), microhenries (µH), and nanohenries (nH).

Advanced Methodologies for Quantifying Inductive Properties

The choice of method depends on the required precision and the equipment available. While the LCR meter is the most direct approach, understanding the underlying physics through alternative methods ensures data integrity.

Step 1: Professional LCR Meter Measurement

The most efficient and accurate way to measure inductance is using a dedicated LCR meter. This device applies an AC voltage to the component and measures the resulting current and the phase angle between the two.

1. Calibration (Open/Short Compensation): Before connecting the inductor, perform an "Open" calibration by keeping the leads apart and a "Short" calibration by clipping them together. This nullifies the parasitic capacitance and lead inductance of the tester.
2. Frequency Selection: Select a test frequency that matches the intended operating frequency of the circuit. For power supply inductors, 10 kHz or 100 kHz is standard; for RF components, 1 MHz or higher is preferred.
3. Circuit Mode (Series vs. Parallel): For low-impedance inductors (typical for high inductance values), use the Series mode (Ls). For high-impedance inductors (typical for very small values or high frequencies), use the Parallel mode (Lp).
4. Connecting the Component: Attach the Kelvin clips as close to the component body as possible to minimize lead length errors. Read the primary value (L) and the secondary value (typically Q-factor or ESR).

Step 2: The Resonant Frequency Method

If an LCR meter is unavailable, you can determine inductance by creating a resonant LC circuit. This method is highly accurate for air-core inductors used in radio applications.

1. Construct the Circuit: Place the unknown inductor (L) in parallel with a high-precision capacitor (C) of a known value.
2. Inject the Signal: Use a function generator to sweep a sine wave across the circuit through a high-value resistor (e.g., 10k ohms) to prevent loading the generator.

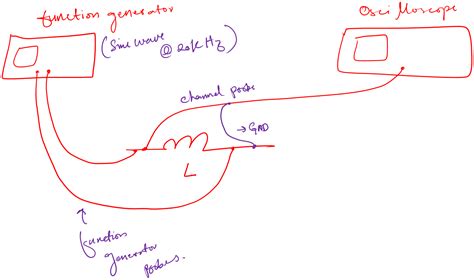

3. Identify Resonance: Monitor the voltage across the LC pair using an oscilloscope. As you sweep the frequency, the voltage will peak at the resonant frequency (fr).
4. Calculate Inductance: Use the resonance formula: L = 1 / [4 * π^2 * fr^2 * C]. Ensure all units are in standard SI form (H, Hz, F) to obtain the correct result.

Step 3: The Voltage-Current (V-I) Slope Method

For power inductors and transformers where core saturation is a concern, measuring the slope of the current rise under a DC pulse is effective.

1. Apply a Constant Voltage: Apply a known DC voltage (V) across the inductor using a power supply and a switching transistor.
2. Measure Current Rise: Use a current probe and an oscilloscope to measure the rate of change of current (di/dt) through the inductor.
3. Apply Faraday’s Law: Use the formula V = L * (di/dt). Rearranging for L gives L = V / (di/dt).
4. Observe Saturation: If the slope of the current suddenly increases (becomes non-linear), you have reached the saturation point of the core. This provides the "Effective Inductance" under specific load conditions.

Step 4: The Maxwell-Wien Bridge Method

Though considered a traditional laboratory method, the Maxwell bridge is unsurpassed for measuring inductors with low Q-factors.

1. Balance the Bridge: Place the inductor in one arm of a bridge circuit consisting of three resistors and one standard capacitor.
2. Adjust Variable Components: Adjust the calibrated resistors until the null detector (oscilloscope or AC voltmeter) shows zero volts across the bridge.
3. Calculate L and R: The inductance is calculated based on the values of the resistors and the capacitor in the opposite arm. This method simultaneously provides the inductance and the internal resistance (DCR) of the coil.

Comparative Analysis of Inductance Measurement Techniques

The following table summarizes the performance metrics and ideal applications for the primary measurement strategies discussed above.

Common Measurement Discrepancies and Precision Calibration Fixes

Even with high-end equipment, environmental and physical factors can skew results. Identifying these root causes is essential for achieving repeatable data.

• Scenario: Measured inductance is significantly higher than the rated value.




  • Root Cause: The test frequency is approaching the Self-Resonant Frequency (SRF) of the inductor. At this point, the parasitic capacitance of the windings begins to dominate the measurement.
  • Actionable Fix: Lower the test frequency by at least one decade. Ensure the test frequency is no more than 10% of the component's rated SRF.

• Scenario: Readings fluctuate or drift during testing.




  • Root Cause: Temperature sensitivity or electromagnetic interference (EMI). High-permeability cores (like Mu-metal or specific ferrites) change properties as they heat up or when placed near power transformers.
  • Actionable Fix: Shield the component under test from external magnetic fields. Allow the component to stabilize at room temperature and use a "Kelvin connection" to prevent thermal EMF errors at the contact points.

• Scenario: The LCR meter displays a "Negative" inductance or a "Capacitance" reading.




  • Root Cause: You have exceeded the Self-Resonant Frequency. The inductor is behaving like a capacitor because the inter-winding capacitive reactance is lower than the inductive reactance.
  • Actionable Fix: Check the datasheet for the SRF. If the inductor is meant for very high frequencies, switch to a Vector Network Analyzer (VNA) and measure the S-parameters to extract the inductance value.

• Scenario: Inductance drops sharply under load.




  • Root Cause: Core saturation. The DC current flowing through the inductor has aligned all magnetic domains in the core, reducing its ability to store more energy.
  • Actionable Fix: Use an LCR meter with "DC Bias" capability. This allows you to inject a DC current into the inductor while simultaneously measuring its AC inductance to see how it performs under real-world load.

Frequently Asked Questions

Can I measure inductance with a standard digital multimeter?

Most standard multimeters do not have an inductance measurement function; they only measure Resistance (Ohms), Voltage, and Current. To measure inductance, you specifically need a multimeter labeled as an "LCR Meter" or a dedicated inductance bridge.

Why does my inductor measure differently at 1 kHz versus 100 kHz?

Inductance is affected by the "Skin Effect," where current flows on the surface of the wire at high frequencies, and "Proximity Effect," where adjacent windings influence each other. Additionally, the permeability of core materials often drops as frequency increases, leading to a lower measured inductance at higher frequencies.

What is the Quality Factor (Q) in inductance measurement?

The Q-factor is a dimensionless parameter that describes how "pure" an inductor is; it is the ratio of inductive reactance to resistance (Q = XL / R). A high Q indicates a low-loss inductor, which is essential for filters and oscillators where sharp resonance is required.

How do I measure the inductance of a very small SMD component?

Measuring tiny Surface Mount Device (SMD) inductors requires a specialized SMD tweezer probe connected to a calibrated LCR meter. At the nanohenry (nH) level, even a millimeter of extra lead length can add significant error, so 4-wire Kelvin compensation at the tip of the tweezers is mandatory.

Does the orientation of the inductor matter during measurement?

Yes, especially for unshielded inductors. Placing an inductor on a metal surface or near other magnetic components during testing will alter the magnetic flux paths and change the measured inductance. Always test components on a non-conductive, non-magnetic surface.

Optimize Your Electronic Designs with Precision Testing

Mastering inductance measurement is a foundational skill for any engineer looking to develop efficient power converters or high-fidelity RF circuits. Ensure your project’s success by utilizing calibrated LCR meters and accounting for the complex variables of frequency and core saturation.
