How To Measure A Horse’s Height: The Official Guide To Hands And Inches

Measuring a horse requires the use of a specialized measuring stick placed on level ground at the highest point of the withers, which is the ridge between the shoulder blades. The industry standard unit is the hand, where one hand equals exactly four inches, and the final height is expressed in hands followed by the remaining inches.

Preparation and Essential Measuring Equipment

Accurate measurement is critical for registration, athletic classification, and general health monitoring. Attempting to measure a horse using a standard flexible tape measure against the horse’s body will inevitably lead to significant measurement error due to the curve of the barrel and the potential for the tape to slip.

• Essential Equipment:




  • Equine Measuring Stick: A rigid, vertical staff equipped with a sliding horizontal cross-piece and an integrated spirit level bubble.
  • Level Surface: A flat, stable, and non-slip area such as concrete, packed gravel, or an indoor arena floor.
  • Lead Shank: A standard nylon or leather lead rope for maintaining control.
  • Calibration: Ensure the spirit level on your measuring stick is calibrated, as even a one-degree tilt at the base will result in a compounded height error at the withers.

• Prerequisites:




  • Horse Positioning: The horse must be standing "square," meaning all four legs are perpendicular to the ground and the horse is not leaning or resting a hind leg.
  • Environment: The measurement area should be free of distractions to encourage the horse to relax its neck and settle into a natural posture.
  • Estimated Duration: 5 to 10 minutes per horse.

The Technical Execution of Equine Height Measurement

Step 1: Establish the Measuring Point

The target for the height measurement is the highest point of the withers. The withers are defined as the bony ridge between the shoulder blades where the neck meets the back. You must identify the peak of this ridge while the horse is standing naturally. If the horse is startled or agitated, the muscles surrounding the withers may tighten or elevate, causing a false high reading. Allow the horse to stand still for at least sixty seconds before initiating the measurement to ensure the muscles are relaxed.

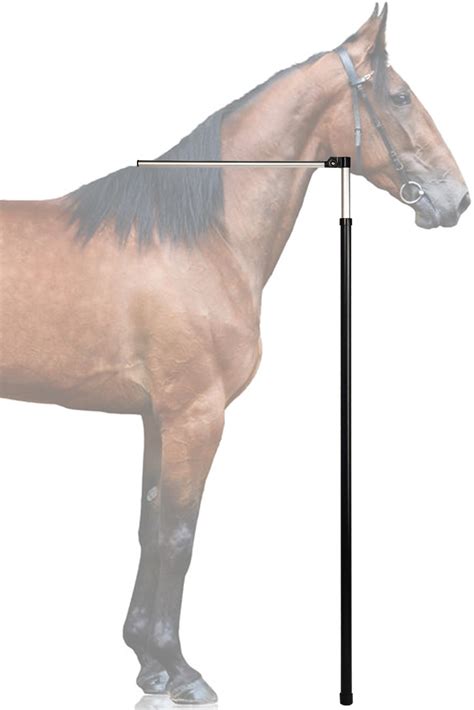

Step 2: Positioning the Measuring Stick

Place the base of the measuring stick on the ground directly adjacent to the horse’s front leg, specifically lining it up with the back of the front cannon bone. The vertical bar must be perfectly flush against the horse’s side, but not pressing into the flank. Use the integrated spirit level on the stick to ensure the vertical pole is at a perfect 90-degree angle relative to the ground.

Pro-Tip: If you do not have a spirit level, hold a plumb bob (a weight on a string) against the side of the stick to verify it is perfectly vertical.

Step 3: Aligning the Cross-Piece

Gently slide the horizontal arm of the measuring stick upward until it makes light contact with the highest point of the withers. The arm should rest gently on the peak; do not press down into the mane or the tissue, as this will result in a measurement that is lower than the actual height. Once the arm is set, maintain a steady hand to ensure the device does not shift during the reading.

Step 4: Recording the Final Measurement

Read the measurement directly from the scale on the vertical pole. Because height is calculated in hands (abbreviated as "hh" for "hands high"), you must convert the total inches into the hand-inch format. For example, if the horse measures 62 inches, divide 62 by 4. This equals 15 hands with a remainder of 2 inches. You would record this as 15.2 hh.

Warning: Never record a measurement as a decimal fraction of a hand. For instance, 15.3 is the correct way to note three inches; 15.75 is technically incorrect and confusing to professional breeders and vets.

Technical Specifications and Measurement Standards

Understanding the conversion parameters is essential for maintaining consistency across competition and registration bodies. The following table illustrates the standard conversion from total inches to the industry-standard hand notation.

Common Measurement Errors and Field Fixes

Even experienced handlers face challenges when attempting to achieve a precise reading. Most errors originate from improper horse posture rather than equipment failure.

• Root Cause: The horse is "grazing" or has its head lowered, which artificially raises the withers.


  • Actionable Fix: Ask an assistant to hold the horse’s head at a natural level—not too high, not too low—using a lead shank. Offer a small amount of hay or a treat if the horse is restless, provided they keep their head steady.
• Root Cause: The horse is standing with its legs skewed or splayed (not square).


  • Actionable Fix: Gently prompt the horse to shift its weight by using a light tap on the shoulder or hindquarters. The goal is to get the horse to stand with its front legs forming a vertical line when viewed from the side.
• Root Cause: The measuring stick is tilted, resulting in an "off-center" reading.


  • Actionable Fix: Recalibrate the stick using the bubble level. Ensure the base is on a solid foundation and that the stick is strictly vertical. If the ground is uneven, find a different location, as any slope will skew the data immediately.

Frequently Asked Questions

Why is a horse’s height measured in hands instead of inches?

The "hand" is a traditional unit of measurement dating back to ancient times, representing the width of a human hand. It remains the industry standard in the equestrian world because it provides a consistent, shorthand way to categorize horse sizes that is easily understood by trainers, vets, and registries globally.

Does the horse's age affect the accuracy of the height?

Yes, younger horses, particularly yearlings and two-year-olds, are still undergoing significant musculoskeletal growth. A measurement taken today may be obsolete in six months, so it is standard practice to re-measure young horses every quarter to track development accurately.

Can I use a regular tape measure if I do not have a stick?

You can use a tape measure only if you have an assistant hold a carpenter’s level against the horse’s withers to create a flat point of reference to the ground. However, this is prone to high levels of error and is not recommended for official competition or registration purposes.

What should I do if my horse refuses to stand still?

Patience is the primary tool here; do not force the horse, as tension will cause it to drop its back or tense its muscles. Use a "clicker training" approach or simple positive reinforcement to reward the horse for standing squarely, and perform the measurement in short, low-stress intervals.
