How To Measure Gas Springs: The Definitive Technical Guide

Measuring gas springs accurately is essential for replacing worn-out lifting struts on automotive hatches, industrial machinery, and ergonomic furniture. By capturing the exact extended length, compressed length, rod diameter, cylinder diameter, and force rating, you ensure a safe and precise replacement every time.

Pre-Operation & Equipment Checklist

To achieve OEM-level precision when measuring gas springs, you must capture dimensions down the millimeter and force values down the Newton. Eyeballing measurements will lead to binding, premature seal failure, or lids that fail to hold their position.

• Essential Gear & Tools: Vernier caliper (for rod and cylinder tube diameters), rigid measuring tape or ruler (for center-to-center length), bathroom scale or specialized force gauge (for estimating force if markings are missing), safety glasses, and clean shop rags.
• Mandatory Prerequisite Knowledge: Familiarity with center-to-center measurements, metric vs. imperial units, and the distinction between rod and tube ends. Note that gas spring forces are typically measured in Newtons (N), pounds-force (lbs), or kilogram-force (kgf).
• Estimated Budget & Duration: The measurement process requires zero financial investment if you already own a caliper and tape measure, and takes approximately 10 to 15 minutes per gas spring assembly.

Step-by-Step Gas Spring Measurement Procedure

Step 1: Secure the Application and Remove the Gas Spring

Safely prop open the heavy lid, hatch, or cabinet door using a physical prop rod or a helper to prevent sudden collapse. Pop off the securing clips (such as wire clips or horseshoe clips) using a flathead screwdriver or pick tool, and carefully detach the gas spring from its ball studs or mounting brackets.

Warning: Never attempt to measure or compress a gas spring while it is under full load in a partially open assembly, as sudden release can cause severe injury.

Step 2: Measure the Extended Length (Center-to-Center)

Place the gas spring on a flat work surface alongside your measuring tape. Measure the exact distance from the absolute center of the mounting socket on one end to the absolute center of the mounting socket on the opposite end.

Pro-Tip: For threaded rod ends or eyelets, always measure from the center of the mounting hole, never from the outer edge of the end fitting.

Step 3: Measure the Compressed Length

Push the chrome-plated steel rod completely into the cylinder body until it bottoms out. Measure again from the center of the mounting socket on the rod end to the center of the mounting socket on the tube end. This compressed length is critical to ensure the spring does not bottom out prematurely or prevent your application from closing fully.

Step 4: Measure Diameters of the Rod and Cylinder Tube

Use your Vernier caliper to measure the outer diameter (OD) of the polished steel rod (piston rod) and the outer diameter of the main cylinder tube (body). Standard rod diameters include 6mm, 8mm, 10mm, and 14mm, while tube diameters typically scale proportionally (e.g., 15mm, 18mm, 22mm, 28mm).

Step 5: Determine the Force Rating (Newton / Pound Rating)

Locate the laser-etched or printed manufacturer label on the cylinder body to read the force rating (e.g., 500N or 112 lbs). If the label has faded or worn off completely, weigh the lid to calculate the required force or match your dimensions to a comprehensive manufacturer specification chart based on the application weight and leverage geometry.

Gas Spring Standard Dimension and Specification Matrix

Common Measurement Errors & Field Fixes

• Root Cause: Measuring from the outer edges of the end fittings instead of center-to-center. Actionable Fix: Always use a center-point alignment method. Measure from the pivot center of ball sockets or the exact center of eyelet mounting holes.
• Root Cause: Guessing the force rating when original labels are missing. Actionable Fix: Weigh the unsupported weight of the hatch at the mounting point and consult manufacturer formulas that factor in the opening angle and leverage arm distance.
• Root Cause: Ignoring stroke length limitations during replacement selection. Actionable Fix: Calculate the stroke by subtracting the compressed length from the extended length, ensuring your new strut matches this travel distance.
• Root Cause: Incompatible end fittings (e.g., ball sockets vs. clevis brackets). Actionable Fix: Document the exact style of end fittings alongside your lengths; many gas springs allow you to unscrew old end fittings and reuse them on new struts if thread pitches match.

Frequently Asked Questions

Can I measure a gas spring while it is still installed on the vehicle or machine?

Yes, you can measure the extended length from center-to-center while the spring is installed and the hatch is fully open. However, you cannot accurately measure the compressed length, rod diameter, or read the force label without unhooking at least one end of the gas spring.

What happens if I install a gas spring with too much force?

A gas spring with an excessive Newton rating will make the hatch extremely difficult to close and may apply excessive stress to the mounting brackets, hinges, and fiberglass or metal frames. This can lead to structural damage or cause the hatch to pop open aggressively.

How do I convert pounds-force (lbs) to Newtons (N)?

To convert pounds-force to Newtons, multiply the pound value by 4.44822. For example, a 100 lb gas spring delivers approximately 445N of extension force. Most industrial suppliers list their products in Newtons.

Why does my gas spring lose lifting power over time?

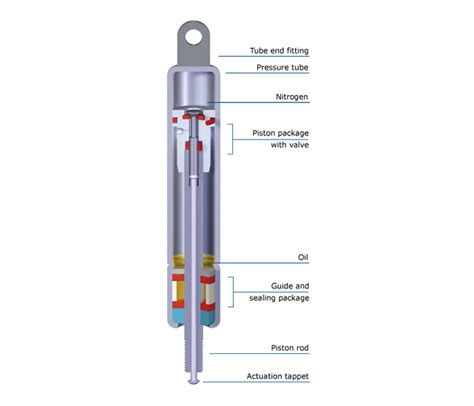

Gas springs rely on a pressurized charge of dry nitrogen gas inside the cylinder. Over years of thermal expansion, contraction, and micro-wear on the dynamic rod seals, the nitrogen slowly permeates, resulting in a gradual loss of internal pressure and lifting capacity.

Are end fittings removable for measuring and replacement?

Many industrial and automotive gas springs feature threaded end fittings (such as ball sockets, eyelets, or clevis forks) that can be unscrewed. Always check if the thread pitch is metric (e.g., M6 or M8) or imperial if you need to replace damaged end hardware.
