The Comprehensive Guide On How To Measure For Exterior Shutters
Achieving a professional, high-end look with exterior shutters requires precise vertical and horizontal measurements taken at three distinct points on the window frame to account for structural settling. Standard industry practice dictates that shutters must be exactly half the width of the window opening to maintain the aesthetic appearance of functionality, even when the shutters are permanently mounted as decorative accents.
Essential Preparation and Measurement Tooling Requirements
Before beginning the measurement process, ensure the facade of the building is clear of debris and that you have access to a stable ladder or an extension pole for second-story windows. Accurate measurements are the foundation of a successful shutter installation, as improper sizing leads to gaps, hardware misalignment, and compromised curb appeal.
- Essential Measurement Toolkit:
- Professional-grade steel tape measure (avoid cloth tapes which stretch).
- A metal carpenter’s square or an accurate level for checking sill angles.
- A notepad and digital camera to record measurements and window obstructions.
- A pencil or fine-tip permanent marker.
- A ladder rated for the height of your installation points.
- Mandatory Technical Standards:
- Always measure to the nearest 1/8th of an inch.
- Check for window sill pitch; shutters must accommodate the angle where the shutter meets the sill.
- Verify that your window frame is square by measuring diagonally; a difference of more than 1/4 inch indicates a non-square frame that may require custom-sized shutters.
- Benchmarks:
- Duration: Approximately 10 to 15 minutes per window.
- Budget: Minimal, limited to basic hand tool acquisition.
The Technical Execution of Shutter Measurement
Step 1: Determining Precise Shutter Height
Measure the height of the window opening in three locations: the far left side, the exact center, and the far right side of the window frame. Start your measurement from the bottom of the top trim (the header) to the very top of the sill (the slanted ledge at the base). If the window sill is slanted, ensure you measure to the highest point where the shutter will sit. Use the shortest of the three measurements as your final height dimension to ensure the shutter fits within the frame constraints without binding against the sill.
Pro-Tip: If you are installing shutters that do not touch the sill, you can opt for a "shorter" look, but ensure the vertical measurement is consistent across all windows on the same floor level for visual symmetry.
Step 2: Calculating Accurate Shutter Width
To achieve the classic appearance of a functional shutter, the combined width of the two shutters should equal approximately 50% of the window's total opening width. Measure the width of the window opening at the top, middle, and bottom. Use the narrowest measurement of the three to determine your width. Divide this figure by two to get the ideal width per shutter panel.
Warning: Never include the window frame trim (the casing) in your width measurement unless you intend to mount the shutters directly onto the trim rather than the siding. Most modern vinyl and composite shutter installations are mounted to the siding; adjust your measurement accordingly to account for the mounting surface.
Step 3: Assessing Hardware and Obstruction Clearance
Identify any physical obstructions that may interfere with the shutter, such as light fixtures, house numbers, downspouts, or electrical conduits. If an obstruction exists, you must decide whether to relocate the hardware or order shutters with custom notches. Note the distance from the edge of the window opening to the obstruction. If your calculated shutter width is greater than this distance, you will need to reduce the shutter width or opt for a different shutter style that allows for clearance.
Step 4: Finalizing Mounting Surface Requirements
Determine if you are mounting your shutters to wood, brick, stucco, or vinyl siding. Each material requires different mounting hardware—such as shutter spikes for vinyl or masonry anchors for brick. Ensure your measurements reflect the actual surface area available for these fasteners. If the mounting surface is irregular, account for the depth of the shutter's mounting flange to ensure a flush fit against the exterior wall.

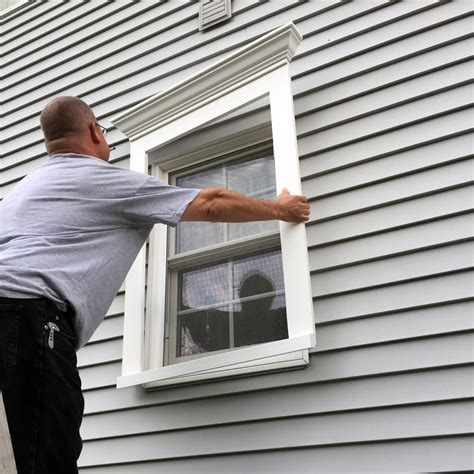

Easy Guide: How to Measure for Exterior Shutters
Technical Specifications and Material Sizing Standards
The following table summarizes the standard requirements for shutter dimensions and the necessary clearance for different installation scenarios.
| Dimension Metric | Standard Rule | Tolerance Limit |
|---|---|---|
| Height Measurement | Shortest of 3 vertical points | +/- 1/8 inch |
| Width Measurement | 50% of window opening | +/- 1/4 inch |
| Sill Clearance | 1/8 to 1/4 inch gap | 0 to 1/2 inch max |
| Obstruction Buffer | 2 inches from edge | Absolute minimum |
| Squareness Threshold | Diagonal delta < 1/4 inch | Above 1/4 requires shim |
Common Site Failures and Field Fixes
Even with careful planning, physical variations in the home structure can cause fitment issues. Address these common scenarios to ensure a professional finish.
- Non-Square Window Frames: If your diagonal measurements vary significantly, the shutter may appear skewed.
- Actionable Fix: Use thin PVC shims behind the shutter mounting points to align the shutter edges with the vertical line of the window frame, ensuring the shutters appear level to the naked eye.
- Inconsistent Sill Pitch: If the sill is heavily sloped, a standard flat-bottom shutter will create an unsightly wedge-shaped gap.
- Actionable Fix: Use a circular saw or a hand plane to scribe the bottom of the shutter to match the exact angle of the sill, ensuring a uniform contact point across the entire width of the shutter base.
- Mounting Surface Obstructions: External conduits or gas lines often block the path of the shutter.
- Actionable Fix: Rather than forcing the shutter, order a "cut-out" or "notched" shutter, or move the mounting point of the conduit using standard electrical standoff brackets to allow the shutter to sit flat against the siding.
Frequently Asked Questions
Should I measure the window trim or the window glass?
Always measure the window opening itself, which includes the glass and the window frame, but excludes the surrounding trim unless you plan to mount the shutters directly to that trim. Measuring the glass alone will result in shutters that are significantly undersized and aesthetically unbalanced.
How do I handle shutters for a window with an arch top?
For arched windows, you must measure the height of the square portion of the window separately from the arch. Most manufacturers provide specific templates or measurement guides for arched tops, requiring you to provide the radius of the arch to ensure a flush fit at the apex.
Does the shutter material change how I should measure?
While the measurement process remains consistent, heavier materials like wood or wrought iron require more robust mounting points. Ensure that your measurements account for the added weight and the need for structural blocking behind the mounting surface if the shutters are intended to be functional rather than purely decorative.
What if my windows are different sizes?
It is common for windows on different floors or rooms to vary in size. Never assume uniformity; you must measure every window individually. If your window sizes vary by less than 1/4 inch, you may be able to order uniform shutter sizes, but discrepancies larger than that will necessitate custom-ordered sizes for each opening to maintain a professional appearance.
