How To Make A Wine Bottle Tree: Step-by-Step DIY Garden Art Guide
A wine bottle tree is a striking structural garden ornament crafted by sliding glass bottles over the angled metal tines of a welded armature or rebar frame. Building a durable installation requires selecting weather-resistant steel, calculating proper weight distributions to prevent wind shear, and anchoring the central post at least twelve inches deep into concrete for long-term stability.
Material Sourcing and Structural Preparation Checklist
Constructing an enduring wine bottle tree requires meticulous preparation, an understanding of wind-load mechanics, and careful selection of both glass and structural supports. The project balances metalworking or masonry basics with creative bottle curation, transforming discarded glass into a functional yard art statement piece that catches sunlight and deters garden pests according to Southern folklore traditions.
- Essential Gear and Tools: Heavy-duty angle iron or galvanized rebar (minimum 5 feet tall, 3/4-inch to 1-inch diameter for the trunk), shorter lengths of 3/8-inch rebar or heavy copper wire for the branches, a wire-feed MIG welder (or professional metal epoxy if welding is unavailable), heavy work gloves, safety glasses, a post-hole digger, quick-setting concrete mix, and a wire brush.
- Material Quantities: 15 to 30 empty, cleaned, and label-removed wine bottles of varying or uniform colors (cobalt blue, emerald green, and amber yield the highest light refraction).
- Prerequisite Standards: Structural plumb must be verified with a level before pouring concrete to prevent permanent tilting. Ensure all bottle interiors are completely dry to prevent mold growth inside the sealed glass chambers once mounted outdoors.
- Budget and Timeline: Estimated material cost ranges from $30 to $75 depending on existing scrap metal availability. Total active working time is approximately 4 to 6 hours spread across two days to allow for concrete curing.
Step-by-Step Construction and Installation Workflow
Step 1: Designing and Welding the Armature Framework
Lay out your central trunk pole on a flat workbench or grassy area. Position shorter branch prongs at staggered intervals along the upper two-thirds of the main shaft, angling each prong upward between 30 and 45 degrees relative to the vertical axis. If you are using a MIG welder, ensure full-penetration welds at every branch-to-trunk junction, as these joints will support significant dead weight combined with dynamic wind resistance.
Warning: Never weld galvanized steel without wearing a certified respirator in a well-ventilated outdoor space, as inhaling vaporized zinc oxide causes metal fume fever.
Step 2: Excavating and Anchoring the Foundation Post
Determine the placement of your wine bottle tree in an area with stable soil and maximum daily sun exposure. Use a post-hole digger to excavate a hole 12 to 18 inches deep and roughly 8 to 10 inches in diameter. Insert the base of your welded armature into the center of the excavation, and use a magnetic torpedo level against the trunk to confirm it is perfectly plumb on both the X and Y axes.
Step 3: Pouring the Concrete Footing
Mix your quick-setting concrete in a wheelbarrow or bucket following the manufacturer's water-to-powder ratio instructions until it reaches an oatmeal-like consistency. Shovel the wet concrete into the post hole around the steel trunk, periodically tamping down the mix with a wooden stake to eliminate air pockets. Re-verify the plumb of the structure immediately after pouring, and brace the trunk with temporary wooden stakes or rope lines if any lean develops while the concrete hardens. Allow the footing to cure undisturbed for a full 24 to 48 hours.
Step 4: Cleaning and Preparing the Glass Vessels
While the concrete cures, submerge your collected wine bottles in warm, soapy water to loosen paper labels and residual adhesives. Scrape away all residue, run the bottles through a dishwasher sanitize cycle, and allow them to dry completely upside down.
Pro-Tip: Apply a thin bead of clear outdoor-safe silicone adhesive or wrap a small strip of electrical tape around the tips of the metal branches if your bottles feel loose or rattle excessively in high wind gusts.
Step 5: Mounting the Bottles and Final Styling
Carefully slide each prepared wine bottle neck-first over the angled metal branch tines. Distribute heavier bottles or varied colors evenly across the upper and lower tiers to maintain visual balance and prevent top-heavy mechanical strain. Step back frequently to evaluate the silhouette, adjusting individual branch angles slightly by hand if your steel was malleable enough to bend under targeted force.

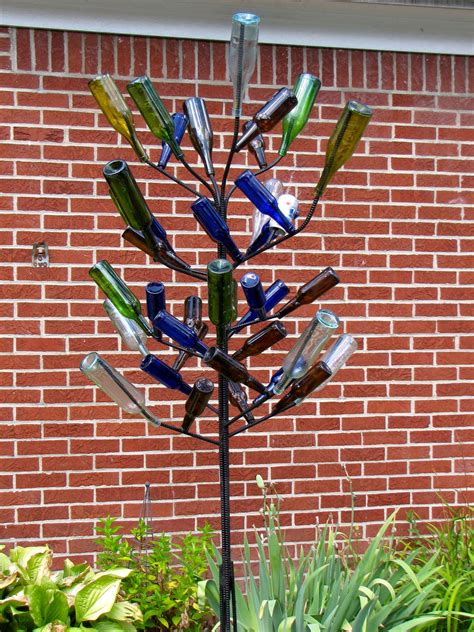

Blue Bottle Tree- Mother's Garden Bottle Art | Bottle trees, Bottle ...
Structural Comparison of Wine Bottle Tree Materials
| Material Component | Recommended Specification | Function & Mechanical Benefit | Primary Limitation |
|---|---|---|---|
| Trunk Post | 3/4" to 1" Galvanized Rebar | Provides rigid vertical support against bending loads | Prone to minor flexing if undersized |
| Branch Tines | 3/8" Cold-Rolled Steel Rod | Supports bottle weight without sagging; fits standard bottle necks | Requires reliable welding equipment |
| Foundation | 5000 PSI Quick-Set Concrete | Anchors the structure below the frost line to prevent shifting | Permanent once cured; difficult to relocate |
| Glass Medium | Standard 750ml Wine Bottles | Delivers optimal light refraction and color saturation | Susceptible to shattering from severe hail or impact |
Troubleshooting Common Installation Failures
- Root Cause: The finished tree leans to one side after the concrete cures.
- Actionable Fix: If the concrete has fully hardened, excavation is required. Break out the footing with a sledgehammer or concrete breaker, reset the pole with a temporary support brace, and re-pour the concrete while checking alignment with a carpenter's level every 10 minutes during the setting window.
- Root Cause: Bottles slip off the metal tines during heavy windstorms.
- Actionable Fix: Remove the affected bottles, clean the metal tines with acetone to remove grease, and wrap rubber gaskets or thick rubber bands around the tips of the branches to create friction-fit cushions that grip the interior of the bottle necks.
- Root Cause: Condensation and algae form inside the mounted glass bottles.
- Actionable Fix: Ensure bottles are completely dry before mounting. If moisture enters via rain, remove the bottles on a dry day, drain them, and seal the base-to-branch junction with a small amount of exterior-grade silicone caulk to prevent moisture ingress.
Frequently Asked Questions
How many wine bottles do I need for a standard tree?
Most medium-sized DIY wine bottle trees require between 15 and 25 bottles to look full and visually balanced. The exact quantity depends on the number of welded branches designed into your armature framework.
Do I need to weld the branches, or are there alternatives?
You do not strictly need a welder if you use heavy-gauge copper wire wrapped around a central trunk, or if you purchase a pre-fabricated kit. However, welding provides the highest level of structural safety and wind resistance for permanent outdoor installations.
What are the best bottle colors for a traditional yard tree?
Cobalt blue, forest green, and amber brown are traditionally preferred because they create vibrant jewel tones when illuminated by direct sunlight. Clear glass can also be used, though it offers less contrast against the landscape.
Will freezing winter temperatures break the glass bottles on the tree?
Empty wine bottles generally survive freezing temperatures well because there is no trapped water inside to expand and crack the glass. To prevent thermal shock or wind damage, ensure the bottles are securely seated and not resting rigidly against hard metal without a cushion.
Transform your outdoor landscape by gathering your collected glass and building a custom structural focal point today.
