How To Make Supports Easier To Remove In 3D Printing

Mastering support removal requires a delicate balance of slicer geometry settings, interface density adjustments, and post-processing thermal techniques to eliminate surface scarring. By fine-tuning Z-distances, optimizing extrusion temperatures, and utilizing dedicated soluble or breakaway materials, you can effortlessly separate support structures while maintaining pristine overhang finishes.

Pre-Operation & Equipment Checklist

Achieving effortless support removal starts long before the print bed heats up; it demands precise calibration of your slicing software and hardware parameters. Whether you are working with standard consumer desktop fused deposition modeling printers or advanced dual-extrusion systems, setting up your workspace correctly prevents structural delamination and surface marring.

• Essential Gear, Tools, and Materials:

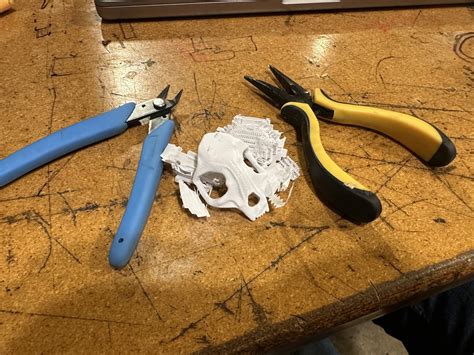

  • Flush cutters, needle-nose pliers, and a sharp deburring tool or hobby knife for mechanical separation.
  • Digital calipers for measuring precise Z-gap clearances and interface layer thicknesses.
  • Dedicated multi-material filament dryer to ensure low moisture content, preventing stringing that binds supports to the main model.
  • Soluble support filaments (PVA or HIPS) paired with a specialized dual-extrusion hotend assembly and a designated warm-water dissolution bath equipped with a circulation pump.
• Mandatory Prerequisite Knowledge and Standards:


  • Comprehensive understanding of bridging thresholds, cooling fan performance metrics, and layer adhesion physics.
  • Familiarity with advanced slicer parameters including roof interface density, xy-separation distance, and critical angle thresholds.
• Estimated Budget and Duration Benchmarks:


  • Tooling and calibration upgrade budget ranging from twenty to one hundred dollars.
  • Slicer optimization and test print validation time averaging between forty-five minutes and two hours.

Step-by-Step Optimization Workflow

Step 1: Calibrate Slicer Z-Distance and Interface Gaps

The single most effective method for easing support removal is adjusting the vertical gap between the top of the support structure and the bottom of your model's overhang. In your slicer, locate the support Z-distance parameter and set it to a multiple of your layer height. For a standard zero-point-two millimeter layer height, set the top and bottom contact Z-distances to zero-point-two or zero-point-four millimeters. This microscopic air gap prevents the molten support layer from fusing completely with the model while still providing enough physical foundation for subsequent layers to bridge across.

Pro-Tip: If your overhangs are drooping with a single-layer gap, enable "Interface Roofs" with a dense grid pattern of seventy to eighty percent to support the model without maximizing surface contact area.

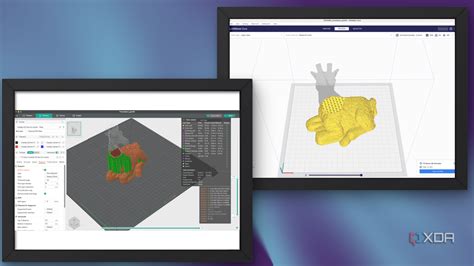

Step 2: Implement Tree or Organic Supports

Switch your generation algorithm from traditional linear grid or rectilinear pillars to tree supports or organic supports. Tree supports grow outward from the print bed and curve dynamically to anchor exclusively to minimal points on the model's exterior surface, drastically reducing the total contact area that requires post-processing cleanup. This technique reduces plastic waste, slashes print times, and leaves the vast majority of visible aesthetic surfaces entirely untouched by scarring.

Step 3: Fine-Tune Interface Separation Layers

When utilizing single-extrusion setups for complex prints, configure a specialized breakaway interface material or adjust your primary material's interface flow rate. Lower the interface extrusion flow multiplier slightly to ten to fifteen percent below normal to create a weaker, more brittle bonding layer. Alternatively, if your printer features dual extruders, load a dedicated soluble filament such as PVA for water-soluble setups or HIPS for limonene-soluble setups, setting the interface layers to zero horizontal and vertical separation so the material merges structurally during printing and dissolves cleanly later.

Warning: Never force stiff PETG supports off of a delicate PLA print using excessive leverage, as the high interlayer adhesion can tear away chunks of the actual model before the support interface yields.

Step 4: Execute Controlled Post-Processing Thermal Techniques

For stubbornly fused mechanical supports, use a localized heat source to soften the plastic slightly before pulling it away. Pass a regulated stream of hot air from a precision heat gun set to a low setting across the support structure for three to five seconds to soften the polymer without warping the underlying structural geometry of the print. Immediately use needle-nose pliers to peel the softened support matrix away in large, unified sheets rather than picking at small, brittle shards.

Comparative Analysis of Support Removal Strategies

Common Site Failures and Field Fixes

• Root Cause: Excessive extrusion temperature causing the support interface to weld permanently to the underside of the model.


  • Actionable Fix: Lower your hotend printing temperature by five to ten degrees Celsius for the support interface layers, and increase part cooling fan speeds to one hundred percent to solidify bridging filaments faster.
• Root Cause: High ambient humidity causing filament swelling, leading to oozing, stringing, and premature bonding between support pillars and vertical walls.


  • Actionable Fix: Dry your filament spool in a dedicated dehydrator at forty-five to fifty degrees Celsius for six to eight hours before initiating prints with complex internal support geometries.
• Root Cause: Insufficient horizontal X-Y distance causing support structures to fuse directly into the outer perimeters of vertical walls.


  • Actionable Fix: Increase the X-Y separation distance setting in your slicer to at least zero-point-seven millimeters to maintain a clear air gap between vertical boundaries and support towers.

Frequently Asked Questions

What is the ideal Z-distance for easy support removal?

The ideal Z-distance is typically equal to or slightly greater than one full layer height. For a zero-point-two millimeter layer height, setting the Z-gap to zero-point-two or zero-point-four millimeters ensures adequate mechanical support while preventing permanent thermal fusion between the model and the support structure.

How do tree supports make removal easier?

Tree supports branch outward and minimize contact points by anchoring primarily to the build plate rather than the model itself. By reducing the surface area where the support touches the aesthetic exterior of the print, they allow the entire structure to be peeled off in one clean motion.

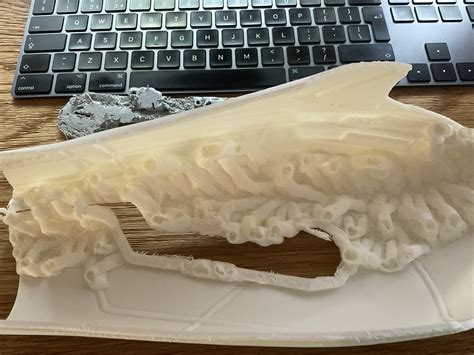

Why do my supports stick so hard to my prints?

Supports stick too aggressively when the hotend temperature is set too high, the cooling fan is running too slowly, or the Z-distance is set to zero. This causes the hot, molten plastic of the support layer to bond permanently with the hardened layer beneath it.

Can I use different materials for supports to make removal easier?

Yes, using a dual-extrusion setup with water-soluble PVA or chemical-soluble HIPS eliminates mechanical removal entirely. The support structure dissolves completely when submerged in the appropriate solvent, leaving behind a smooth, unblemished surface finish on complex geometries.
