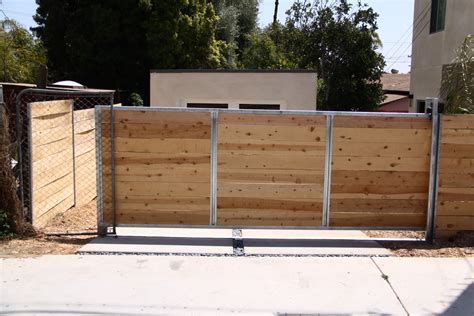

How To Make A Rolling Gate: The Complete DIY Structural And Mechanical Guide

Building a durable rolling gate requires precise calculation of wind-load resistance, structural steel framing, and roller track alignment to prevent sag over extended spans. This comprehensive manual details the engineering specifications, welding protocols, and hardware installation steps necessary to construct a commercial-grade sliding cantilever or track-supported rolling gate from scratch.

Structural Planning and Material Acquisition Phase

Fabricating a reliable rolling gate demands careful coordination of metal gauges, weight distribution, and clearance parameters. Before cutting any raw steel, you must calculate the total linear span, account for a mandatory 30-to-40-percent tail-piece counterbalance if building a cantilever system, and select corrosion-resistant coatings. Operating safely with heavy metal requires strict adherence to personal protective equipment standards, including auto-darkening welding helmets, heavy leather gloves, and steel-toed footwear.

• Essential Tools and Materials:




  • Structural steel tubing (typically 2-inch by 2-inch square tubing with 11-gauge or 1/8-inch wall thickness for the main frame; 1-inch by 1-inch tubing for interior bracing)
  • Heavy-duty V-groove wheels or cantilever roller assemblies rated for twice the total calculated gate weight
  • Galvanized inverted V-track or heavy-duty galvanized structural pipe for the ground guide system
  • Wire-feed MIG welder (220V recommended for structural welds) and angle grinder with cutoff and grinding discs
  • Magnetic welding squares, framing squares, tape measure, and a digital torpedo level
  • Zinc-rich cold-galvanizing primer and exterior-grade direct-to-metal polyurethane enamel paint

• Prerequisites and Standards:




  • Verify local municipal zoning codes regarding maximum height restrictions, property line setbacks, and required emergency access mechanisms.
  • Ensure the driveway concrete landing strip or runway beam is poured to a minimum thickness of 6 inches with reinforced rebar grid to eliminate differential settling under the gate's rolling path.

• Benchmarks:




  • Estimated time frame: 12 to 16 total active working hours spread across three days to accommodate welding, grinding, and curing cycles.
  • Material budget: Dependent on steel market fluctuations and gate dimensions, but generally ranges from $400 to $1,200 for residential scales.

Step-by-Step Rolling Gate Fabrication Workflow

Step 1: Site Measurement and Frame Layout

Measure the clear opening between your existing pillars or fence posts and add 12 inches to ensure complete privacy coverage and proper overlap with the receiving latch post. Clear a flat, level welding surface—such as a large steel fabrication table or paired sawhorses—to lay out your primary frame members. Cut your 2x2-inch square tubing to exact dimensions using an abrasive cutoff wheel or a cold-saw metal chop saw, ensuring all miter or square butt joints are clean, deburred, and free of mill scale.

Pro-Tip: Always cut your steel members 1/16-inch generous and grind them down to the final dimension to achieve tightly fitted joint gaps that yield superior MIG weld penetration.

Step 2: Tacking and Squaring the Perimeter Frame

Lay out the bottom rail, top rail, and vertical end stiles in the desired rectangular configuration on your flat surface. Clamp the members tightly against heavy-duty magnetic framing squares to maintain a true 90-degree angle at all four corners. Apply tack welds (approximately 1 inch long every 6 inches) at all four interior and exterior corners to lock the perimeter geometry in place. Measure diagonally from corner to corner in both directions; when both diagonal measurements are identical to within 1/16 of an inch, the frame is perfectly square.

Step 3: Installing Internal Bracing and Truss Systems

Gates wider than 10 feet require internal diagonal bracing or a full structural truss to counteract gravity and prevent the unsupported nose of the gate from sagging over time. Cut intermediate vertical pickets or spacer tubes according to your fence design specifications, maintaining consistent spacing (typically under 4 inches for child safety compliance). Weld a diagonal structural brace running upward from the bottom pivot or wheel corner toward the top trailing edge of the frame.

Warning: Never weld only the outside face of structural joints; execute full-perimeter fillet welds around every connecting tube junction to seal out moisture and maximize torsional rigidity.

Step 4: Mounting Roller Hardware and Guide Tracks

Weld heavy-duty mounting plates or direct receiver pockets onto the underside of the bottom rail to house your V-groove wheels. For standard V-track rolling gates, position one wheel near the leading edge and the second wheel approximately 12 to 18 inches from the trailing edge to optimize load distribution. If constructing a cantilever sliding gate, attach the upper and lower guide brackets and enclosed track channels according to the manufacturer's exact weight load charts. Anchor the matching inverted V-track securely into your concrete driveway using masonry sleeve anchors or concrete wedge bolts driven every 24 inches.

Step 5: Surface Preparation and Anti-Corrosion Coating

Grind all exposed weld spatter, sharp slag edges, and surface impurities smooth with a medium-grit flap disc on your angle grinder. Wipe down the entire steel frame with acetone or a specialized metal prep solvent to strip away manufacturing oils, grease, and fabrication residue. Apply two generous coats of zinc-rich rust-inhibiting primer to all bare steel surfaces, paying meticulous attention to crevices and weld seams. Finish the gate by spraying or rolling on two coats of high-grade, UV-resistant exterior metal paint in your preferred color.

Step 6: Final Hanging, Adjustment, and Latch Alignment

Hoist the cured gate assembly onto the installed ground track or cantilever rollers with the assistance of a helper. Install the upper guide roller brackets on your latch post or wall structure to keep the gate plumb and prevent it from tipping over during operation. Slide the gate manually back and forth along its full travel path, checking for smooth rolling resistance and adjusting the threaded axle bolts on the V-wheels or cantilever trucks until the gate remains level. Finally, weld or bolt the heavy-duty receiver latch and drop rod stops to the receiving post to complete the installation.

Technical Specifications and Material Selection Matrix

Common Rolling Gate Site Failures and Field Fixes

• Root Cause: Gate sags significantly at the leading edge over time due to insufficient diagonal bracing or frame torque.


  • Actionable Fix: Install an adjustable cable-and-turnbuckle tension truss kit running diagonally from the top leading edge down to the bottom pivot corner, then tighten the turnbuckle until the nose lifts back to level.
• Root Cause: V-groove wheels derail or bind frequently when traversing the ground track.


  • Actionable Fix: Inspect the concrete strip for frost heave or cracking, shim the low sections of the V-track with galvanized steel plates, and clear accumulated debris, gravel, or ice from the track groove.
• Root Cause: Premature rust bleeding through the paint finish along weld lines.


  • Actionable Fix: Grind the affected area down to bare metal to remove active oxidation, apply a chemical rust converter, re-prime with zinc-rich primer, and touch up with topcoat enamel.
• Root Cause: Excessive noise, squeaking, or shuddering during manual or automatic sliding operation.


  • Actionable Fix: Lubricate sealed roller bearings and track surfaces with a heavy-duty silicone or lithium spray grease rather than sticky petroleum oils that attract dirt and grit.

Frequently Asked Questions

How deep do I need to pour the concrete footing for the gate posts and track?

For standard residential rolling gates, pour concrete footings at least 24 to 36 inches deep and 12 inches in diameter to bypass the local frost line and provide adequate dead-load resistance. The runway strip supporting the ground track must be a minimum of 6 inches thick with welded wire mesh or rebar reinforcement to prevent cracking under daily rolling loads.

Can I automate a rolling gate that I build myself?

Yes, DIY rolling gates are fully compatible with automatic sliding gate operators. Ensure that your fabricated frame includes a securely welded mounting platform for the motorized gear box and that the rack-and-pinion gear teeth align cleanly with the drive gear on the motor housing.

What is the difference between a V-track gate and a cantilever sliding gate?

A V-track gate rolls directly on wheels supported by a physical track bolted to the driveway surface, making it cost-effective and simple to install. A cantilever gate utilizes internal enclosed tracks and hanging roller trucks mounted off to the side, allowing the gate to suspend entirely in the air without touching the driveway, which is ideal for areas prone to heavy snow, leaves, or dirt accumulation.

How do I calculate the correct total length for my sliding gate?

Measure the exact width of the clear vehicular opening, then add space for the required hardware overhangs, typically ranging from 12 to 24 inches total. If you are building a cantilever gate, you must also add a 30-to-50-percent counterbalance tail section to the overall frame length to ensure proper weight distribution.

What size steel tubing provides the best strength-to-weight ratio?

For standard residential driveway gates up to 16 feet wide, 2-inch by 2-inch square tubing with an 11-gauge (1/8-inch) wall thickness provides exceptional structural integrity without making the gate excessively heavy for manual operation or standard gate operators.
