How To Make Ranger Beads: A Precision Guide To DIY Pace Counters

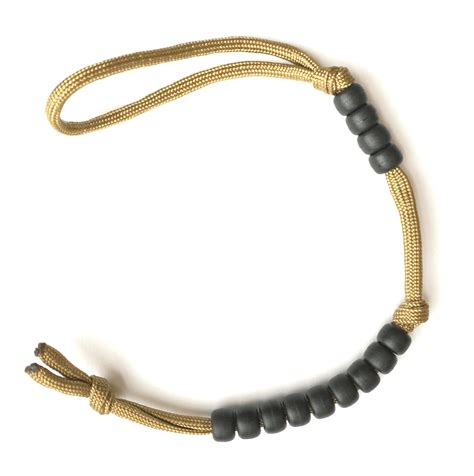

Ranger beads are manual land navigation tools constructed with 13 beads threaded onto a split length of 550 paracord to track distance via walking strides. By sliding nine lower beads to represent 100-meter increments and four upper beads for kilometer marks, users can maintain precise position tracking across 5,000 meters of travel. Calibrating this tactical tool to your personal pace count provides a highly reliable, battery-free alternative to electronic GPS systems.

Tactical Materials and Pace Calculation Preparation

Before assembling a pace counter, you must source materials that offer structural integrity and optimal physical friction. Standard survival gear relies on high-friction interfaces so that the beads do not slip accidentally when subjected to the physical shocks of running, crawling, or traversing dense brush.

Additionally, before field deployment, you must calculate your personal pace count—the precise number of double-steps you take to cover exactly 100 meters on foot. This measurement forms the mathematical foundation of manual dead reckoning.

Pre-Procedure Equipment & Parameter Checklist

• Core Material: 30 inches (76 cm) of genuine Type III 550 Mil-Spec nylon paracord (featuring a 7-strand inner core).
• Tracking Beads: 13 heavy-duty plastic, wood, or metal beads (standard 9mm pony beads work best) with an inner hole diameter of 4.5mm to 5.5mm.
• Execution Tools: Sharp utility shears or heavy-duty scissors, and a butane micro-torch or pressurized lighter.
• Calibration Gear: A pre-measured 100-meter flat track, a notepad, and a writing instrument.
• Prerequisite Knowledge: Solid understanding of the double-step pacing cycle (counting only when your designated lead foot strikes the ground).
• Project Benchmarks: Estimated assembly time of 15 minutes; material budget under $5.00; tracking accuracy of up to 98% when properly calibrated to terrain.

Step-by-Step Ranger Bead Construction and Calibration

Step 1: Prepare and Seal the Paracord

Measure and cut a 30-inch section of Type III 550 paracord. To prevent the inner nylon core strands from slipping out during the threading process, grasp both ends of the cut cord and heat them with a lighter until the nylon melts. Use a flat metal tool or the edge of the lighter casing to press the molten nylon into a sharp, tapered point. This hardened, needle-like tip makes it much easier to thread the cord through the narrow bead openings.

Step 2: Fashion the Gear Attachment Loop

Fold the prepared paracord exactly in half to find its center point. At the folded end, tie an overhand loop knot or a figure-eight loop knot approximately two inches below the fold. This creates a secure, closed loop at the top of your pace counter. You will use this loop to attach the completed ranger beads to a tactical vest, backpack strap, belt loop, or buttonhole using a simple girth hitch.

Step 3: Thread the Upper Kilometer Beads

Select four of your 13 beads to serve as your kilometer (or mile) counters. Take the two loose, melted ends of the paracord and feed them in opposite directions through the hole of the first bead (a method known as counter-threading), or thread both strands running in the same direction if the bead holes are wide enough.

Using a loop of fine wire or dental floss as a threader can make this step easier. Pull the bead up the cord until it rests snugly against the knot of your attachment loop. Repeat this process for the remaining three kilometer beads.

Warning: Test the friction level of these beads on the cordage. If the beads slide down under their own weight when shaken, the inner diameter of the beads is too wide or your paracord is too thin. The beads must remain firmly in place wherever you slide them on the cord.

Step 4: Tie the Center Separation Knot

Directly below the four kilometer beads, pull the beads up toward the top loop, leaving about 1.5 to 2 inches of free play. Below this travel space, tie a secure overhand knot across both strands of paracord. This knot acts as a physical divider, keeping the upper kilometer beads completely separate from the lower metric beads. The 1.5 to 2 inches of slack allows you to slide the four upper beads up or down to mark your progress clearly.

Step 5: Thread the Lower Metric Beads

Thread the remaining nine beads onto the two strands below the center separation knot. Use the same threading technique from Step 3, ensuring both strands of paracord pass through each bead. These nine beads represent 100-meter increments.

Once all nine beads are threaded, slide them up against the center separation knot.

Step 6: Tie the Terminal Anchor Knot

With the nine lower beads pushed up against the center knot, measure out 2 to 2.5 inches of free-travel cordage directly below them. At this mark, tie a final double overhand knot or a figure-eight knot across both strands. This terminal knot prevents the beads from sliding off the ends of the cord and provides the necessary physical clearance for you to slide individual beads up or down.

Trim any excess paracord below this terminal knot, leaving a quarter-inch tail. Melt these ends thoroughly with your lighter and press them flat to lock the final knot in place.

Step 7: Calibrate Your Pace Count

To use your completed ranger beads, you must calibrate them to your personal stride. Find a flat, straight 100-meter stretch of terrain. Start at the baseline, place your left foot forward, and begin walking at your normal operational pace.

Count every time your right foot (or chosen lead foot) strikes the ground. One complete double-step equals one pace.

Repeat this walk at least three times, average the numbers, and record your baseline 100-meter pace count. For most adults, this number falls between 60 and 70 double-steps.

Pro-Tip: Your pace count will change depending on your load and the terrain. Carry your full pack and gear during calibration to establish an accurate "loaded" pace count, as heavy gear naturally shortens your stride.

Material Specifications and Calibration Metrics

The table below outlines how various terrain profiles, environmental conditions, and physical loads impact your baseline 100-meter pace count. Use these standard adjustments to maintain navigation accuracy in the field.

Field Failure Modes and Tactical Diagnostics

Slipping Beads Along the Cordage

• Root Cause: The inner diameter of the bead holes is too large relative to the thickness of the 550 paracord. Alternatively, you may have gutted the paracord by removing its inner nylon core strands, which significantly reduces the cord's outer diameter and friction resistance.
• Actionable Fix: Rebuild the pace counter using non-gutted Type III paracord to maximize friction. If the beads still slip, tie a small micro-overhand knot between each individual bead to act as a physical stopper. You can also wrap a small layer of high-friction tape around the cord where the beads rest.

Jammed or Immobile Beads

• Root Cause: The paracord twisted inside the bead holes during assembly, or melted nylon residue from the cord's ends got stuck inside the bead channels.
• Actionable Fix: Slide the stuck beads down to the terminal knot. Run a thin metal wire or paperclip through the bead holes to clear out any melted nylon debris or dirt. If the fit is still too tight, gently expand the bead channels using a 3/16-inch drill bit before re-threading.

Stride-Count Drift on Mixed Slopes

• Root Cause: Failing to adjust your counts when transitioning from flat ground to steep slopes or rough terrain, which shortens your stride and causes you to underestimate the actual distance traveled.
• Actionable Fix: Apply the mathematical adjustments outlined in the calibration table above. On steep inclines, pull a metric bead down every 75 paces instead of your flat-ground baseline of 65 paces. Regularly cross-reference your bead count with distinct topographic features on your map.

Frayed Cordage Near Knots

• Root Cause: Constant friction from sliding the beads, combined with exposure to UV light and moisture, weakens the outer nylon sheath of the paracord.
• Actionable Fix: Periodically inspect your pace counter for signs of wear. If you notice fraying, singe the fuzzy fibers lightly with a lighter to fuse them back to the main cord. Replace the paracord entirely every twelve months of active field use to prevent a sudden break in the wilderness.

Frequently Asked Questions

Why are there only 9 beads on the bottom and 4 on the top?

The bottom section has nine beads to represent 100-meter increments up to 900 meters. When you complete the next 100 meters (reaching a total of 1,000 meters or 1 kilometer), you slide all nine lower beads back up to reset them, and pull down one of the four upper kilometer beads to record the completed kilometer. This system allows you to track up to 4,990 meters (or 5 kilometers once all beads are moved) before needing a complete reset.

What is the best size bead for making ranger beads?

Standard 9mm plastic pony beads with a 4mm or 5mm inner hole diameter are ideal. This size provides a snug, high-friction fit when threaded onto a doubled strand of standard Type III 550 paracord, ensuring the beads stay in place during active movement.

Should I gut the paracord when making pace counters?

No, it is highly recommended to keep the inner nylon core strands intact. Keeping the core inside the paracord maintains its thickness and round shape, which provides the necessary friction to keep your beads from sliding out of place on their own.

How do you attach ranger beads to your gear?

To attach your ranger beads, feed the top two-inch paracord loop through a MOLLE strap on your tactical vest, a backpack shoulder strap, or a belt loop. Pass the bottom end of the pace counter back through the loop and pull it tight. This creates a secure, reliable girth hitch that keeps the counter easily accessible while you walk.

Can you use ranger beads to measure miles instead of kilometers?

Yes, ranger beads can be calibrated to measure miles. To do this, determine your pace count for 1/10th of a mile (528 feet) instead of 100 meters. Each of the nine lower beads will then represent 1/10th of a mile, and each of the four upper beads will represent a full mile, allowing you to track distances up to five miles.

Upgrade Your Wilderness Navigation Toolkit

Using a reliable pace counter is a foundational skill for accurate land navigation and route finding. Craft your own custom ranger beads today to keep your navigation precise and independent of electronic devices on your next outdoor adventure.
